面向无现场控制的机载测深LiDAR安置角误差检校

doi:10.11947/j.AGCS.2025.20240185

测绘学报 ›› 2025, Vol. 54 ›› Issue (6): 1042-1053.doi: 10.11947/j.AGCS.2025.20240185

面向无现场控制的机载测深LiDAR安置角误差检校

宿殿鹏¹^,²(), 王斌¹, 买小争³, 孟煌³, 亓超¹^,⁴(), 阳凡林¹^,⁵

^1.山东科技大学测绘与空间信息学院，山东　青岛　266590
^2.中国科学院上海光学精密机械研究所，上海　201800
^3.自然资源部第七地形测量队，海南　海口　570203
^4.自然资源部海底科学重点实验室，浙江　杭州　310012
^5.自然资源部海洋测绘重点实验室，山东　青岛　266590

收稿日期:2024-04-28 修回日期:2025-05-05 出版日期:2025-07-14 发布日期:2025-07-14
通讯作者: 亓超 E-mail:sudianpeng@126.com;qichoice007@sdust.edu.cn
作者简介:宿殿鹏（1988—），男，博士，副教授，研究方向为水深测量和机载LiDAR测深数据处理。E-mail：sudianpeng@126.com
基金资助:
国家自然科学基金(42406186);中国博士后科学基金(2021M700155);青岛市关键技术攻关及产业化示范类项目(23-1-3-hygg-1-hy);青岛市自然科学基金(23-2-1-66-zyyd-jch);自然资源部渤海生态预警与保护修复重点实验室开放基金(2023107);山东省自然科学基金(ZR2023QD050);山东省高等教育青年创新科技计划(2023KJ088);自然资源部海底科学重点实验室开放基金(KLSG2306)

Calibration of placement angle errors of airborne bathymetric LiDAR without field control

Dianpeng SU¹^,²(), Bin WANG¹, Xiaozheng MAI³, Huang MENG³, Chao QI¹^,⁴(), Fanlin YANG¹^,⁵

^1.College of Geodesy and Geomatics, Shandong University of Science and Technology, Qingdao 266590, China
^2.Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
^3.The Seventh Topographic Surveying Bridge, Ministry of Natural Resources of China, Haikou 570203, China
^4.Key Laboratory of Submarine Geoscience, Ministry of Natural Resources, Hangzhou 310012, China
^5.Key Laboratory of Ocean Geomatics, Ministry of Natural Resources of China, Qingdao 266590, China

Received:2024-04-28 Revised:2025-05-05 Online:2025-07-14 Published:2025-07-14
Contact: Chao QI E-mail:sudianpeng@126.com;qichoice007@sdust.edu.cn
About author:SU Dianpeng (1988—), male, PhD, associate professor, majors in bathymetry survey and airborne LiDAR bathymetry processing. E-mail: sudianpeng@126.com
Supported by:
The National Natural Science Foundation of China(42406186);China Postdoctoral Science Foundation(2021M700155);Key Technology Research and Industrialization Demonstration Project of Qingdao(23-1-3-hygg-1-hy);Qingdao Natural Science Foundation(23-2-1-66-zyyd-jch);Open Innovative Fund of Key Laboratory of Ecological Prewarning and Protection of Bohai Sea, Ministry of Natural Resource(2023107);Natural Science Foundation of Shandong Province(ZR2023QD050);Project of Shandong Province Higher Educational Youth Innovation·Science and Technology Program(2023KJ088);Open Innovative Fund of Key Laboratory of Submarine Geosciences, Ministry of Natural Resources(KLSG2306)

摘要/Abstract

摘要：

机载LiDAR测深（ALB）系统可高效获取水上水下一体化地形数据，特别适合于浅水海岛礁等复杂地形的快速探测。然而，机载LiDAR测深过程中，由于激光测深雷达与惯性测量单元（IMU）之间产生的多传感器安置角误差，直接影响测深精度。针对海岸带等区域现场无检校控制点、测深雷达点云稀疏导致同名特征确定困难等问题，本文提出一种面向无现场控制的机载测深LiDAR安置角误差检校算法。首先，通过构建顾及同名角点距离差的光学零位误差检校模型，进行ALB系统内部码盘器件光学零位误差检校，为安置角检校奠定基础。然后，利用构建基于平面特征约束的安置角误差检校模型，结合随机采样一致性（random sample consensus，RANSAC）和最小二乘平差法，以单航带分层两平面距离最小为约束，进行俯仰角误差的检校；以双向航带两平面法向量夹角最小为约束，进行横滚角误差的检校；以双向航带特征房屋尖顶中心距离最小为约束，进行航向角误差的检校。为验证算法有效性，利用ALB系统Mapper 20KU试验数据进行精度评估。试验结果表明：陆地点精度的均方根误差（root mean square error，RMSE）为8.1 cm（与RTK测量陆地点对比），海底点测深精度（RMSE）为13.4 cm（与船载单波束测深点对比），满足《海洋工程地形测量规范》要求。本文算法能够有效减小ALB系统安置角误差，不仅可为机载LiDAR测深数据精细化处理提供技术支撑，还能够为海岸带等区域水下地形测量提供高精度数据，有利于促进海洋科学、海洋测绘等领域的相关研究和应用发展。

关键词: 机载LiDAR测深, ALB测深点位归算, 光学零位误差检校, 安置角误差检校

Abstract:

Airborne LiDAR bathymetry (ALB) system is highly effective in acquiring integrated topographic data both land and underwater, making them particularly suitable for rapid exploration of complex terrains such as shallow water islands and reefs. However, the presence of misalignment errors between the laser bathymetric radar and the inertial measurement unit (IMU) can lead to uncertainty in the water depth measurements obtained from the bathymetric process. Aiming at the problems that there are no calibration control points on site in coastal areas and the sparse bathymetric radar point cloud makes it difficult to identify the features with the same name, this paper proposes a calibration algorithm for the placement angle error of airborne bathymetric LiDAR without on-site control. Initially, by constructing an optical zero error correction model that considers the distance differences of corresponding corners, optical zero deviations of internal code devices in the ALB system are corrected, laying the groundwork for installation angle calibration. Subsequently, a calibration model for installation angle deviations is established based on plane feature constraints, combined with random sample consensus (RANSAC) and the least squares adjustment method. The pitch angle error is calibrated with the minimum distance between the two planes in a single flight strip as a constraint; the roll angle error is calibrated with the minimum angle between the normal vectors of the two planes in a two-way flight strip as a constraint; the heading angle error is calibrated with the minimum distance between the centers of the spires of the characteristic buildings in a two-way flight strip as a constraint. Two ALB dataset captured from Mapper 20KU are utilized to verify effectiveness. Experimental results demonstrate that the root mean square errors (RMSE) of land points (compared to RTK-measured land points) and seabed points (compared to single-beam shipborne depth measurements) accuracy are 8.1 cm and 13.4 cm, respectively. The bathymetric result can satisfy the requirements of the “Marine Engineering Topographic Survey Specifications”. The proposed method can effectively reduce installation angle deviations of ALB, not only providing technical support for the refined processing of airborne LiDAR bathymetry data but also offering high-precision data for underwater topographic measurements in coastal areas. Consequently, this work promotes research and application development in marine science and hydrographic surveying fields.

Key words: airborne LiDAR bathymetry, ALB bathymetric point position recalculation, optical zero error calibration, installation angle error calibration

中图分类号:

P229

宿殿鹏, 王斌, 买小争, 孟煌, 亓超, 阳凡林. 面向无现场控制的机载测深LiDAR安置角误差检校[J]. 测绘学报, 2025, 54(6): 1042-1053.

Dianpeng SU, Bin WANG, Xiaozheng MAI, Huang MENG, Chao QI, Fanlin YANG. Calibration of placement angle errors of airborne bathymetric LiDAR without field control[J]. Acta Geodaetica et Cartographica Sinica, 2025, 54(6): 1042-1053.

图/表 12

图1

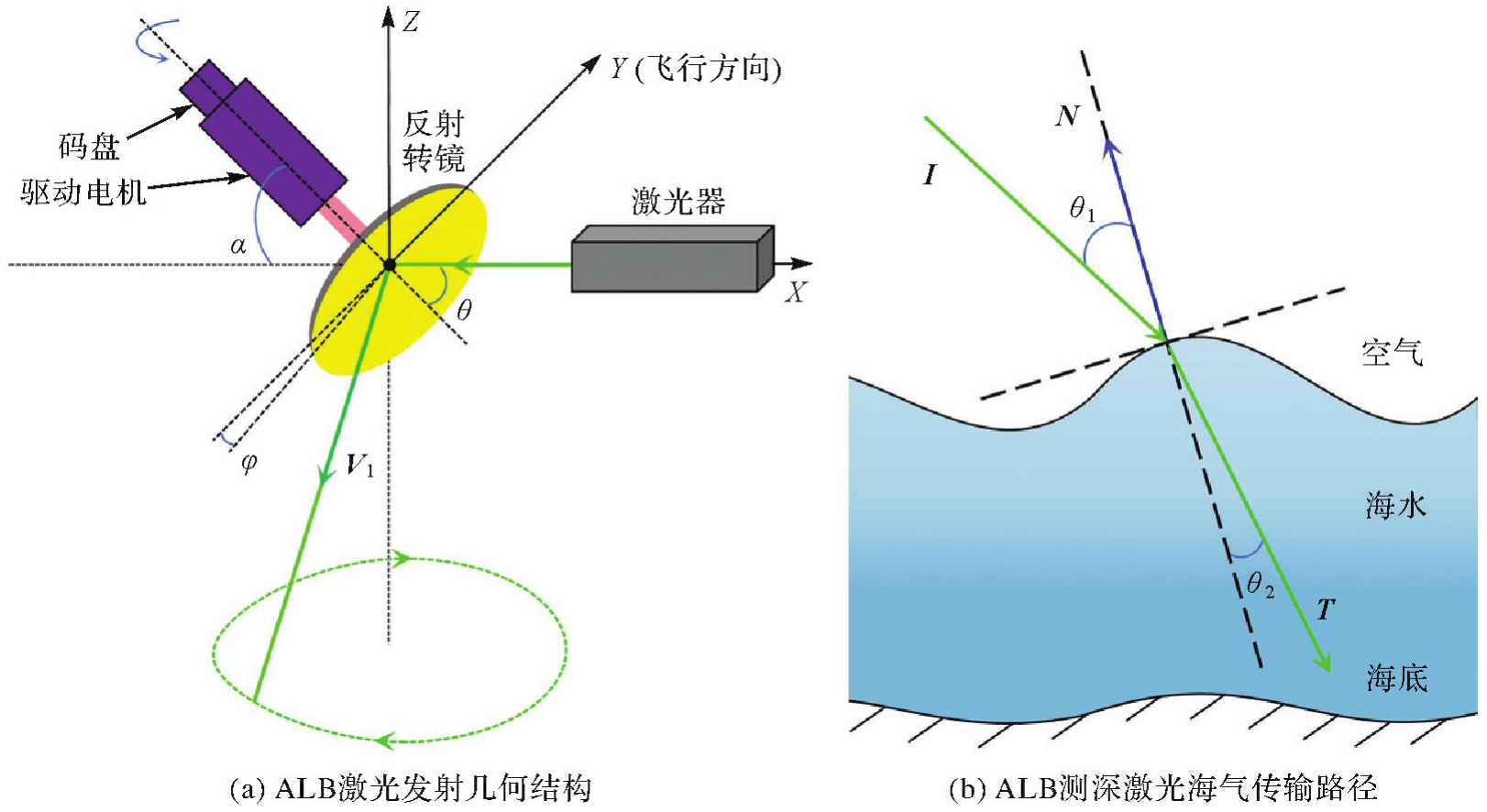

图2

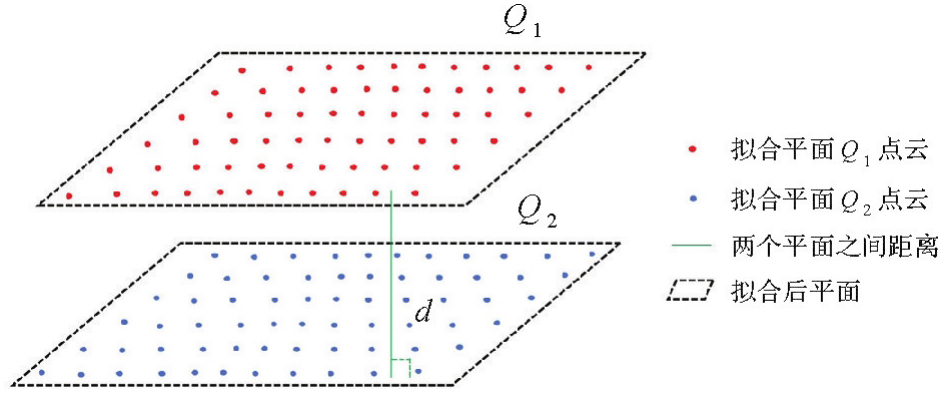

图3

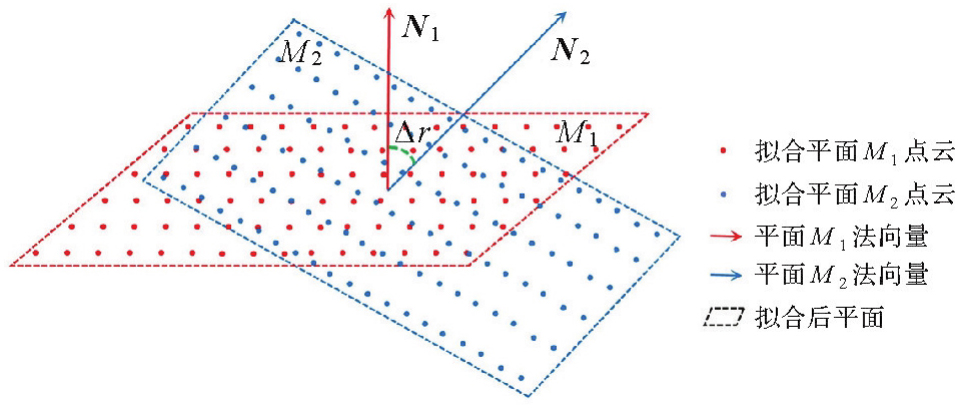

图4

图5

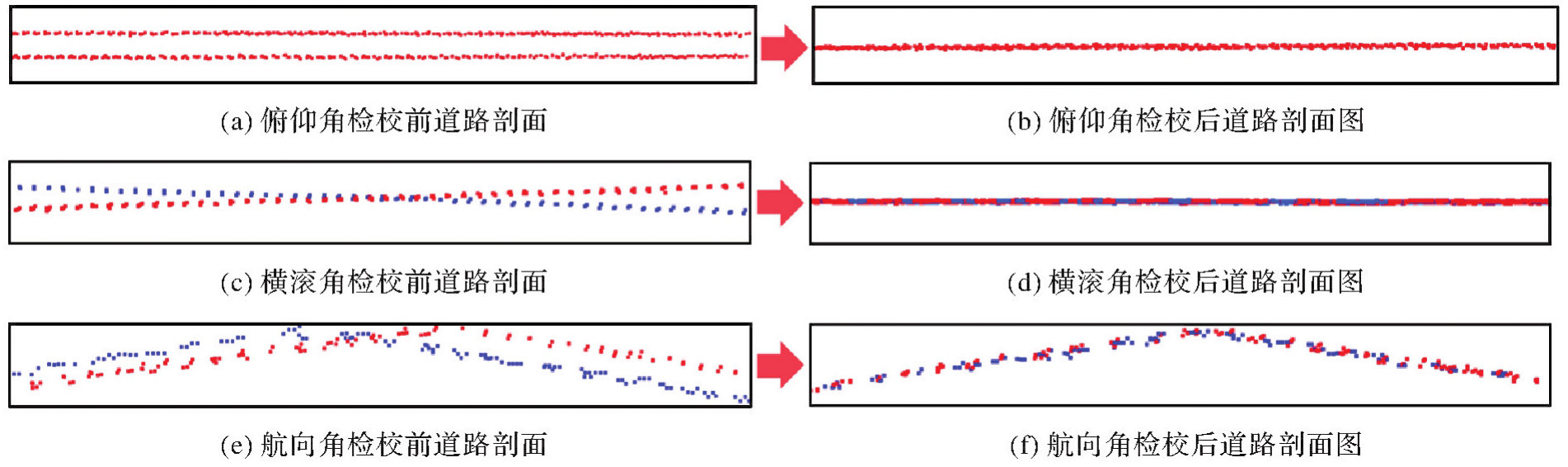

图6

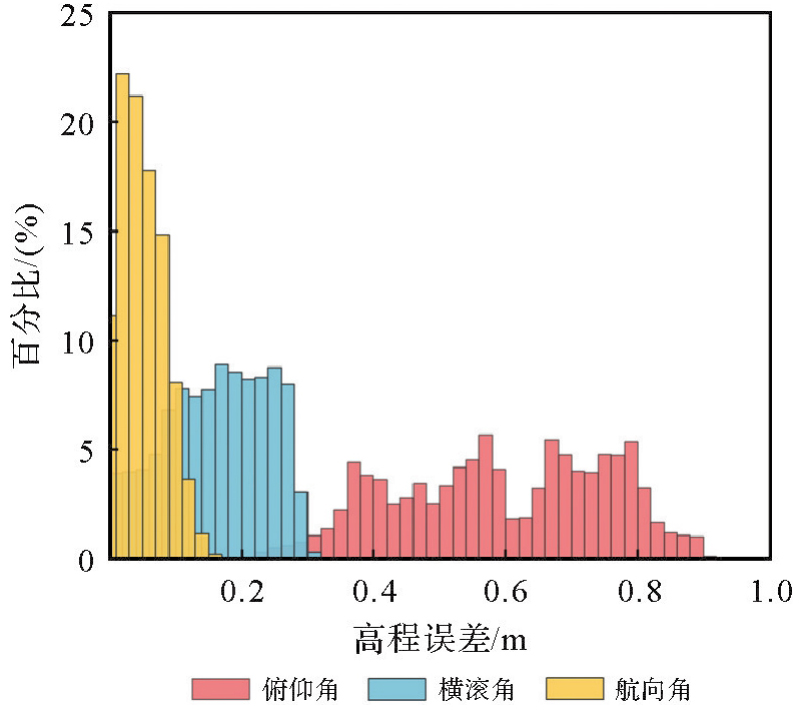

图7

表1

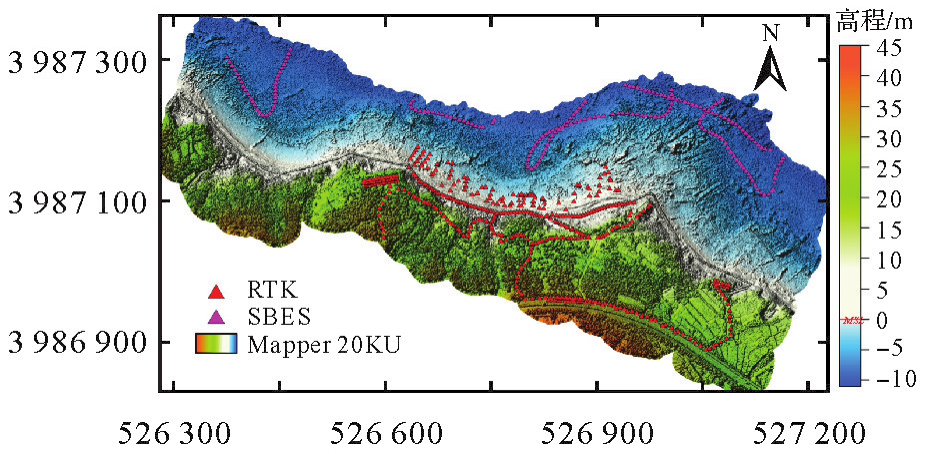

图8

图9

表2

图10

参考文献 33

[1]	翟国君, 黄谟涛. 海洋测量技术研究进展与展望[J]. 测绘学报, 2017, 46(10): 1752-1759. DOI: . doi: 10.11947/j.AGCS.2017.20170309
	ZHAI Guojun, HUANG Motao. The review of development of marine surveying technology[J]. Acta Geodaetica et Cartographica Sinica, 2017, 46(10): 1752-1759. DOI: . doi: 10.11947/j.AGCS.2017.20170309
[2]	黄谟涛, 翟国君, 欧阳永忠, 等. 机载激光测深中的波浪改正技术[J]. 武汉大学学报(信息科学版), 2003, 28(4): 389-392.
	HUANG Motao, ZHAI Guojun, OUYANG Yongzhong, et al. Wave correction in airborne laser hydrography[J]. Geomatics and Information Science of Wuhan University, 2003, 28(4): 389-392.
[3]	宿殿鹏. 机载LiDAR测深数据处理关键技术研究[J]. 测绘学报, 2022, 51(3): 473. DOI: . doi: 10.11947/j.AGCS.2022.20200542
	SU Dianpeng. Key technologies for processing airborne LiDAR bathymetry[J]. Acta Geodaetica et Cartographica Sinica, 2022, 51(3): 473. DOI: . doi: 10.11947/j.AGCS.2022.20200542
[4]	丁凯, 李清泉, 朱家松, 等. 运用MODIS遥感数据评测南海北部区域机载激光雷达测深系统参数[J]. 测绘学报, 2018, 47(2): 180-187. DOI: . doi: 10.11947/j.AGCS.2018.20170536
	DING Kai, LI Qingquan, ZHU Jiasong, et al. Evaluation of airborne LiDAR bathymetric parameters on the Northern South China Sea based on MODIS data[J]. Acta Geodaetica et Cartographica Sinica, 2018, 47(2): 180-187. DOI: . doi: 10.11947/j.AGCS.2018.20170536
[5]	刘焱雄, 郭锴, 何秀凤, 等. 机载激光测深技术及其研究进展[J]. 武汉大学学报(信息科学版), 2017, 42(9): 1185-1194.
	LIU Yanxiong, GUO Kai, HE Xiufeng, et al. Research progress of airborne laser bathymetry technology[J]. Geomatics and Information Science of Wuhan University, 2017, 42(9): 1185-1194.
[6]	亓超, 周丰年, 吴敬文, 等. 基于机载LiDAR测深水体波形的漫衰减系数提取方法[J]. 海洋学报, 2021, 43(1): 147-154.
	QI Chao, ZHOU Fengnian, WU Jingwen, et al. Extraction method for diffuse attenuation coefficient based on airborne LiDAR bathymetric water column waveform[J]. Haiyang Xuebao, 2021, 43(1): 147-154.
[7]	王丹菂, 徐青, 邢帅, 等. 机载激光测深近水面渗透误差修正的半经验波形分解方法[J]. 测绘学报, 2023, 52(6): 944-955. DOI: . doi: 10.11947/j.AGCS.2023.20210603
	WANG Dandi, XU Qing, XING Shuai, et al. Semi-empirical waveform decomposition method for correction of near water surface penetration error in airborne LiDAR bathymetry[J]. Acta Geodaetica et Cartographica Sinica, 2023, 52(6): 944-955. DOI: . doi: 10.11947/j.AGCS.2023.20210603
[8]	YANG Fanlin, QI Chao, SU Dianpeng, et al. An airborne LiDAR bathymetric waveform decomposition method in very shallow water: a case study around Yuanzhi Island in the South China Sea[J]. International Journal of Applied Earth Observation and Geoinformation, 2022, 109: 102788.
[9]	亓超, 宿殿鹏, 阳凡林, 等. 机载LiDAR测深中海底地形坡度的影响及改正[J]. 遥感学报, 2022, 26(12): 2642-2654.
	QI Chao, SU Dianpeng, YANG Fanlin, et al. Analysis and correction in the airborne LiDAR bathymetric error caused by the effect of seafloor topography slope[J]. National Remote Sensing Bulletin, 2022, 26(12): 2642-2654.
[10]	申二华, 张永生, 李凯. 圆扫描式机载激光测深系统检校模型及仿真分析[J]. 测绘学报, 2016, 45(8): 943-951. DOI: . doi: 10.11947/j.AGCS.2016.20150532
	SHEN Erhua, ZHANG Yongsheng, LI Kai. The calibration model and simulation analysis of circular scanning airborne laser bathymetry system[J]. Acta Geodaetica et Cartographica Sinica, 2016, 45(8): 943-951. DOI: . doi: 10.11947/j.AGCS.2016.20150532
[11]	LI Xingxing, ZHANG Xiaohong, NIU Xiaoji, et al. Progress and achievements of multi-sensor fusion navigation in China during 2019—2023[J]. Journal of Geodesy and Geoinformation Science, 2023, 6(3): 102-114.
[12]	姚连璧, 汪志飞, 孙海丽. 车载激光扫描仪外参数标定方法设计与实现[J]. 同济大学学报(自然科学版), 2016, 44(1): 161-166.
	YAO Lianbi, WANG Zhifei, SUN Haili. Design and implementation of vehicle laser scanner's external parameter calibration[J]. Journal of Tongji University (Natural Science), 2016, 44(1): 161-166.
[13]	郭恒林, 景冬, 卢秀山, 等. 经纬仪工业测量系统在标定圆形GNSS天线中的应用[J]. 测绘工程, 2021, 30(6): 56-59.
	GUO Henglin, JING Dong, LU Xiushan, et al. Application of the odolite industrial measurement system to calibrating circular GNSS antenna[J]. Engineering of Surveying and Mapping, 2021, 30(6): 56-59.
[14]	GLENNIE C, LICHTI D D. Static calibration and analysis of the velodyne HDL-64E S2 for high accuracy mobile scanning[J]. Remote Sensing, 2010, 2(6): 1610-1624.
[15]	俞家勇, 程烺, 田茂义, 等. 基于参考面约束的车载移动测量系统安置参数检校方法[J]. 红外与激光工程, 2020, 49(7): 20190524.
	YU Jiayong, CHENG Lang, TIAN Maoyi, et al. Boresight parameters calibration method of VMLS system based on reference planar features constraint[J]. Infrared and Laser Engineering, 2020, 49(7): 20190524.
[16]	张小红. 机载激光雷达测量技术理论与方法[M]. 武汉: 武汉大学出版社, 2007.
	ZHANG Xiaohong. Theory and method of airborne LiDAR measurement technology[M]. Wuhan: Wuhan University Press, 2007.
[17]	HABIB A F, KERSTING A P, RUIFANG Z, et al. LiDAR strip adjustment using conjugate linear features in overlapping strips[J]. Proceedings of International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences, 2008: 385-390.
[18]	胡国军, 朱精果, 刘汝卿. Mars-LiDAR系统误差分析及安置角误差飞行检校[J]. 红外与激光工程, 2016, 45(12): 1217009.
	HU Guojun, ZHU Jingguo, LIU Ruqing. Error analysis of Mars-LiDAR system and calibration of installation angle error[J]. Infrared and Laser Engineering, 2016, 45(12): 1217009.
[19]	张靖, 江万寿, 姜三. 基于虚拟点模型的机载LiDAR系统自动检校方法[J]. 测绘学报, 2013, 42(3): 389-396.
	ZHANG Jing, JIANG Wanshou, JIANG San. Automated airborne LiDAR system calibration using virtual tie point model[J]. Acta Geodaetica et Cartographica Sinica, 2013, 42(3): 389-396.
[20]	PUSZTAI Z, EICHHARDT I, HAJDER L. Accurate calibration of multi-LiDAR-multi-camera systems[J]. Sensors, 2018, 18(7): 2139.
[21]	陈洁, 肖春蕾, 李京. 无检校场的机载LiDAR点云数据检校方法[J]. 国土资源遥感, 2015, 27(4): 27-33.
	CHEN Jie, XIAO Chunlei, LI Jing. Calibration of airborne LiDAR cloud point data with no calibration field[J]. Remote Sensing for Land & Resources, 2015, 27(4): 27-33.
[22]	李伟, 唐伶俐, 吴昊昊, 等. 轻小型无人机载激光雷达系统研制及电力巡线应用[J]. 遥感技术与应用, 2019, 34(2): 269-274.
	LI Wei, TANG Lingli, WU Haohao, et al. Development of mini UAV-borne LiDAR system and it's application of power line inspection[J]. Remote Sensing Technology and Application, 2019, 34(2): 269-274.
[23]	GONSALVES M O. A comprehensive uncertainty analysis and method of geometric calibration for a circular scanning airborne LiDAR[M]. Mississippi: The University of Southern Mississippi, 2010.
[24]	王致华, 张爱武, 王书民, 等. 基于重叠航带的机载激光雷达系统检校[J]. 中国激光, 2014, 41(2): 214003.
	WANG Zhihua, ZHANG Aiwu, WANG Shumin, et al. Airborne radar calibration system based on the overlap strip[J]. Chinese Journal of Lasers, 2014, 41(2): 214003.
[25]	黎东, 王成, 习晓环, 等. 共面约束的机载LiDAR IMU安置角误差自动检校方法[J]. 测绘科学, 2017, 42(9): 98-103.
	LI Dong, WANG Cheng, XI Xiaohuan, et al. An automatic bore-sight calibration method for airborne LiDAR based on co-planar constrains[J]. Science of Surveying and Mapping, 2017, 42(9): 98-103.
[26]	杨书娟, 张珂殊, 邵永社. 机载激光雷达系统的航带平差法[J]. 中国激光, 2017, 44(12): 1210003.
	YANG Shujuan, ZHANG Keshu, SHAO Yongshe. Strip adjustment method for airborne LiDAR system[J]. Chinese Journal of Lasers, 2017, 44(12): 1210003.
[27]	贺岩, 陶邦一, 俞家勇, 等. 机载激光测深技术及应用[J]. 中国激光, 2024, 51(11): 1101016.
	HE Yan, TAO Bangyi, YU Jiayong, et al. Development of airborne LiDAR bathymetric technology and application[J]. Chinese Journal of Lasers, 2024, 51(11): 1101016.
[28]	俞家勇, 卢秀山, 田茂义, 等. 机载激光雷达测深系统定位模型与视准轴误差影响分析[J]. 红外与激光工程, 2019, 48(6): 0606005.
	YU Jiayong, LU Xiushan, TIAN Maoyi, et al. Effect analysis of positioning model and boresight error analysis of airborne LiDAR bathymetry system[J]. Infrared and Laser Engineering, 2019, 48(6): 0606005.
[29]	王显军. 光电轴角编码器细分信号误差及精度分析[J]. 光学精密工程, 2012, 20(2): 379.
	WANG Xianjun. Errors and precision analysis of subdivision signals for photoelectric angle encoders[J]. Optics and Precision Engineering, 2012, 20(2): 379.
[30]	DU Libin, CUI Tong, MENG Xiangqian, et al. Analysis of scanning systematic errors for airborne laser bathymetry[J]. Applied Optics, 2023, 62(26): 6939-6951.
[31]	宿殿鹏, 闫豆豆, 陈亮, 等. 机载LiDAR测深点云SVB联合滤波算法[J]. 测绘学报, 2023, 52(4): 614-623. DOI: . doi: 10.11947/j.AGCS.2023.20220248
	SU Dianpeng, YAN Doudou, CHEN Liang, et al. Surface-volume-bottom joint-filtering algorithm for airborne LiDAR bathymetric point cloud[J]. Acta Geodaetica et Cartographica Sinica, 2023, 52(4): 614-623. DOI: . doi: 10.11947/j.AGCS.2023.20220248
[32]	XU Wenxue, GUO Kai, LIU Yanxiong, et al. Refraction error correction of airborne LiDAR bathymetry data considering sea surface waves[J]. International Journal of Applied Earth Observation and Geoinformation, 2021, 102: 102402.
[33]	QUAN X, FRY E S. Empirical equation for the index of refraction of seawater[J]. Applied Optics, 1995, 34(18): 3477-3480.

方法	对比同名点数	最大值/cm	最小值/cm	MAE/cm	RMSE/cm
本文算法（无控制点）	150	7.1	0.1	2.4	4.2
有控制点算法	150	6.8	0.1	2.2	4.1

精度对比	对比同名点数	方法	最大值/cm	最小值/cm	MAE/cm	RMSE/cm
陆地点云（与RTK对比）	493	有控制点算法本文算法（无控制点）	18.3	0.1	6.2	8.0
陆地点云（与RTK对比）	493	有控制点算法本文算法（无控制点）	17.9	0.1	6.5	8.1
水下点云（与SBES对比）	197	有控制点算法本文算法（无控制点）	27.1	0.1	11.2	13.2
水下点云（与SBES对比）	197	有控制点算法本文算法（无控制点）	27.6	0.1	11.5	13.4
