结构特征约束的三维浅剖声呐层界提取

doi:10.11947/j.AGCS.2025.20240143

测绘学报 ›› 2025, Vol. 54 ›› Issue (2): 262-271.doi: 10.11947/j.AGCS.2025.20240143

• 海洋测量 • 上一篇

结构特征约束的三维浅剖声呐层界提取

李邵波¹^,²^,³(), 赵建虎⁴^,⁵, 王爱学⁴^,⁵(), 丁咚⁶, 吴云龙¹^,³

^1.中国地质大学（武汉）地理与信息工程学院，湖北　武汉　430078
^2.自然资源部海底科学重点实验室，浙江　杭州　310012
^3.中国地质大学（武汉）区域生态过程与环境演变湖北省重点实验室，湖北　武汉　430074
^4.武汉大学测绘学院，湖北　武汉　430079
^5.武汉大学海洋研究院，湖北　武汉　430079
^6.中国海洋大学海洋地球科学学院，山东　青岛　266100

收稿日期:2024-04-11 发布日期:2025-03-11
通讯作者: 王爱学 E-mail:lishaobo@cug.edu.cn;axwang@sgg.whu.edu.cn
作者简介:李邵波（1995—），男，博士，副教授，研究方向为海洋测绘。　E-mail：lishaobo@cug.edu.cn
基金资助:
国家自然科学基金(42304049);中国博士后科学基金(2023M743282);湖北省自然科学基金(2023AFB017);自然资源部海底科学重点实验室开放基金(KLSG2406)

Three-dimensional sub-bottom profiler sonar horizon picking with structural feature constraints

Shaobo LI¹^,²^,³(), Jianhu ZHAO⁴^,⁵, Aixue WANG⁴^,⁵(), Dong DING⁶, Yunlong WU¹^,³

^1.School of Geography and Information Engineering, China University of Geosciences, Wuhan 430078, China
^2.Key Laboratory of Submarine Geosciences, Ministry of Natural Resources, Hangzhou 310012, China
^3.Hubei Key Laboratory of Regional Ecology and Environmental Change, China University of Geosciences, Wuhan 430074, China
^4.School of Geodesy and Geomatics, Wuhan University, Wuhan 430079, China
^5.Institute of Marine Science and Technology, Wuhan University, Wuhan 430079, China
^6.College of Marine Geosciences, Ocean University of China, Qingdao 266100, China

Received:2024-04-11 Published:2025-03-11
Contact: Aixue WANG E-mail:lishaobo@cug.edu.cn;axwang@sgg.whu.edu.cn
About author:LI Shaobo (1995—), male, PhD, associate professor, majors in marine surveying and mapping.　E-mail: lishaobo@cug.edu.cn
Supported by:
The National Natural Science Foundation of China(42304049);China Postdoctoral Science Foundation(2023M743282);Hubei Provincial Natural Science Foundation of China(2023AFB017);The Key Laboratory of Submarine Geosciences, Ministry of Natural Resources(KLSG2406)

摘要/Abstract

摘要：

三维浅剖弥补了二维浅剖在水平成像空间覆盖度上的缺陷，为浅地层三维信息高质量获取提供了可能。但当前浅地层散射回波干扰严重、层界空间变化复杂，传统方法仅能实现二维层界提取且难以准确表达浅地层底质三维空间分布。为此，本文提出了基于层界面状结构和非垂直结构特征约束的浅地层三维层界结构增强RSE3D算法，提升层界提取的效果。首先，给出了顾及采样点空间分布的体数据生成方法，实现三维浅剖体数据生成；然后，将地层结构近似为面状结构并联合非垂直结构特征，提出了RSE3D算法，该方法有效压制了散射等回波干扰，凸显有了有效信息；最后，在此增强处理结果的基础上，借助阈值法实现了层界提取。经实测试验可知，本文方法的层界提取各项指标值均优于80%，体现了该方法在层界提取上的优越性。

关键词: 三维浅地层剖面仪, 层界提取, 结构特征, 增强滤波

Abstract:

Three-dimensional sub-bottom profiler (3D SBP) makes up for the deficiency of two-dimensional sub-bottom profile in the spatial coverage of horizontal imaging, and makes it possible to obtain 3D information of sub-bottom with high quality. However, at present, the interference of scattered echoes in sub-bottom is serious, the spatial changes of horizons are complex, and the traditional methods can only achieve two-dimensional horizon picking and it is difficult to express the three-dimensional spatial distribution of sub-bottom. Therefore, a three-dimensional reflector structure enhancement (RSE3D) algorithm based on plate-like and non-vertical structural features is proposed to improve the effect of horizon picking. Firstly, a volume data generation method considering the spatial distribution of sampling points is presented to realize the 3D sub-bottom profile data generation. Then, the RSE3D algorithm is proposed by approximating the formation structure as a plate structure and taking into account the non-vertical structural features. The method can effectively suppress the echo interference such as scattering and highlight the effective information. On the basis of the enhanced processing results, the horizon picking is finally realized by using the threshold method. Experimental verification and analysis show the index values of horizon picking are better than 80%, which represents the superiority of the proposed algorithm in horizon picking.

Key words: three-dimensional sub-bottom profiler, horizon picking, structural features, enhancement filtering

中图分类号:

P229

李邵波, 赵建虎, 王爱学, 丁咚, 吴云龙. 结构特征约束的三维浅剖声呐层界提取[J]. 测绘学报, 2025, 54(2): 262-271.

Shaobo LI, Jianhu ZHAO, Aixue WANG, Dong DING, Yunlong WU. Three-dimensional sub-bottom profiler sonar horizon picking with structural feature constraints[J]. Acta Geodaetica et Cartographica Sinica, 2025, 54(2): 262-271.

图/表 12

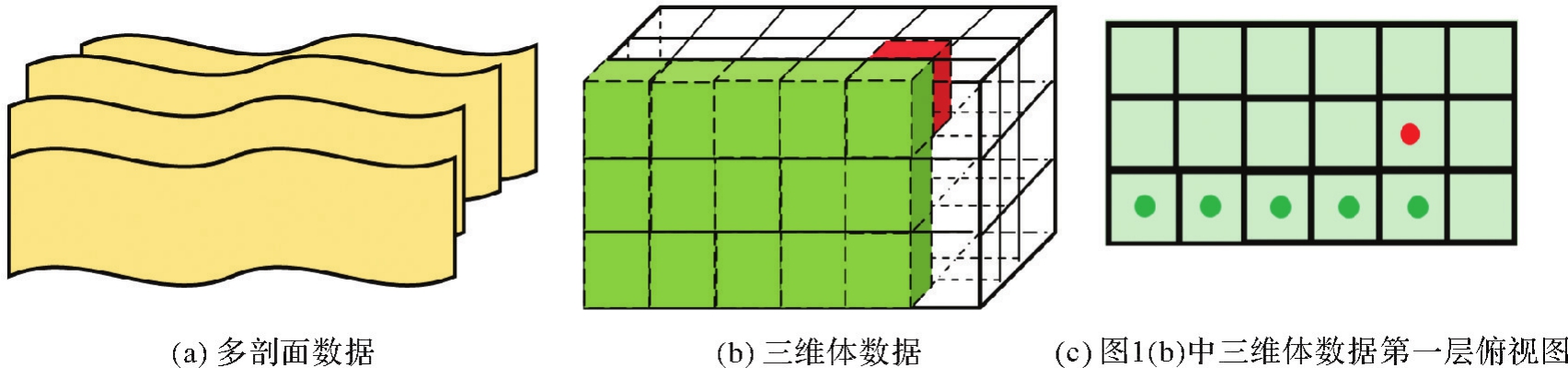

图1

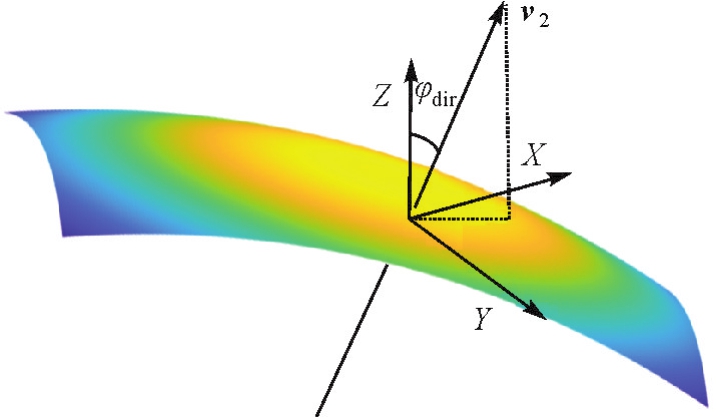

图2

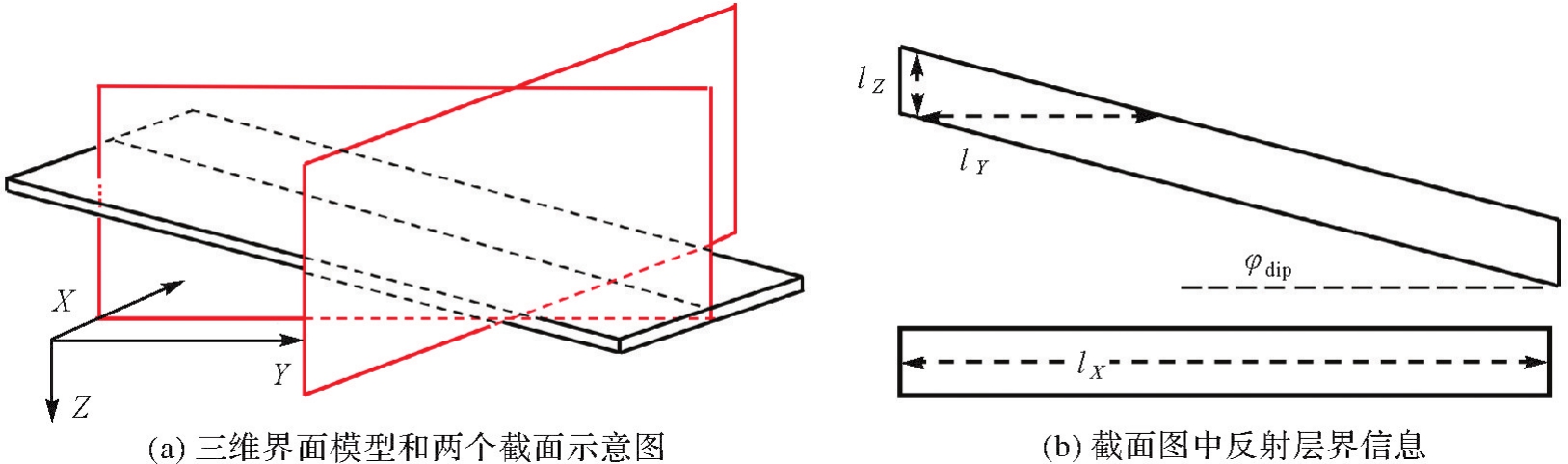

图3

图4

图5

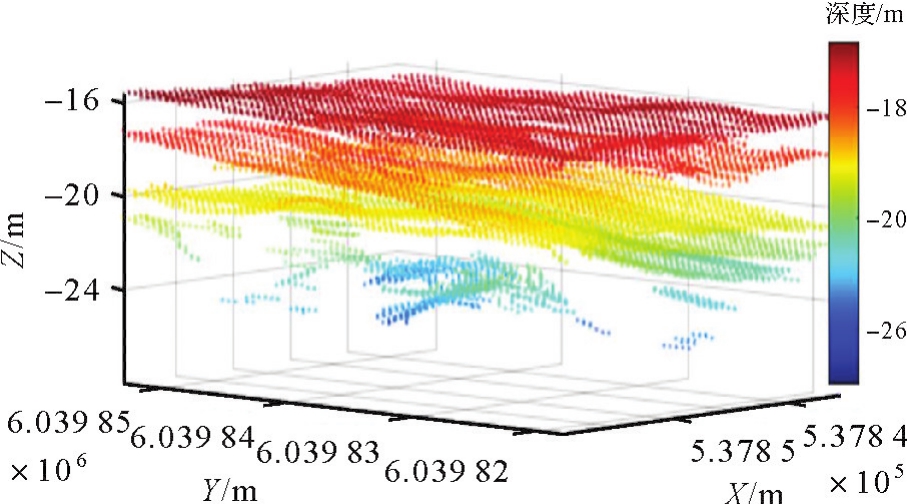

图6

表1

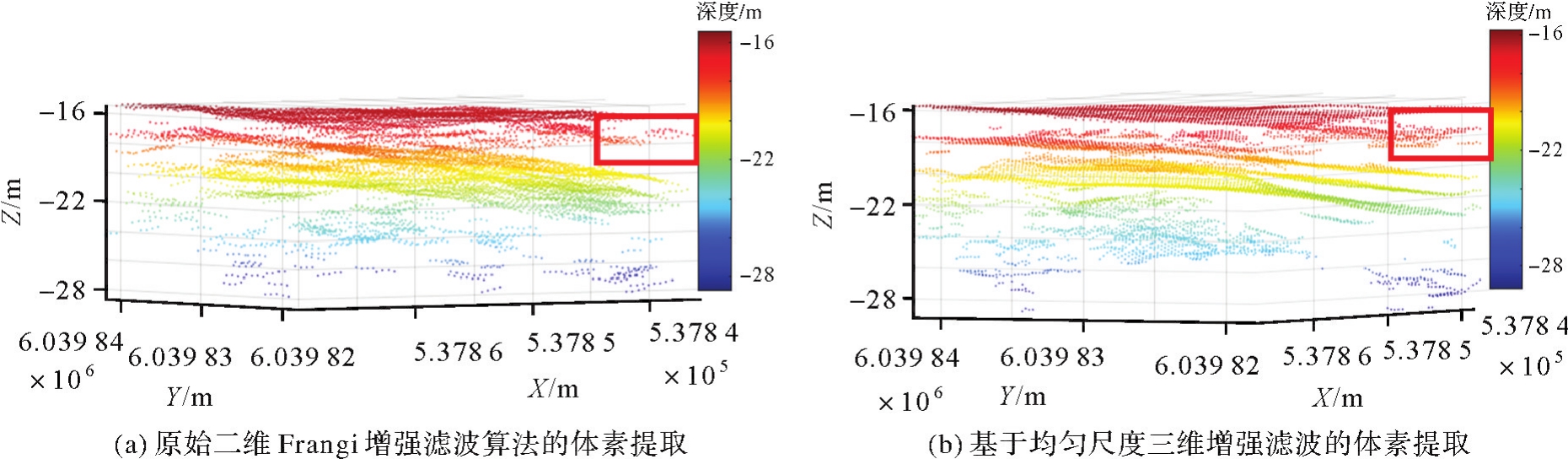

图7

表2

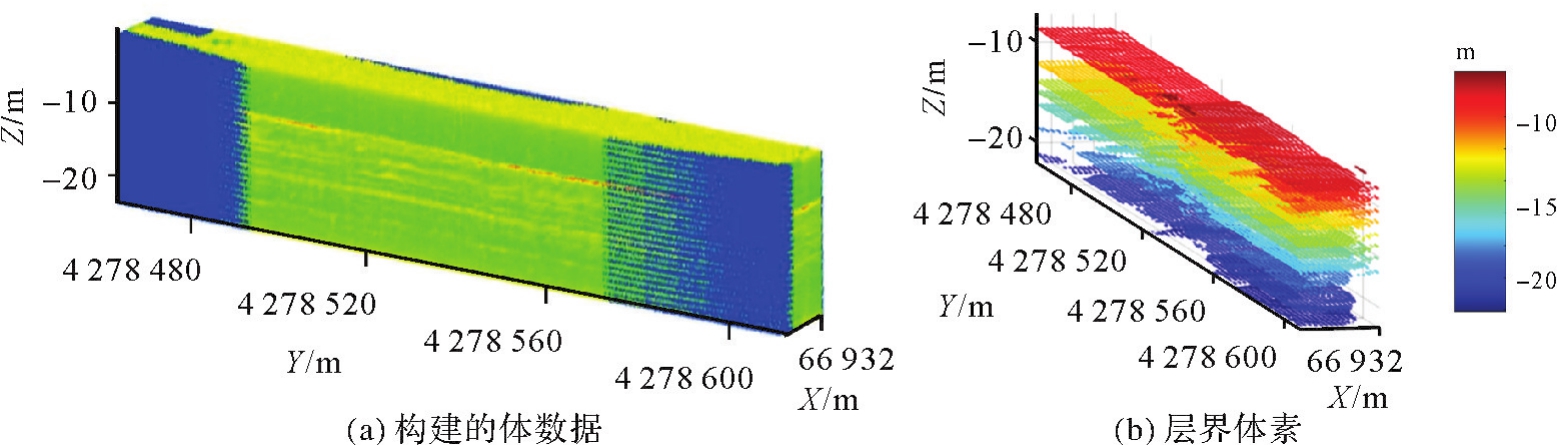

图8

表3

表4

参考文献 27

[1]	赵建虎, 欧阳永忠, 王爱学. 海底地形测量技术现状及发展趋势[J]. 测绘学报, 2017, 46(10): 1786-1794. DOI:. doi: 10.11947/j.AGCS.2017.20170276
	ZHAO Jianhu, OUYANG Yongzhong, WANG Aixue. Status and development tendency for seafloor terrain measurement technology[J]. Acta Geodaetica et Cartographica Sinica, 2017, 46(10): 1786-1794. DOI:. doi: 10.11947/j.AGCS.2017.20170276
[2]	XUE Shuqiang, XU Tianhe, LIU Yanxiong, et al. Recent advances in marine geodesy of China[J]. Journal of Geodesy and Geoinformation Science, 2023, 6(3): 58-66.
[3]	ZHENG Gen, ZHAO Jianhu, ZHANG Hongmei. An adaptive SVP simplification based on area difference[J]. Journal of Geodesy and Geoinformation Science, 2019, 2(4): 53-63.
[4]	GUTOWSKI M, BULL J M, DIX J K, et al. 3D high-resolution acoustic imaging of the sub-seabed[J]. Applied Acoustics, 2008, 69(3): 262-271.
[5]	LI Shaobo, ZHAO Jianhu, ZHANG Hongmei, et al. Surface extraction and segmentation from 3D underwater sub-bottom point clouds using enhancement filtering and global energy optimization[J]. IEEE Transactions on Geoscience and Remote Sensing, 2022, 60: 1-14.
[6]	PLETS R M K, DIX J K, ADAMS J R, et al. 3D reconstruction of a shallow archaeological site from high-resolution acoustic imagery: the Grace Dieu[J]. Applied Acoustics, 2008, 69(5): 399-411.
[7]	PLETS R M K, DIX J K, ADAMS J R, et al. The use of a high-resolution 3D Chirp sub-bottom profiler for the reconstruction of the shallow water archaeological site of the Grace Dieu (1439), River Hamble, UK[J]. Journal of Archaeological Science, 2009, 36(2): 408-418.
[8]	KIM M, KIM S D, HAHM J, et al. GPR image enhancement based on frequency shifting and histogram dissimilarity[J]. IEEE Geoscience and Remote Sensing Letters, 2018, 15(5): 684-688.
[9]	KIM Y J, CHEONG S, LEE C, et al. Application of pseudo-3D Chirp sub-bottom profiler survey: a case study of ancient wooden shipwreck site, west coast of Korea[J]. Exploration Geophysics, 2021, 52(1): 109-121.
[10]	KIM Y J, KOO N H, CHEONG S, et al. A case study on pseudo 3D Chirp sub-bottom profiler (SBP) survey for the detection of a fault trace in shallow sedimentary layers at gas hydrate site in the Ulleung Basin, East Sea[J]. Journal of Applied Geophysics, 2016, 133: 98-115.
[11]	VARDY M E, DIX J K, HENSTOCK T J, et al. Decimeter-resolution 3D seismic volume in shallow water: a case study in small-object detection[J]. Geophysics, 2008, 73(2): B33-B40.
[12]	VARDY M E, VANNESTE M, HENSTOCK T J, et al. State-of-the-art remote characterization of shallow marine sediments: the road to a fully integrated solution[J]. Near Surface Geophysics, 2017, 15(4): 387-402.
[13]	丁维凤, 潘国富, 苟铮慷. 基于能量比与互相关法的地震剖面反射同相轴交互自动拾取研究[J]. 海洋学报, 2012, 34(3): 88-91.
	DING Weifeng, PAN Guofu, GOU Zhengkang. The research of interactive auto-pickup of seismic events based on energy ratio and Cross-correlation[J]. Acta Oceanologica Sinica, 2012, 34(3): 888-91.
[14]	李鹏, 冯晅, 王典, 等. 地震剖面同相轴自动追踪技术研究[J]. 吉林大学学报(地球科学版), 2008, 38(S1): 76-79.
	LI Peng, FENG Xuan, WANG Dian, et al. Auto tracking the syncphase axis of seismic profiles[J]. Journal of Jilin University (Earth Science Edition), 2008, 38(S1): 76-79.
[15]	HALE D, EMANUEL J. Atomic meshing of seismic images[C]//Proceedings of 2002 SEG Technical Program Expanded Abstracts. Saltlake: SEG, 2002: 2126-2129.
[16]	LOMASK J, BIONDI B, SHRAGGE J. Image segmentation for tracking salt boundaries[C]//Proceedings of 2004 SEG Technical Program Expanded Abstracts. Denver: SEG, 2004: 2443-2446.
[17]	HOLLT T, BEYER J, GSCHWANTNER F, et al. Interactive seismic interpretation with piecewise global energy minimization[C]//Proceedings of 2011 IEEE Pacific Visualization Symposium. Hong Kong: IEEE, 2011: 59-66.
[18]	PATEL D, BRUCKNER S, VIOLA I, et al. Seismic volume visualization for horizon extraction[C]//Proceedings of 2010 IEEE Pacific Visualization Symposium. Taipei: IEEE, 2010: 73-80.
[19]	FARAKLIOTI M, PETROU M. Horizon picking in 3D seismic data volumes[J]. Machine Vision & Applications, 2004, 15(4): 216-219.
[20]	LI Shaobo, ZHAO Jianhu, ZHANG Hongmei, et al. A novel horizon picking method on sub-bottom profiler sonar images[J]. Remote Sensing, 2020, 12(20): 3322.
[21]	FRANGIA F, NIESSEN W J, VINCKEN K L, et al. Multiscale vessel enhancement filtering[C]//Proceedings of 1998 International Conference on Medical Image Computing and Computer-Assisted Intervention. Boston: Springer, 1998: 130-137.
[22]	YE D H, KWON D, YUN I D, et al. Fast multiscale vessel enhancement filtering[C]//Proceedings of 2008 the International Society for Optical Engineering. San Diego: SPIE, 2008: 691423.
[23]	CHEN Yiping, WANG Liansheng, SHI Lin, et al. Structure-preserving multiscale vessel enhancing diffusion filter[C]//Proceedings of 2010 IEEE International Conference on Image Processing. Hong Kong: IEEE, 2010: 3565-3568.
[24]	MARONI C S, QUINQUIS A, VINSON S. Horizon picking on subbottom profiles using multi-resolution analysis[J]. Digital Signal Processing, 2001, 11(4): 269-287.
[25]	李邵波, 周丰年, 赵建虎, 等. 联合灰度突变和方向约束的浅剖层位自动拾取[J]. 武汉大学学报(信息科学版), 2019, 44(4): 532-538.
	LI Shaobo, ZHOU Fengnian, ZHAO Jianhu, et al. Automatic horizon picking on sub-bottom profiles combining gray scale mutation and direction constraint[J]. Geomatics and Information Science of Wuhan University, 2019, 44(4): 532-538.
[26]	ZHAO Jianhu, LI Shaobo, ZHANG Hongmei, et al. Comprehensive sediment horizon picking from subbottom profile data[J]. IEEE Journal of Oceanic Engineering, 2019, 44(2): 524-534.
[27]	蒋廷臣, 孟皓凡, 王晓, 等. 改进区域生长算法的海洋航道浅剖底质层界智能识别[J]. 测绘学报, 2024, 53(3): 493-502. DOI:. doi: 10.11947/j.AGCS.2024.20220677
	JIANG Tingchen, MENG Haofan, WANG Xiao, et al. Intelligent identification of bottom layer boundaries in shallow sections of ocean waterways using improved region growth algorithm[J]. Acta Geodaetica et Cartographica Sinica, 2024, 53(3): 493-502. DOI:. doi: 10.11947/j.AGCS.2024.20220677

算法名称	F₁值	召回率	精确率	准确率
基于二维Frangi增强滤波	79	84	73	97
基于均匀尺度的三维增强滤波	83	90	78	98

结构特征约束的三维浅剖声呐层界提取

Three-dimensional sub-bottom profiler sonar horizon picking with structural feature constraints

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 12

参考文献 27

相关文章 5

编辑推荐

Metrics

本文评价

算法名称	F₁值	召回率	精确率	准确率
二维Frangi增强滤波	73	62	88	99
基于均匀尺度的三维增强滤波	80	73	88	99
