一种面向定点稀疏轨迹的密度聚类停留点识别方法

doi:10.11947/j.AGCS.2026.20250284

测绘学报 ›› 2026, Vol. 55 ›› Issue (2): 249-260.doi: 10.11947/j.AGCS.2026.20250284

• 空间智能与智慧城市 • 上一篇

一种面向定点稀疏轨迹的密度聚类停留点识别方法

郭军豪¹(), 吴明治¹(), 王培晓²^,³, 张恒才²^,³

^1.福州大学数字中国研究院（福建），福建　福州　350108
^2.中国科学院地理科学与资源研究所地理信息科学与技术全国重点实验室，北京　100101
^3.中国科学院大学资源与环境学院，北京　100049

收稿日期:2025-07-14 修回日期:2025-10-22 发布日期:2026-03-13
通讯作者: 吴明治 E-mail:245520020@fzu.edu.cn;Mingzhi.wu17@student.xjtlu.edu.cn
作者简介:郭军豪（2002—），男，硕士生，研究方向为地理大数据挖掘。 E-mail：245520020@fzu.edu.cn
基金资助:
国家重点研发计划(2023YFB3906804)

A dual-threshold stay point detection method based on adaptive extended density peak clustering for sparse fixed-point trajectories

Junhao GUO¹(), Mingzhi WU¹(), Peixiao WANG²^,³, Hengcai ZHANG²^,³

^1.Academy of Digital China (Fujian), Fuzhou University, Fuzhou 350108, China
^2.State Key Laboratory of Geographic Information Science and Technology, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China
^3.College of Resources and Environment, University of Chinese Academy of Sciences, Beijing 100049, China

Received:2025-07-14 Revised:2025-10-22 Published:2026-03-13
Contact: Mingzhi WU E-mail:245520020@fzu.edu.cn;Mingzhi.wu17@student.xjtlu.edu.cn
About author:GUO Junhao (2002—), male, postgraduate, majors in geospatial big data mining. E-mail: 245520020@fzu.edu.cn
Supported by:
The National Key Research and Development Program of China(2023YFB3906804)

摘要/Abstract

摘要：

停留点识别作为轨迹数据挖掘的重要前期准备工作，对兴趣点挖掘、移动模式分类等研究具有重要支撑作用。然而，传统识别方法通常用于GPS等稠密轨迹，在面对交通卡口、手机信令等定点稀疏轨迹时难以应对数据密度不均、分布复杂导致的特征挖掘不足、阈值估计偏差等挑战。为此，本文提出一种基于自适应扩展密度峰值聚类（AE-DPC）的双阈值停留点识别方法用于定点稀疏轨迹停留点识别。首先，基于数据整体特征划分全局阈值初步筛选停留点；然后，利用AE-DPC聚类结果设定局部阈值进一步判别，其中AE-DPC通过考虑邻域和改进密度峰值构建初始簇，并经过簇扩展与合并提升聚类性能；最后，结合全局与局部阈值实现精准识别停留点。本文基于开源合成数据集与真实定点稀疏轨迹数据集分别对AE-DPC和双阈值法进行试验。结果表明，AE-DPC聚类结果的ARI、AMI指标均显著优于DBSCAN、HDBSCAN、SNN-DPC等对比算法；基于AE-DPC设定局部阈值的双阈值方法在真实停留点识别中展现出明显优势，与基于HDBSCAN的局部阈值法和动态阈值法相比，该方法在查准率指标上分别提升了14.10%和9.88%。

关键词: 停留点识别, 定点稀疏轨迹, 聚类算法, 密度峰值

Abstract:

Stay point detection serves as a critical preliminary step in trajectory data mining, providing essential support for related research such as point-of-interest mining and movement pattern classification. However, traditional detection methods are typically designed for dense trajectories, such as GPS data, and struggle to address the challenges posed by sparse fixed-point trajectories like those from traffic checkpoints or mobile signaling data. These challenges include insufficient feature extraction and threshold estimation biases due to uneven data density and complex distribution patterns. To tackle these issues, we propose a dual-threshold stay point detection method based on adaptive expanded density peak clustering (AE-DPC) for sparse fixed-point trajectories. First, global thresholds are derived from overall data characteristics to preliminarily identify candidate stay points. Then, local thresholds are further refined based on the clustering results of AE-DPC, which constructs initial clusters by considering neighborhood relationships and improved density peaks, followed by cluster expansion and merging to enhance clustering performance. Finally, the integration of global and local thresholds enables precise stay point detection. Experiments were conducted on both open-source synthetic datasets and real-world sparse fixed-point trajectory datasets to evaluate AE-DPC and the dual-threshold method, respectively. The results demonstrate that AE-DPC significantly outperforms comparative algorithms (such as DBSCAN, HDBSCAN, and SNN-DPC) in terms of the adjusted rand index (ARI) and adjusted mutual information (AMI). Moreover, the dual-threshold method leveraging AE-DPC-based local thresholds shows superior performance in real-world stay point detection tasks, achieving improvements in precision of 14.10% and 9.88% compared to the local threshold method based on HDBSCAN and the dynamic threshold approach, respectively.

Key words: stay point detection, sparse fixed-point trajectory, clustering algorithm, density peak

中图分类号:

P208

郭军豪, 吴明治, 王培晓, 张恒才. 一种面向定点稀疏轨迹的密度聚类停留点识别方法[J]. 测绘学报, 2026, 55(2): 249-260.

Junhao GUO, Mingzhi WU, Peixiao WANG, Hengcai ZHANG. A dual-threshold stay point detection method based on adaptive extended density peak clustering for sparse fixed-point trajectories[J]. Acta Geodaetica et Cartographica Sinica, 2026, 55(2): 249-260.

图/表 16

图1

图2

图3

图4

图5

图6

表1

表2

图7

图8

图9

图10

表3

表4

图11

图12

参考文献 28

[1]	李婷, 裴韬, 袁烨城, 等. 人类活动轨迹的分类、模式和应用研究综述[J]. 地理科学进展, 2014, 33(7): 938-948.
	LI Ting, PEI Tao, YUAN Yecheng, et al. A review on the classification, patterns and applied research of human mobility trajectory[J]. Progress in Geography, 2014, 33(7): 938-948.
[2]	代维秀, 陈占龙, 谢鹏. 居民出行与轨迹行为交互模式挖掘与关联技术[J]. 测绘学报, 2021, 50(4): 532-543. DOI: . doi: 10.11947/j.AGCS.2021.20200072
	DAI Weixiu, CHEN Zhanlong, XIE Peng. Research on the interactive mode of residents' behavior based on trajectory data mining[J]. Acta Geodaetica et Cartographica Sinica, 2021, 50(4): 532-543. DOI: . doi: 10.11947/j.AGCS.2021.20200072
[3]	王培晓, 张恒才, 张岩, 等. 地理空间智能预测研究进展与发展趋势[J]. 地球信息科学学报, 2025, 27(1): 60-82.
	WANG Peixiao, ZHANG Hengcai, ZHANG Yan, et al. GeoAI-driven spatiotemporal prediction: progress and prospects[J]. Journal of Geo-information Science, 2025, 27(1): 60-82.
[4]	HWANG S, VANDEMARK C, DHATT N, et al. Segmenting human trajectory data by movement states while addressing signal loss and signal noise[J]. International Journal of Geographical Information Science, 2018, 32(7): 1391-1412.
[5]	ZHANG Weiqi, XIE Zhenzhen, VERA VENKATA SAI A M, et al. A local differential privacy trajectory protection method based on temporal and spatial restrictions for staying detection[J]. Tsinghua Science and Technology, 2024, 29(2): 617-633.
[6]	张宽, 赵卓峰, 郭炜强. 一种面向定点轨迹数据的行程识别方法[J]. 北京邮电大学学报, 2020, 43(4): 39-47.
	ZHANG Kuan, ZHAO Zhuofeng, GUO Weiqiang. Travel recognition method for fixed-point trajectory data[J]. Journal of Beijing University of Posts and Telecommunications, 2020, 43(4): 39-47.
[7]	YANG Yitao, JIA Bin, YAN Xiaoyong, et al. Identifying intracity freight trip ends from heavy truck GPS trajectories[J]. Transportation Research Part C: Emerging Technologies, 2022, 136: 103564.
[8]	ZHANG Bin, WANG Qiuxia, LI Jing, et al. Spatial-temporal grid clustering method based on frequent stay point recognition[J]. Neural Computing and Applications, 2022, 34(12): 9247-9255.
[9]	陆剑锋, 郭茂祖, 张昱, 等. 基于时空约束密度聚类的停留点识别方法[J]. 智能系统学报, 2020, 15(1): 59-66.
	LU Jianfeng, GUO Maozu, ZHANG Yu, et al. Stay point recognition method based on spatio-temporal constraint density clustering[J]. CAAI Transactions on Intelligent Systems, 2020, 15(1): 59-66.
[10]	姜晓红, 陈庆炜, 严亚丹, 等. 基于规则判别的末端配送停留点识别与出行链特征[J]. 交通运输系统工程与信息, 2024, 24(6): 232-241.
	JIANG Xiaohong, CHEN Qingwei, YAN Yadan, et al. Rule-based discriminative identification and travel chain characterization of last-mile delivery stops[J]. Journal of Transportation Systems Engineering and Information Technology, 2024, 24(6): 232-241.
[11]	QIAN Jiaxin, ZHOU You, HAN Xuming, et al. MDBSCAN: a multi-density DBSCAN based on relative density[J]. Neurocomputing, 2024, 576: 127329.
[12]	吴笛, 杜云艳, 易嘉伟, 等. 基于密度的轨迹时空聚类分析[J]. 地球信息科学学报, 2015, 17(10): 1162-1171.
	WU Di, DU Yunyan, YI Jiawei, et al. Density-based spatiotemporal clustering analysis of trajectories[J]. Journal of Geo-information Science, 2015, 17(10): 1162-1171.
[13]	周洋, 杨超. 基于时空聚类算法的轨迹停驻点识别研究[J]. 交通运输系统工程与信息, 2018, 18(4): 88-95.
	ZHOU Yang, YANG Chao. Anchors identification in trajectory based on temporospatial clustering algorithm[J]. Journal of Transportation Systems Engineering and Information Technology, 2018, 18(4): 88-95.
[14]	王培晓, 张恒才, 王海波, 等. ST-CFSFDP：快速搜索密度峰值的时空聚类算法[J]. 测绘学报, 2019, 48(11): 1380-1390. DOI: . doi: 10.11947/j.AGCS.2019.20180538
	WANG Peixiao, ZHANG Hengcai, WANG Haibo, et al. Spatial-temporal clustering by fast search and find of density peaks[J]. Acta Geodaetica et Cartographica Sinica, 2019, 48(11): 1380-1390. DOI: . doi: 10.11947/j.AGCS.2019.20180538
[15]	GONG Lei, YAMAMOTO T, MORIKAWA T. Identification of activity stop locations in GPS trajectories by DBSCAN-TE method combined with support vector machines[J]. Transportation Research Procedia, 2018, 32: 146-154.
[16]	徐晓, 丁世飞, 丁玲. 密度峰值聚类算法研究进展[J]. 软件学报, 2022, 33(5): 1800-1816.
	XU Xiao, DING Shifei, DING Ling. Survey on density peaks clustering algorithm[J]. Journal of Software, 2022, 33(5): 1800-1816.
[17]	白璐, 赵鑫, 孔钰婷, 等. 谱聚类算法研究综述[J]. 计算机工程与应用, 2021, 57(14): 15-26.
	BAI Lu, ZHAO Xin, KONG Yuting, et al. Survey of spectral clustering algorithms[J]. Computer Engineering and Applications, 2021, 57(14): 15-26.
[18]	YU Fudan, AO Wenxuan, YAN Huan, et al. Spatio-temporal vehicle trajectory recovery on road network based on traffic camera video data[C]//Proceedings of the 28th ACM SIGKDD Conference on Knowledge Discovery and Data Mining. New York: ACM Press, 2022: 4413-4421.
[19]	TRAN L H, DANG T K, THOAI N. Hybrid stop discovery in trajectory records[C]//Proceedings of 2013 International Workshop on Database and Expert Systems Applications. Los Alamitos: IEEE, 2013: 9-14.
[20]	吕莉, 陈威, 肖人彬, 等. 面向密度分布不均数据的加权逆近邻密度峰值聚类算法[J]. 智能系统学报, 2024, 19(1): 165-175.
	LÜ Li, CHEN Wei, XIAO Renbin, et al. Density peak clustering algorithm based on weighted reverse nearest neighbor for uneven density datasets[J]. CAAI Transactions on Intelligent Systems, 2024, 19(1): 165-175.
[21]	PENG Ju, TANG Jianbo, DENG Min, et al. A two-stage method for detecting trajectory clusters of different densities with peak trajectories identification[J]. International Journal of Geographical Information Science, 2025, 39(10): 2177-2210.
[22]	RODRIGUEZ A, LAIO A. Clustering by fast search and find of density peaks[J]. Science, 2014, 344(6191): 1492-1496.
[23]	ZANG Wenke, CHE Jing, MA Linlin, et al. Density peaks clustering based on density voting and neighborhood diffusion[J]. Information Sciences, 2024, 681: 121209.
[24]	陈梅, 魏礼磊, 尤远毓秀, 等. 基于k近邻图的密度峰值聚类算法[J]. 控制与决策, 2025, 40(7): 2242-2250.
	CHEN Mei, WEI Lilei, YOU Yuanyuxiu, et al. Density peaks clustering algorithm based on k-nearest neighbor graph[J]. Control and Decision, 2025, 40(7): 2242-2250.
[25]	ZHAO Jia, WANG Gang, PAN J S, et al. Density peaks clustering algorithm based on fuzzy and weighted shared neighbor for uneven density datasets[J]. Pattern Recognition, 2023, 139: 109406.
[26]	MOULAVI D, JASKOWIAK P A, CAMPELLO R J G B, et al. Density-based clustering validation[C]//Proceedings of 2014 SIAM International Conference on Data Mining. Philadelphia: Society for Industrial and Applied Mathematics, 2014: 839-847.
[27]	LIU Rui, WANG Hong, YU Xiaomei. Shared-nearest-neighbor-based clustering by fast search and find of density peaks[J]. Information Sciences, 2018, 450: 200-226.
[28]	JU Hengrong, LU Yang, DING Weiping, et al. Three-way evidence theory-based density peak clustering with the principle of justifiable granularity[J]. Applied Soft Computing, 2024, 152: 111217.

数据集	样本数	特征数	簇数
Spiral	312	2	3
Ring	500	2	2
Ls3	1741	2	6
Compound	399	2	6
Jain	373	2	2
Jain2	500	2	4

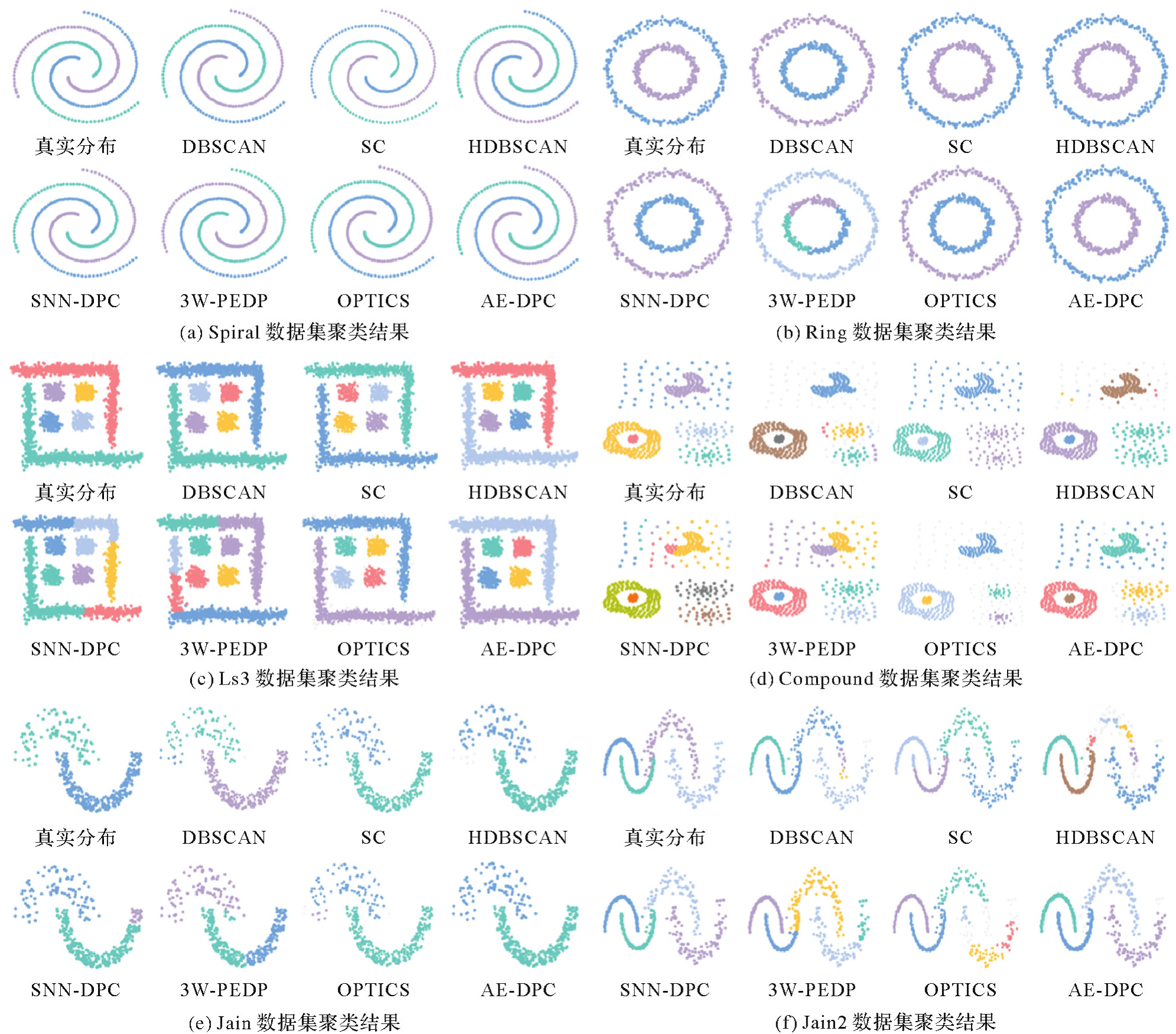

数据集	算法	ARI	AMI	Arg-
Spiral	DBSCAN	1.000	1.000	0.05/3
	HDBSCAN	1.000	1.000	17/2
	SC	1.000	1.000	3/5
	OPTICS	1.000	1.000	4/0.12
	SNN-DPC	1.000	1.000	4/3
	3W-PEDP	1.000	1.000	3
	AE-DPC	1.000	1.000	10/31
Ring	DBSCAN	1.000	1.000	0.16/3
	HDBSCAN	1.000	1.000	2/3
	SC	1.000	1.000	2/8
	OPTICS	1.000	1.000	7/0.08
	SNN-DPC	1.000	1.000	3/2
	3W-PEDP	0.670	0.718	4
	AE-DPC	1.000	1.000	10/50
Ls3	DBSCAN	1.000	1.000	0.05/11
	HDBSCAN	1.000	1.000	9/1
	SC	1.000	1.000	6/25
	OPTICS	0.959	0.950	6/0.03
	SNN-DPC	0.719	0.807	70/6
	3W-PEDP	0.494	0.688	6
	AE-DPC	1.000	1.000	41/174
Compound	DBSCAN	0.949	0.908	0.05/3
	HDBSCAN	0.909	0.896	2/3
	SC	0.804	0.853	4/13
	OPTICS	0.882	0.864	6/0.05
	SNN-DPC	0.875	0.854	3/10
	3W-PEDP	0.820	0.821	6
	AE-DPC	0.969	0.933	9/21
Jain	DBSCAN	0.976	0.865	0.08/2
	HDBSCAN	0.976	0.934	20/2
	SC	1.000	1.000	2/9
	OPTICS	0.976	0.922	4/0.08
	SNN-DPC	0.811	0.832	2/3
	3W-PEDP	0.444	0.601	3
	AE-DPC	1.000	1.000	16/37
Jain2	DBSCAN	0.725	0.814	0.06/5
	HDBSCAN	0.871	0.838	5/4
	SC	0.705	0.688	4/47
	OPTICS	0.799	0.788	9/0.06
	SNN-DPC	0.927	0.921	7/4
	3W-PEDP	0.826	0.838	5
	AE-DPC	0.930	0.913	13/49

车辆	记录时间	监测设备	距离/m	时间/s	速度/（m/s）	簇	簇时间/s	簇速度/（m/s）	标签	结果	簇H	簇D
5f0^**	16：35：36	435^**	0	33	0	2059	600	5.44	－1	0	225	d3
5f0^**	17：26：10	484^**	3799	3034	1.25	4901	1833	5.21	2	2	825	d3
5f0^**	18：57：16	471^**	1421	5466	0.26	1095	2731	5.91	2	2	828	e3
5f0^**	18：58：17	459^**	8	61	0.13	1095	2731	5.91	0	0	828	e3
5f0^**	19：24：10	494^**	11 438	1553	7.367	1095	2731	5.91	1	0	-	f5
13f^**	15：37：31	441^**	0	0	0	1222	764	6.54	－1	0	311	d4
13f^**	15：37：36	441^**	0	5	0	1222	764	6.54	0	0	311	d4
13f^**	15：53：31	455^**	1335	955	1.39	2104	700	6.38	2	2	-	d4
13f^**	15：54：01	456^**	396	30	13.22	2104	700	6.38	0	0	-	d4
13f^**	15：54：23	410^**	181	22	8.26	2104	700	6.38	0	0	368	d4
13f^**	16：05：24	499^**	1831	661	2.77	2307	892	3.99	1	0	369	d4

识别方法	查准率	查全率
本文方法	0.89	0.83
基于HDBSCAN的局部阈值法	0.78	0.71
动态阈值法	0.81	0.82
