Gravity field inversion from China ocean altimetry tandem satellites data and performance analysis

doi:10.11947/j.AGCS.2025.20240340

Abstract

Abstract:

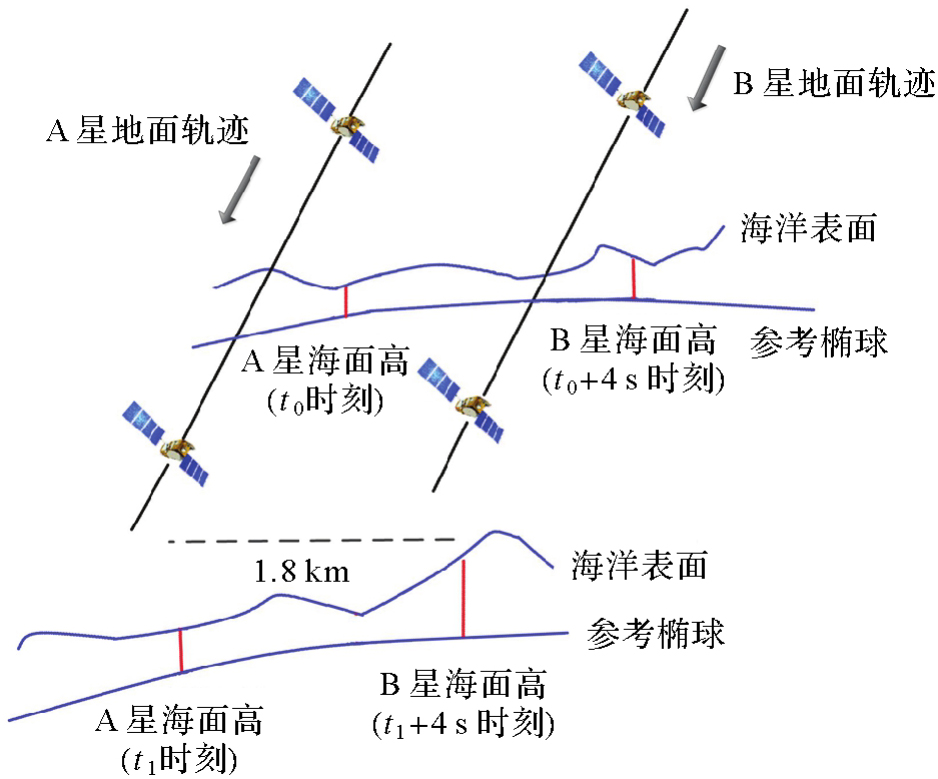

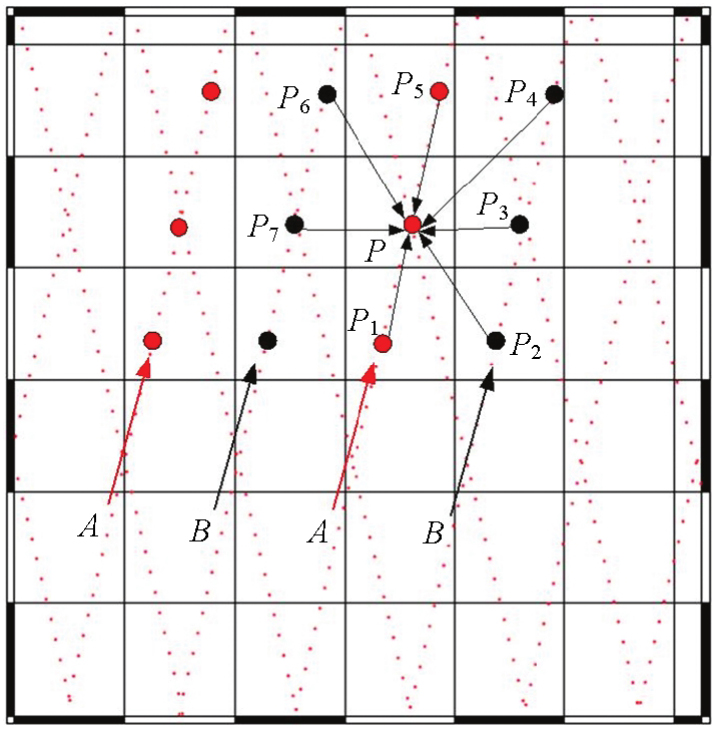

In this paper, we use the sea surface height data of the China ocean altimetry tandem satellites (COATS) and the SWOT satellite of the United States to compute the disturbed gravity vector (vertical deflection and disturbed gravity). The abnormal data of COATS satellite are filtered by using the regional inverse distance weighted iterative method, and the outliers are eliminated effectively. According to the characteristics of the two-satellite tandem mode and wide-swath mode, a method based on multi-directional sea surface gradient estimation is adopted to solve the grid vertical deflection and the disturbed gravity in the sea area is retrieved. The calculation of the Western Pacific region shows that the COATS satellite makes full use of the near real-time sea surface height in the cross-orbit direction in the calculation of the vertical deflection, and can realize the calculation of the local 1′×1′ vertical deflection in the tandem-following mode, compared with the 1′×1′ vertical deviation calculated by EIGEN-6C4 model, the standard deviation of north-south and east-west component is respectively 1.65″ and 2.3″. SWOT satellite is the first wide-swath interferometric altimetry satellite in the world. The accuracy of its north-south component and east-west component is consistent with that of EIGEN-6C4 model, the standard deviation of north-south and east-west components is about 1.8″, which fully reflects the advantage of uniform observation of wide-swath. Compared with the gravity data of SIO 32.1, the standard deviation of gravity anomaly respectively derived from COATS 5′×5′, SWOT 1′×1′ and two satellite fusion 1′×1′ data is 6.4, 5.2 and 4.9 mGal. Considering that COATS and SWOT are currently the satellites which truly achieve 1′×1′ sea surface height surveying, the combined COATS and SWOT satellite data will get more intensive vertical deflection and disturbed gravity, which will further improve the precision of the gravity field in the sea area.

Key words: ocean satellite altimetry, COATS satellite, SWOT satellite, vertical deflection, gravity disturbing

CLC Number:

P223

Zhenhe ZHAI, Zhongmiao SUN, Jian MA, Bin GUAN, He HUANG, Mingda OUYANG, Lingyong HUANG, Zhiyong HUANG, Xingchen PAN, Shigeng YUAN, Shengli LIU, Sen LIU. Gravity field inversion from China ocean altimetry tandem satellites data and performance analysis[J]. Acta Geodaetica et Cartographica Sinica, 2025, 54(4): 714-724.

Figures/Tables 29

Fig. 1

Fig. 2

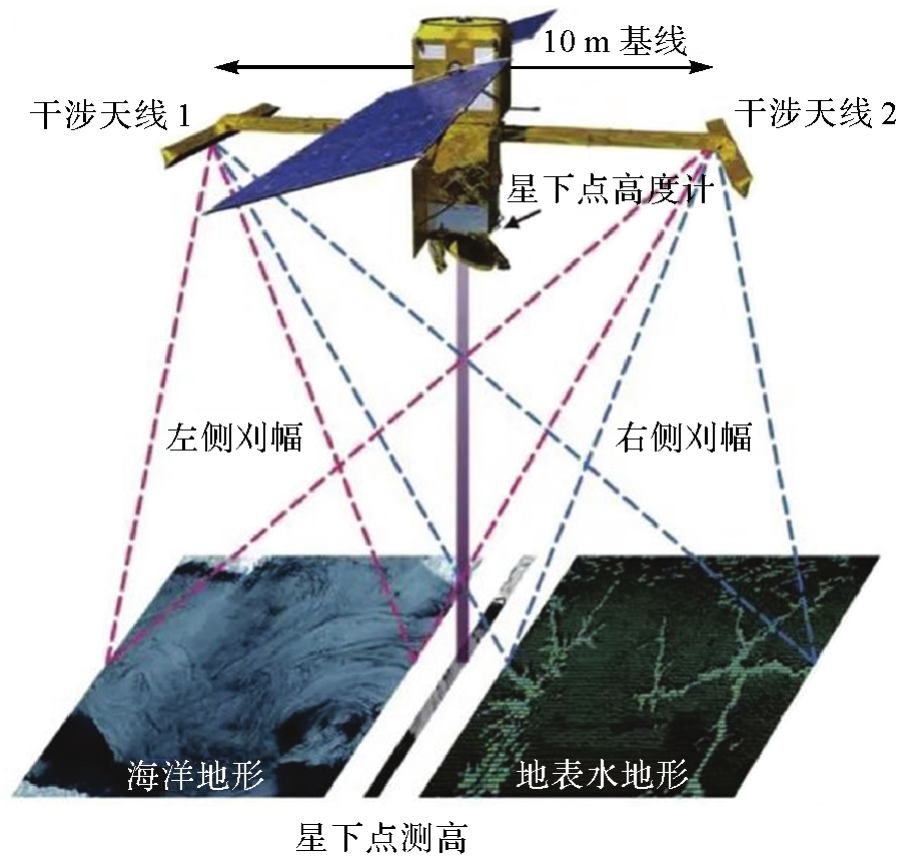

Fig. 3

Tab. 1

Fig. 4

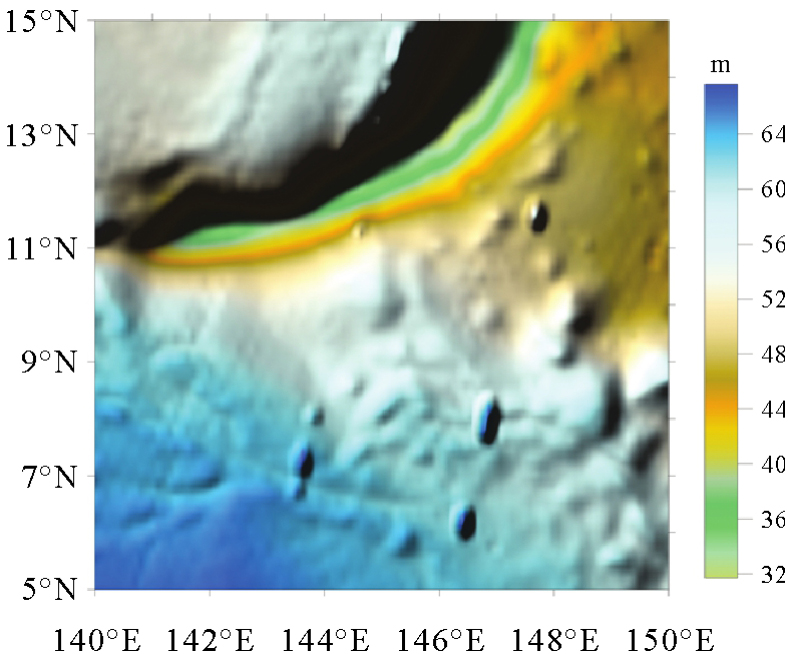

Fig. 5

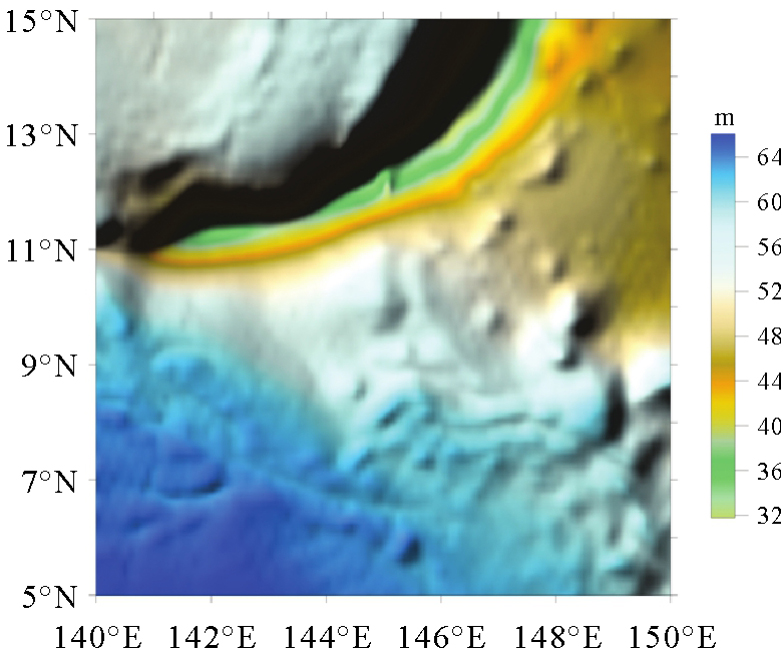

Fig. 6

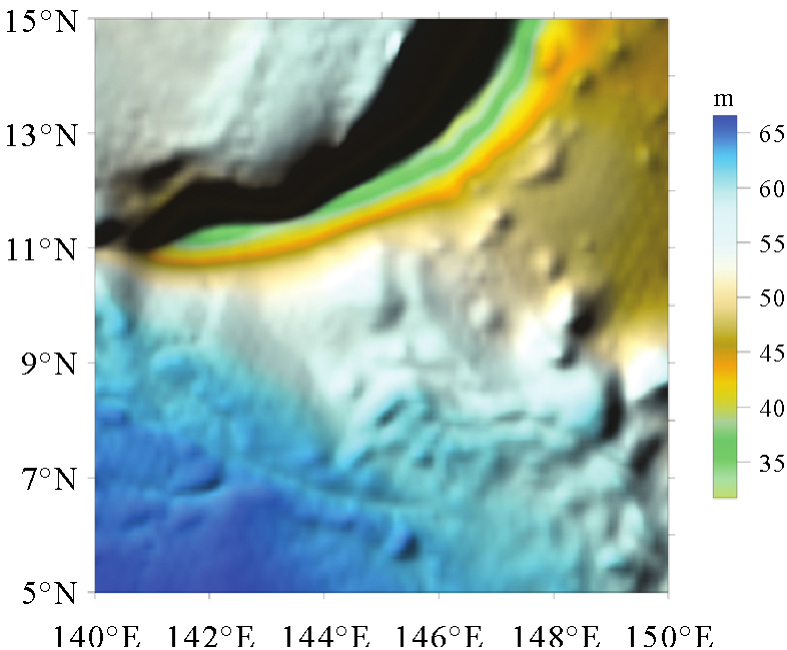

Fig. 7

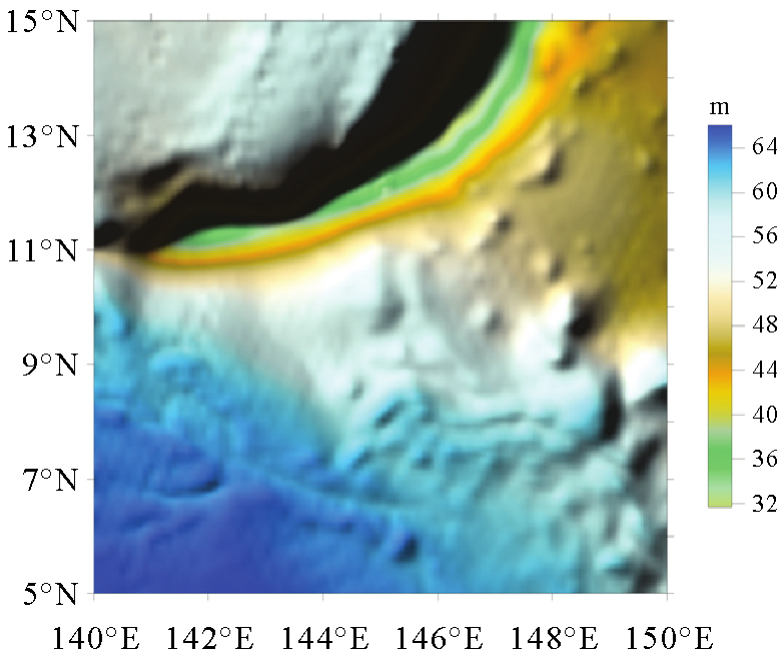

Fig. 8

Fig. 9

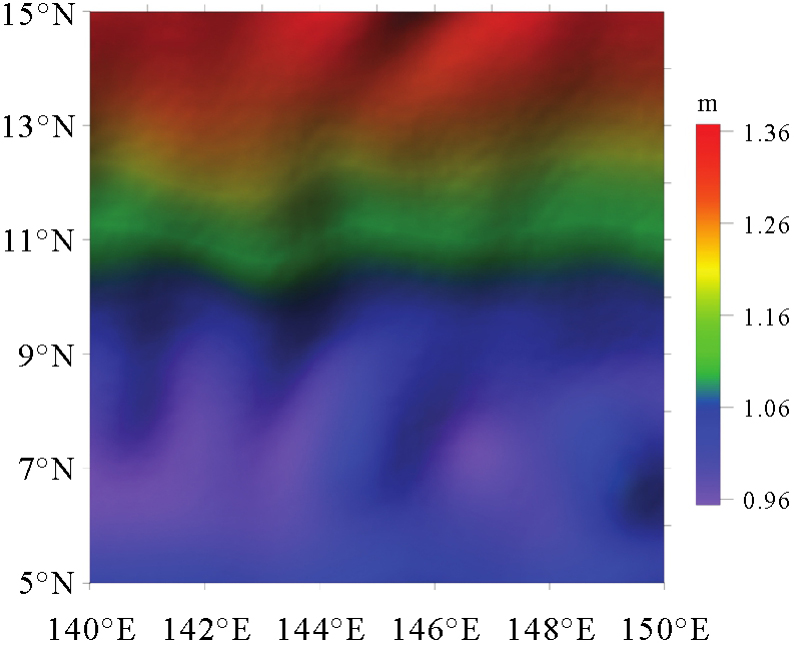

Fig. 10

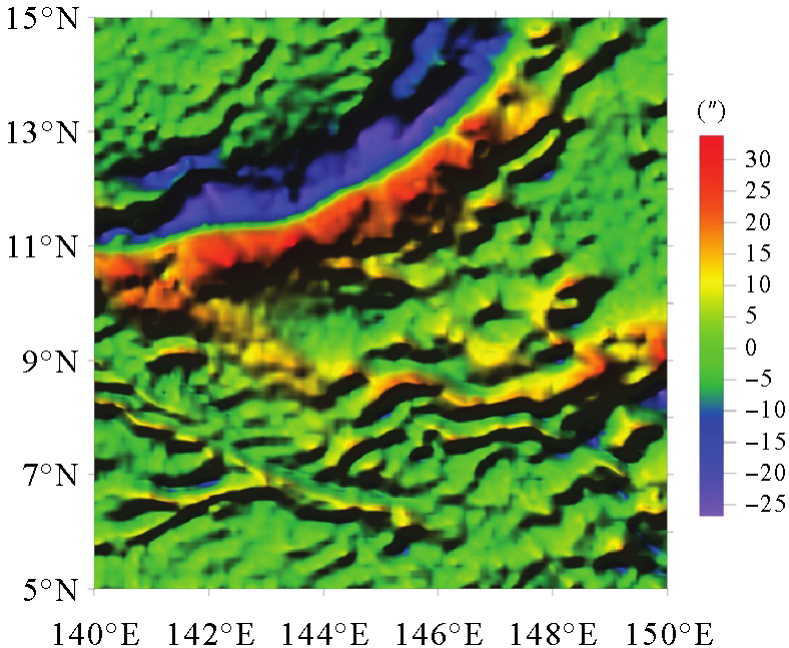

Fig. 11

Fig. 12

Tab. 2

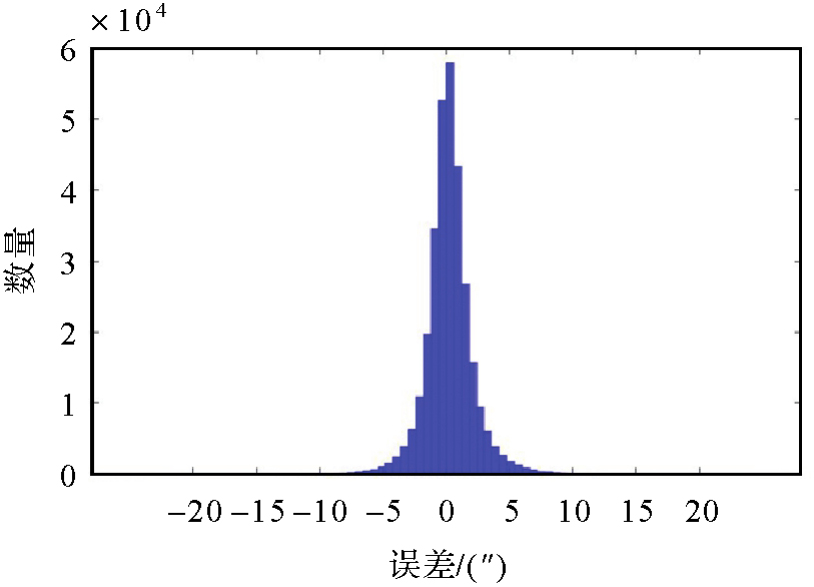

Fig. 13

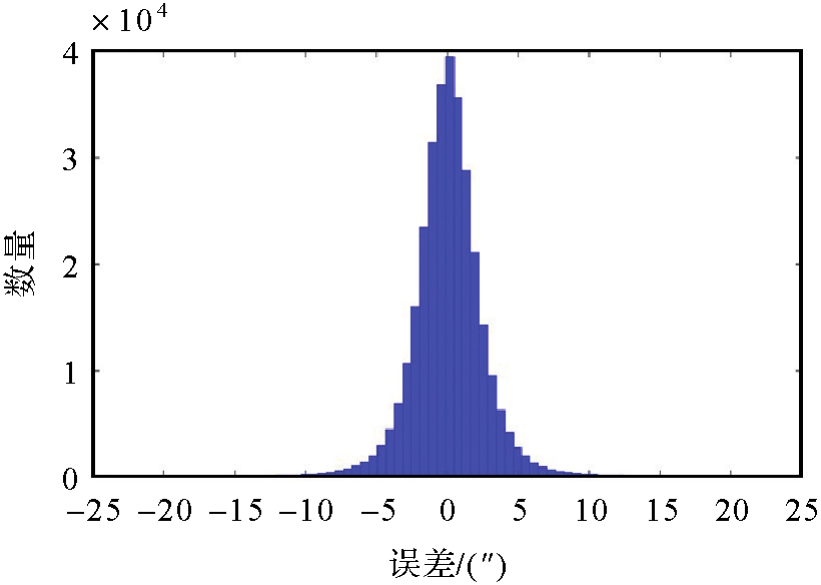

Fig. 14

Tab. 3

Fig. 15

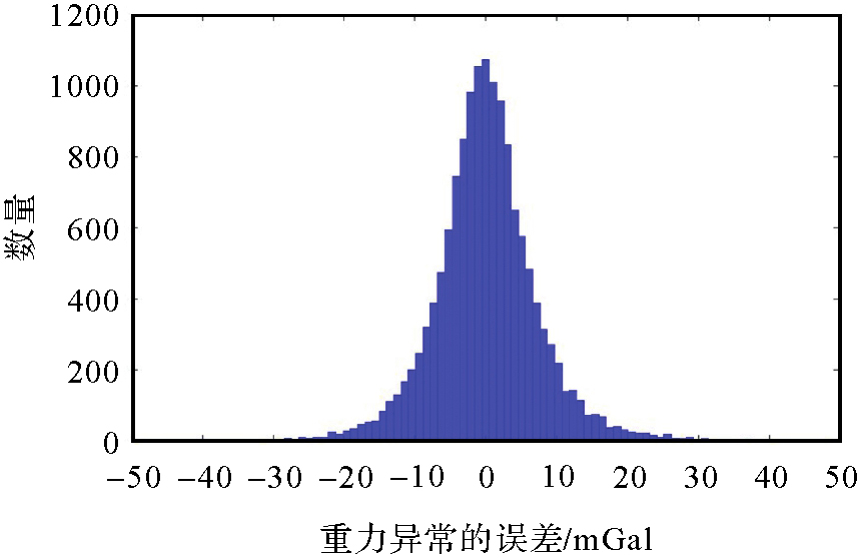

Fig. 16

Fig. 17

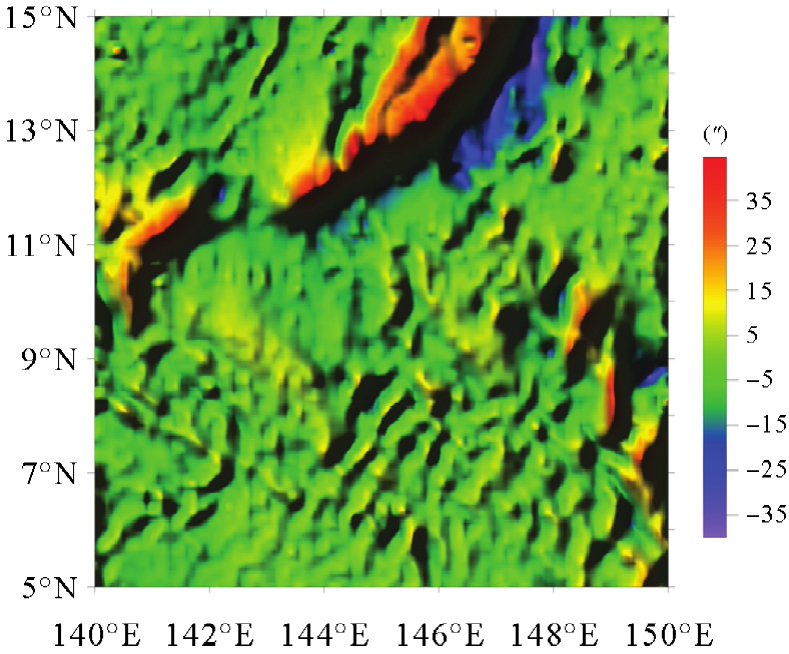

Fig. 18

Tab. 4

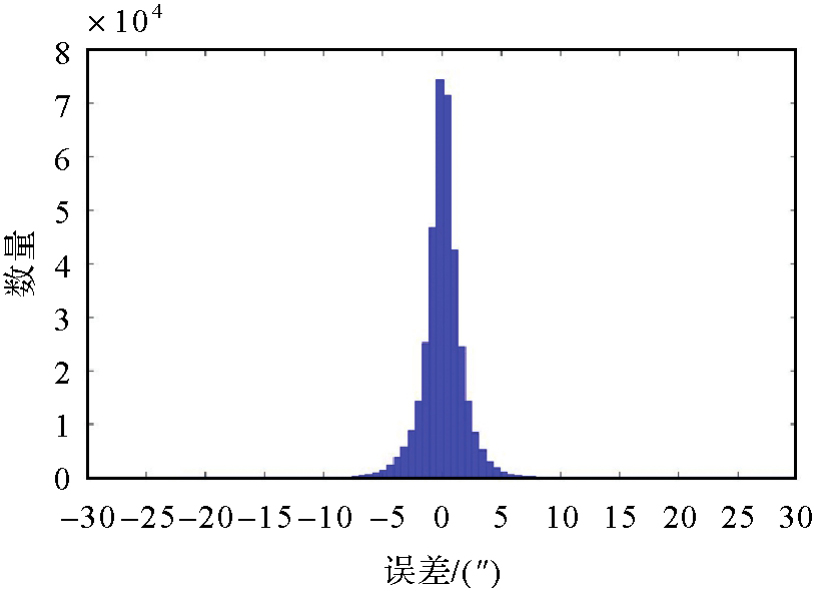

Fig. 19

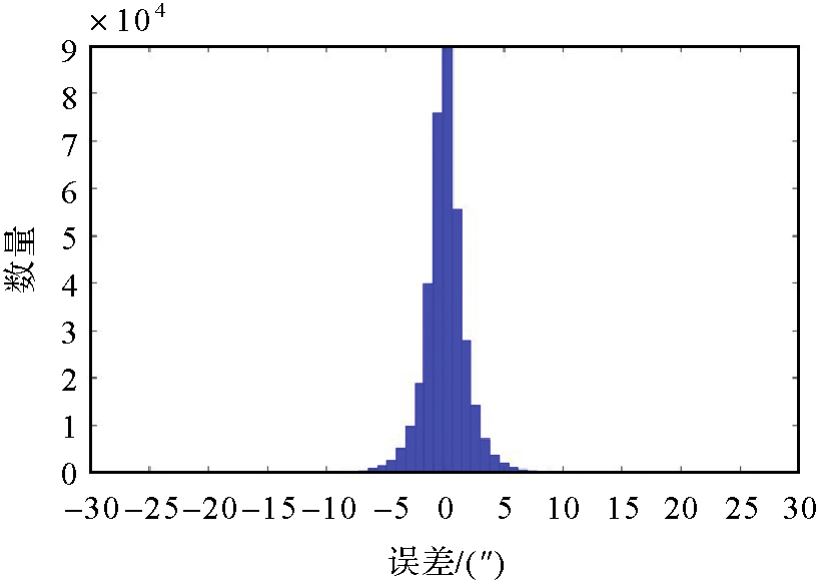

Fig. 20

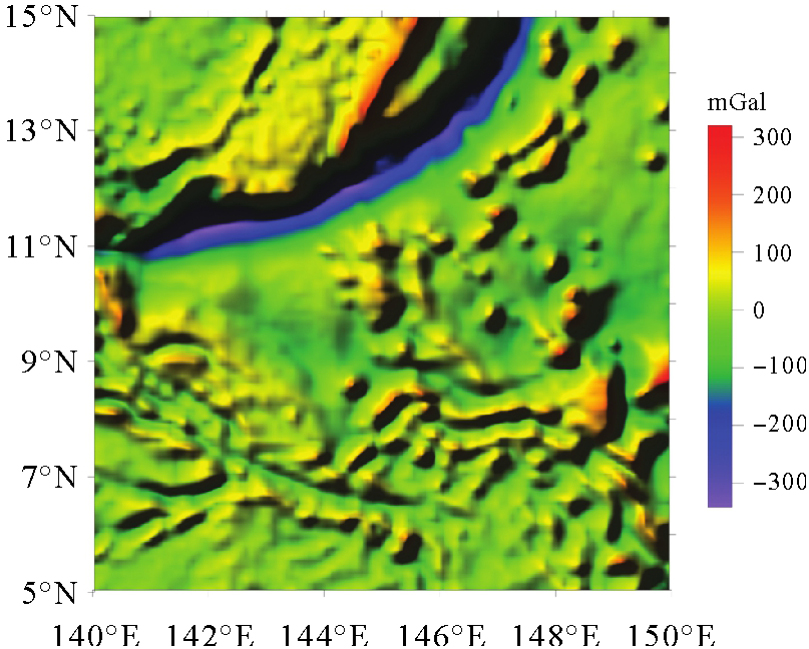

Fig. 21

Tab. 5

Tab. 6

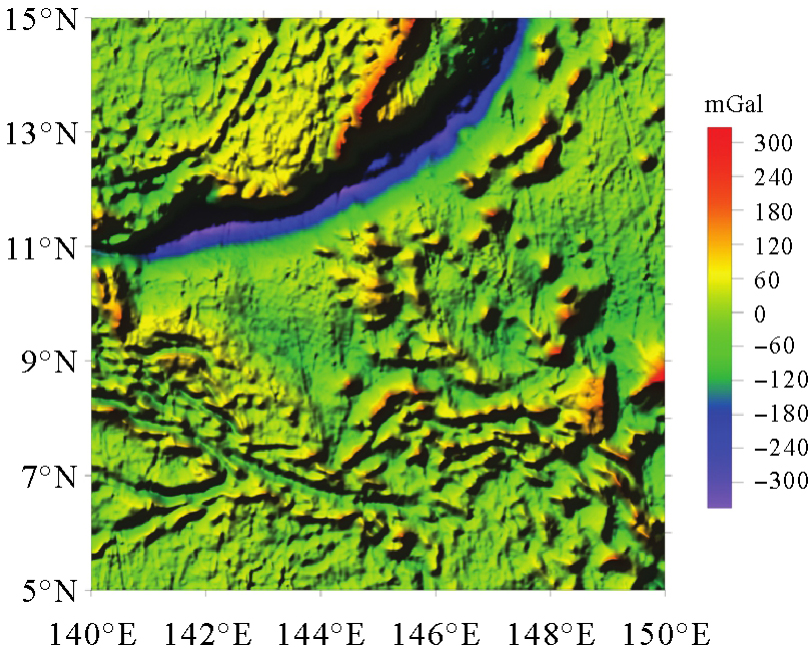

Fig. 22

Tab. 7

References 33

[1]	许厚泽, 王海瑛, 陆洋, 等. 利用卫星测高数据推求中国近海及邻域大地水准面起伏和重力异常研究[J]. 地球物理学报, 1999. 42(4): 465-471.
	XU Houze, WANG Haiying, LU Yang, et al. Geoid undulations and gravity anomalies from T/P and ERS-1altimeter data in the China sea and vicinity[J]. Chinese Journal of Geophysics(in Chinese), 1999, 42(4): 465-471.
[2]	李建成, 陈俊勇, 宁津生, 等. 地球重力场逼近理论与中国2000似大地水准面的确定[M]. 武汉: 武汉大学出版社, 2003.
	LI Jiancheng, CHEN Junyong, NING Jinshen, et al. Approximation theory of earth gravity field and determination of China 2000 quasi geoid(in Chinese)[M]. Wuhan: Wuhan University Press, 2003.
[3]	VIGNUDELL I, KOSTIANOY A, CIPOLLINI P. Coastal altimetry[M]. Berlin: Springer, 2011.
[4]	SANDWELL D T, MÜLLER R D, SMITH W H F, et al. New global marine gravity model from CryoSat-2 and Jason-1 reveals buried tectonic structure[J]. Science, 2014, 346(6205): 65-67.
[5]	胡敏章, 张胜军, 金涛勇, 等. 新一代全球海底地形模型BAT_WHU2020[J]. 测绘学报, 2020, 49(8): 939-954. DOI:. doi: 10.11947/j.AGCS.2020.20190526
	HU Minzhang, ZHANG Shengjun, JIN Taoyong, et al. A new generation of global bathymetry model BAT_WHU2020[J]. Acta Geodaetica et Cartographica Sinica, 2020, 49(8): 939-954. DOI:. doi: 10.11947/j.AGCS.2020.20190526
[6]	黄谟涛, 欧阳永忠, 边少锋, 等. 美俄水下重力辅助惯性导航技术发展分析与思考[J]. 武汉大学学报(信息科学版), 2024, 49(11): 1977-1991.
	HUANG Motao, OUYANG Yongzhong, BIAN Shaofeng, et al. Analysis and reflections on the development of underwater gravity-aided inertial navigation technology in the United States and Russia[J]. Geomatics and Information Science of Wuhan University, 2024, 49(11): 1977-1991.
[7]	文汉江, 金涛勇, 朱广彬. 卫星测高原理及应用[M]. 北京: 测绘出版社, 2017.
	WEN Hanjiang, JIN Taoyong, ZHU Guangbin. Principle and application of satellite altimetry[M]. Beijing: Surveying and Mapping Press, 2017.
[8]	RANEY R K, PORTER D L. WITTEX: an innovative three-satellite radar altimeter concept[C]//Proceedings of 2001 IEEE Transactions on Geoscience and Remote Sensing. [S.l.]: IEEE, 2001: 2387-2391.
[9]	鲍李峰, 许厚泽. 双星伴飞卫星测高模式及其轨道设计[J]. 测绘学报, 2014, 43(7): 661-667. DOI:. doi: 10.13485/j.cnki.11-2089.2014.0109
	BAO Lifeng, XU Houze. Twin-satellites altimetry mode and its orbit design[J]. Acta Geodaetica et Cartographica Sinica, 2014, 43(7): 661-667. DOI:. doi: 10.13485/j.cnki.11-2089.2014.0109
[10]	孙中苗, 管斌, 翟振和, 等. 海洋卫星测高及其反演全球海洋重力场和海底地形模型研究进展[J]. 测绘学报, 2022, 51(6): 923-934. DOI:. doi: 10.11947/j.AGCS.2022.20220069
	SUN Zhongmiao, GUAN Bin, ZHAI Zhenhe, et al. Research progress of ocean satellite altimetry and its recovery of global marine gravity field and seafloor topography model[J]. Acta Geodaetica et Cartographica Sinica, 2022, 51(6): 923-934. DOI:. doi: 10.11947/j.AGCS.2022.20220069
[11]	翟振和, 孙中苗, 肖云, 等. 自主海洋测高卫星串飞模式的设计与重力场反演精度分析[J]. 武汉大学学报(信息科学版), 2018, 43(7): 1030-1035, 1128.
	ZHAI Zhenhe, SUN Zhongmiao, XIAO Yun, et al. Two-satellites tandem mode design and accuracy analysis of gravity field inversion for independent marine altimetry satellite[J]. Geomatics and Information Science of Wuhan University, 2018, 43(7): 1030-1035, 1128.
[12]	张胜军, 李建成, 褚永海, 等. 基于Cryosat和Jason1 GM数据的垂线偏差计算与分析[J]. 武汉大学学报(信息科学版), 2015, 40(8): 1012-1017.
	ZHANG Shengjun, LI Jiancheng, CHU Yonghai, et al. Calculation and analysis of the deflection of vertical derived from cryosat and Jason1 GM data[J]. Geomatics and Information Science of Wuhan University, 2015, 40(8): 1012-1017.
[13]	MA Zhimin, HAN Guoqi. Reconstruction of the surface inshore labrador current from SWOT sea surface height measurements[J]. Remote Sensing, 2019, 11(11): 1264.
[14]	PIE N, SCHUTZ B E. Subcycle analysis for ICESat's repeat groundtrack orbits and application to phasing maneuvers[J]. The Journal of the Astronautical Sciences, 2008, 56(3): 325-340.
[15]	GUO Jinyun, GAO Yonggang, HWANG C, et al. A multi-subwaveform parametric retracker of the radar satellite altimetric waveform and recovery of gravity anomalies over coastal oceans[J]. Science China Earth Sciences, 2010, 53(4): 610-616.
[16]	ZHANG Shengjun, SANDWELL D T, JIN Taoyong, et al. Inversion of marine gravity anomalies over southeastern China seas from multi-satellite altimeter vertical deflections[J]. Journal of Applied Geophysics, 2017, 137: 128-137.
[17]	FAIRHEAD J D. Generating a high-resolution global gravity model for oil exploration: part 2: marine satellite altimeter-derived gravity[J]. The Leading Edge, 2015, 34(5): 566-571.
[18]	SANDWELL D T, SMITH W H F. Marine gravity anomaly from Geosat and ERS 1 satellite altimetry[J]. Journal of Geophysical Research: Solid Earth, 1997, 102(B5): 10039-10054.
[19]	HWANG C, PARSONS B. Gravity anomalies derived from Sea-sat, Geosat, ERS-1 and TOPEX/POSEIDON altimetry and ship gravity: a case-study over the Reykjanes Ridge[J]. Geophysical Journal of International Society. 1995, 122, 511-568.
[20]	VERRON J, SENGENES P, LAMBIN J, et al. The SARAL/AltiKa altimetry satellite mission[J]. Marine Geodesy, 2015, 38(): 2-21.
[21]	ZHANG Shengjun, SANDWELL D T. Retracking of SARAL/AltiKa radar altimetry waveforms for optimal gravity field recovery[J]. Marine Geodesy, 2017, 40(1): 40-56.
[22]	ZHAO Yili, ZHU Jianhua, LIN Mingsen, et al. Assessment of the initial sea surface temperature product of the scanning microwave radiometer aboard on HY-2 satellite[J]. Acta Oceanologica Sinica, 2014, 33(1): 109-113.
[23]	贾永君, 林明森, 张有广. 海洋二号卫星A星雷达高度计在海洋防灾减灾中的应用[J]. 卫星应用, 2018(5): 34-35, 38-39.
	JIA Yongjun, LIN Mingsen, ZHANG Youguang. Application of Ocean-2 satellite A radar altimeter in marine disaster prevention and mitigation[J]. Satellite Application, 2018(5): 34-35, 38-39.
[24]	HWANG C. Inverse vening meinesz formula and deflection-geoid formula: applications to the predictions of gravity and geoid over the South China Sea[J]. Journal of Geodesy, 1998, 72(5): 304-312.
[25]	SANDWELL D T, GARCIA E, SOOFI K, et al. Towards 1 mGal global marine gravity from CryoSat-2, Envisat, and Jason-1[J]. The Leading Edge, 32(8), 892899.
[26]	ABULAITIJIANG A, ANDERSEN O B, BARZAGHI R, et al. Coastal marine gravity modelling from satellite altimetry-case study in the Mediterranean[J]. Journal of Geodetic Science, 2021, 11(1): 29-37.
[27]	HARTANTO P, HUDA S, PUTRA W, et al. Estimation of marine gravity anomaly model from satellite altimetry data (Case Study: Kalimantan and Sulawesi Waters-Indonesia)[J]. IOP Conference Series: Earth and Environmental Science, 2018, 162: 012038.
[28]	ZHU Fengshun, GUO Jinyun, ZHANG Huiying, et al. SDUST2020MGCR: a global marine gravity change rate model determined from multi-satellite altimeter data[J]. Earth System Science Data, 2024, 16(5): 2281-2296.
[29]	HWANG C, KAO E C, PARSONS B. Global derivation of marine gravity anomalies from Seasat, Geosat, ERS-1 and TOPEX/POSEIDON altimeter data[J]. Geophysical Journal International, 1998, 134(2): 449-459.
[30]	OLGIATI A, BALMINO G, SARRAILH M, et al. Gravity anomalies from satellite altimetry: comparison between computation via geoid heights and via deflections of the vertical[J]. Bulletin Géodésique, 1995, 69(4): 252-260.
[31]	翟振和, 孙中苗, 王兴涛. 全球及局部海洋扰动重力反演的快速解析方法[J]. 测绘学报, 2015, 44(8): 827-830. DOI:. doi: 10.11947/j.AGCS.2015.20140482
	ZHAI Zhenhe, SUN Zhongmiao, WANG Xingtao. The analytical and quick computation method of disturbing gravity in global and local ocean area[J]. Acta Geodaetica et Cartographica Sinica, 2015, 44(8): 827-832. DOI:. doi: 10.11947/j.AGCS.2015.20140482
[32]	WESSEL P, LYONS S. Distribution of large Pacific seamounts from geosat/ERS-1: implications for the history of intraplate volcanism[J]. Journal of Geophysical Research: Solid Earth, 1997, 102(B10): 22459-22475.
[33]	SHAKO R, FÖRSTE C, ABRYKOSOV O, et al. EIGEN-6C: a high-resolution global gravity combination model including GOCE data[M]. Berlin: Springer, 2014.

误差改正项	改正模型
电离层误差	Ku/C双频改正
干对流层误差	Saastamoinen（1972）模型
湿对流层误差	三频校正辐射计
海洋潮汐	FES2014b模型
固体潮汐	Cartwright and Taylor 1973模型
极潮	IERS Equilibrium模型，Wahr（1985）模型
逆气压改正	Wunsch and Stammer（1997）模型
海况偏差改正	NPSSB模型

比较类型	格网大小	最大值/（″）	最小值/（″）	差值均值/（″）	标准差/（″）	参与评估的数量
南北	1′×1′	11.36	－10.28	0.11	1.65	82 534
分量	5′×5′	11.13	－9.36	0.10	1.51	14 400
东西	1′×1′	28.42	－16.70	0.28	2.37	82 534
分量	5′×5′	24.86	－16.34	0.23	2.28	14 400

比较类型	格网大小	最大值/（″）	最小值/（″）	差值均值/（″）	标准差/（″）	参与评估的数量
南北	1′×1′	37.75	－21.89	0.08	1.73	359 062
分量	5′×5′	15.64	－24.39	0.07	1.69	14 400
东西	1′×1′	38.62	－40.31	0.04	1.87	359 062
分量	5′×5′	21.64	－20.31	0.03	1.52	14 400

比较类型	赋权原则	格网大小	最大值/（″）	最小值/（″）	差值均值/（″）	标准差/（″）	参与评估的数量
南北	等权	1′×1′	47.19	－70.08	0.14	1.84	360 000
分量	不等权	1′×1′	47.18	－69.58	0.15	1.72	360 000
东西	等权	1′×1′	59.41	－67.62	0.09	1.81	360 000
分量	不等权	1′×1′	58.72	－63.65	0.09	1.81	360 000

比较数据	格网大小	最大值/mGal	最小值/mGal	差值均值/mGal	标准差/mGal	参与评估的数量
COATS&SWOT	5′×5′	91.18	－59.85	0.02	5.07	14 400
COATS&SWOT	1′×1′	59.84	－59.97	0.01	4.96	360 000
EIGEN-6C4	1′×1′	59.78	－49.05	－0.06	8.09	360 000
