一种无奇异点的高阶次引力位及其梯度计算方法

doi:10.11947/j.AGCS.2025.20250181

测绘学报 ›› 2025, Vol. 54 ›› Issue (9): 1572-1582.doi: 10.11947/j.AGCS.2025.20250181

一种无奇异点的高阶次引力位及其梯度计算方法

李桢¹^,²(), 贺正航¹^,³, 施闯¹^,²^,³

^1.卫星导航与移动通信融合技术工业和信息化部重点实验室，北京　100191
^2.北京航空航天大学空间与地球科学学院，北京　100191
^3.北京航空航天大学电子信息工程学院，北京　100191

收稿日期:2025-05-16 修回日期:2025-07-29 出版日期:2025-10-10 发布日期:2025-10-10
作者简介:李桢（1989—），男，博士，助理研究员，研究方向为航天器轨道动力学、精密定轨、空间碎片等。E-mail：hpulizhen@163.com
基金资助:
国家重点研发计划(2023YFB3906503)

A high-degree gravitational potential and gradient calculation method without singularities

Zhen LI¹^,²(), Zhenghang HE¹^,³, Chuang SHI¹^,²^,³

^1.Laboratory of Navigation and Communication Fusion Technology, Ministry of Industry and Information Technology, Beijing 100191, China
^2.School of Space and Earth Sciences, Beihang University, Beijing 100191, China
^3.School of Electronic Information Engineering, Beihang University, Beijing 100191, China

Received:2025-05-16 Revised:2025-07-29 Online:2025-10-10 Published:2025-10-10
About author:LI Zhen (1989—), male, PhD, assistant researcher, majors in spacecraft orbital dynamics, precise orbit determination, space debris, et al. E-mail: hpulizhen@163.com
Supported by:
The National Key Research and Development Program of China(2023YFB3906503)

摘要/Abstract

摘要：

地球引力场球谐模型在极低轨道卫星精密定轨与高精度惯性导航系统等领域具有重要的应用价值。Cunningham递推算法是一种直角坐标系下的球谐函数递推算法，能够无奇异地计算全球任意阶次的引力位、引力加速度和引力梯度，主要应用于卫星动力学定轨中的引力计算。随着重力场模型阶次的不断提升，该算法递推式因阶乘项导致数值溢出的问题日益凸显。本文引入改进的比例因子，优化递推关系，控制递推函数中阶乘项增长，缓解了数值溢出问题。本文算法在笛卡儿坐标系下，采用双精度浮点数编程运算，可在不产生数值溢出的情况下，计算至1000阶次。与现有主流球谐递推方法相比，本文算法的单次引力位、引力加速度的计算效率分别提升了16.8%、8.0%。

关键词: 缔合勒让德函数, 递推优化, 高阶引力位, 笛卡儿坐标系, 数值稳定性

Abstract:

The spherical harmonic model of the Earth's gravitational field holds significant application value in areas such as precise orbit determination for very low earth orbit (VLEO) satellites and high-precision inertial navigation systems (INS). The Cunningham recurrence algorithm is a Cartesian coordinate-based spherical harmonic recurrence method capable of singularity-free computation of gravitational potential, acceleration, and gradients to any degree globally. It is primarily applied for gravitational calculations in satellite dynamic orbit determination. However, as the degree of gravitational field models continues to increase, the recurrence relations in this algorithm suffer from numerical overflow issues due to factorial terms. This study introduces a novel scaling factor to optimize the recurrence relations, thereby controlling the growth of factorial terms within the recurrence functions and mitigating the numerical overflow problem. The improved algorithm, implemented in Cartesian coordinates using double-precision floating-point arithmetic, enables computation up to degree 1000 without generating numerical overflow. Compared to existing mainstream spherical harmonic recurrence methods, the computational efficiency for single gravitational potential and acceleration calculations is increased by 16.8% and 8.0%, respectively.

Key words: associated Legendre functions, recursion optimization, high-degree gravity potential, Cartesian coordinate system, numerical stability

中图分类号:

P223

李桢, 贺正航, 施闯. 一种无奇异点的高阶次引力位及其梯度计算方法[J]. 测绘学报, 2025, 54(9): 1572-1582.

Zhen LI, Zhenghang HE, Chuang SHI. A high-degree gravitational potential and gradient calculation method without singularities[J]. Acta Geodaetica et Cartographica Sinica, 2025, 54(9): 1572-1582.

图/表 15

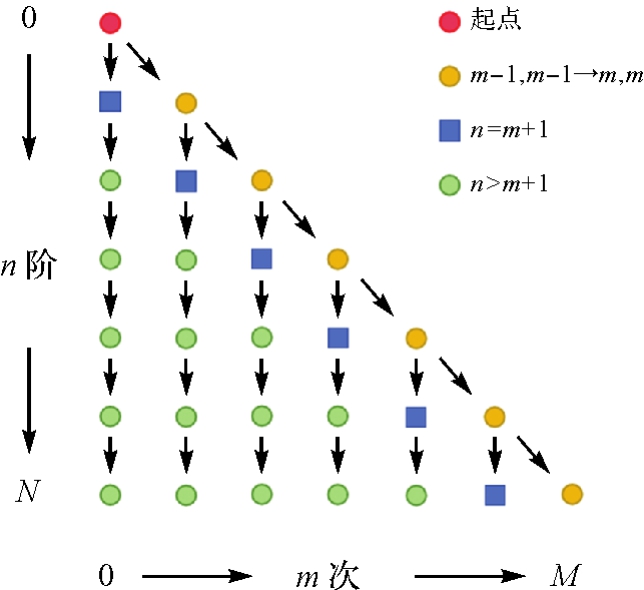

图1

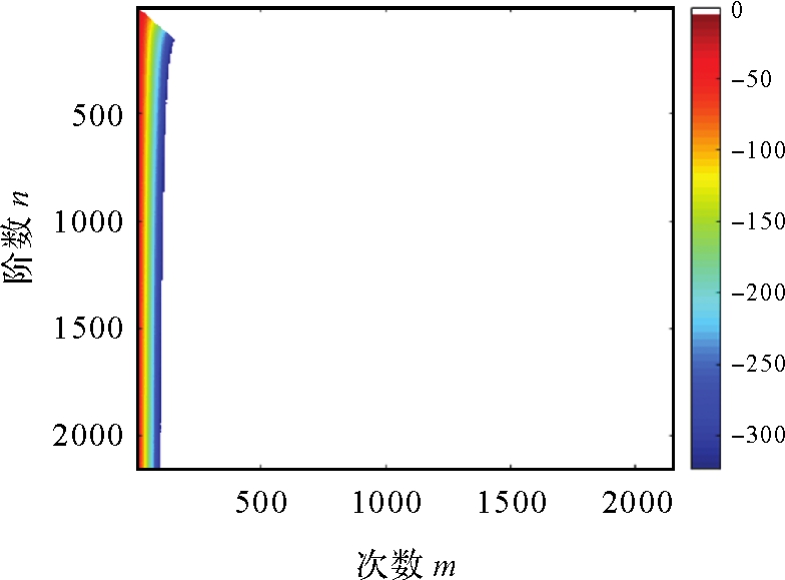

图2

图3

图4

图5

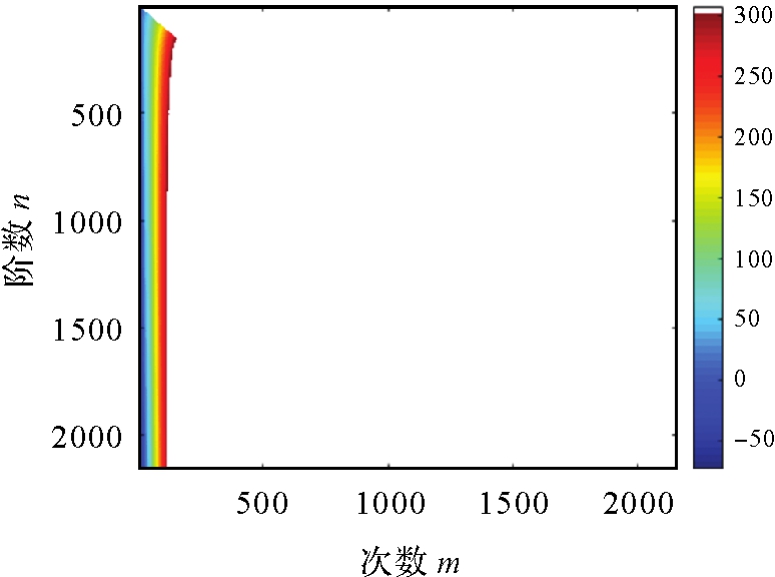

图6

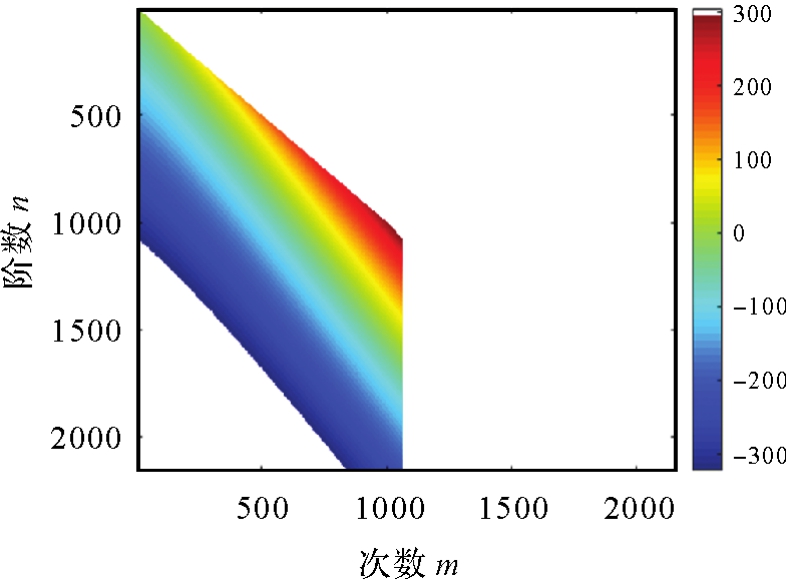

图7

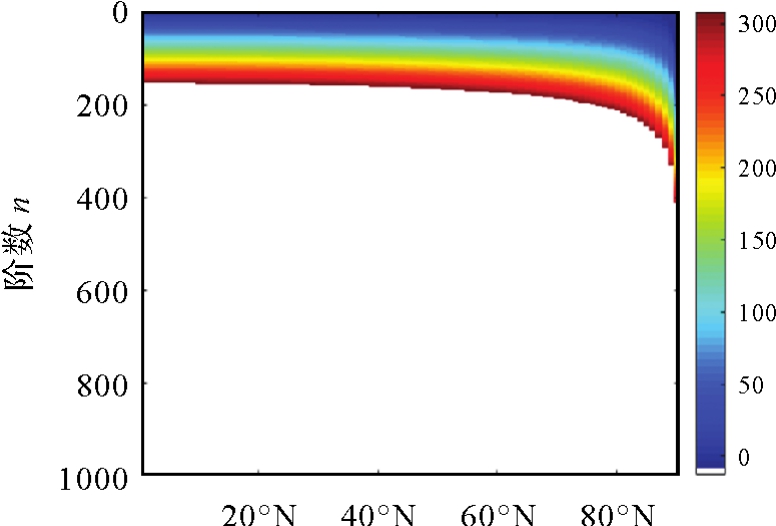

图8

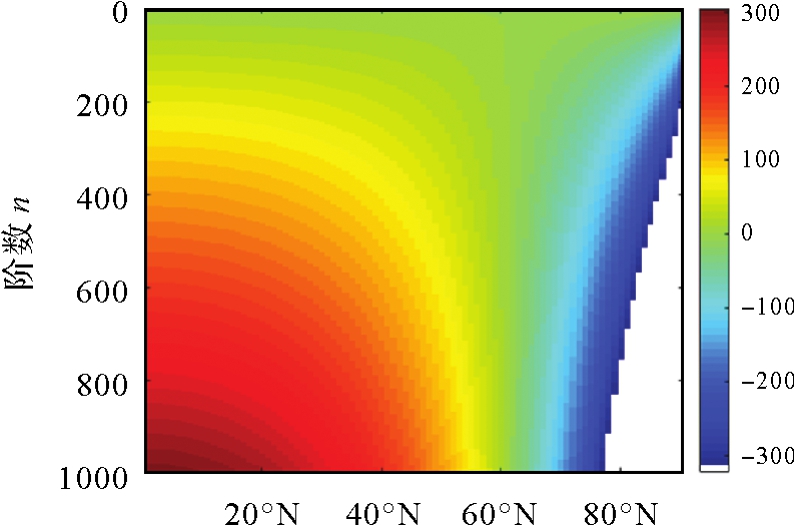

图9

图10

图11

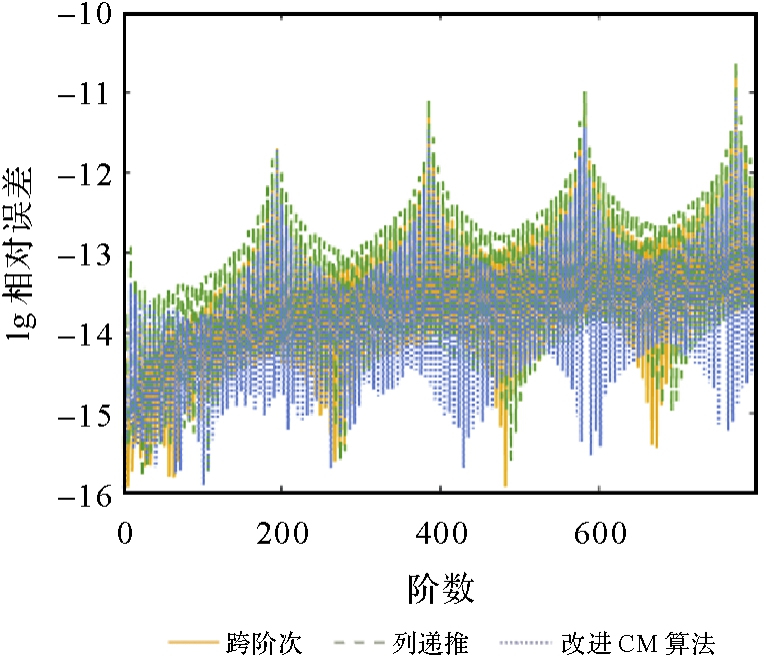

图12

图13

图14

表1

参考文献 33

[1]	温生林. 超低轨道卫星动力学建模与控制方法研究[D]. 长沙: 国防科学技术大学, 2016.
	WEN Shenglin. Research on dynamics modeling and control methods for ultra-low orbit satellites[D]. Changsha: National University of Defense Technology, 2016.
[2]	陈喆, 卞鸿巍, 林泓一, 等. 惯性导航重力扰动影响与补偿方法综析[J]. 导航定位学报, 2025, 13(2): 28-36.
	CHEN Zhe, BIAN Hongwei, LIN Hongyi, et al. Comprehensive analysis of gravity disturbance impact and compensation methods in inertial navigation systems[J]. Journal of Navigation and Positioning, 2025, 13(2): 28-36.
[3]	朱宏堡, 田野, 严恭敏, 等. 基于重力模型阶次自适应的实时重力补偿系统研究[J]. 导航定位与授时, 2024, 11(4): 55-64.
	ZHU Hongbao, TIAN Ye, YAN Gongmin, et al. Research on real-time gravity compensation system based on gravity model order adaptation[J]. Navigation Positioning and Timing, 2024, 11(4): 55-64.
[4]	宁津生, 王正涛. 地球重力场研究现状与进展[J]. 测绘地理信息, 2013, 38(1): 1-7.
	NING Jinsheng, WANG Zhengtao. Progress and present status of research on Earth's gravitational field[J]. Journal of Geomatics, 2013, 38(1): 1-7.
[5]	PAVLIS N K, HOLMES S A, KENYON S C, et al. The development and evaluation of the Earth gravitational model 2008 (EGM2008)[J]. Journal of Geophysical Research: Solid Earth, 2012, 117(B4): 1-38.
[6]	KOSTELECKÝ J, KLOKOĞNÍK J, BUCHA B, et al. Evaluation of gravity field model EIGEN-6C4 by means of various functions of gravity potential, and by GNSS/levelling[J]. Geoinformatics FCE CTU, 2015, 14(1): 7-28.
[7]	夏哲仁, 石磐, 李迎春. 高分辨率区域重力场模型DQM2000[J]. 武汉大学学报(信息科学版), 2003, 28(S1): 124-128.
	XIA Zheren, SHI Pan, LI Yingchun. A new series of high resolution Earth's gravity field models DQM2000[J]. Geomatics and Information Science of Wuhan University, 2003, 28(S1): 124-128.
[8]	RHEE N, BANI-YAGHOUB M, LEIBSLE F M. Computing the associated Legendre polynomials through a matrix-eigen value algorithm[J]. Missouri Journal of Mathematical Sciences, 2022, 34(1): 30-39.
[9]	MÉTRIS G, XU Jin, WYTRZYSZCZAK I. Derivatives of the gravity potential with respect to rectangular coordinates[J]. Celestial Mechanics and Dynamical Astronomy, 1998, 71(2): 137-151.
[10]	PINES S. Uniform representation of the gravitational potential and its derivatives[J]. AIAA Journal, 1973, 11(11): 1508-1511.
[11]	CUNNINGHAM L E. On the computation of the spherical harmonic terms needed during the numerical integration of the orbital motion of an artificial satellite[J]. Celestial Mechanics, 1970, 2(2): 207-216.
[12]	LUNDBERG J B, SCHUTZ B E. Recursion formulas of Legendre functions for use with nonsingular geopotential models[J]. Journal of Guidance, Control, and Dynamics, 1988, 11(1): 31-38.
[13]	COLOMBO O L. Numerical methods for harmonic analysis on the sphere[R]. Ohio: The Ohio State University, 1981.
[14]	张捍卫, 杨永勤, 张华, 等. 缔合勒让德函数的跨阶次递推公式[J]. 测绘科学, 2022, 47(9): 46-51.
	ZHANG Hanwei, YANG Yongqin, ZHANG Hua, et al. Recurrence formulas between every other order and degree for associated Legendre functions[J]. Science of Surveying and Mapping, 2022, 47(9): 46-51.
[15]	吴星, 刘雁雨. 多种超高阶次缔合勒让德函数计算方法的比较[J]. 测绘科学技术学报, 2006, 23(3): 188-191.
	WU Xing, LIU Yanyu. Comparison of computing methods of the ultra-high degree and order[J]. Journal of Geomatics Science and Technology, 2006, 23(3): 188-191.
[16]	CLENSHAW C W. A note on the summation of Chebyshev series[J]. Mathematics of Computation, 1955, 9(51): 118-120.
[17]	HOLMES S A, FEATHERSTONE W E. A unified approach to the Clenshaw summation and the recursive computation of very high degree and order normalised associated Legendre functions[J]. Journal of Geodesy, 2002, 76(5): 279-299.
[18]	BALMINO G, BARRIOT J P, VALÈS N. Non-singular formulation of the gravity vector and gravity gradient tensor in spherical harmonics[J]. Manuscripta Geodaetica, 1990, 15(1): 11-16.
[19]	GILL E, MONTENBRUCK O. Satellite orbits: models, methods and applications[M]. Berlin: Springer, 2013.
[20]	单建晨, 李姗姗, 范雕, 等. 超高阶全球地形球谐系数模型的构建方法与实现[J]. 测绘学报, 2023, 52(5): 748-759. DOI: . doi: 10.11947/jAGCS.2023.20220003
	SHAN Jianchen, LI Shanshan, FAN Diao, et al. Design and implementation of ultra-high-degree spherical harmonic model of Earth topography[J]. Acta Geodaetica et Cartographica Sinica, 2023, 52(5): 748-759. DOI: . doi: 10.11947/jAGCS.2023.20220003
[21]	张捍卫, 杨永勤, 李晓玲, 等. 第二类勒让德函数的重规格化及其优化[J]. 测绘学报, 2024, 53(7): 1298-1307. DOI: . doi: 10.11947/j.AGCS.2024.20230283
	ZHANG Hanwei, YANG Yongqin, LI Xiaoling, et al. Renormalization and its optimization of the Legendre function of the second kind[J]. Acta Geodaetica et Cartographica Sinica, 2024, 53(7): 1298-1307. DOI: . doi: 10.11947/j.AGCS.2024.20230283
[22]	FUKUSHIMA T. Numerical computation of spherical harmonics of arbitrary degree and order by extending exponent of floating point numbers[J]. Journal of Geodesy, 2012, 86(4): 271-285.
[23]	BALMINO G, VALES N, BONVALOT S, et al. Spherical harmonic modelling to ultra-high degree of Bouguer and isostatic anomalies[J]. Journal of Geodesy, 2012, 86(7): 499-520.
[24]	SNEEUW N, BUN R. Global spherical harmonic computation by two-dimensional Fourier methods[J]. Journal of Geodesy, 1996, 70(4): 224-232.
[25]	JEKELI C, LEE J K, KWON J H. On the computation and approximation of ultra-high-degree spherical harmonic series[J]. Journal of Geodesy, 2007, 81(9): 603-615.
[26]	FANTINO E, CASOTTO S. Methods of harmonic synthesis for global geopotential models and their first-, second- and third-order gradients[J]. Journal of Geodesy, 2009, 83(7): 595-619.
[27]	NOVIKOVA E, DMITRENKO A. Problems and methods of calculating the Legendre functions of arbitrary degree and order[J]. Geodesy and Cartography, 2016, 65(2): 283-312.
[28]	BERNHARD HOFMANN-WELLENHOF H M. Physical geodesy[M]. Nashville: Freeman and Company, 1967.
[29]	GAL S. An accurate elementary mathematical library for the IEEE floating point standard[J]. ACM Transactions on Mathematical Software (TOMS), 1991, 17(1): 26-45.
[30]	LEI Weiwei, LI Kai. Evaluating applicability of four recursive algorithms for computation of the fully normalized associated Legendre functions[J]. Journal of Applied Geodesy, 2016, 10(4): 267-275.
[31]	WIECZOREK M A, MESCHEDE M. SHTools: tools for working with spherical harmonics[J]. Geochemistry, Geophysics, Geosystems, 2018, 19(8): 2574-2592.
[32]	BELIKOV M V. Spherical harmonic analysis and synthesis with the use of column-wise recurrence relations[J]. Manuscripta Geodaetica, 1991, 16(6): 384-410.
[33]	PAUL M K. Recurrence relations for integrals of associated Legendre functions[J]. Bulletin Géodésique, 1978, 52(3): 177-190.

计算内容	格网数据U	格网数据	轨道数据U	轨道数据
改进CM算法	1.51	2.59	1.47	2.66
跨阶次递推法	1.76	2.88	1.82	2.83
CM算法	2.42	3.71	2.44	3.65
标准列递推法	2.37	3.96	2.43	4.01
