联合动态池化自适应配准与邻域特征DTW的分阶段隧道配准方法

doi:10.11947/j.AGCS.2026.20250550

测绘学报 ›› 2026, Vol. 55 ›› Issue (9): 1555-1566.doi: 10.11947/j.AGCS.2026.20250550

联合动态池化自适应配准与邻域特征DTW的分阶段隧道配准方法

孙海丽¹^,²(), 严心武¹^,², 杨平¹^,², 海晟¹^,², 钟若飞¹^,², 王明权³

^1.首都师范大学资源环境与旅游学院，北京　100048
^2.首都师范大学三维信息获取与应用教育部重点实验室，北京　100048
^3.重庆市测绘科学技术研究院，重庆　401336

收稿日期:2025-12-30 修回日期:2026-09-01 出版日期:2026-10-28 发布日期:2026-10-28
作者简介:孙海丽（1986—），女，博士，副教授，研究方向为测绘和轨道交通检测与监测。　E-mail：sunhaili@cnu.edu.cn
基金资助:
河南理工大学测绘科学与技术“双一流”学科项目(CH2026B008)

A staged tunnel registration method integrating dynamic pooling-based adaptive registration and neighborhood feature-assisted DTW

Haili Sun¹^,²(), Xinwu Yan¹^,², Ping Yang¹^,², Sheng Hai¹^,², Ruofei Zhong¹^,², Mingquan Wang³

^1.College of Resource Environment and Tourism, Capital Normal University, Beijing 100048, China
^2.Key Laboratory of3D Information Acquisition and Application, Ministry of Education, Capital Normal University, Beijing 100048, China
^3.Chongqing Institute of Surveying and Mapping Science and Technology, Chongqing 401336, China

Received:2025-12-30 Revised:2026-09-01 Online:2026-10-28 Published:2026-10-28
About author:Sun Haili (1986—), female, PhD, associate professor, majors in surveying and rail transit monitoring. E-mail: sunhaili@cnu.edu.cn
Supported by:
The “Double First-Class” Discipline Project of Surveying and Mapping Science and Technology, Henan Polytechnic University(CH2026B008)

摘要/Abstract

摘要：

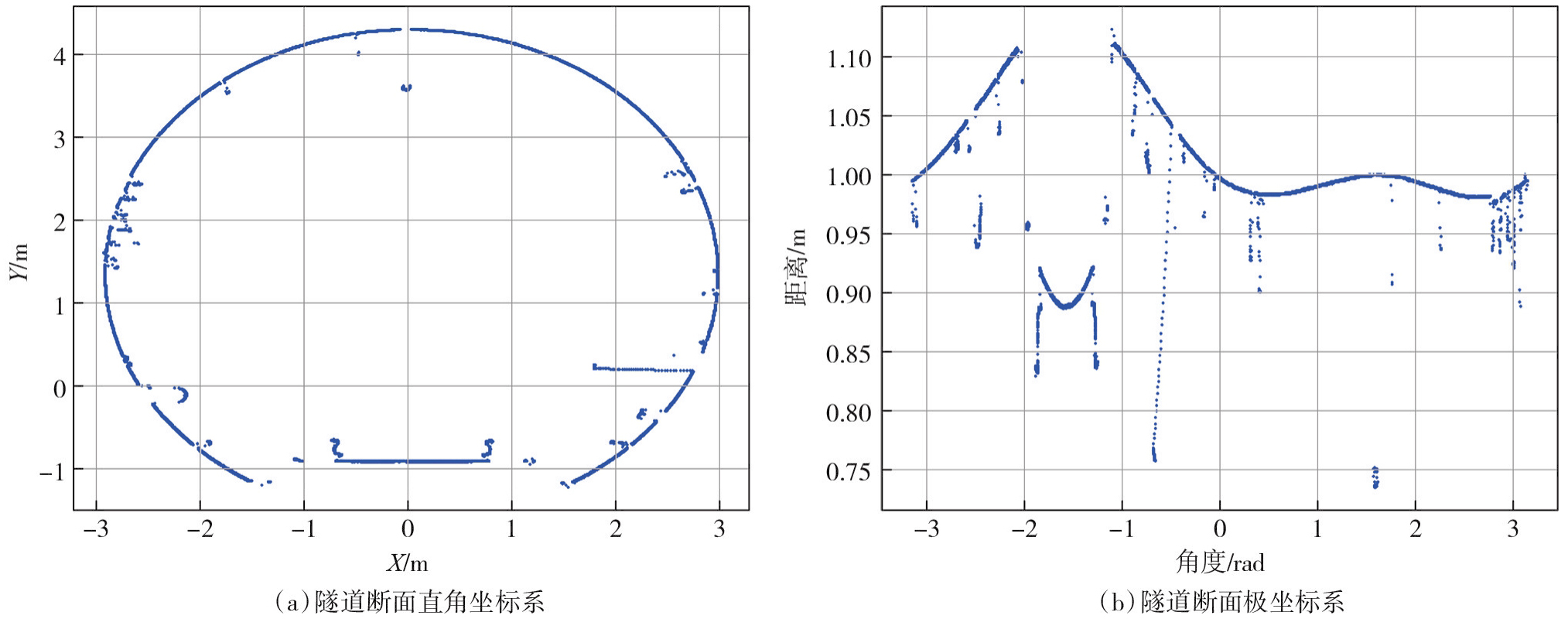

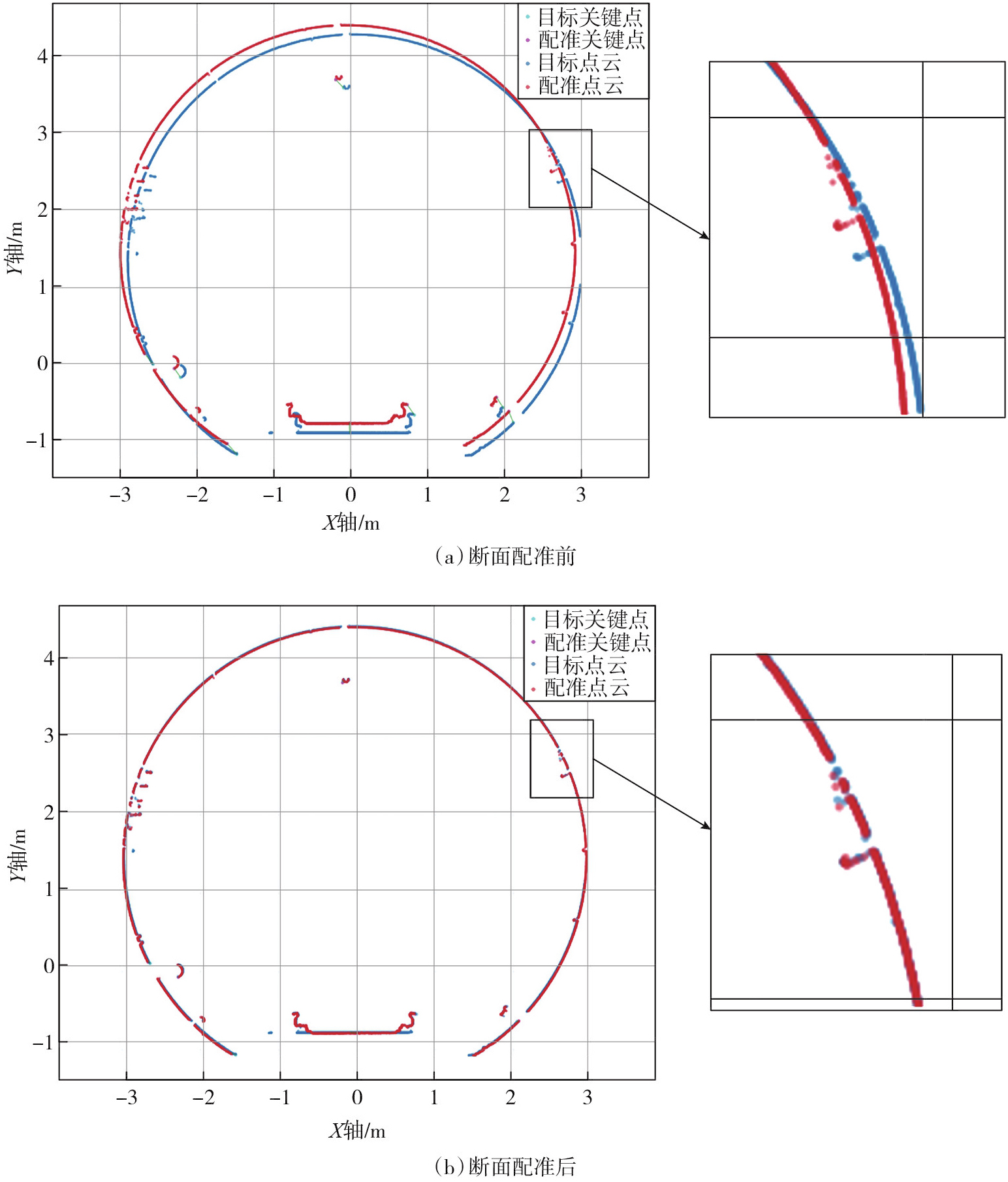

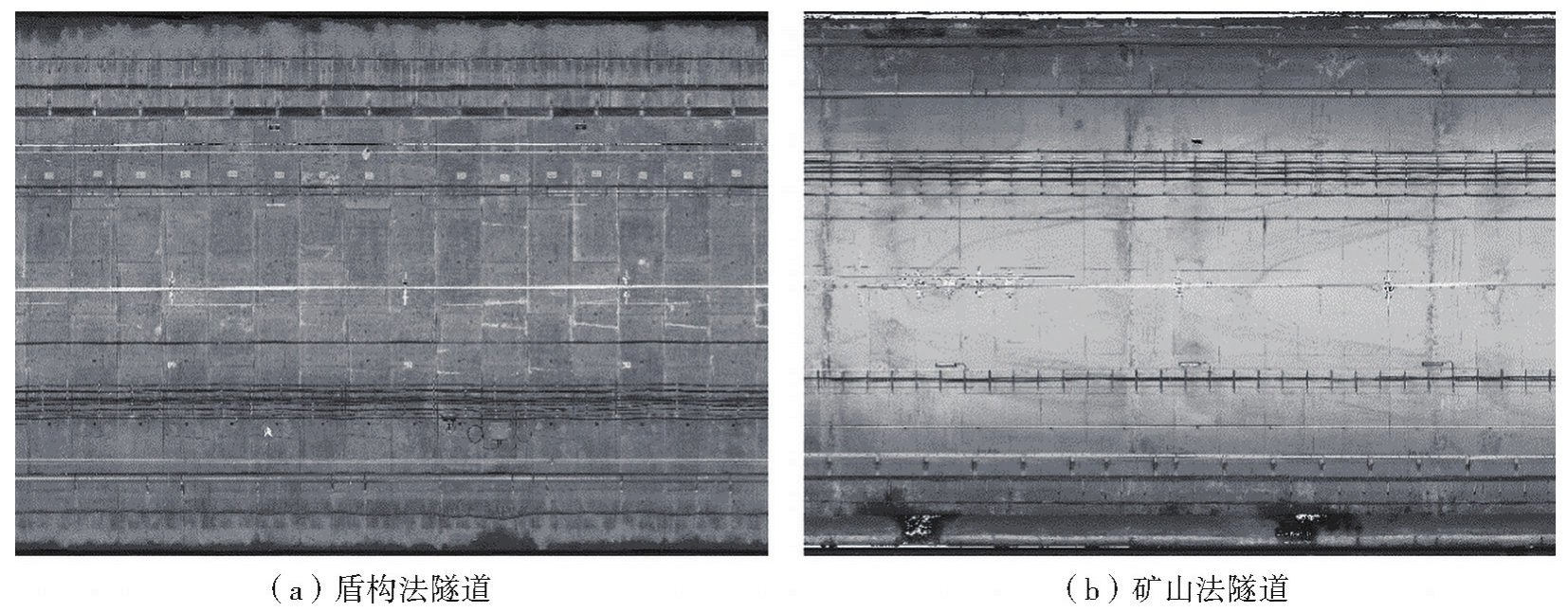

针对多期隧道移动激光扫描数据因里程累积误差及采集姿态差异导致的跨期对齐问题，提出一种联合动态池化自适应配准与邻域特征辅助动态时间规整（DTW）的分阶段配准方法。首先，利用点云反射强度生成隧道二维影像，通过SuperPoint提取局部特征，在LightGlue的旋转位置编码与注意力匹配框架基础上，引入面向隧道影像特征分布的动态池化策略，实现多期数据的大范围里程初始对齐；随后，将隧道断面点云转换为极坐标径向序列，利用动态时间规整建立跨期断面对应关系，并结合自适应邻域内在形状签名（ISS）关键点提取与最小二乘优化实现断面精配准。在重庆地铁盾构法和矿山法隧道两期移动激光扫描数据上开展试验。结果表明，盾构法隧道的影像配准和点云配准误差分别为1.3和1.2 cm，矿山法隧道分别为3.7和3.6 cm；精配准后点云倒角距离整体收敛至0.1~0.3 cm，平均约为0.2 cm，较配准前降低约90%。结果表明，本文方法能够适应不同结构形式隧道的跨期数据对齐，为隧道结构变形监测、病害演化分析及多期数据融合提供可靠的空间基准。

关键词: 隧道, 移动激光扫描, 多期数据配准, LightGlue, 动态时间规整, ISS

Abstract:

To address cross-epoch misalignment of multi-epoch tunnel mobile laser scanning data caused by accumulated mileage errors and variations in acquisition poses, a staged registration method integrating dynamic pooling-based adaptive registration and neighborhood feature-assisted dynamic time warping (DTW) is proposed. First, two-dimensional tunnel images are generated from point-cloud intensity information, and local features are extracted using SuperPoint. Building upon the rotary positional encoding and attention-based matching framework of LightGlue, a dynamic pooling strategy tailored to the feature distribution of tunnel images is introduced to achieve coarse mileage alignment over large offsets between multi-epoch datasets. Subsequently, tunnel cross-sectional point clouds are transformed into radial sequences in polar coordinates, and dynamic time warping is employed to establish cross-epoch correspondences between tunnel cross-sections. Adaptive-neighborhood intrinsic shape signature (ISS) keypoint extraction and least-squares optimization are then applied to achieve refined cross-sectional registration. Experiments were conducted on multi-epoch mobile laser scanning data acquired from shield and mined tunnels of Chongqing Metro. The image-registration and point-cloud-registration errors were 1.3 and 1.2 cm, respectively, for the shield tunnel, and 3.7 and 3.6 cm, respectively, for the mined tunnel. After refined registration, the Chamfer distances converged to 0.1~0.3 cm, with an average of approximately 0.2 cm, representing a reduction of approximately 90% compared with those before registration. The results demonstrate that the proposed method can effectively accommodate cross-epoch alignment of tunnels with different structural characteristics and provide a reliable spatial reference for tunnel deformation monitoring, defect evolution analysis, and multi-epoch data fusion.

Key words: tunnel, mobile laser scanning, multi-epoch registration, LightGlue, dynamic time warping, ISS

中图分类号:

P232

孙海丽, 严心武, 杨平, 海晟, 钟若飞, 王明权. 联合动态池化自适应配准与邻域特征DTW的分阶段隧道配准方法[J]. 测绘学报, 2026, 55(9): 1555-1566.

Haili Sun, Xinwu Yan, Ping Yang, Sheng Hai, Ruofei Zhong, Mingquan Wang. A staged tunnel registration method integrating dynamic pooling-based adaptive registration and neighborhood feature-assisted DTW[J]. Acta Geodaetica et Cartographica Sinica, 2026, 55(9): 1555-1566.

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: http://xb.chinasmp.com/CN/10.11947/j.AGCS.2026.20250550

http://xb.chinasmp.com/CN/Y2026/V55/I9/1555

图/表 9

图1

图2

图3

表1

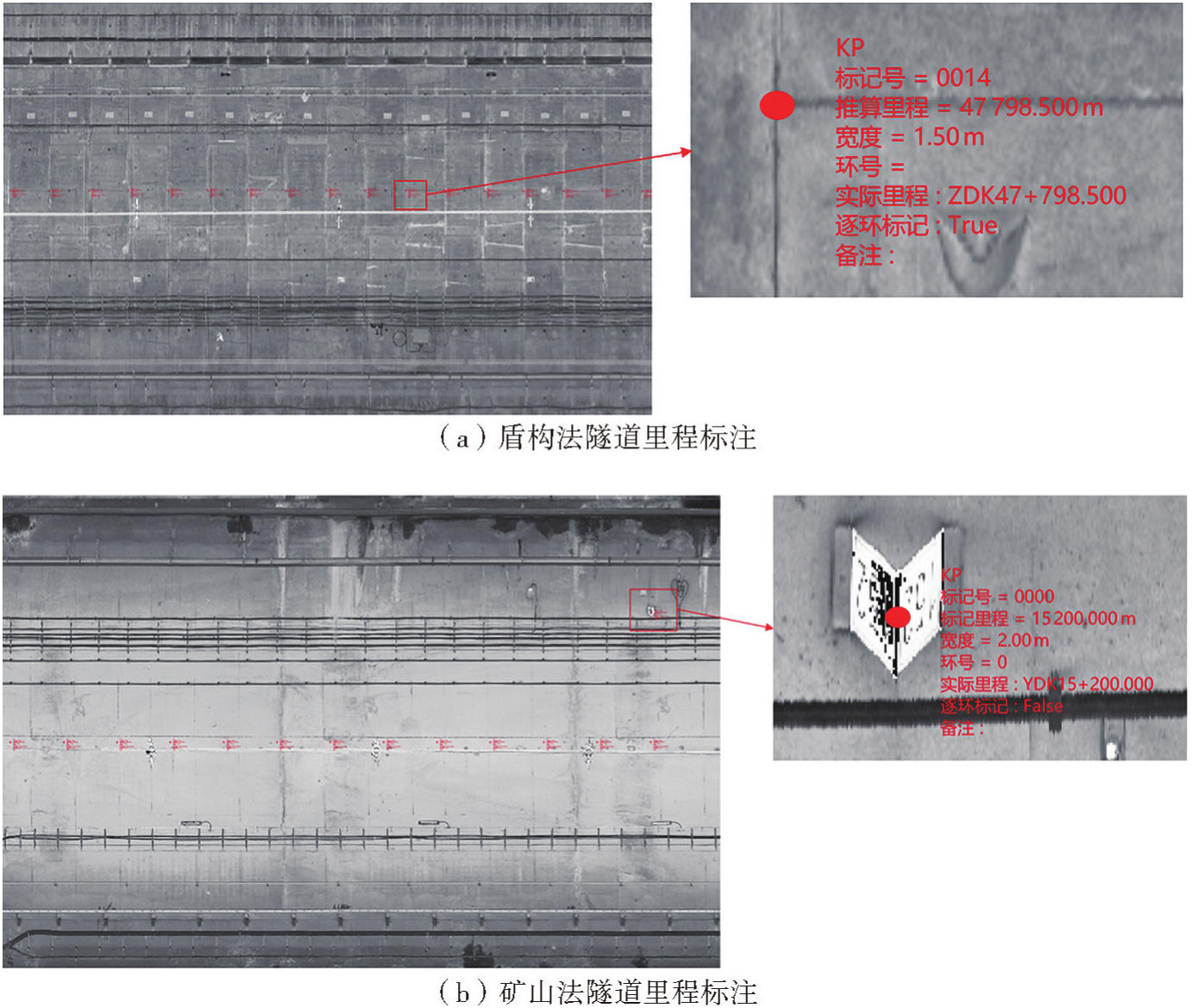

图4

表2

图5

图6

图7

参考文献 22

[1]	韩宝明, 余怡然, 习喆, 等. 城市轨道交通2023年度统计和分析报告[R]. 北京: 中国城市轨道交通协会, 2024.
	Han Baoming, Yu Yiran, Xi Zhe, et al. Urban rail transit 2023 annual statistics and analysis report[R]. Beijing: China Association of Metros, 2024.
[2]	陈军, 刘万增, 武昊, 等. 智能化测绘的基本问题与发展方向[J]. 测绘学报, 2021, 50(8): 995-1005. DOI: . doi: 10.11947/j.AGCS.2021.20210235
	Chen Jun, Liu Wanzeng, Wu Hao, et al. Smart surveying and mapping: fundamental issues and research agenda[J]. Acta Geodaetica et Cartographica Sinica, 2021, 50(8): 995-1005. DOI: . doi: 10.11947/j.AGCS.2021.20210235
[3]	纪长琦, 郭肇捷, 孙海丽, 等. 基于移动激光扫描的地铁隧道渗漏水定位及快速检测方法[J]. 测绘学报, 2024, 53(6): 1236-1250. DOI: . doi: 10.11947/j.AGCS.2024.20230438
	Ji Changqi, Guo Zhaojie, Sun Haili, et al. Location and rapid detection method of water leakage in subway tunnels based on mobile laser scanning[J]. Acta Geodaetica et Cartographica Sinica, 2024, 53(6): 1236-1250. DOI: . doi: 10.11947/j.AGCS.2024.20230438
[4]	林康, 石波, 杨密, 等. 基于激光点云环缝环号识别的盾构隧道病害定位方法[J]. 铁道科学与工程学报, 2023, 20(12): 4835-4847.
	Lin Kang, Shi Bo, Yang Mi, et al. Disease location method of shield tunnel based on laser point cloud ring seam ring number identification[J]. Journal of Railway Science and Engineering, 2023, 20(12): 4835-4847.
[5]	Lowe D G. Distinctive image features from scale-invariant keypoints[J]. International Journal of Computer Vision, 2004, 60(2): 91-110.
[6]	Bay H, Tuytelaars T, Van Gool L. SURF: speeded up robust features[C]//Proceedings of European Conference on Computer Vision. Berlin: Springer, 2006: 404-417.
[7]	He Kaiming, Zhang Xiangyu, Ren Shaoqing, et al. Deep residual learning for image recognition[C]//Proceedings of 2016 IEEE Conference on Computer Vision and Pattern Recognition. Las Vegas: IEEE, 2016: 770-778.
[8]	Touvron H, Cord M, Sablayrolles A, et al. Going deeper with image transformers[C]//Proceedings of the IEEE/CVF International Conference on Computer Vision. MontrealL: IEEE, 2021: 32-42.
[9]	Chen Hanting, Wang Yunhe, Guo Tianyu, et al. Pre-trained image processing transformer[C]//Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition. Nashville: IEEE, 2021: 12299-12310.
[10]	De Tone D, Malisiewicz T, Rabinovich A. SuperPoint: self-supervised interest point detection and description[PP/OL].[2025-10-30]. https://doi.org/10.48550/arXiv.1712.07629.
[11]	Lindenberger P, Sarlin P E, Pollefeys M. LightGlue: local feature matching at light speed[C]//Proceedings of the 2023 IEEE/CVF International Conference on Computer Vision. Paris: IEEE, 2023.
[12]	Besl P J, McKay N D. A method for registration of 3D shapes[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 1992, 14(2): 239-256.
[13]	Qin Zheng, Yu Hao, Wang Changjian, et al. GeoTransformer: fast and robust point cloud registration with geometric transformer[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2023, 45(8): 9806-9821.
[14]	Fu Kexue, Luo Jiazheng, Luo Xiaoyuan, et al. Robust point cloud registration framework based on deep graph matching[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2023, 45(5): 6183-6195.
[15]	Zai Dawei, Li Jonathan, Guo Yulan, et al. Pairwise registration of TLS point clouds using covariance descriptors and a non-cooperative game[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2017, 134: 15-29.
[16]	赵文更, 张旭, 邵晴晴. 融合反射强度图像的地铁隧道点云自动配准[J]. 测绘通报, 2020(9): 38-41.
	Zhao Wengeng, Zhang Xu, Shao Qingqing. Automatic point cloud registration method of subway tunnels based on reflection intensity images[J]. Bulletin of Surveying and Mapping, 2020(9): 38-41.
[17]	Ji Changqi, Sun Haili, Zhong Ruofei, et al. Precise positioning method of moving laser point cloud in shield tunnel based on bolt hole extraction[J]. Remote Sensing, 2022, 14(19): 4791.
[18]	张星, 黄展鹏, 李清泉, 等. 结合配准补偿和空间约束的隧道三维建图方法[J]. 测绘学报, 2025, 54(2): 297-307. DOI: . doi: 10.11947/j.AGCS.2025.20240018
	Zhang Xing, Huang Zhanpeng, Li Qingquan, et al. 3D tunnel mapping method combining registration compensation and spatial constraint[J]. Acta Geodaetica et Cartographica Sinica, 2025, 54(2): 297-307. DOI: . doi: 10.11947/j.AGCS.2025.20240018
[19]	Fischler M A, Bolles R C. Random sample consensus: a paradigm for model fitting with applications to image analysis and automated cartography[J]. Communications of the ACM, 1981, 24(6): 381-395.
[20]	Rakthanmanon T, Campana B, Mueen A, et al. Searching and mining trillions of time series subsequences under dynamic time warping[C]//Proceedings of the 18th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining. Beijing: ACM Press, 2012: 262-270.
[21]	Zhong Yu. Intrinsic shape signatures: a shape descriptor for 3D object recognition[C]//Proceedings of 12th IEEE International Conference on Computer Vision Workshops. Kyoto: IEEE, 2009: 689-696.
[22]	Fan H Q, Su H, Guibas L. A point set generation network for 3D object reconstruction from a single image[C]//Proceedings of 2017 IEEE Conference on Computer Vision and Pattern Recognition. Honolulu: IEEE, 2017.

隧道类型	里程范围/m	第一期采集时间	第二期采集时间	文件数	数据总量
盾构法	47 779.0~48 229.0	2022-09	2023-05	26	11.6×10⁹
矿山法	0.0~200.0	2022-08	2023-08	16	6.74×10⁹

联合动态池化自适应配准与邻域特征DTW的分阶段隧道配准方法

A staged tunnel registration method integrating dynamic pooling-based adaptive registration and neighborhood feature-assisted DTW

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 9

参考文献 22

相关文章 11

编辑推荐

Metrics

本文评价

隧道数据	影像匹配方法	第一阶段影像配准误差	第二阶段点云配准误差	点云配准优化误差	点云配准前/后倒角距离
盾构法	LightGlue	1.0	0.9	0.1	2.4/0.2
盾构法	动态池化自适应配准	1.3	1.2	0.1	1.8/0.3
矿山法	LightGlue	3.6	3.0	0.6	2.3/0.1
矿山法	动态池化自适应配准	3.7	3.6	0.1	0.3/0.2
