Analysis of orbit determination for inclined geosynchronous SAR using spaceborne GNSS data

doi:10.11947/j.AGCS.2024.20230176

Abstract

Abstract:

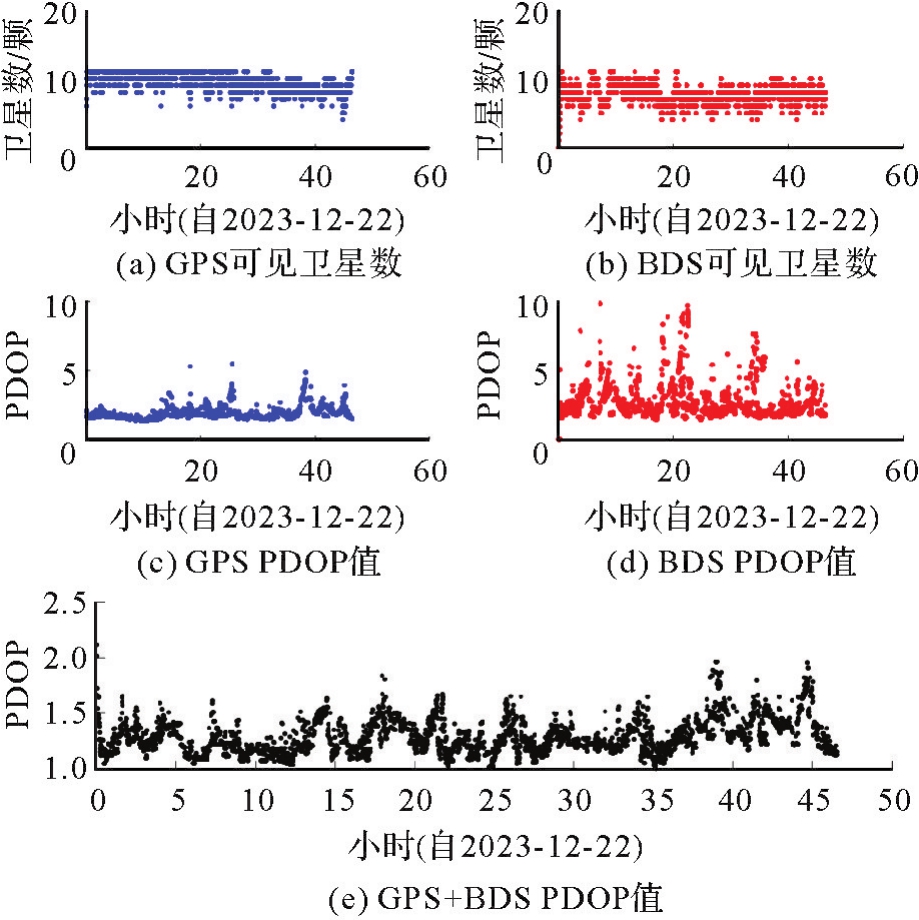

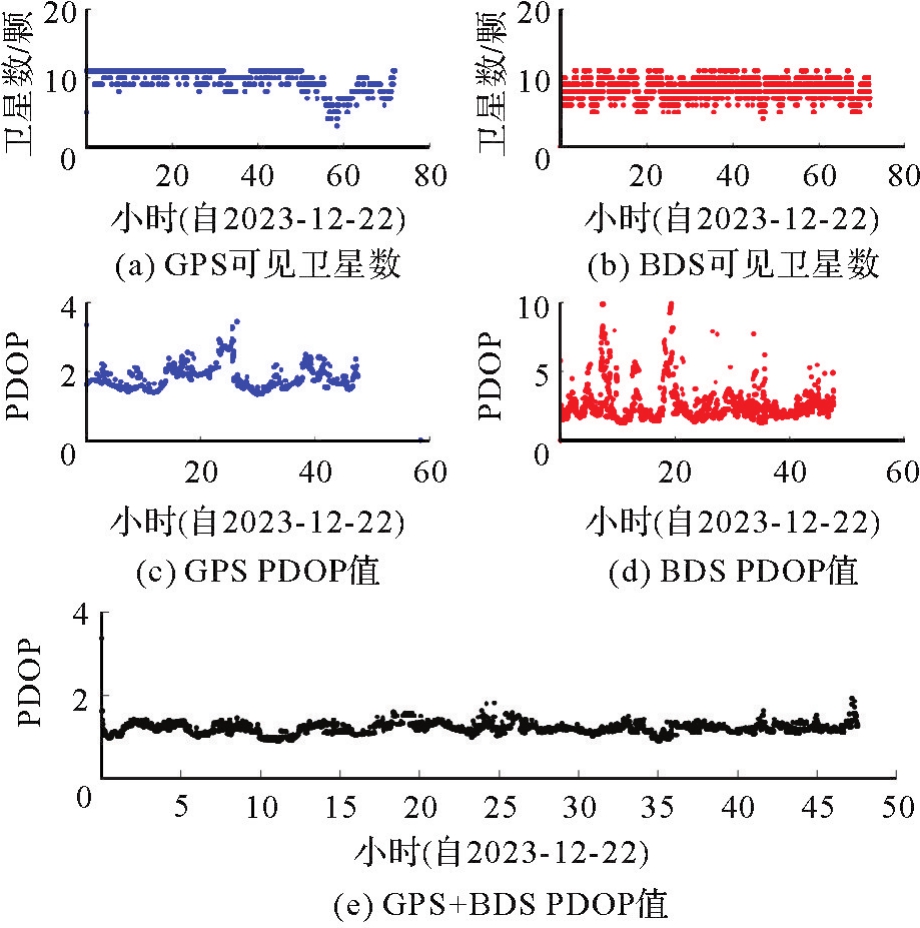

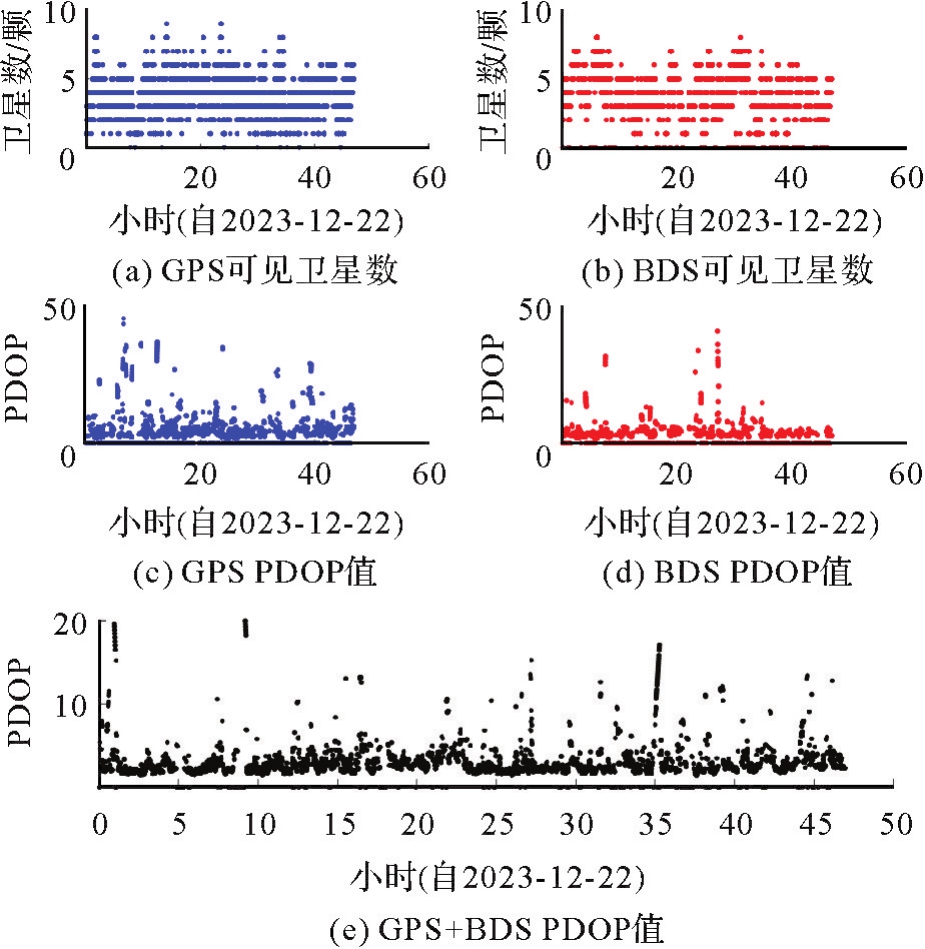

With the widespread application of high orbit satellites, the demand for their orbital accuracy is becoming increasingly high. Based on the spaceborne GNSS (global navigation satellite system) data, we simulate an inclined geosynchronous SAR satellite, and analyze the orbit determination accuracy. The results show that the high sensitivity onboard receiver can obtain the signal of about 20 satellites which include GPS and BDS, with PDOP (position dilution of precision) values ranging from 1 to 2. By using the pseudo range/carrier phase measurement values of spaceborne GNSS data, the orbit determination accuracy of inclined geosynchronous SAR satellites can be better than 1 m, and the fluctuation of high-order Legendre error is less than 10 mm. The perturbation of solar radiation pressure has a significant impact on the orbit, the model error of the 10^-8 m·s^-2 order can reduce the orbit determination accuracy by one order of magnitude.

Key words: high-orbit satellite, spaceborne GNSS, IGSO, SAR satellite, precise orbit determination

CLC Number:

P228

Peng YANG, Zhenxing WANG, Xiaobin TIAN, Shigui ZHENG, Yong HUANG. Analysis of orbit determination for inclined geosynchronous SAR using spaceborne GNSS data[J]. Acta Geodaetica et Cartographica Sinica, 2024, 53(12): 2305-2315.

Figures/Tables 21

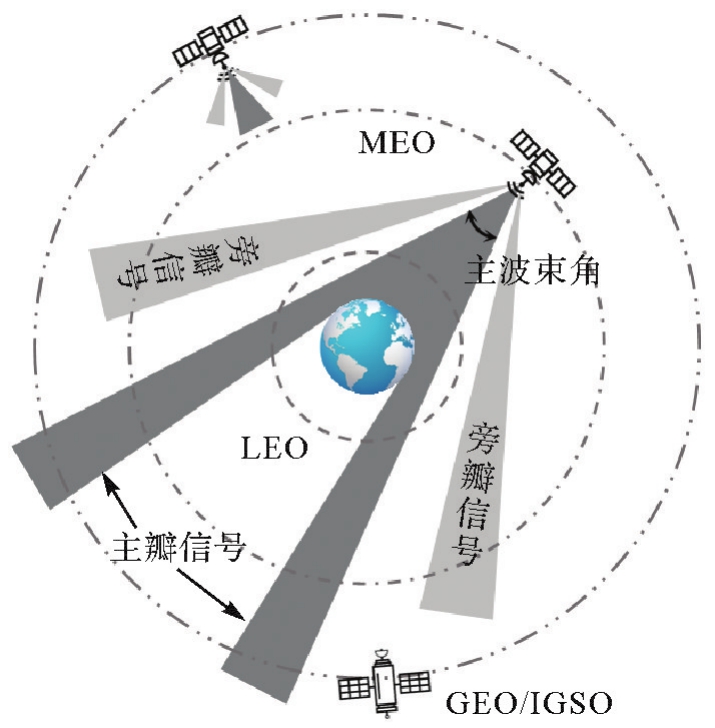

Fig. 1

Tab. 1

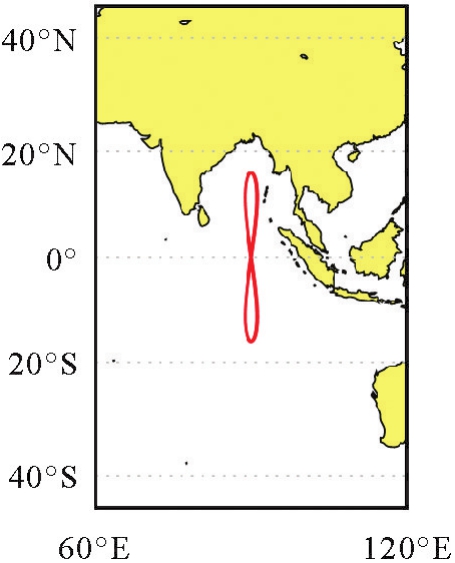

Fig. 2

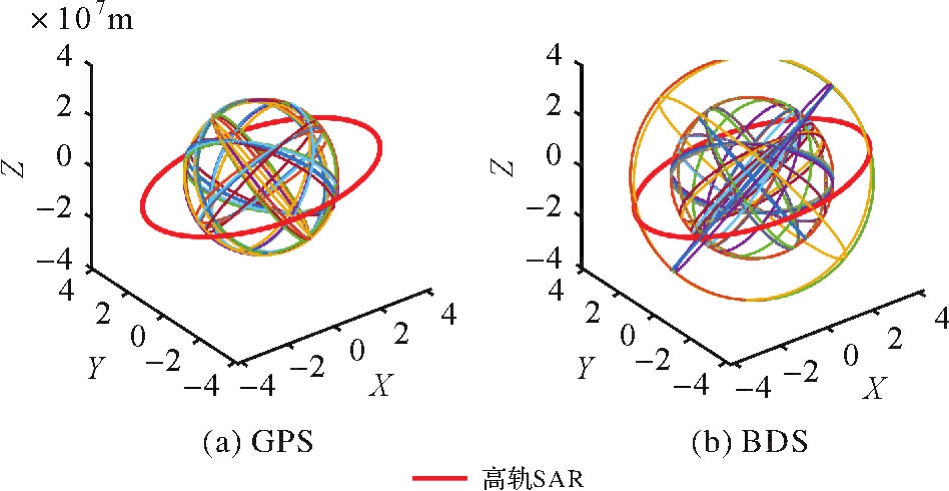

Fig. 3

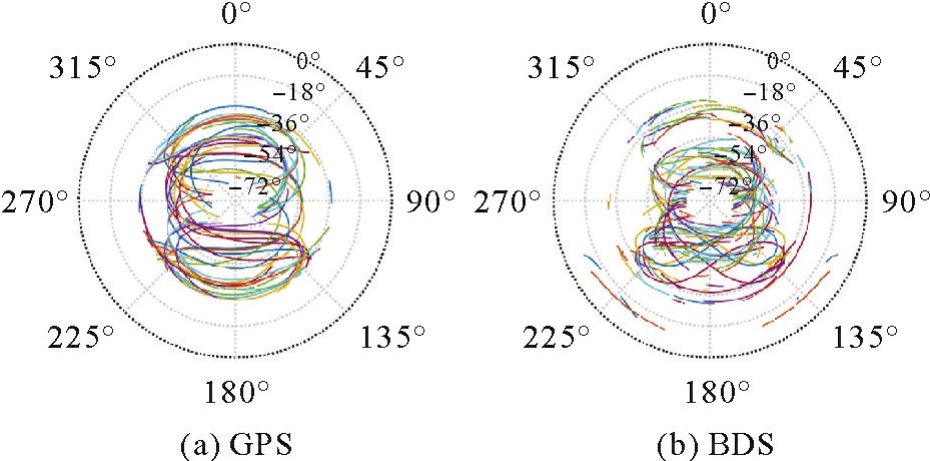

Fig. 4

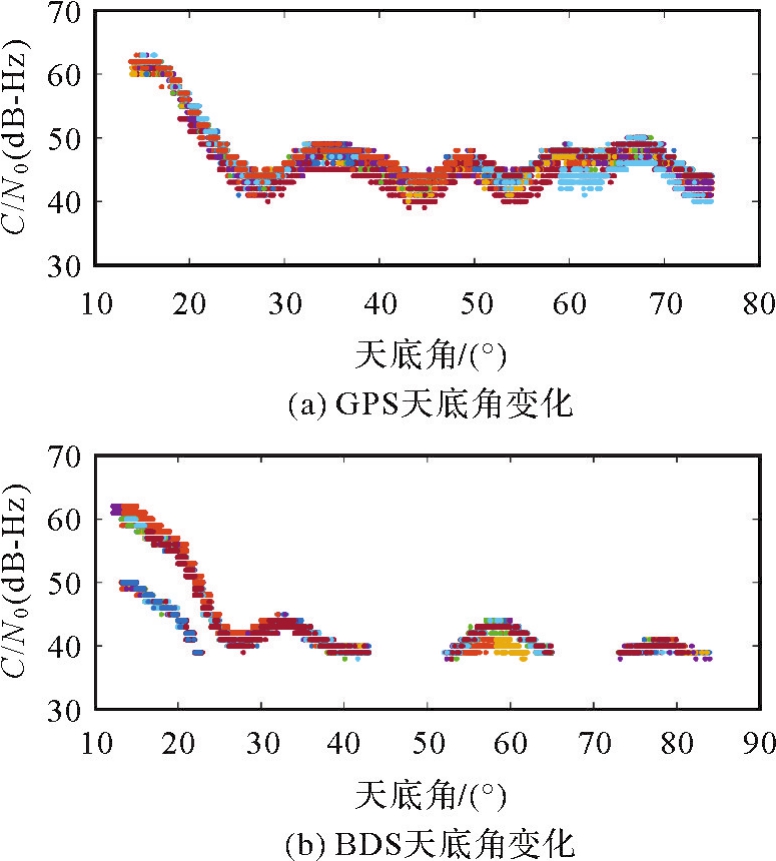

Fig. 5

Tab. 2

Tab. 3

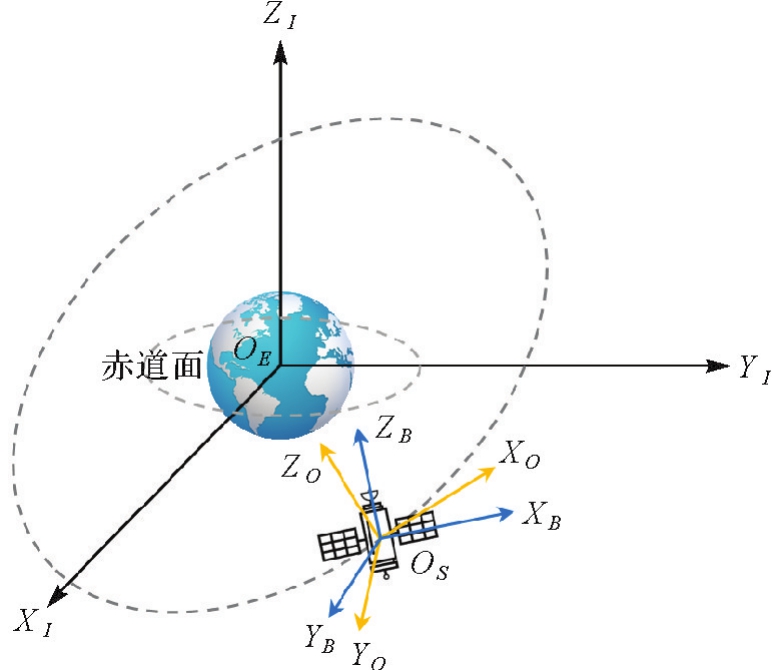

Fig. 6

Tab. 4

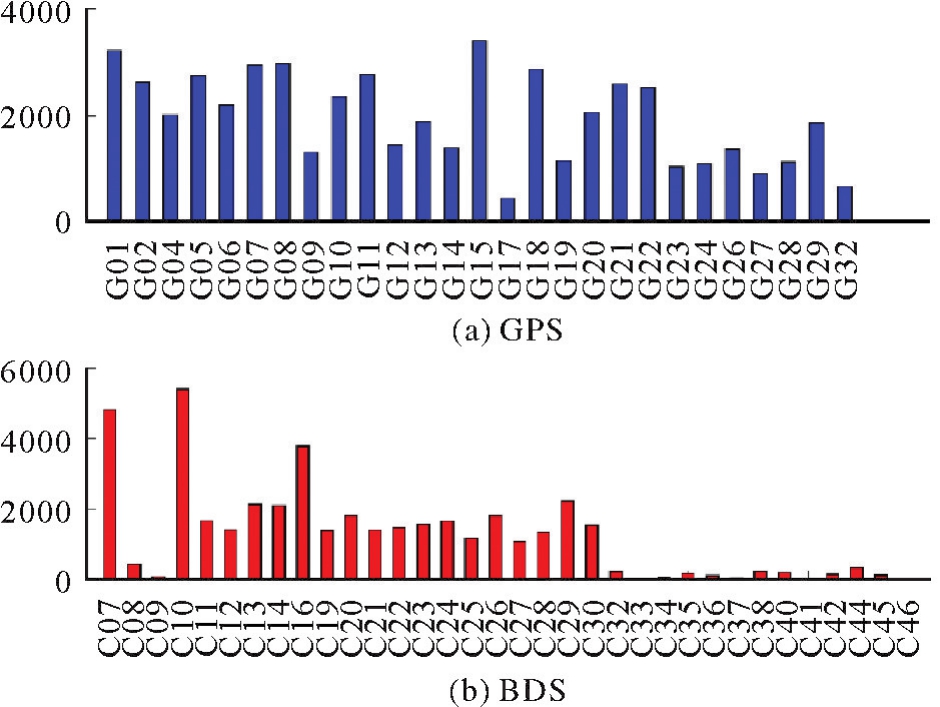

Fig. 7

Fig. 8

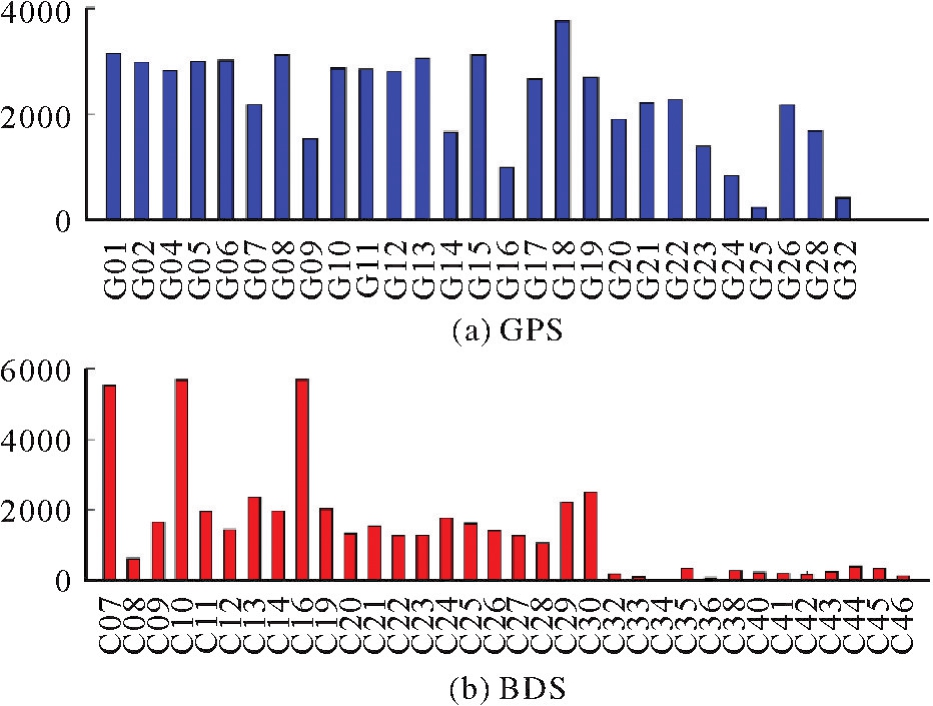

Fig. 9

Fig. 10

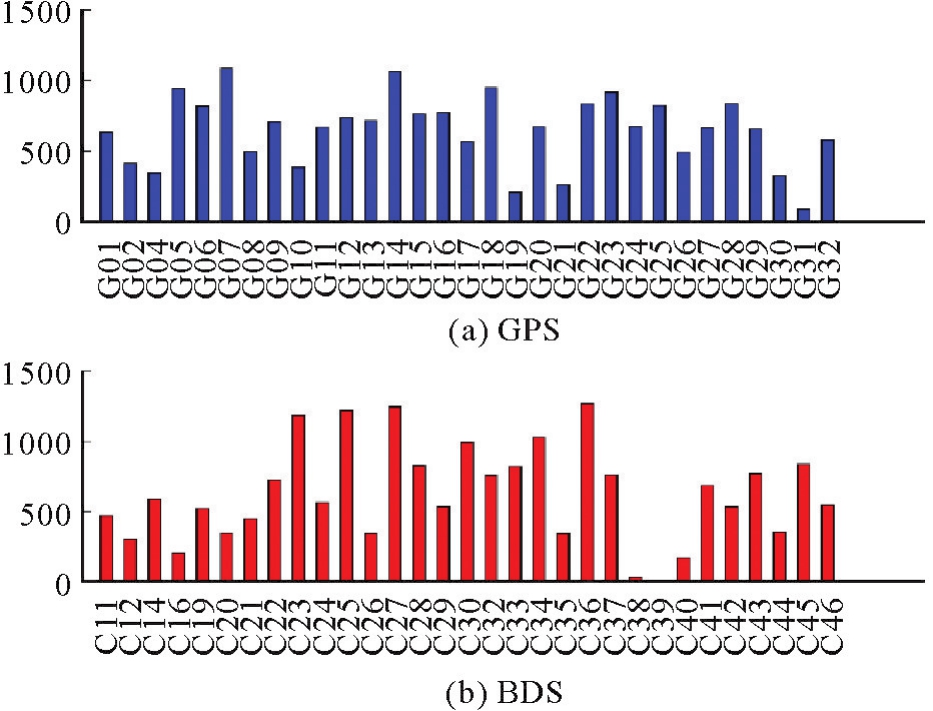

Fig. 11

Fig. 12

Tab. 5

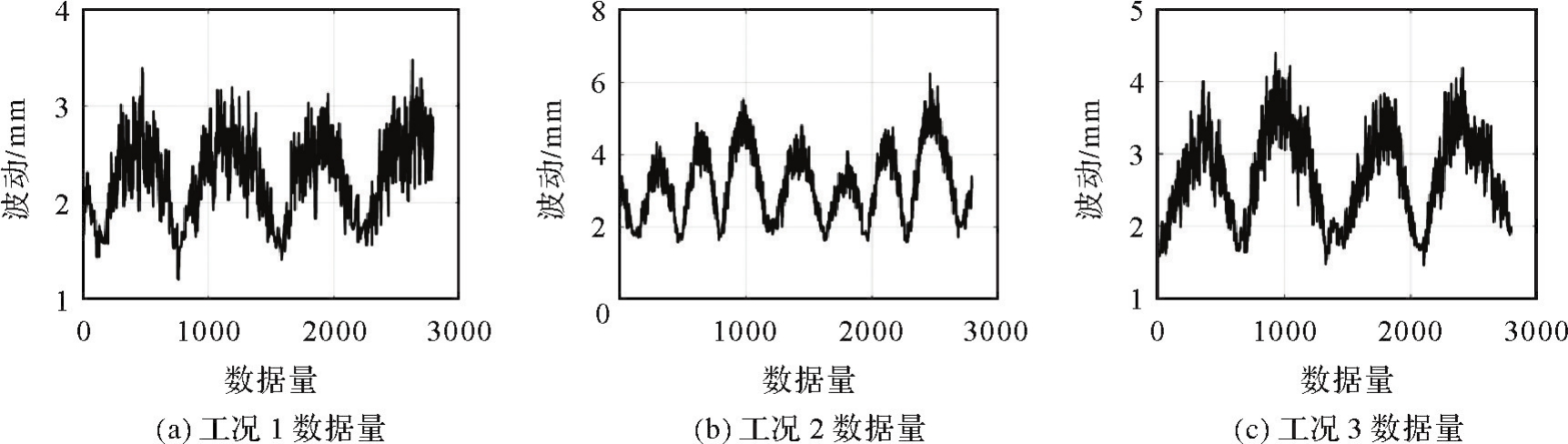

Fig. 13

Tab. 6

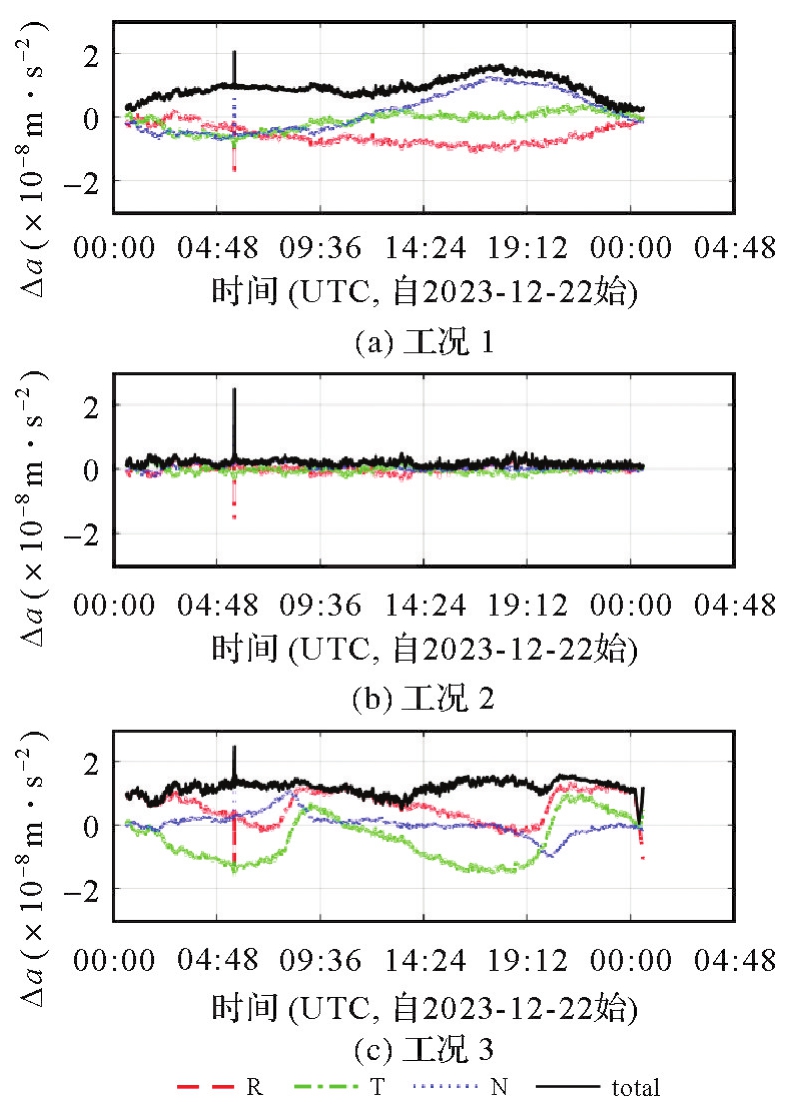

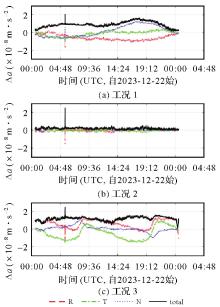

Fig. 14

Tab. 7

References 36

[1]	赵彦珍. 基于GNSS的高轨卫星定位技术研究[D]. 北京: 中国科学院国家空间科学中心, 2016.
	ZHAO Yanzhen. Research on positioning technology of high orbit satellite based on GNSS[D]. Beijing: National Space Science Center, Chinese Academy of Sciences, 2016.
[2]	杜兰. GEO卫星精密定轨技术研究[D]. 郑州: 信息工程大学, 2006.
	DU Lan. Research on precise orbit determination technology of GEO satellite[D]. Zhengzhou: Information Engineering University, 2006.
[3]	郭睿, 胡小工, 唐波, 等. 多种测量技术条件下的GEO卫星定轨研究[J]. 科学通报, 2010, 55(6): 428-434.
	GUO Rui, HU Xiaogong, TANG Bo, et al. Research on GEO satellite orbit determination under the condition of various measurement techniques[J]. Chinese Science Bulletin, 2010, 55(6): 428-434.
[4]	邢楠, 唐成盼, 李晓杰, 等. 北斗三号GEO卫星的RDSS定轨精度分析[J]. 中国科学：物理学力学天文学, 2021, 51(1): 96-102.
	XING Nan, TANG Chengpan, LI Xiaojie, et al. RDSS orbit determination accuracy analysis of BeiDou-3 GEO satellite[J]. Chinese Science: Physics, Mechanics and Astronomy, 2021, 51(1): 96-102.
[5]	刘泽军, 杜兰, 张栩晨, 等. 基于Ku波段CEI的GEO卫星定轨特性[J]. 导航定位学报, 2021, 9(1): 38-43.
	LIU Zejun, DU Lan, ZHANG Xuchen, et al. Analysis on orbit determination of GEO satellite based on Ku-band CEI[J]. Journal of Navigation and Positioning, 2021, 9(1): 38-43.
[6]	BAUER F, MOREAU M, DAHLE-MELSAETHER M E, et al. The GPS space service volume[C]//Proceedings of 2006 ION GNSS. Fort Worth: IEEE, 2006.
[7]	王猛, 单涛, 王盾. 高轨航天器GNSS技术发展[J]. 测绘学报, 2020, 49(9): 1158-1167. DOI:. doi: 10.11947/J.AGCS.2020.20200170
	WANG Meng, SHAN Tao, WANG Dun. Development of GNSS technology for high earth orbit spacecraft[J]. Acta Geodaetica et Cartographica Sinica, 2020, 49(9): 1158-1167. DOI:. doi: 10.11947/J.AGCS.2020.20200170
[8]	樊敏, 胡小工, 李海涛, 等. 月球探测器GNSS信号可见性分析改进方法及应用[J]. 航天器工程, 2022, 31(2): 19-28.
	FAN Min, HU Xiaogong, LI Haitao, et al. Improvement method and application of GNSS signal visibility analysis for lunar probes[J]. Spacecraft Engineering, 2022, 31(2): 19-28.
[9]	WOOD T. The LANDSAT/global positioning system project[C]//Proceedings of 1988 Flight Mechanics Conference of Estimation Theory Symposium. Greenbelt: [s.n.], 1988: 1-23.
[10]	VSVEHLA D, ROTHACHER M. Kinematic and reduced-dynamic precise orbit determination of low earth orbiters[J]. Advances in Geosciences, 2003, 1: 47-56.
[11]	VAN DEN IJSSEL J, VISSER P, PATIÑO RODRIGUEZ E. Champ precise orbit determination using GPS data[J]. Advances in Space Research, 2003, 31(8): 1889-1895.
[12]	HAINES B, BERTIGER W, DESAI S, et al. Initial orbit determination results for Jason-1: towards a 1 cm orbit[J]. Navigation, 2003, 50(3): 171-180.
[13]	KANG Z, NAGEL P, PASTOR R. Precise orbit determination for GRACE[J]. Advances in Space Research, 2003, 31(8): 1875-1881.
[14]	李凯. 基于星载GNSS的低轨卫星精密定轨研究[D]. 北京: 中国科学院大学, 2020.
	LI Kai. Research on precise orbit determination of LEO satellite based on spaceborne GNSS[D]. Beijing: University of Chinese Academy of Sciences, 2020.
[15]	李冰, 刘蕾, 王猛. GEO卫星GNSS导航在轨长期性能验证与分析[J]. 上海航天, 2017, 34(4): 133-143.
	LI Bing, LIU Lei, WANG Meng. Performance demonstration and analysis of GNSS navigation in GEO satellites[J]. Aerospace Shanghai (Chinese & English), 2017, 34(4): 133-143.
[16]	赵兴隆. 低轨星座提升北斗空间信号精度关键技术及星载GNSS定轨研究[D]. 北京: 中国科学院大学, 2021.
	ZHAO Xinglong. Research on key technologies of improving BeiDou space signal accuracy by LEO constellation and orbit determination by satellite-borne GNSS[D]. Beijing: University of Chinese Academy of Sciences, 2021.
[17]	APOLLONI B, CARRARA A, MURINO P. Use of elevation models for landform analysis by SEASAT-SAR imagery[J]. Acta Astronautica, 1982, 9(6/7): 365-374.
[18]	RUDENKO S, OTTEN M, VISSER P, et al. New improved orbit solutions for the ERS-1 and ERS-2 satellites[J]. Advances in Space Research, 2012, 49(8): 1229-1244.
[19]	MOTOHKA T, KANKAKU Y, MIURA S, et al. Overview of ALOS-2 and ALOS-4 L-band SAR[C]//Proceedings of 2021 IEEE Radar Conference. Atlanta: IEEE, 2021: 1-4.
[20]	黄震, 赵双明, 常青. 国产高分三号卫星干涉测量试验[J]. 测绘地理信息, 2021, 46(4): 7-11.
	HUANG Zhen, ZHAO Shuangming, CHANG Qing. Measurement experiment of domestically produced GaoFen-3 satellite interferometry[J]. Surveying and Mapping Geographic Information, 2021, 46(4): 7-11.
[21]	李涛, 唐新明, 高小明, 等. SAR卫星业务化地形测绘能力分析与展望[J]. 测绘学报, 2021, 50(7): 891-904. DOI:. doi: 10.11947/j.AGCS.2017.20160485
	LI Tao, TANG Xinming, GAO Xiaoming, et al. Analysis and outlook of the operational topographic surveying and mapping capability of the SAR satellites[J]. Acta Geodaetica et Cartographica Sinica, 2021, 50(7): 891-904. DOI:. doi: 10.11947/j.AGCS.2017.20160485
[22]	江冕, 黄丽佳, 胡文龙, 等. 地球同步轨道SAR定轨精度要求分析[J]. 系统工程与电子技术, 2017, 39(1): 71-78.
	JIANG Mian, HUANG Lijia, HU Wenlong, et al. Analysis of accuracy requirements for geosynchronous orbit SAR orbit determination[J]. Systems Engineering and Electronic Technology, 2017, 39(1): 71-78.
[23]	何清举, 孙前贵. 利用GNSS实现高轨卫星自主导航的新方案[J]. 飞行器测控学报, 2010, 29(1): 7-11.
	HE Qingju, SUN Qiangui. A new solution of autonomous navigation for GEO satellites based on GNSS[J]. Journal of Spacecraft TT&C Technology, 2010, 29(1): 7-11.
[24]	巴晓辉, 刘海洋, 郑睿, 等. 一种有效的GNSS接收机载噪比估计方法[J]. 武汉大学学报(信息科学版), 2011, 36(4): 457-460, 466.
	BA Xiaohui, LIU Haiyang, ZHENG Rui, et al. An effective carrier-to-noise ratio estimation method for GNSS receiver[J]. Geomatics and Information Science of Wuhan University, 2011, 36(4): 457-460, 466.
[25]	邓旭, 吕志伟, 周玟龙, 等. 采用载噪比的卫星导航欺骗检测算法设计[J]. 导航定位学报, 2022, 10(2): 109-118.
	DENG Xu, LÜ Zhiwei, ZHOU Wenlong, et al. Design of satellite navigation deception detection algorithm using carrier to noise ratio[J]. Journal of Navigation and Positioning, 2022, 10(2): 109-118.
[26]	ANTHONY R, KERNS R. NAVSTAR GPS space segment/navigation user segment interfaces[R]. El Segundo: GPS Joint Program Office, 2022: 15-17.
[27]	胡国荣, 欧吉坤, 崔伟宏. 星载GPS载波相位相对定轨方法研究[J]. 遥感学报, 2000, 21(4): 311-315.
	HU Guorong, OU Jikun, CUI Weihong. Research on GPS-based orbit determination with carrier phase for low-orbit satellites[J]. National Remote Sensing Bulletin, 2000, 21(4): 311-315.
[28]	宇伟, 金双根, 高飞, 等. 复杂结构卫星太阳辐射压模型的建立与分析[J]. 武汉大学学报(信息科学版), 2017, 42(6): 817-824.
	YU Wei, JIN Shuanggen, GAO Fei, et al. Establishment and analysis of solar radiation pressure model for complex structure satellites[J]. Geomatics and Information Science of Wuhan University, 2017, 42(6): 817-824.
[29]	卢鋆, 张弓, 陈谷仓, 等. 卫星导航系统发展现状及前景展望[J]. 航天器工程, 2020, 29(4): 1-10.
	LU Jun, ZHANG Gong, CHEN Gucang, et al. Development status and prospects of satellite navigation systems[J]. Spacecraft Engineering, 2020, 29(4): 1-10.
[30]	蒋科材. 基于星载GNSS弱信号的高轨航天器精密定轨研究[D]. 武汉: 武汉大学, 2020.
	JIANG Kecai. Research on precise orbit determination of high orbit spacecraft based on weak signal of spaceborne GNSS[D]. Wuhan: Wuhan University, 2020.
[31]	黄勇, 胡小工, 曹建锋, 等. 上海天文台火星卫星定轨软件系统[J]. 飞行器测控学报, 2009, 28(6): 83-89.
	HUANG Yong, HU Xiaogong, CAO Jianfeng, et al. The Mars satellite orbit determination software at Shanghai astronomical observatory[J]. Journal of Spacecraft TT&C Technology, 2009, 28(6): 83-89.
[32]	MOYER T D. Formulation for observed and computed values of deep space network data types for navigation[M]. 1 ed. Hoboken: Wiley, 2003.
[33]	田雨润, 禹卫东. 地球同步轨道SAR精确斜距模型研究[J]. 电子与信息学报, 2014, 36(8): 1960-1965.
	TIAN Yurun, YU Weidong. Accurate slant range model analysis of geosynchronous SAR[J]. Journal of Electronics & Information Technology, 2014, 36(8): 1960-1965.
[34]	LIU Junhong, GU Defeng, JU Bing, et al. A new empirical solar radiation pressure model for BeiDou GEO satellites[J]. Advances in Space Research, 2016, 57(1): 234-244.
[35]	毛悦, 宋小勇, 贾小林, 等. 北斗卫星ECOM光压模型参数选择策略分析[J]. 测绘学报, 2017, 46(11): 1812-1821. DOI:. doi: 10.11947/J.AGCS.2017.20160485
	MAO Yue, SONG Xiaoyong, JIA Xiaolin, et al. Analysis about parameters selection strategy of ECOM solar radiation pressure model for BeiDou satellites[J]. Acta Geodaetica et Cartographica Sinica, 2017, 46(11): 1812-1821. DOI:. doi: 10.11947/J.AGCS.2017.20160485
[36]	毛悦, 宋小勇, 王维, 等. 北斗IGSO/MEO卫星姿态控制及光压差异分析[J]. 测绘科学, 2015, 40(8): 129-134.
	MAO Yue, SONG Xiaoyong, WANG Wei, et al. BeiDou IGSO and MEO navigation satellites' yaw-steering and orbit-normal attitude control modes and solar radiation pressure difference analysis[J]. Science of Surveying and Mapping, 2015, 40(8): 129-134.

工况	概述
工况1	定点指向巡航成像
工况2	卫星正飞
工况3	卫星正侧视成像

工况	真轨道差异RMS
工况1-工况2	11.94
工况1-工况3	74.37
工况2-工况3	70.49

参数	定轨策略
参考系	地心J2000.0
中心天体	地球
N体摄动	太阳、大行星、地球以及月球，使用DE421历表
太阳辐射压	物理分析型模型
太阳辐射压	经验模型（固定面质比；ECOM）
非球形引力摄动	地球重力场模型JGM3（截取至20阶次）
相对论摄动	参数化后牛顿模型^[32]
解算参数	搭载星载接收机IGSO卫星位置速度
解算参数	模糊度参数
测量数据权重	伪距：1 m
测量数据权重	载波相位：0.01 m/s
积分器	KSG二阶定步长积分器
积分步长	60 s

工况	星座	定轨位置误差/m
工况	星座	R	T	N	total
工况1	GPS	0.136	0.126	0.239	0.303
	BDS	0.253	0.277	0.435	0.575
	GPS+BDS	0.118	0.090	0.227	0.271
工况2	GPS	0.103	0.098	0.227	0.268
	BDS	0.328	0.214	0.373	0.541
	GPS+BDS	0.109	0.086	0.206	0.248
工况3	GPS	1.972	0.965	2.278	3.164
	BDS	0.678	1.056	1.831	2.220
	GPS+BDS	0.315	0.908	1.908	2.136

工况	星座	定轨位置误差/m
工况	星座	R	T	N	total
工况1	GPS	1.346	0.666	0.825	1.714
	BDS	1.262	0.789	0.729	1.657
	GPS+BDS	1.260	0.674	0.680	1.583
工况2	GPS	0.170	0.220	0.222	0.355
	BDS	0.509	0.333	0.522	0.801
	GPS+BDS	0.179	0.214	0.202	0.344
工况3	GPS	2.497	1.555	2.539	3.886
	BDS	1.782	1.183	1.438	2.577
	GPS+BDS	1.827	1.360	2.009	3.037
