机载拼接式大面阵相机的分块多项式畸变模型

doi:10.11947/j.AGCS.2025.20240273

摘要/Abstract

摘要：

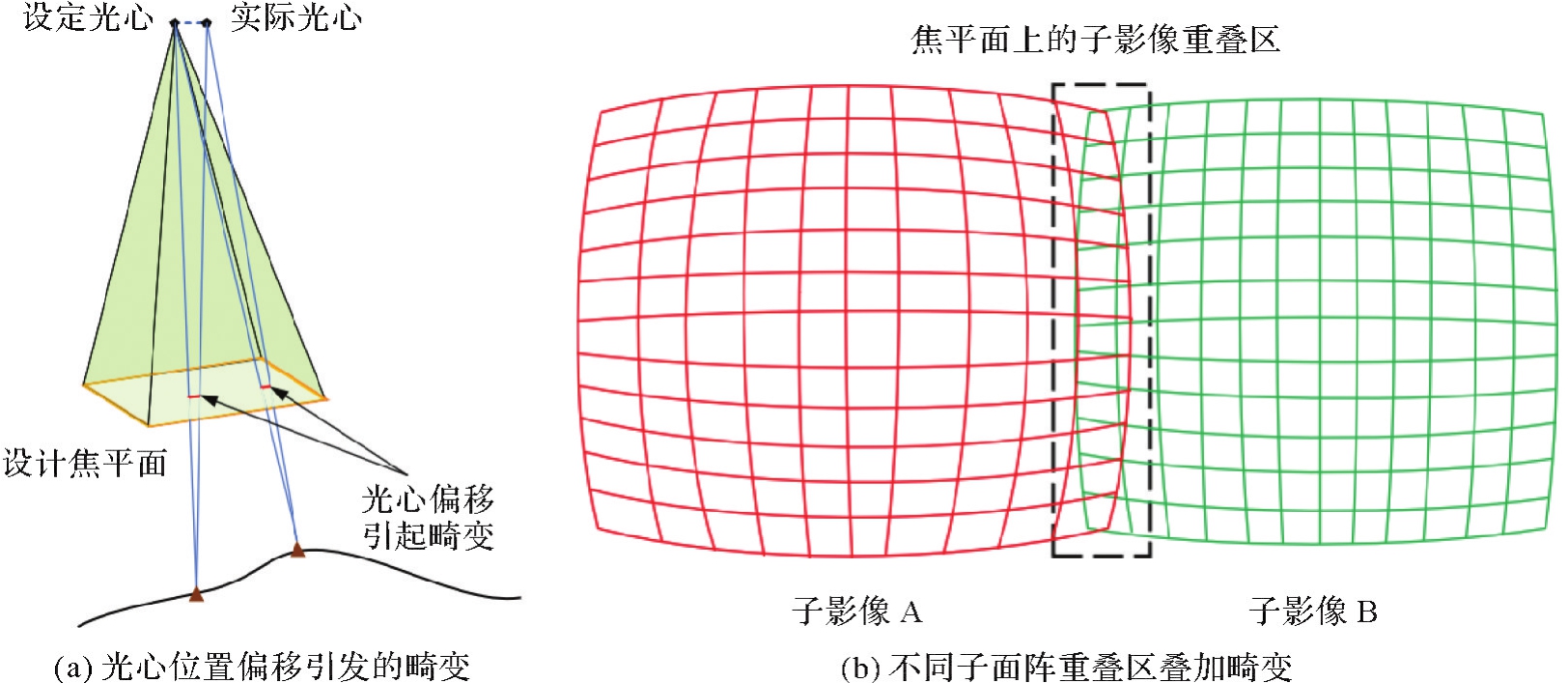

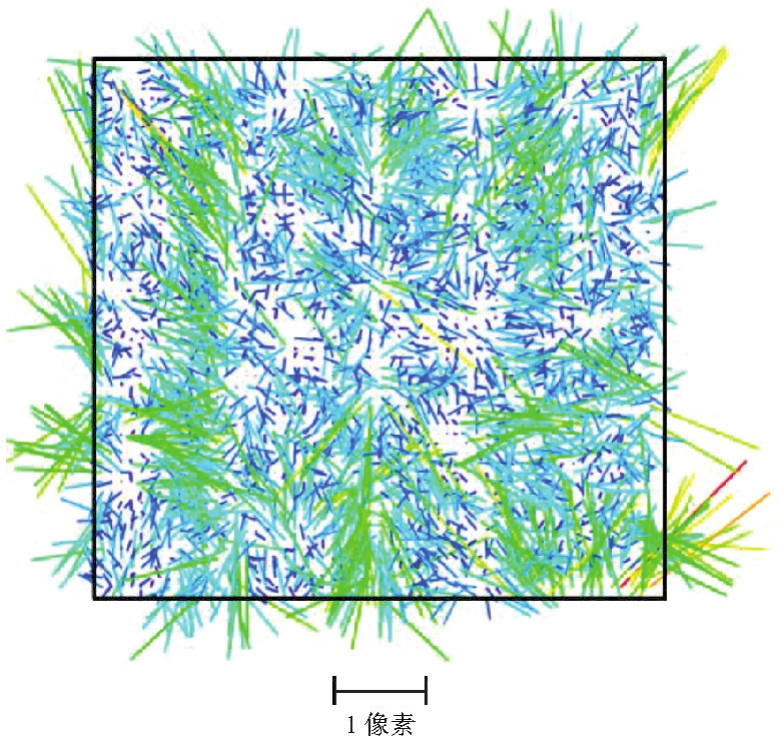

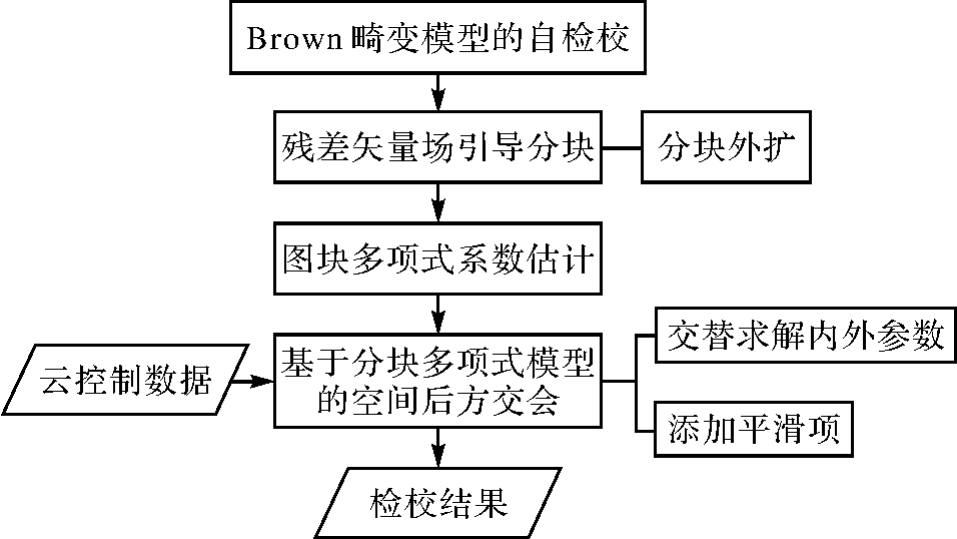

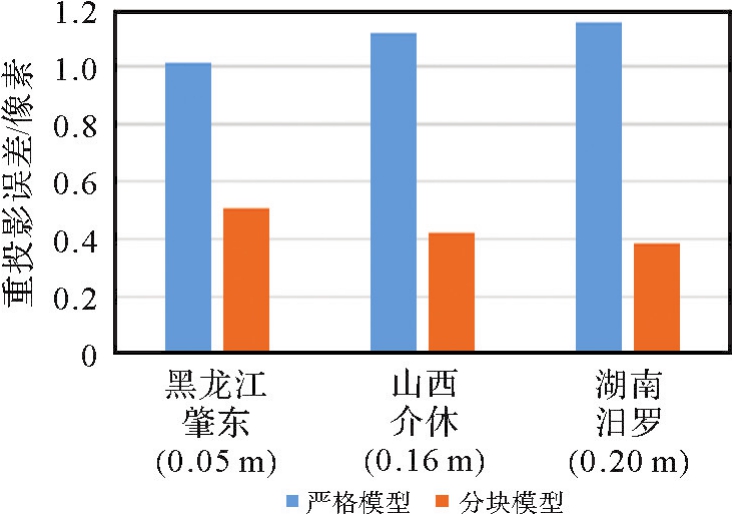

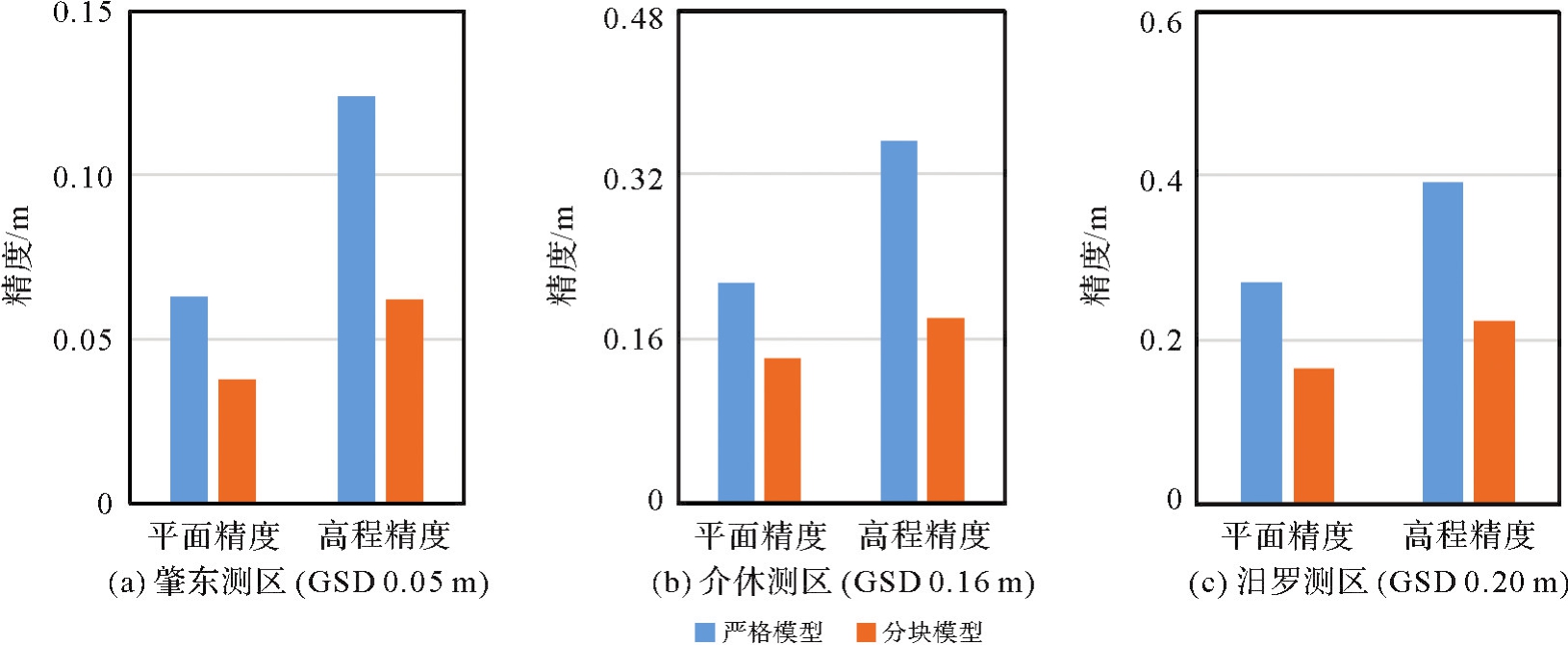

机载拼接式大面阵相机因其高分辨率、广覆盖性等优点在遥感测绘工作中广受欢迎。然而，由于制造工艺、装配精度等因素的影响，相机成像过程中会产生各种复杂畸变，影响影像质量和几何处理准确性。本文针对拼接式航空面阵相机的特点，提出一种分块多项式畸变模型，该模型核心思想是在Brown畸变模型检校残差矢量场引导下，将成像幅面划分为多个子影像块，在每个子块内采用多项式描述畸变，从而实现对各种复杂畸变的有效修正。此外，为求解分块多项式参数，设计了一种云控制检校方案。本文以北京空间机电研究所研制的AFC-900相机为研究对象，在肇东开展相机的云控制检校，然后分别在肇东、介休和汨罗3个测区开展生产验证，结果表明本文提出的畸变模型可以将AFC-900相机的畸变纠正到0.5像素以内，生产成果精度满足1∶500和1∶2000大比例尺测绘规范要求。

关键词: 拼接式大面阵相机, 畸变模型, 分块多项式, 云控制检校

Abstract:

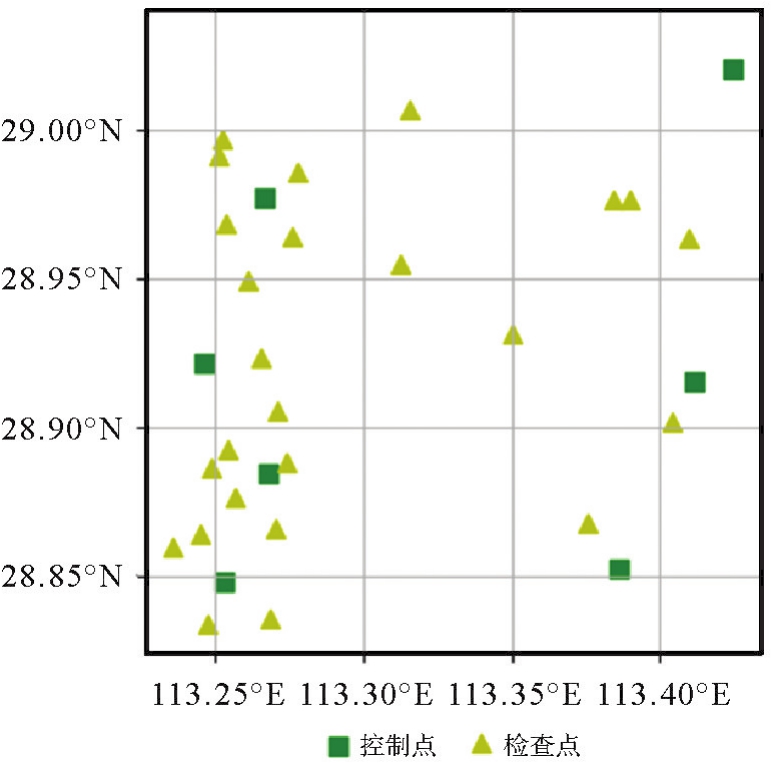

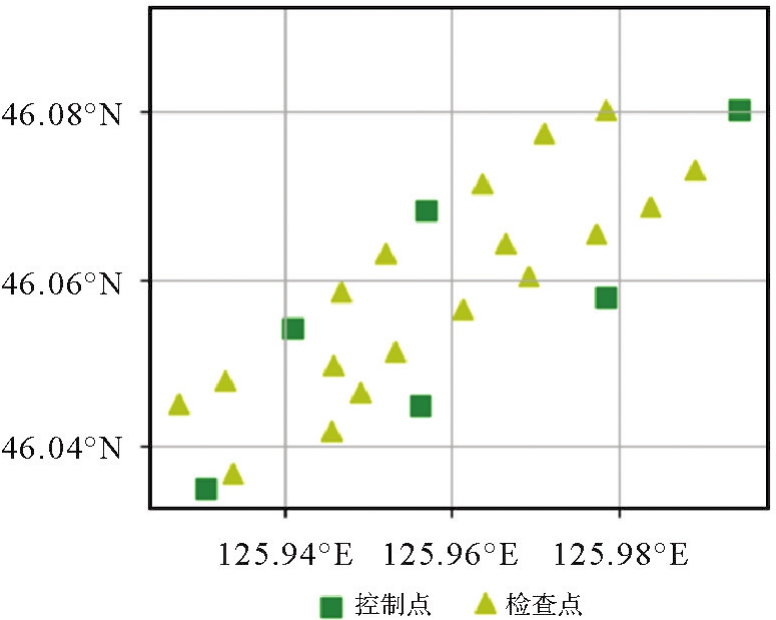

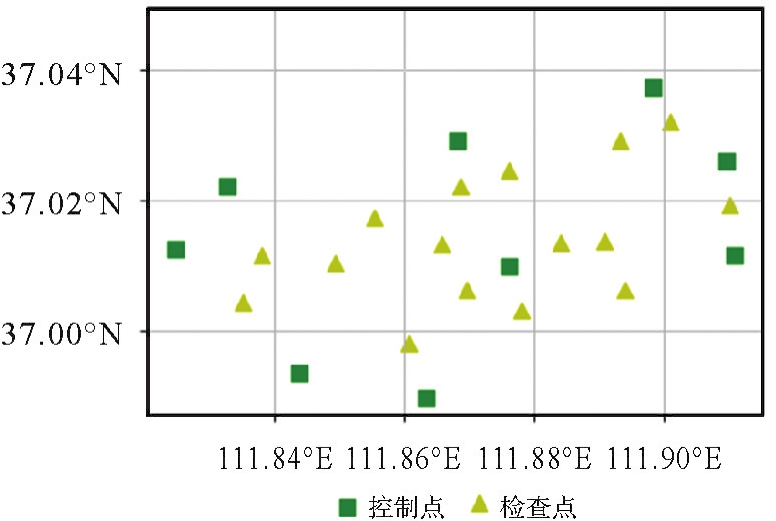

The airborne composite large-format camera has gained widespread popularity in remote sensing and surveying due to its high resolution and wide coverage. However, various complex distortions arise during the imaging process owing to factors such as manufacturing processes and assembly precision, which impact image quality and the accuracy of geometric processing. This paper proposes a block-wise polynomial distortion model tailored to the characteristics of mosaic aerial frame cameras. The core idea of this model is to divide the imaging plane into multiple sub-image blocks guided by the residual vector field from Brown's distortion model calibration, and describe distortions within each sub-block using polynomials, thereby effectively correcting various complex distortions. Additionally, a cloud-controlled calibration scheme is designed to solve for the block-wise polynomial parameters. Taking the AFC-900 camera developed by the Beijing Institute of Aerospace Mechatronics as the research subject, the paper conducted cloud-controlled calibration of the camera in Zhaodong. Subsequently, production verification was carried out in three survey areas: Zhaodong, Jiexiu, and Miluo. The results demonstrate that the distortion model proposed in this paper can correct distortions in the AFC-900 camera to within 0.5 pixels, and the accuracy of the production outcomes meets the specifications for large-scale mapping at scales of 1∶500 and 1∶2000.

Key words: airborne composite large-format camera, distortion model, block-wise polynomial, cloud-controlled calibration

中图分类号:

P231

张祖勋, 赵新博, 段延松. 机载拼接式大面阵相机的分块多项式畸变模型[J]. 测绘学报, 2025, 54(1): 52-63.

Zuxun ZHANG, Xinbo ZHAO, Yansong DUAN. A block-wise polynomial distortion model for airborne composite large-format camera[J]. Acta Geodaetica et Cartographica Sinica, 2025, 54(1): 52-63.

图/表 21

表1

图1

图2

图3

图4

图5

表2

图6

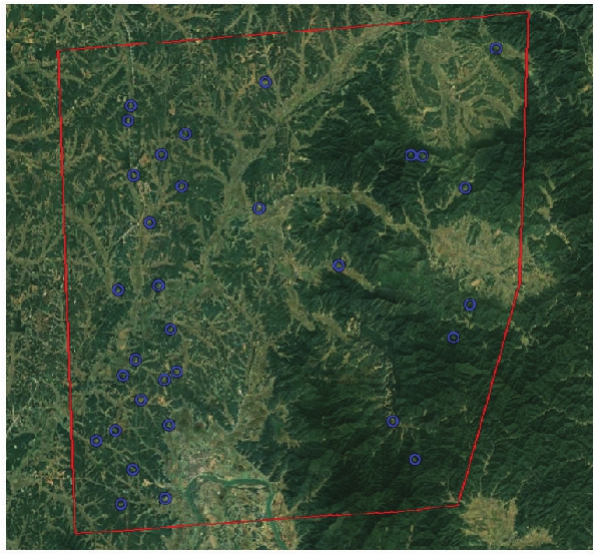

图7

图8

表3

图9

表4

表5

图10

图11

图12

表6

图13

图14

表7

参考文献 31

[1]	张永军, 张祖勋, 龚健雅. 天空地多源遥感数据的广义摄影测量学[J]. 测绘学报, 2021, 50(1): 1-11. DOI:. doi: 10.11947/j.AGCS.2021.20200245
	ZHANG Yongjun, ZHANG Zuxun, GONG Jianya. Generalized photogrammetry of spaceborne, airborne and terrestrial multi-source remote sensing datasets[J]. Acta Geodaetica et Cartographica Sinica, 2021, 50(1): 1-11. DOI:. doi: 10.11947/j.AGCS.2021.20200245
[2]	XU Z, QU L. A skeletal camera network for close-range images with a data driven approach in analyzing stereo configuration[J]. Journal of Geodesy and Geoinformation Science, 2022, 5(4): 23-37.
[3]	LI J, WANG C, JIA C, et al. A hybrid conjugate gradient algorithm for solving relative orientation of big rotation angle stereo pair[J]. Journal of Geodesy and Geoinformation Science, 2020, 3(2): 62-70.
[4]	ABDI G, SAMADZADEGAN F, KURZ F. Poseestimation of unmanned aerial vehicles based on a vision-aided multi-sensor fusion[EB/OL]. [2024-05-25]. https://elib.dlr.de/103817/.
[5]	FANG Yong, HU Haiyan, GAO Li, et al. A geometric calibration model for the new ultra-large frame aerial mapping camera DMZ II[J]. The Photogrammetric Record, 2020, 35(170): 289-312.
[6]	JACOBSEN K, NEUMANN K. Property of the large format digital aerial camera DMC Ⅱ[J]. The International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences, 2012, 39B1: 21-25.
[7]	GORDON P. Systematic oblique aerial photography using multiple digital frame cameras[J]. Photogrammetric Engineering and Remote Sensing, 2009, 75(2): 102-107.
[8]	ZEITLER W, DOERSTEL C, JACOBSEN K. Geometric calibration of the DMC: method and results[J]. International Archives of Photogrammetry Remote Sensing and Spatial Information Sciences, 2002, 34(1): 324-332.
[9]	LUHMANN T, FRASER C, MAAS H G. Sensor modelling and camera calibration for close-range photogrammetry[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2016, 115: 37-46.
[10]	QTAISHAT K. Assessing the performance of different large format digital cameras by investigating the geometric accuracy and camera calibration[C]//Proceedings of 2015 International Archives of the Photogrammetry. [S.l.]: Scopus, 2015.
[11]	FRASER C S. Digital camera self-calibration[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 1997, 52(4): 149-159.
[12]	SUN H, ZHANG Y. A self-calibration bundle adjustment algorithm based on block matrix cholesky decomposition technology[J]. Journal of Geodesy and Geoinformation Science, 2023, 6(1): 11-30.
[13]	MUELLER C, NEUMANN K. Leica DMC Ⅲ calibration and geometric sensor accuracy[J]. The International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences, 2016, XL-3/W4: 1-9.
[14]	GRUBER M, LADSTADTER R. Calibrating the digital large format aerial camera UltraCamX[C]//Proceedings of 2007 International Calibration and Orientation Workshop. [S.l.]: IEEE, 2007.
[15]	WIECHERT A, GRUBER M, PONTICELLI M. Ultracam: the new super-large format digital aerial camera[C]//Proceedings of 2011 American Society for Photogrammetry and Remote Sensing Annual Conference 2011. [S.l.]: Scopus, 2011: 519-525.
[16]	MANSHOLT U, LADSTADTER R. Geometric analysis of vexcel imaging ultracamx test flights[C]//Proceedings of 2008 International Archives of the Photogrammetry. [S.l.]: ISPRS, 2008: 647-652.
[17]	MA L, CHEN Y Q, MOORE K L. Analytical piecewise radial distortion model for precision camera calibration[J]. IEE Proceedings-Vision, Image, and Signal Processing, 2006, 153(4): 468.
[18]	WU Ruiqing, LIU Jian, CHEN Wei, et al. Adaptive wide-lens distortion correction based on piecewise polynomial optimization[J]. Procedia Computer Science, 2019, 154: 573-580.
[19]	张春森, 严露, 于振. 一种Kannala模型的鱼眼相机标定方法优化[J]. 西安科技大学学报, 2019, 39(6): 1026-1032.
	ZHANG Chunsen, YAN Lu, YU Zhen. A fisheye camera calibration optimization method based on Kannala model[J]. Journal of Xi'an University of Science and Technology, 2019, 39(6): 1026-1032.
[20]	TANG Rongfu, FRITSCH D, CRAMER M. New rigorous and flexible Fourier self-calibration models for airborne camera calibration[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2012, 71: 76-85.
[21]	BABAPOUR H, MOKHTARZADE M, VALADAN ZOEJ M J. Self-calibration of digital aerial camera using combined orthogonal models[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2016, 117: 29-39.
[22]	TECKLENBURG W, LUHMANN T, HASTEDT H. Camera modelling with image-variant parameters and finite elements[J]. Optical 3D measurement techniques V, 2001: 328-335.
[23]	CRAMER M. Eurosdr network on digital camera calibration[J]. Official Publication-EuroSDR, 2004, 70(55): 61447189.
[24]	CHEN Tianen, SHIBASAKI R, LIN Zongjian. A rigorous laboratory calibration method for interior orientation of an airborne linear push-broom camera[J]. Photogrammetric Engineering & Remote Sensing, 2007, 73(4): 369-374.
[25]	ZHANG Z. A flexible new technique for camera calibration[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2000, 22(11): 1330-1334.
[26]	PI Yingdong, XIE Baorong, YANG Bo, et al. On-orbit geometric calibration of linear push-broom optical satellite based on sparse GCPs[J]. Journal of Geodesy and Geoinformation Science, 2020, 3(1): 64-75. doi:. doi: 10.11947/j.JGGS.2020.0107
[27]	王涛, 张艳, 张永生, 等. 国产机载大视场三线阵CCD相机GNSS偏心矢量和IMU视轴偏心角标定技术[J]. 测绘学报, 2018, 47(11): 1474-1486. DOI:. doi: 10.11947/J.AGCS.2018.20170679
	WANG Tao, ZHANG Yan, ZHANG Yongsheng, et al. Investigation on GNSS lever arms and IMU boresight misalignment calibration of domestic airborne wide-field three CCD camera[J]. Acta Geodaetica et Cartographica Sinica, 2018, 47(11): 1474-1486. DOI:. doi: 10.11947/j.AGCS.2018.20170679
[28]	TAO Pengjie, LU Luping, ZHANG Yong, et al. On-orbit geometric calibration of the panchromatic/multispectral camera of the ZY-1 02C satellite based on public geographic data[J]. Photogrammetric Engineering & Remote Sensing, 2014, 80(6): 505-517.
[29]	张祖勋, 陶鹏杰. 谈大数据时代的“云控制”摄影测量[J]. 测绘学报, 2017, 46(10): 1238-1248. DOI:. doi: 10.11947/J.AGCS.2017.20170337
	ZHANG Zuxun, TAO Pengjie. An overview on “cloud control” photogrammetry in big data era[J]. Acta Geodaetica et Cartographica Sinica, 2017, 46(10): 1238-1248. DOI:. doi: 10.11947/j.AGCS.2017.20170337
[30]	张祖勋, 段延松, 陶鹏杰. 从控制点到控制片[J]. 武汉大学学报(信息科学版), 2023, 48(11): 1715-1723.
	ZHANG Zuxun, DUAN Yansong, TAO Pengjie. From ground control point to digital control photo[J]. Geomatics and Information Science of Wuhan University, 2023, 48(11): 1715-1723.
[31]	国家质量监督检验检疫总局, 中国国家标准化管理委员会. 数字航空摄影测量　空中三角测量规范：GB/T 23236—2009[S]. 北京: 中国标准出版社, 2009.
	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China. Specifications for aerotriangulation of digital aerophotogrammetry: GB/T 23236—2009[S]. Beijing: Standards Press of China, 2009.

属性	值
全色幅面/像素	30 480×28 820
全色像素大小/μm	4.6
全色焦距/mm	142
多光谱幅面/像素	7920×6004
多光谱像素大小/μm	4.6
多光谱焦距/mm	37

属性		参数值
航带数		7
成功平差影像数		413
连接点中误差/像素		0.5
控制点重投影中误差/像素		0.3
检查点精度	平面精度/m	0.048
检查点精度	高程精度/m	0.05

模型	参数数量	迭代次数	重投影误差/像素
严密模型	102	34	1.202
分块模型	216 060	12	0.462

肇东测区	分块大小
肇东测区	32	64	128	256
云控制检校重投影误差	0.83	0.63	0.46	0.86
区域网平差重投影误差	1.01	1.05	0.51	0.98

肇东测区	多项式阶数
肇东测区	1	2
云控制检校重投影误差	0.46	0.44
区域网平差重投影误差	0.51	0.75
