高光谱图像超分辨率技术旨在通过提升低分辨率高光谱图像的空间细节和质量,使其更好地服务于环境监测等领域。近年来,基于深度卷积神经网络的机器学习技术在光谱单图超分辨率领域上有着广泛的发展与应用,但仍存在难以兼顾空间多尺度局部特征与全局细节特征学习的缺陷。对此,本文设计了一种基于渐进式采样策略耦合卷积神经网络与Transformer架构的融合网络DRformer。一方面,通过多尺度自适应加权光谱关注模块,用于局部特征的多尺度学习并选择性强调光谱信息特征并进行第一次上采样;另一方面,在网络后半段进行第二次上采样后融入基于Transformer架构构建的CADR模块,用于处理图像的全局特征,增强有效信息。为了验证本文方法的有效性与稳健性,选取Chikusei与Houston2013数据集开展试验,相较于已有的GDRRN、SSPSR、EUNet及MSDformer等深度学习方法具有更好的超分辨率性能,并且设计了消融试验以验证本文方法中各模块的有效性。
中图分类号:
程青, 汪博轩, 张洪艳. DRformer:一种渐进式耦合多尺度CNN与浓缩注意力Transformer的高光谱图像超分辨率方法[J]. 测绘学报, 2025, 54(7): 1230-1242.
Qing CHENG, Boxuan WANG, Hongyan ZHANG. DRformer: a progressive coupled multiscale CNN and condensed attention Transformer method for hyperspectral image super-resolution[J]. Acta Geodaetica et Cartographica Sinica, 2025, 54(7): 1230-1242.
表1
DRformer网络参数"
| 模块 | 网络架构 | 输入尺寸 | 模型参数 | 输出尺寸 |
|---|---|---|---|---|
| 整体结构 | MAWSA | H×W×c | — | H×W×256 |
| Conv-UP | H×W×256 | 3×3,c,Stride1 | sH/2×sW/2×c | |
| Concatenation | sH/2×sW/2×c | — | sH/2×sW/2×C | |
| UP | sH/2×sW/2×C | — | sH×sW×C | |
| CADR-Conv | sH×sW×C | 1×1,256,Stride1 | sH×sW×256 | |
| Bicubic-Conv | H×W×C | 3×3,256,Stride1 | sH×sW×256 | |
| Conv | sH×sW×256 | 3×3,C,Stride1 | sH×sW×C | |

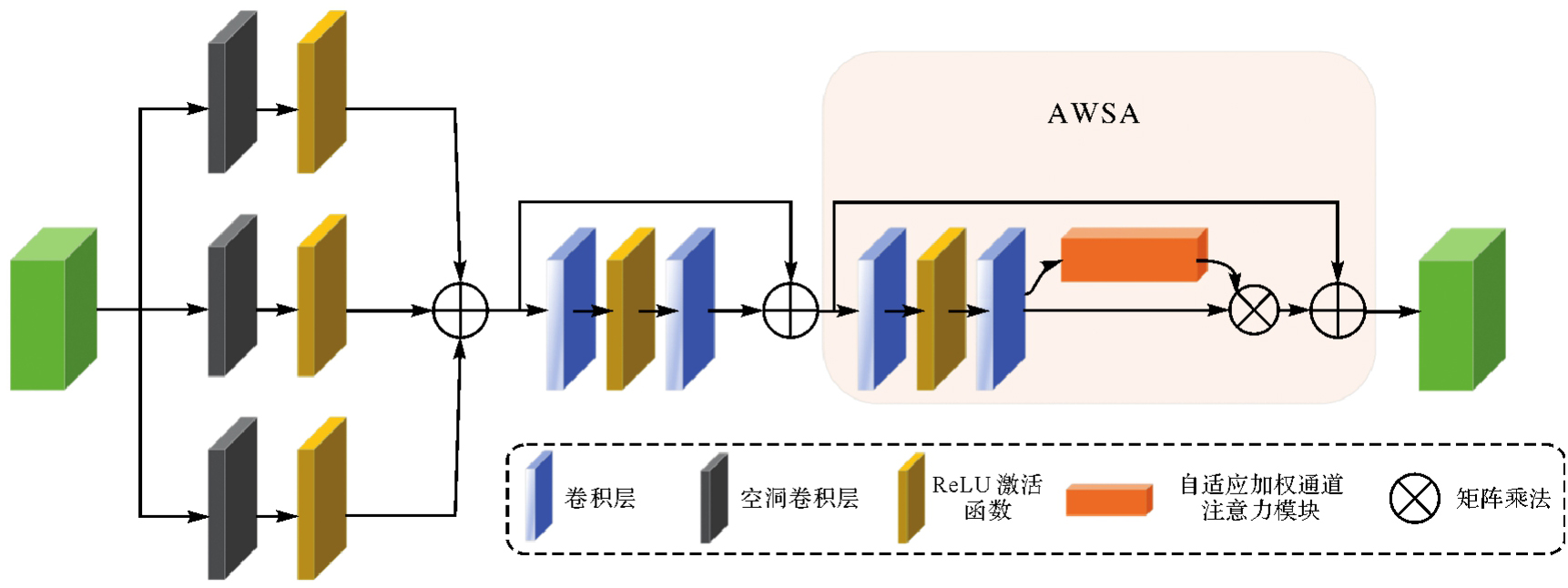

| MAWSA | Dconv(1,3,5)-ReLU | H×W×c | 3×3,256,Stride1,dilation(1,3,5) | H×W×256 |
| Conv-ReLU-Conv | H×W×256 | 3×3,256,Stride1 | H×W×256 | |
| AWCA | H×W×256 | reduction=16 | H×W×256 | |
| CADR | Condensed | sH×sW×C | num_heads=8,d=16 | sH×sW×C |
| Attention | ||||
| DRNet | sH×sW×C | sH×sW×C | ||
| (PReLU-Conv) | 3×3,256,Stride1 | |||
| (Resblock) | 3×3,256,Stride1 | |||
| (PReLU-Conv) | 3×3,C,Stride1 |

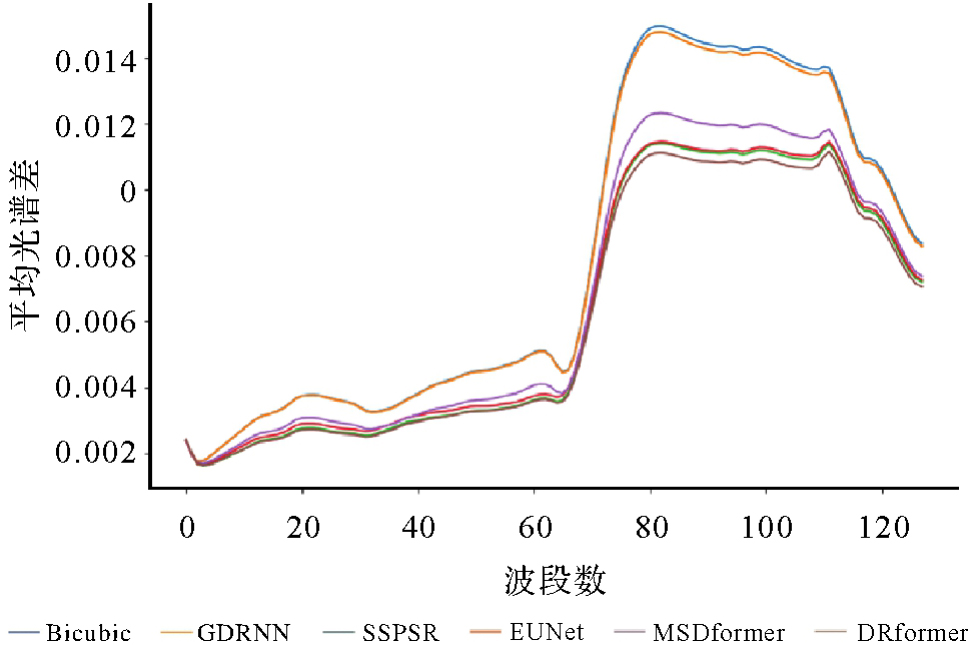

表2
Chikusei数据集的试验结果"
| 比例因子 | 方法 | PSNR | SSIM | CC | RMSE | ERGAS | SAM |
|---|---|---|---|---|---|---|---|
| ×4 | Bicubic | 37.637 7 | 0.895 3 | 0.921 2 | 0.015 6 | 6.756 3 | 3.403 9 |
| GDRRN | 37.721 8 | 0.897 0 | 0.922 3 | 0.015 4 | 6.697 0 | 3.321 5 | |
| SSPSR | 39.505 5 | 0.932 8 | 0.947 5 | 0.012 6 | 5.473 7 | 2.719 0 | |
| EUNet | 38.867 0 | 0.926 0 | 0.939 7 | 0.013 4 | 5.931 8 | 2.751 7 | |
| MSDformer | 39.067 1 | 0.924 5 | 0.942 3 | 0.013 2 | 5.714 1 | 2.864 4 | |
| 本文方法 | 40.085 1 | 0.933 4 | 0.943 3 | 0.012 4 | 5.224 1 | 2.697 1 | |
| ×8 | Bicubic | 34.504 8 | 0.806 8 | 0.831 3 | 0.022 3 | 9.697 5 | 5.043 5 |
| GDRRN | 34.556 4 | 0.807 3 | 0.832 7 | 0.022 2 | 9.646 9 | 4.991 5 | |
| SSPSR | 34.938 0 | 0.822 9 | 0.848 5 | 0.021 0 | 9.318 6 | 4.863 2 | |
| EUNet | 35.115 6 | 0.833 4 | 0.853 8 | 0.020 7 | 9.073 7 | 4.502 8 | |
| MSDformer | 34.790 2 | 0.816 2 | 0.842 2 | 0.021 5 | 9.433 1 | 4.823 0 | |
| 本文方法 | 35.913 8 | 0.822 3 | 0.810 6 | 0.020 6 | 8.594 5 | 4.478 9 |

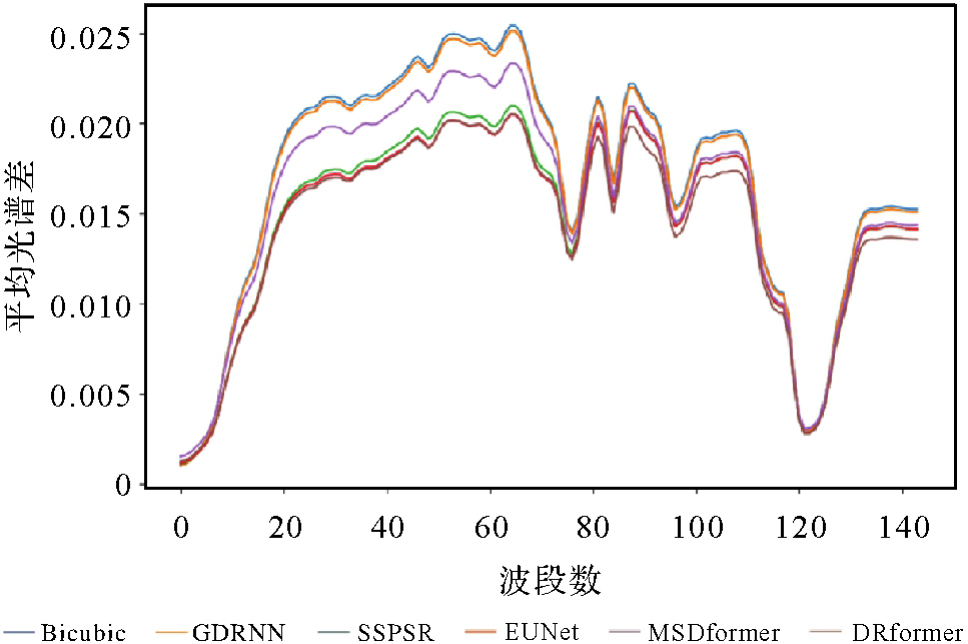

表3
Houston2013数据集上的试验结果"
| 方法 | 比例因子 | PSNR | SSIM | CC | RMSE | ERGAS | SAM |
|---|---|---|---|---|---|---|---|
| Bicubic | ×4 | 33.698 4 | 0.801 6 | 0.901 4 | 0.025 6 | 6.157 1 | 6.459 2 |
| GDRRN | ×4 | 33.798 3 | 0.806 7 | 0.903 2 | 0.025 3 | 6.084 1 | 6.342 1 |
| SSPSR | ×4 | 34.207 3 | 0.831 4 | 0.910 1 | 0.023 9 | 5.748 1 | 5.494 4 |
| EUNet | ×4 | 34.264 0 | 0.834 3 | 0.911 4 | 0.023 7 | 5.698 1 | 5.479 8 |
| MSDformer | ×4 | 34.077 1 | 0.828 8 | 0.908 8 | 0.024 2 | 5.849 8 | 5.894 3 |
| 本文方法 | ×4 | 34.477 7 | 0.840 1 | 0.915 5 | 0.023 1 | 5.567 0 | 5.355 8 |
| Bicubic | ×8 | 31.120 9 | 0.673 0 | 0.816 3 | 0.034 7 | 8.339 1 | 9.365 7 |
| GDRRN | ×8 | 31.097 6 | 0.674 2 | 0.814 0 | 0.034 5 | 8.320 1 | 9.368 8 |
| SSPSR | ×8 | 31.221 5 | 0.684 1 | 0.820 7 | 0.033 9 | 8.174 1 | 8.895 9 |
| EUNet | ×8 | 31.349 1 | 0.687 7 | 0.824 1 | 0.033 5 | 8.055 6 | 8.634 9 |
| MSDformer | ×8 | 31.305 1 | 0.688 2 | 0.823 0 | 0.033 6 | 8.108 1 | 9.079 3 |
| 本文方法 | ×8 | 31.350 2 | 0.690 4 | 0.824 2 | 0.033 5 | 8.120 1 | 8.787 1 |
表5
消融试验结果"
| 变体 | 参数量/MB | PSNR | SSIM | CC | RMSE | ERGAS | SAM |
|---|---|---|---|---|---|---|---|
| 本文方法 | 12.988 2 | 34.477 7 | 0.840 1 | 0.915 5 | 0.023 1 | 5.567 0 | 5.355 8 |
| 变体1 | 14.241 6 | 34.229 5 | 0.830 7 | 0.910 9 | 0.023 7 | 5.728 5 | 5.654 3 |
| 变体2 | 12.988 2 | 33.968 1 | 0.827 6 | 0.907 1 | 0.024 1 | 5.883 1 | 6.114 6 |
| 变体3 | 9.095 6 | 34.181 7 | 0.828 9 | 0.910 4 | 0.023 9 | 5.760 4 | 5.558 5 |
| 变体4 | 5.689 8 | 34.112 1 | 0.827 5 | 0.909 2 | 0.024 1 | 5.818 8 | 5.985 3 |
