Soil moisture and freeze-thaw map using GNSS reflectometer and SMAP radiometer for Qinghai-Xizang Plateau

doi:10.11947/j.AGCS.2025.20240360

Abstract

Abstract:

GNSS-R technology has been applied to monitor soil moisture (SM) and freeze-thaw (F/T) conditions. However, GNSS-R SM retrieval is currently blank in high altitude areas, and GNSS-R F/T results are only available for short time series. Therefore, a five-year GNSS-R SM and F/T record for the Xizang Plateau region was developed in this study. The grid-by-grid average root mean square error (RMSE) and correlation (R) of CYGNSS SM were 0.064 cm³/cm³ and 0.53, respectively. The grid-by-grid average detection accuracy of CYGNSS F/T was 85.5%. The validation results from independent stations show that the RMSE and R for CYGNSS SM are 0.059 cm³/cm³ and 0.56, respectively, and the classification accuracy for CYGNSS F/T is 83.8%. This is comparable to the accuracy of SM and F/T of SMAP in the same period. This study will fill the gap of GNSS-R SM and F/T records at high altitudes. It is worth noting that the number of available days for CYGNSS is significantly higher than that of SMAP. The number of available days for CYGNSS SM is 47.0% higher than that of SMAP SM, and the number of available days for CYGNSS F/T is 14.7% higher than that of SMAP F/T. Moreover, this study also developed an empirical fusion framework for CYGNSS and SMAP. The average RMSE of the fused CYGNSS and SMAP SM (i.e., the CYGNSS-SMAP SM) is 0.056 cm³/cm³, with an R of 0.60. This is an 18.8% improvement in accuracy and a 34.7% improvement in the number of available days compared to the existing SMAP SM. The average accuracy of the fused CYGNSS and SMAP F/T (i.e., CYGNSS-SMAP F/T) is 89.8%. This is a 10.0% improvement in accuracy and a 10.2% improvement in the number of available days over the existing SMAP F/T. Fusing the CYGNSS reflectometer and SMAP radiometer can provide higher accuracy and continuity of SM and F/T in the Xizang Plateau region. The study also demonstrates the fairly good monitoring capability of the spaceborne GNSS-R technique in the high-altitude region.

Key words: CYGNSS, SMAP, soil moisture, soil freeze-thaw, Qinghai-Xizang Plateau

CLC Number:

P228

Wentao YANG, Fei GUO, Xiaohong ZHANG, Zhiyu ZHANG, Yifan ZHU, Zheng LI, Ziheng WU. Soil moisture and freeze-thaw map using GNSS reflectometer and SMAP radiometer for Qinghai-Xizang Plateau[J]. Acta Geodaetica et Cartographica Sinica, 2025, 54(4): 725-735.

Figures/Tables 14

Fig. 1

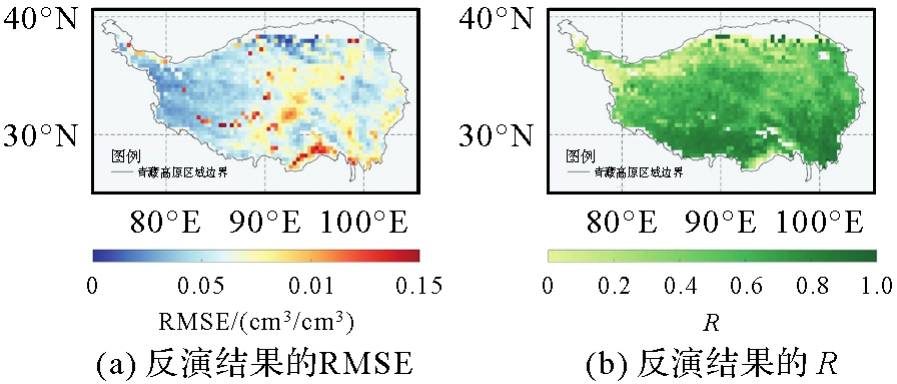

Fig. 2

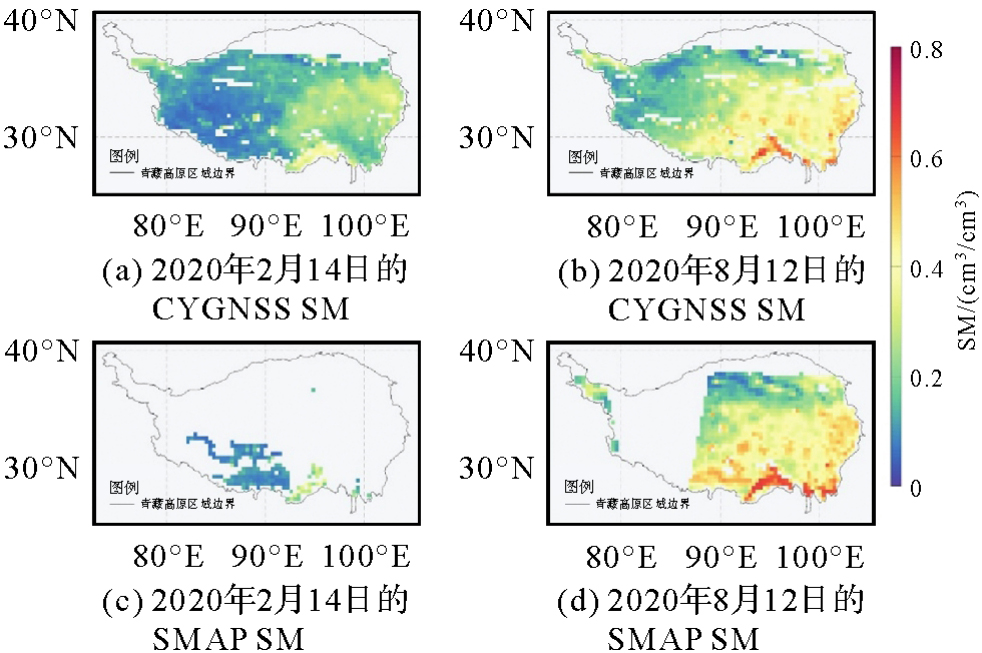

Fig. 3

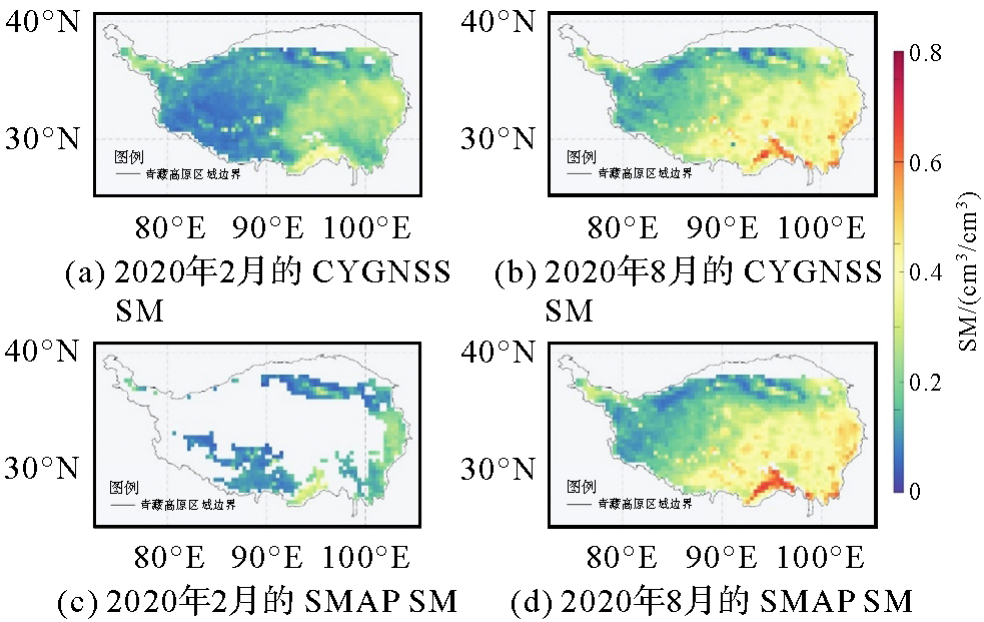

Fig. 4

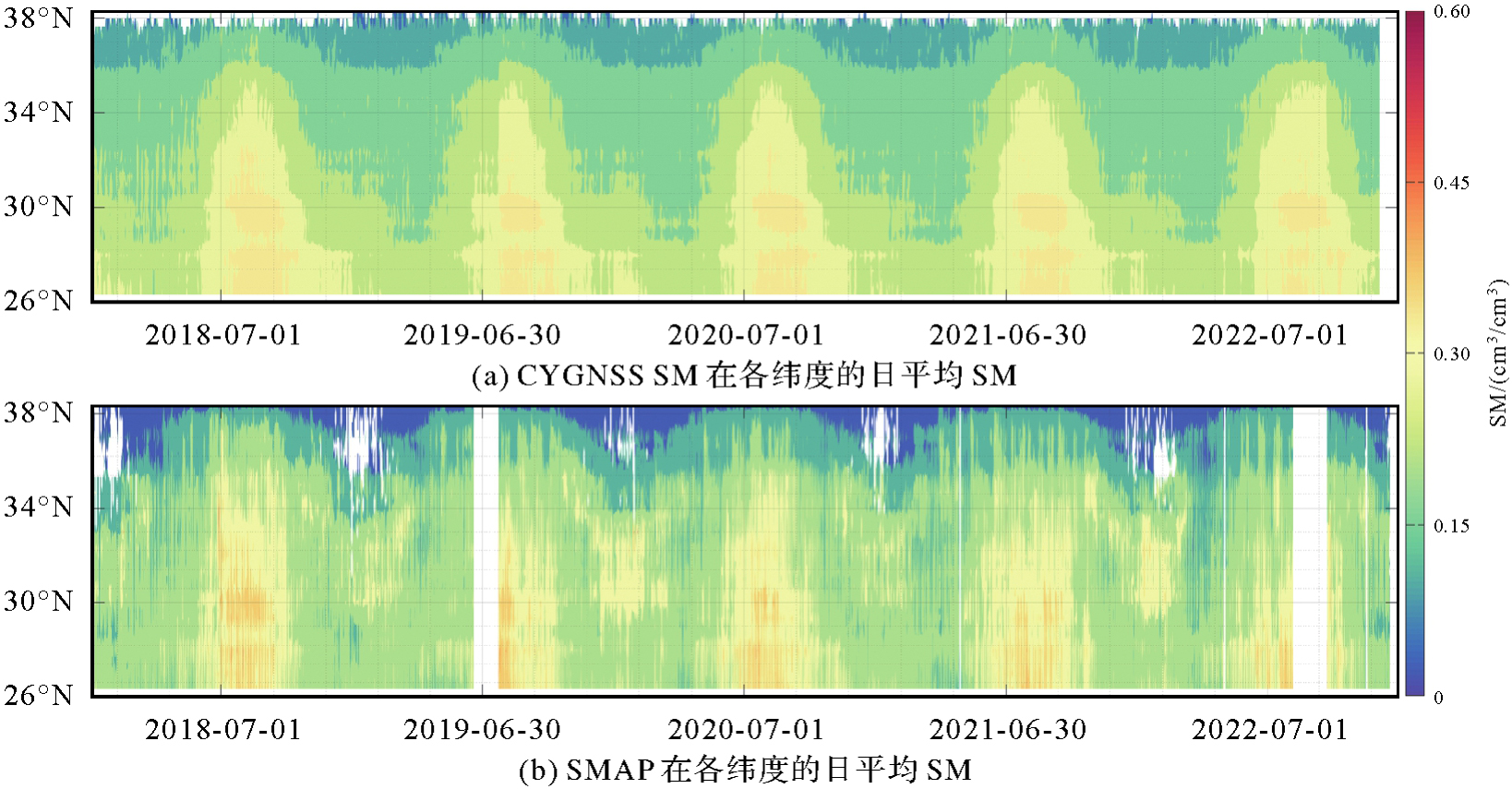

Fig. 5

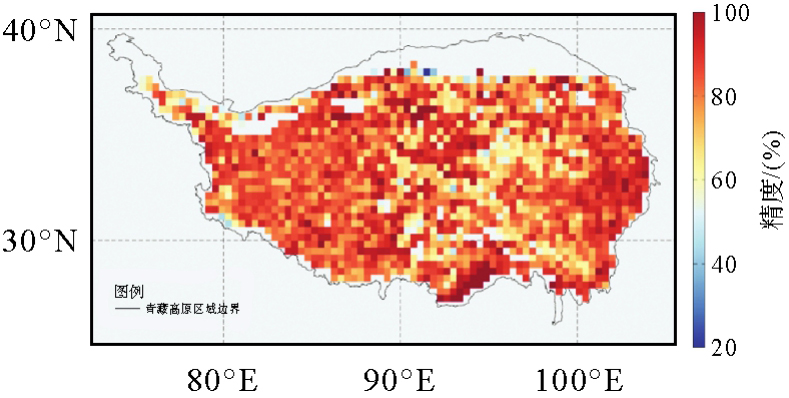

Fig. 6

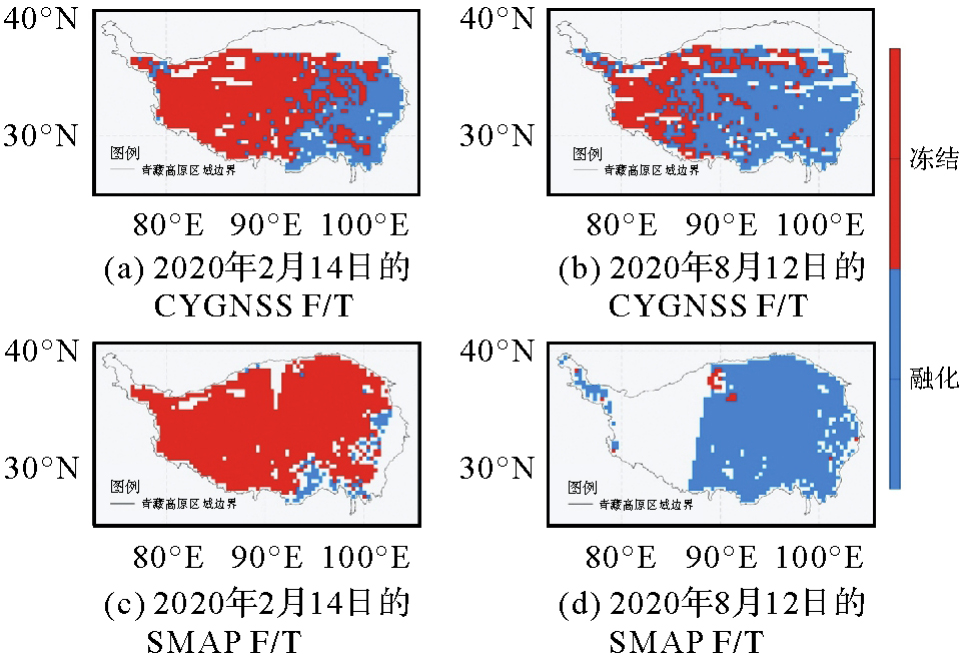

Fig. 7

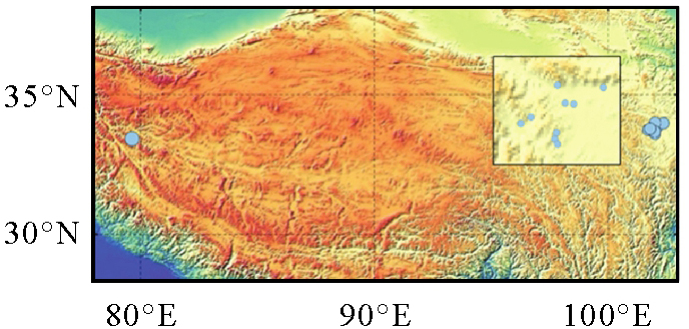

Fig. 8

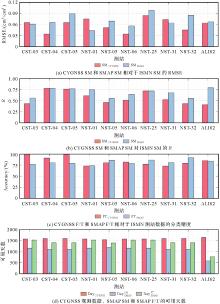

Fig. 9

Tab. 1

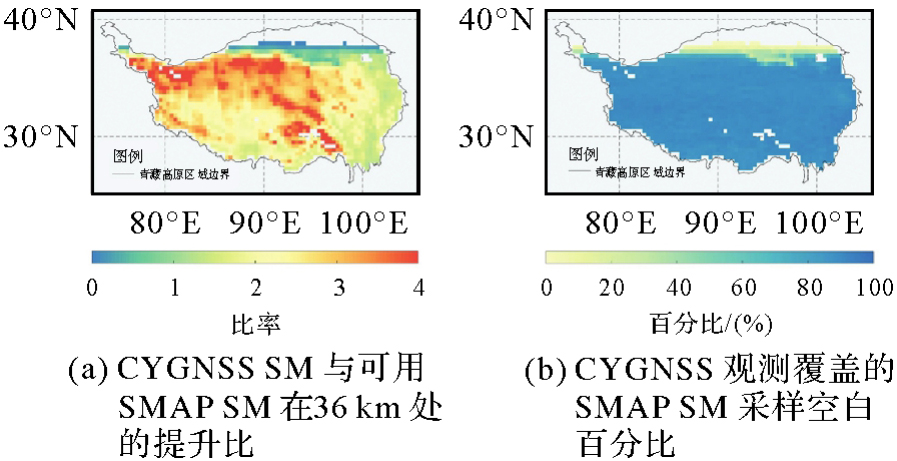

Fig. 10

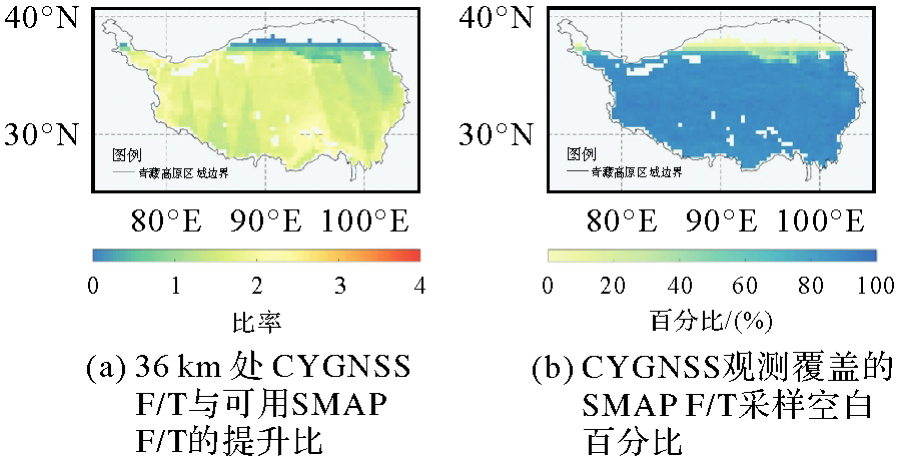

Fig. 11

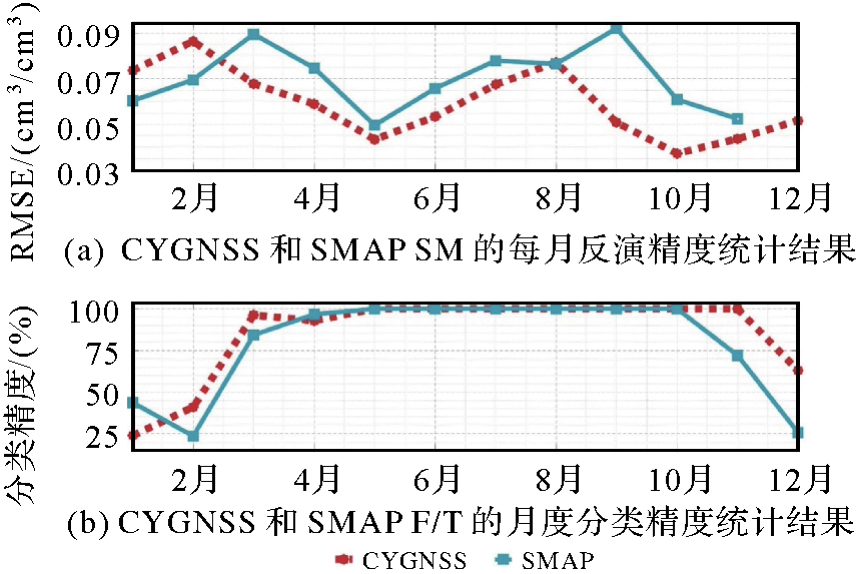

Fig. 12

Tab. 2

References 46

[1]	WALKER J P, WILLGOOSE G R, KALMA J D. In situ measurement of soil moisture: a comparison of techniques[J]. Journal of Hydrology, 2004, 293(1-4): 85-99.
[2]	ROWLANDSON T L, BERG A A, ROY A, et al. Capturing agricultural soil freeze/thaw state through remote sensing and ground observations: a soil freeze/thaw validation campaign[J]. Remote Sensing of Environment, 2018, 211: 59-70.
[3]	JIANG Hongtao, SHEN Huanfeng, LI Xinghua, et al. Extending the SMAP 9-km soil moisture product using a spatio-temporal fusion model[J]. Remote Sensing of Environment, 2019, 231: 111224.
[4]	ZHANG T, ARMSTRONG R L, SMITH J. Investigation of the near-surface soil freeze-thaw cycle in the contiguous United States: algorithm development and validation[J]. Journal of Geophysical Research: Atmospheres, 2003, 108(D22): 8860.
[5]	CHAPARRO D, PILES M, VALL-LLOSSERA M, et al. L-band vegetation optical depth seasonal metrics for crop yield assessment[J]. Remote Sensing of Environment, 2018, 212: 249-259.
[6]	LU Hui, ZHENG Donghai, YANG Kun, et al. Last-decade progress in understanding and modeling the land surface processes on the Xizang Plateau[J]. Hydrology and Earth System Sciences, 2020, 24(12): 5745-5758.
[7]	ROYDEN L H, BURCHFIEL B C, VAN DER HILST R D. The geological evolution of the Xizang Plateau[J]. Science, 2008, 321(5892): 1054-1058.
[8]	KOU Xiaokang, JIANG Lingmei, YAN Shuang, et al. Detection of land surface freeze-thaw status on the Xizang Plateau using passive microwave and thermal infrared remote sensing data[J]. Remote Sensing of Environment, 2017, 199: 291-301.
[9]	李黄, 夏青, 尹聪, 等. 我国GNSS-R遥感技术的研究现状与未来发展趋势[J]. 雷达学报, 2013(4): 389-399.
	LI Huang, XIA Qing, YIN Cong, et al. Research status and future development trend of GNSS-R remote sensing technology in China[J]. Journal of Radars, 2013(4): 389-399.
[10]	LI Bowen, YANG Dongkai, ZHANG Bo. Simulation of multi-satellite GNSS reflected signals and design of simulator[J]. Journal of Geodesy and Geoinformation Science, 2021, 4(2): 36-46.
[11]	CAMPS A, PARK H, PABLOS M, et al. Sensitivity of GNSS-R spaceborne observations to soil moisture and vegetation[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2016, 9(10): 4730-4742.
[12]	LI Zheng, GUO Fei, CHEN Fade, et al. Wind speed retrieval using GNSS-R technique with geographic partitioning[J]. Satellite Navigation, 2023, 4(1): 4.
[13]	JIN Shuanggen, CAMPS A, JIA Yan, et al. Remote sensing and its applications using GNSS reflected signals: advances and prospects[J]. Satellite Navigation, 2024, 5(1): 19.
[14]	ALONSO-ARROYO A, ZAVOROTNY V U, CAMPS A. Sea ice detection using U. K. TDS-1 GNSS-R data[J]. IEEE Transactions on Geoscience and Remote Sensing, 2017, 55(9): 4989-5001.
[15]	RUF C, UNWIN M, DICKINSON J, et al. CYGNSS: enabling the future of hurricane prediction remote sensing satellites[J]. IEEE Geoscience and Remote Sensing Magazine, 2013, 1(2): 52-67.
[16]	WAN W, LIU B, GUO Z, et al. Initialevaluation of the first Chinese GNSS-R mission BuFeng-1 A/B for soil moisture estimation[J]. IEEE Geoscience and Remote Sensing Letters, 2021, 19: 8017305.
[17]	JALES P, ESTERHUIZEN S, MASTERS D, et al. The new spire GNSS-R satellite missions and products[C]//Proceedings of 2020 Image and Signal Processing for Remote Sensing XXVI. London: SPIE, 2020: 41.
[18]	王峰, 李建强, 杨东凯, 等. “吉林一号”宽幅01B卫星GNSS-R数据风速反演研究[J]. 武汉大学学报(信息科学版), 2024, 49(1): 56-67.
	WANG Feng, LI Jiangiang, YANG Dongkai, et al. Wind speed retrieval using GNSS-R data from “Jilin-1” Kuanfu-01B satellite[J]. Geomatics and Information Science of Wuhan University, 2024, 49(1): 56-67.
[19]	XIA Junming, BAI Weihua, SUN Yueqiang, et al. Calibration and wind speed retrieval for the Fengyun-3 E meteorological satellite GNSS-R mission[C]//Proceedings of 2021 IEEE Specialist Meeting on Reflectometry Using GNSS and Other Signals of Opportunity (GNSS+R). Beijing: IEEE, 2021: 25-28.
[20]	BU Jinwei, WANG Qiulan, WANG Ziyi, et al. Land remote sensing applications using spaceborne GNSS reflectometry: a comprehensive overview[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2024, 17: 12811-12841.
[21]	FU Naifeng, LI Fenghui. An introduction of GNSS reflectometer remote sensing mission from Yunyao aerospace technology Co., Ltd[C]//Proceedings of 2021 IEEE Specialist Meeting on Reflectometry Using GNSS and Other Signals of Opportunity (GNSS+R). Beijing: IEEE, 2021: 77-81.
[22]	ZHANG Yun, LU Qi, JIN Qin, et al. Global sea surface height measurement from CYGNSS based on machine learning[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2022, 16: 841-852.
[23]	CHEW C, SMALL E, HUELSING H. Flooding and inundation maps using interpolated CYGNSS reflectivity observations[J]. Remote Sensing of Environment, 2023, 293: 113598.
[24]	张双成, 郭沁雨, 马中民, 等. 星载GNSS-R反演土壤湿度研究进展与思考[J]. 武汉大学学报(信息科学版), 2024, 49(1): 15-26.
	ZHANG Shuangcheng, GUO Qinyu, MA Zhongmin, et al. Research advances and some thoughts on soil moisture retrieval by space-borne GNSS-R[J]. Geomatics and Information Science of Wuhan University, 2024, 49(1): 15-26.
[25]	严清赟, 王戴乐. CYGNSS信号对降水的时空响应及其驱动因子分析[J]. 武汉大学学报(信息科学版), 2024, 49(1): 109-121.
	YAN Qingyun, WANG Daile. Spatiotemporal response of CYGNSS signals to precipitation and analysis of driving factors[J]. Geomatics and Information Science of Wuhan University, 2024, 49(1): 109-121.
[26]	布金伟. 星载GNSS-R技术反演海面降雨强度及风速和浪高方法研究[J]. 测绘学报, 2023, 52(9): 1616. DOI:. doi: 10.11947/j.AGCS.2023.20220709
	BU Jinwei. Study on retrieving sea surface rainfall intensity, wind speed and wave height using spaceborne GNSS-R technology[J]. Acta Geodaetica et Cartographica Sinica, 2023, 52(9): 1616. DOI:. doi: 10.11947/j.AGCS.2023.20220709
[27]	CHEW C C, SMALL E E. Soil moisture sensing using spaceborne GNSS reflections: comparison of CYGNSS reflectivity to SMAP soil moisture[J]. Geophysical Research Letters, 2018, 45(9): 4049-4057.
[28]	CHEW C, SMALL E. Description of the UCAR/CU soil moisture product[J]. Remote Sensing, 2020, 12(10): 1558.
[29]	郭斐, 董桂芳, 朱逸凡, 等. 一种土地类型标签精细化的GNSS-R土壤湿度反演方法[J]. 武汉大学学报(信息科学版), 2024, 49(1): 47-55.
	GUO Fei, DONG Guifang, ZHU Yifan, et al. A refined land type digitization method of GNSS-R soil moisture inversion[J]. Geomatics and Information Science of Wuhan University, 2024, 49(1): 47-55.
[30]	YANG Wentao, GUO Fei, ZHANG Xiaohong, et al. An improved method for water body removal in spaceborne GNSS-R soil moisture retrieval[J]. IEEE Transactions on Geoscience and Remote Sensing, 2023, 61: 4701308.
[31]	ZHU Yifan, GUO Fei, ZHANG Xiaohong. Effect of surface temperature on soil moisture retrieval using CYGNSS[J]. International Journal of Applied Earth Observation and Geoinformation, 2022, 112: 102929.
[32]	CARRENO-LUENGO H, RUF C S. Retrieving freeze/thaw surface state from CYGNSS measurements[J]. IEEE Transactions on Geoscience and Remote Sensing, 2021, 60: 4302313.
[33]	WU Xuerui, DONG Zhounan, JIN Shuanggen, et al. First measurement of soil freeze/thaw cycles in the Xizang Plateau using CYGNSS GNSS-R data[J]. Remote Sensing, 2020, 12(15): 2361.
[34]	RUF C S, CHEW C, LANG T, et al. A new paradigm in earth environmental monitoring with the CYGNSS small satellite constellation[J]. Scientific Reports, 2018, 8(1): 8782.
[35]	CLARIZIA M P, RUF C S, GLEASON S, et al. Generation of CYGNSS level 2 wind speed data products[C]//Proceedings of 2017 IEEE International Geoscience and Remote Sensing Symposium. Fort Worth: IEEE, 2017: 2647-2649.
[36]	SAÏD F, JELENAK Z, PARK J, et al. The NOAA track-wise wind retrieval algorithm and product assessment for CyGNSS[J]. IEEE Transactions on Geoscience and Remote Sensing, 2021, 60: 4202524.
[37]	KIM H, LAKSHMI V. Use of cyclone global navigation satellite system (CYGNSS) observations for estimation of soil moisture[J]. Geophysical Research Letters, 2018, 45(16): 8272-8282.
[38]	DONG Zhounan, JIN Shuanggen. Evaluation of the land GNSS-reflected DDM coherence on soil moisture estimation from CYGNSS data[J]. Remote Sensing, 2021, 13(4): 570.
[39]	DE ROO R D, ULABY F T. Bistatic specular scattering from rough dielectric surfaces[J]. IEEE Transactions on Antennas and Propagation, 1994, 42(2): 220-231.
[40]	DOBSON M C, ULABY F T, HALLIKAINEN M T, et al. Microwave dielectric behavior of wet soil-part II: dielectric mixing models[J]. IEEE Transactions on Geoscience and Remote Sensing, 1985, GE-23(1): 35-46.
[41]	CHAN S K, BINDLISH R, O'NEILL P E, et al. Assessment of the SMAP passive soil moisture product[J]. IEEE Transactions on Geoscience and Remote Sensing, 2016, 54(8): 4994-5007.
[42]	LYU Haobo, MCCOLL K A, LI Xinlu, et al. Validation of the SMAP freeze/thaw product using categorical triple collocation[J]. Remote Sensing of Environment, 2018, 205: 329-337.
[43]	CLARIZIA M P, PIERDICCA N, COSTANTINI F, et al. Analysis of CYGNSS data for soil moisture retrieval[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2019, 12(7): 2227-2235.
[44]	YANG Wentao, GUO Fei, ZHANG Xiaohong, et al. Daily landscape freeze/thaw state detection using spaceborne GNSS-R data in Qinghai-Xizang Plateau[J]. IEEE Transactions on Geoscience and Remote Sensing, 2023, 61: 4302409.
[45]	HOVMÖLLER E. The trough-and-ridge diagram[J]. Tellus, 1949, 1(2): 62-66.
[46]	DORIGO W A, WAGNER W, HOHENSINN R, et al. The international soil moisture network: a data hosting facility for global in situ soil moisture measurements[J]. Hydrology and Earth System Sciences, 2011, 15(5): 1675-1698.

测站	网络	纬度	经度	SM_CYGNSS		F/T_CYGNSS		SM_SMAP			F/T_SMAP
测站	网络	纬度	经度	R	RMSE/（cm³/cm³）	分类精度/（%）	天数	R	RMSE/（cm³/cm³）	天数	分类精度/（%）	天数
CST-03	MAQU	33.9°N	102.0°E	0.43	0.065	100	1573	0.56	0.061	1155	76.7	1523
CST-04	MAQU	33.8°N	101.7°E	0.78	0.034	90.8	1593	0.78	0.065	1094	80.1	1401
CST-05	MAQU	33.7°N	101.9°E	0.76	0.065	98.7	1593	0.77	0.089	1094	78.8	1401
NST-01	MAQU	33.9°N	102.1°E	0.61	0.075	73.0	1573	0.75	0.043	1155	73.5	1523
NST-05	MAQU	33.6°N	102.0°E	0.46	0.051	80.2	1536	0.55	0.069	1197	85.9	1392
NST-06	MAQU	34.0°N	102.3°E	0.51	0.034	81.8	1573	0.64	0.056	1155	78.5	1523
NST-25	MAQU	34.0°N	102.0°E	0.72	0.084	77.0	1573	0.72	0.098	1155	86.4	1523
NST-31	MAQU	33.7°N	101.9°E	0.52	0.073	72.9	1593	0.68	0.064	1094	80.8	1401
NST-32	MAQU	33.7°N	101.8°E	0.43	0.045	79.0	1593	0.55	0.085	1094	91.5	1401
ALI02	NGARI	33.5°N	79.6°E	0.41	0.064	84.9	1647	0.79	0.067	586	83.9	773
All				0.56	0.059	83.8	1585	0.68	0.069	1078	81.6	1386

测站	网络	纬度	经度	CYGNSS-SMAP SM			CYGNSS-SMAP F/T
测站	网络	纬度	经度	R	RMSE/（cm³/cm³）	天数	分类精度/（%）	天数
CST-03	MAQU	33.9°N	102.0°E	0.70	0.058	1447	95.3	1578
CST-04	MAQU	33.8°N	101.7°E	0.70	0.039	1460	84.5	1584
CST-05	MAQU	33.7°N	101.9°E	0.70	0.062	1460	83.9	1584
NST-01	MAQU	33.9°N	102.1°E	0.61	0.070	1447	83.8	1578
NST-05	MAQU	33.6°N	102.0°E	0.74	0.049	1424	93.0	1524
NST-06	MAQU	34.0°N	102.3°E	0.66	0.038	1447	92.5	1578
NST-25	MAQU	34.0°N	102.0°E	0.57	0.076	1447	90.0	1578
NST-31	MAQU	33.7°N	101.9°E	0.59	0.038	1460	85.4	1584
NST-32	MAQU	33.7°N	101.8°E	0.31	0.060	1460	94.8	1584
ALI02	NGARI	33.5°N	79.6°E	0.40	0.065	1468	94.7	1569
All				0.60	0.056	1452	89.8	1574
