LT-1 sub-canopy topography inversion based on sub-aperture decomposition and LSC-block adjustment model

doi:10.11947/j.AGCS.2026.20260085

Abstract

Abstract:

LuTan-1 (LT-1) as the L-band bistatic InSAR satellite system, features strong penetration capabilities and holds great potential for retrieving high-precision sub-canopy topography. However, due to the influence of volume scattering in forests, the LT-1 SAR echo signal contains mixed contributions from both the ground surface and forest canopy. The single-polarization LT-1 InSAR data lacks sufficient observational information to effectively separate forest scattering components. Moreover, in current practices, system errors in terrain estimation are typically corrected using a block adjustment model with spaceborne LiDAR data as ground control points. However, these methods neglect the mismatch in scattering centers between InSAR and LiDAR in forested areas, and the alternative approach of relying solely on bare ground control points suffers from the limited number of such points. To address these issues, this study proposes a frequency-domain physical interpretation method based on sub-aperture decomposition to mitigate the issue of insufficient observational information. On this basis, a block adjustment model based on multi-scale least-squares collocation is developed to solve the problems of inconsistent scattering centers and the coupling of system errors and scattering model errors. The proposed method is tested and validated in two study areas with different terrain and forest conditions, namely Guangzhou and Genhe test site. The root mean square errors of the estimated sub-canopy topography are 3.09 and 1.36 m, representing improvements of 47.4% and 70.2% over the conventional InSAR DEMs (5.87 and 4.56 m), respectively. Furthermore, the proposed method exhibits superior elevation accuracy compared to existing global DEMs and publicly available sub-canopy topography products.

Key words: LT-1, sub-canopy topography, sub-aperture decomposition, block adjustment, multi-scale least-squares collocation

CLC Number:

P207

Huacan HU, Jianjun ZHU, Haiqiang FU, Qijin HAN, Aichun WANG, Mingxia ZHANG, Zhiwei LI. LT-1 sub-canopy topography inversion based on sub-aperture decomposition and LSC-block adjustment model[J]. Acta Geodaetica et Cartographica Sinica, 2026, 55(6): 1058-1071.

Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

URL: http://xb.chinasmp.com/EN/10.11947/j.AGCS.2026.20260085

http://xb.chinasmp.com/EN/Y2026/V55/I6/1058

Figures/Tables 14

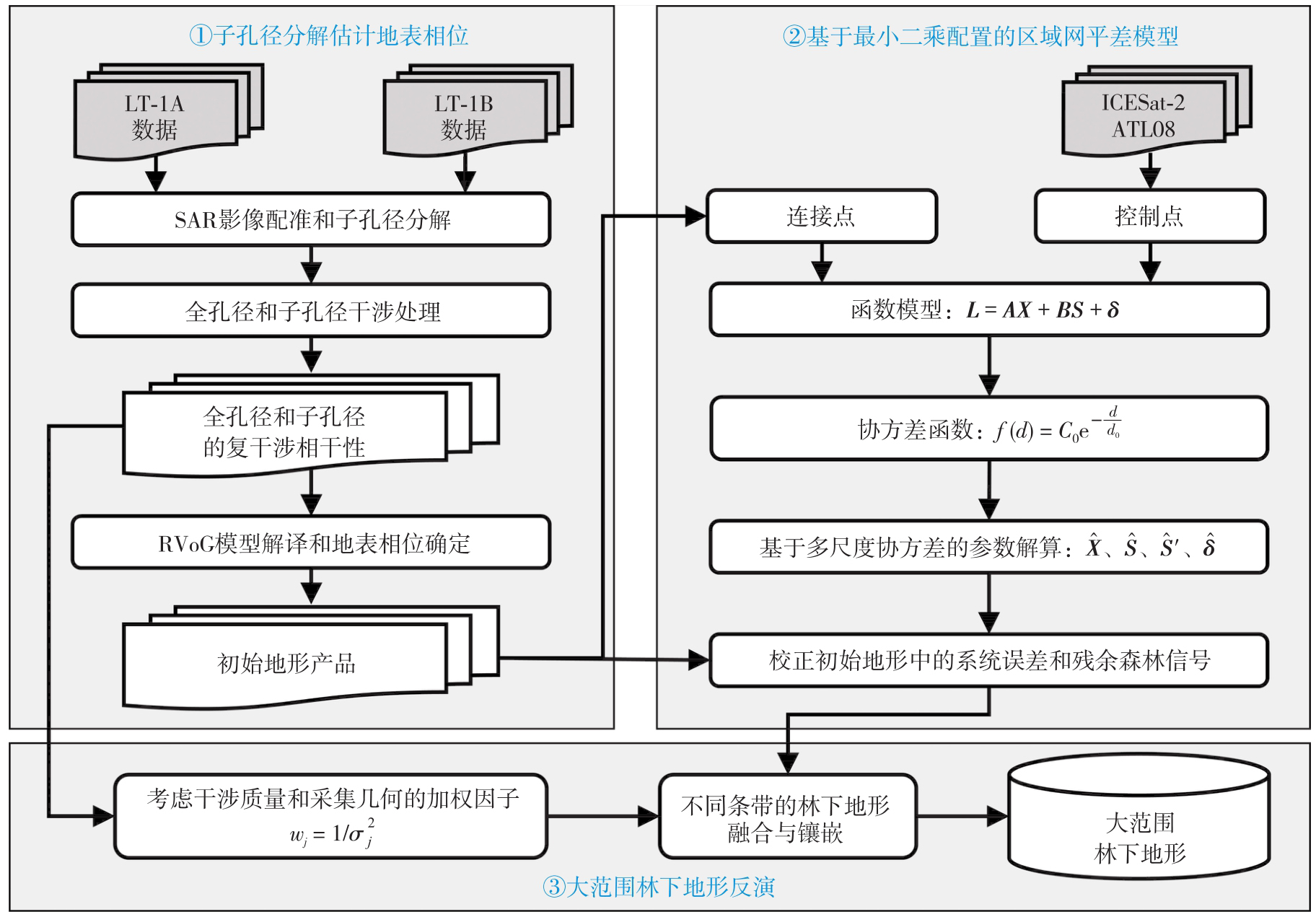

Fig. 1

Tab. 1

Fig. 2

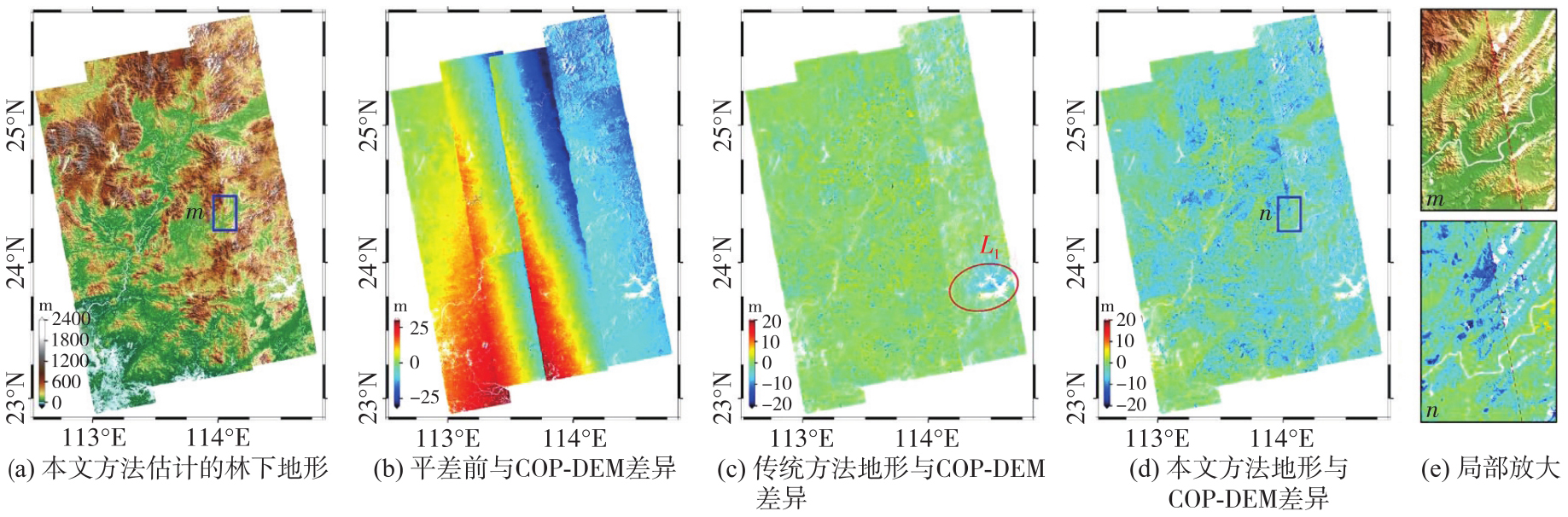

Fig. 3

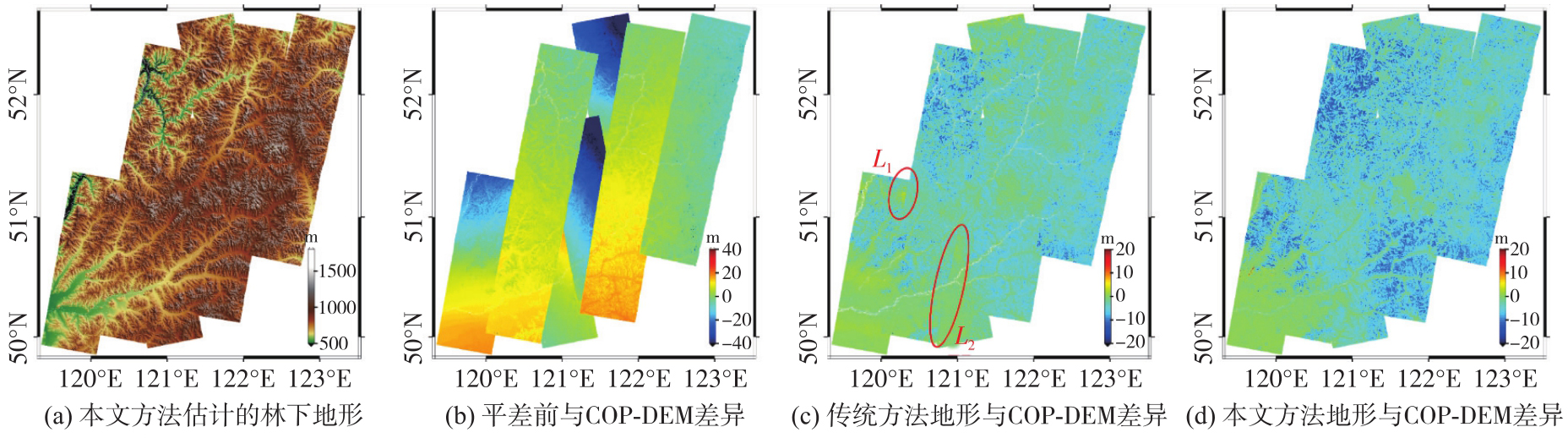

Fig. 4

Tab. 2

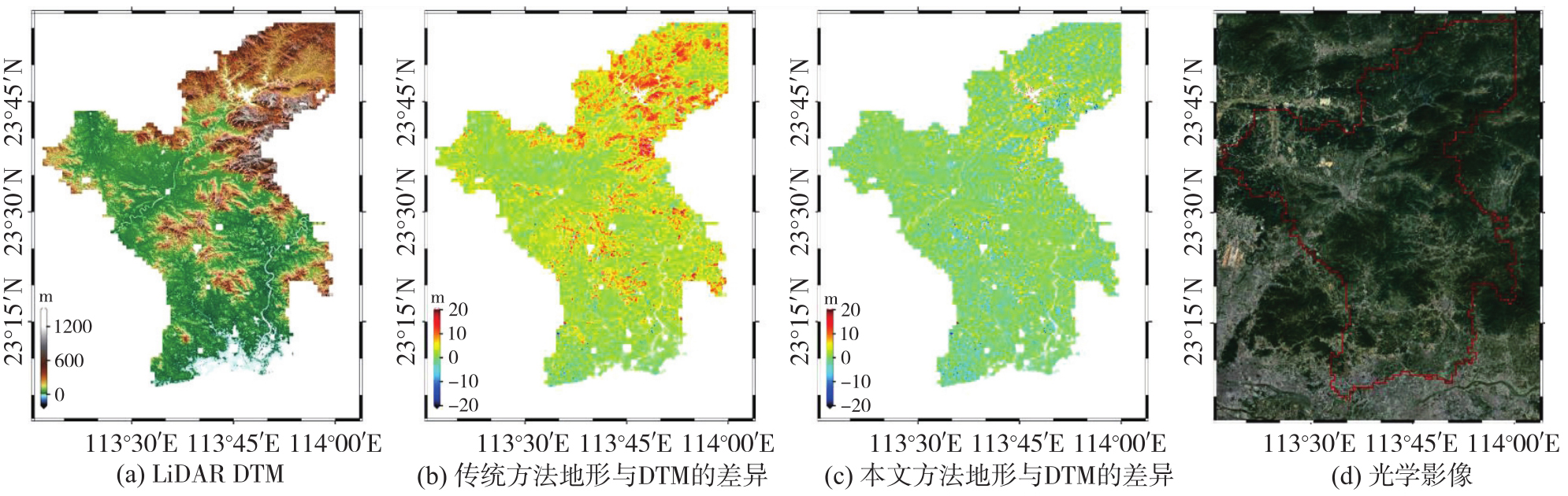

Fig. 5

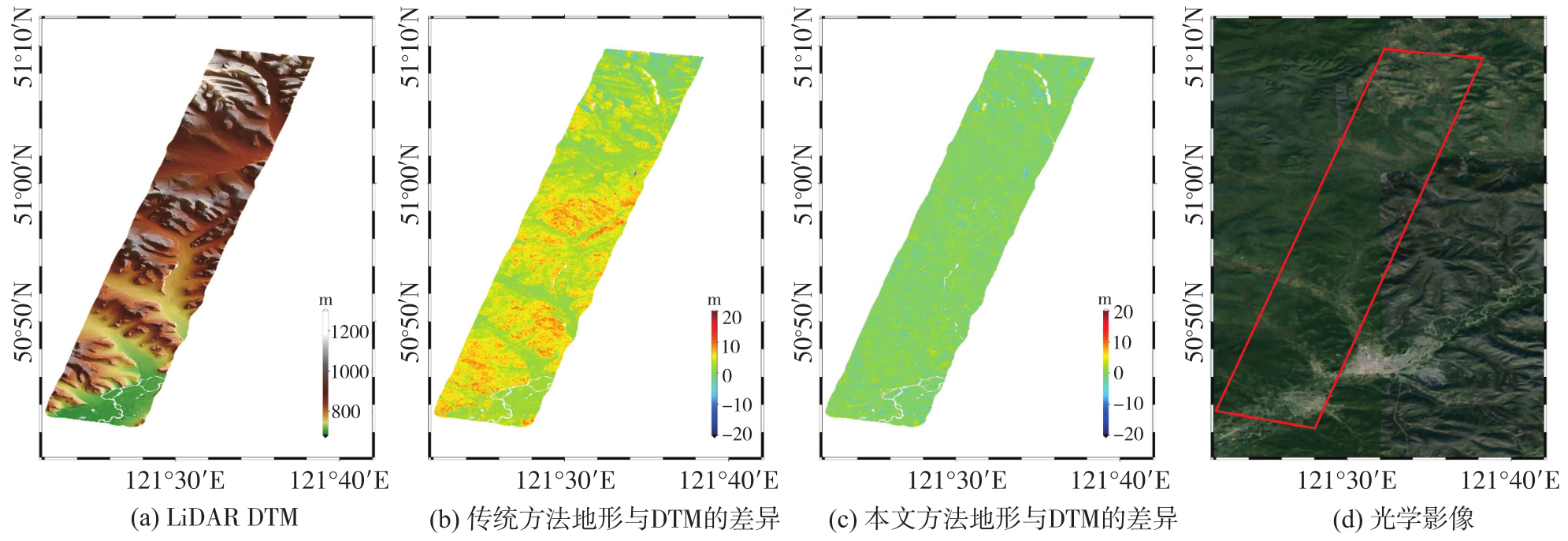

Fig. 6

Fig. 7

Tab. 3

Tab. 4

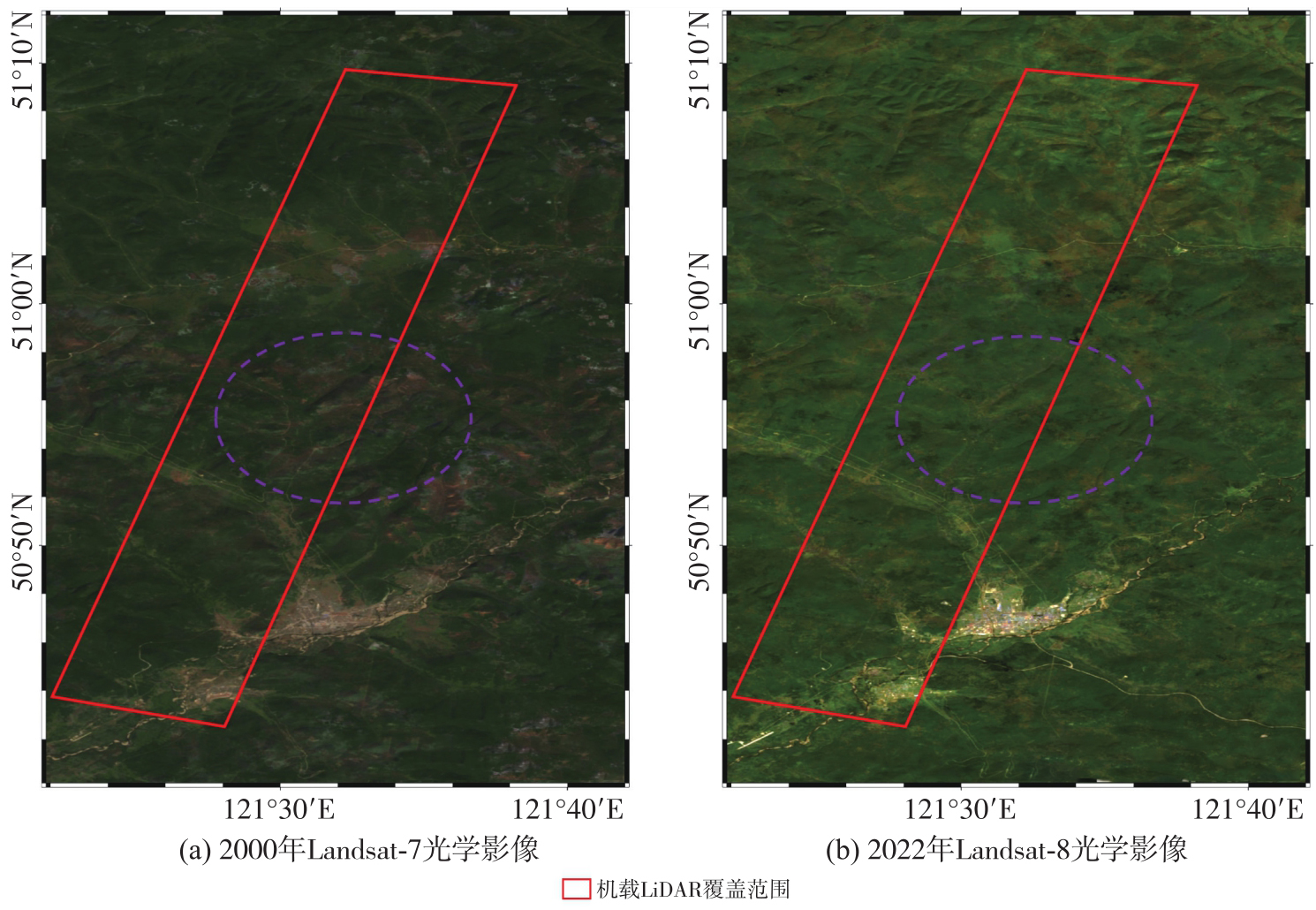

Fig. 8

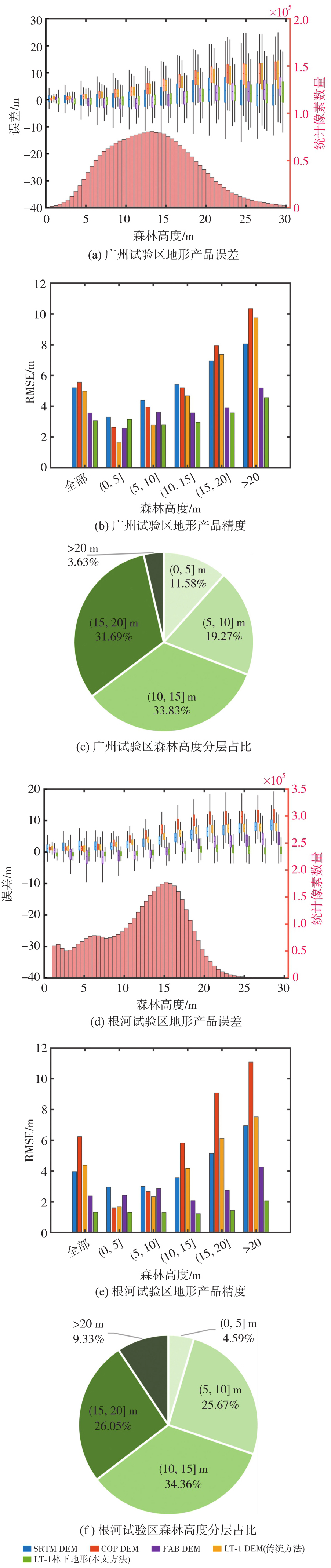

Fig. 9

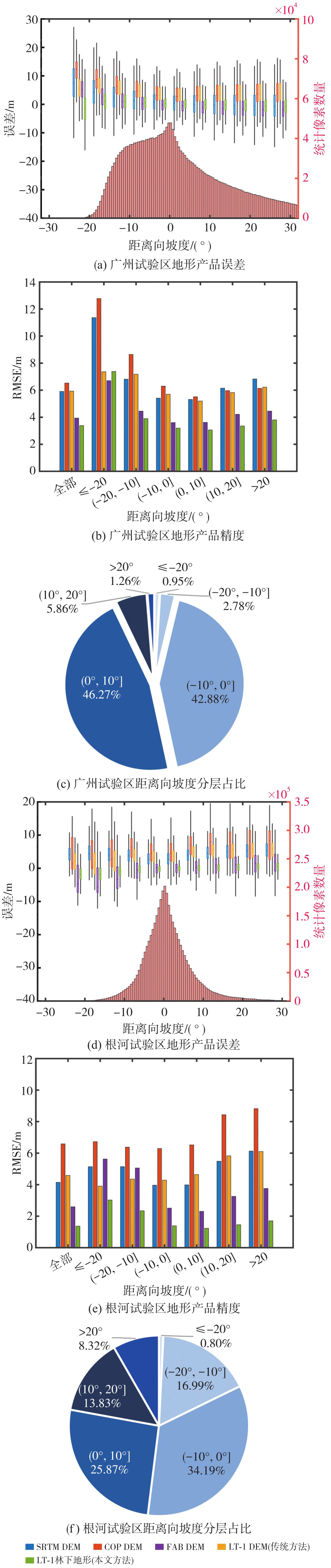

Fig. 10

References 34

[1]	朱建军, 付海强, 汪长城. InSAR林下地形测绘方法与研究进展[J]. 武汉大学学报(信息科学版), 2018, 43(12): 2030-2038.
	ZHU Jianjun, FU Haiqiang, WANG Changcheng. Methods and research progress of underlying topography estimation over forest areas by InSAR[J]. Geomatics and Information Science of Wuhan University, 2018, 43(12): 2030-2038.
[2]	朱建军, 付海强, 汪长城. 极化干涉SAR地表覆盖层“穿透测绘”技术进展[J]. 测绘学报, 2022, 51(6): 983-995. DOI: . doi: 10.11947/j.AGCS.2022.20220154
	ZHU Jianjun, FU Haiqiang, WANG Changcheng. Research progress of “penetration mapping” of earth surface by PolInSAR[J]. Acta Geodaetica et Cartographica Sinica, 2022, 51(6): 983-995. DOI: . doi: 10.11947/j.AGCS.2022.20220154
[3]	RIZZOLI P, MARTONE M, GONZALEZ C, et al. Generation and performance assessment of the global TanDEM-X digital elevation model[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2017, 132: 119-139.
[4]	OKOLIE C J, MILLS J P, ADELEKE A K, et al. Assessment of the global Copernicus, NASADEM, ASTER and AW3D digital elevation models in Central and Southern Africa[J]. Geo-spatial Information Science, 2024, 27(4): 1362-1390.
[5]	唐新明, 李涛, 张祥, 等. L波段差分干涉SAR卫星在轨应用关键参数测试分析[J]. 测绘学报, 2024, 53(10): 1863-1872. DOI: . doi: 10.11947/j.AGCS.2024.20230240
	TANG Xinming, LI Tao, ZHANG Xiang, et al. In-orbit application parameters test and analysis of L-band differential interferometric SAR satellite constellation[J]. Acta Geodaetica et Cartographica Sinica, 2024, 53(10): 1863-1872. DOI: . doi: 10.11947/j.AGCS.2024.20230240
[6]	TANG Xinming, LI Tao, CHEN Junli, et al. Twin-satellite constellation design and realization for terrain mapping and deformation monitoring: LuTan-1[J]. IEEE Transactions on Geoscience and Remote Sensing, 2025, 63: 5214014.
[7]	WANG R, LIU Kaiyu, LIU Dacheng, et al. LuTan-1: an innovative L-band spaceborne bistatic interferometric synthetic aperture radar mission[J]. IEEE Geoscience and Remote Sensing Magazine, 2025, 13(2): 58-78.
[8]	CLOUDE S R. Polarisation: applications in remote sensing[M/OL]. London: Oxford University Press, 2009[2026-02-11]. https://doi.org/10.1093/acprof:oso/9780199569731.001.0001.
[9]	PARDINI M, CAZCARRA-BES V, PAPATHANASSIOU K P. TomoSAR mapping of 3D forest structure: contributions of L-band configurations[J]. Remote Sensing, 2021, 13(12): 2255.
[10]	TREUHAFT R, LEI Yang, GONÇALVES F, et al. Tropical-forest structure and biomass dynamics from TanDEM-X radar interferometry[J]. Forests, 2017, 8(8): 277.
[11]	LEI Yang, LI Weiliang, YU Yanghai, et al. First demonstration of spaceborne L-band bistatic single-polarization single-baseline SAR interferometry on the retrieval of forest vertical structural information[J]. Remote Sensing of Environment, 2025, 329: 114916.
[12]	WANG Huiqiang, FU Haiqiang, ZHU Jianjun, et al. Estimation of subcanopy topography based on single-baseline TanDEM-X InSAR data[J]. Journal of Geodesy, 2021, 95(7): 84.
[13]	LIU Zhiwei, ZHU Jianjun, LOPEZ-SANCHEZ J M, et al. Simultaneous estimation of subcanopy topography and forest height with single-baseline single-polarization TanDEM-X interferometric data combined with ICESat-2 data[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2024, 17: 11598-11617.
[14]	HU Huacan, ZHU Jianjun, FU Haiqiang, et al. Automated estimation of sub-canopy topography combined with single-baseline single-polarization TanDEM-X InSAR and ICESat-2 data[J]. Remote Sensing, 2024, 16(7): 1155.
[15]	GARESTIER F, DUBOIS-FERNANDEZ P C, CHAMPION I. Forest height inversion using high-resolution P-band Pol-InSAR data[J]. IEEE Transactions on Geoscience and Remote Sensing, 2008, 46(11): 3544-3559.
[16]	FU Haiqiang, ZHU Jianjun, WANG Changcheng, et al. Underlying topography estimation over forest areas using single-baseline InSAR data[J]. IEEE Transactions on Geoscience and Remote Sensing, 2019, 57(5): 2876-2888.
[17]	ZHU Jianjun, XIE Yanzhou, FU Haiqiang, et al. Digital terrain, surface, and canopy height model generation with dual-baseline low-frequency InSAR over forest areas[J]. Journal of Geodesy, 2023, 97(11): 100.
[18]	胡华参, 朱建军, 付海强, 等. LT-1双站InSAR林下地形测绘方法研究[J/OL]. 武汉大学学报(信息科学版), 1-19[2026-02-11]. https://doi.org/10.13203/j.whugis20250078.
	HU Huacan, ZHU Jianjun, FU Haiqiang, et al. Research on sub-canopy topography mapping method based on LT-1 bistatic InSAR system[J/OL]. Geomatics and Information Science of Wuhan University, 1-19[2026-02-11]. https://doi.org/10.13203/j.whugis20250078.
[19]	HU Huacan, FU Haiqiang, ZHU Jianjun, et al. Sub-canopy topography estimation based on sub-aperture decomposition and least-squares collocation from LuTan-1 InSAR data[J]. Journal of Geodesy, 2026, 100(1): 5.
[20]	吴可夫, 付海强, 朱建军, 等. 顾及森林区穿透深度影响的LT-1 InSAR区域网平差[J]. 测绘学报, 2025, 54(6): 1009-1020. DOI: . doi: 10.11947/j.AGCS.2025.20240426
	WU Kefu, FU Haiqiang, ZHU Jianjun, et al. LT-1 InSAR block adjustment considering the impact of penetration depth in forest areas[J]. Acta Geodaetica et Cartographica Sinica, 2025, 54(6): 1009-1020. DOI: . doi: 10.11947/j.AGCS.2025.20240426
[21]	WESSEL B, GRUBER A, GONZALEZ J H, et al. TanDEM-X: DEM calibration concept[C]//Proceedings of 2008 IEEE International Geoscience and Remote Sensing Symposium. Boston: IEEE, 2008: 111-114.
[22]	GRUBER A, WESSEL B, HUBER M, et al. Operational TanDEM-X DEM calibration and first validation results[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2012, 73: 39-49.
[23]	TREUHAFT R N, MADSEN S N, MOGHADDAM M, et al. Vegetation characteristics and underlying topography from interferometric radar[J]. Radio Science, 1996, 31(6): 1449-1485.
[24]	JARMOŁOWSKI W, BAKUŁA M. Two covariance models in least squares collocation (LSC) tested in interpolation of local topography[J]. Contributions to Geophysics and Geodesy, 2013, 43(1): 1-19.
[25]	KOCH K R. Least squares adjustment and collocation[J]. Bulletin Géodésique, 1977, 51(2): 127-135.
[26]	LI Yi, FU Haiqiang, ZHU Jianjun, et al. A method for SRTM DEM elevation error correction in forested areas using ICESat-2 data and vegetation classification data[J]. Remote Sensing, 2022, 14(14): 3380.
[27]	KARRA K, KONTGIS C, STATMAN-WEIL Z, et al. Global land use/land cover with Sentinel 2 and deep learning[C]//Proceedings of 2021 IEEE International Geoscience and Remote Sensing Symposium IGARSS. Brussels: IEEE, 2021: 4704-4707.
[28]	WERNER M. Shuttle radar topography mission (SRTM) mission overview[J]. Frequenz, 2001, 55(3/4): 75-79.
[29]	MEADOWS M, JONES S, REINKE K. Vertical accuracy assessment of freely available global DEMs (FABDEM, Copernicus DEM, NASADEM, AW3D30 and SRTM) in flood-prone environments[J]. International Journal of Digital Earth, 2024, 17(1): 2308734.
[30]	YE Zilin, LONG Jiangping, ZHANG Tingchen, et al. L-band synthetic aperture radar and its application for forest parameter estimation, 1972 to 2024: a review[J]. Plants, 2024, 13(17): 2511.
[31]	TOUTIN T. Impact of terrain slope and aspect on radargrammetric DEM accuracy[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2002, 57(3): 228-240.
[32]	LI Yi, GAO Shijuan, ZHU Jianjun, et al. A gradient-constrained morphological operation for retrieving subcanopy topography over densely forested areas from ICESat-2/ATL03 data[J]. IEEE Transactions on Geoscience and Remote Sensing, 2024, 62: 4408213.
[33]	LI Guoyuan, YE Fanghong, TANG Xinming, et al. Influence of range gate width on detection probability and ranging accuracy of single photon laser altimetry satellite[J]. Journal of Geodesy and Geoinformation Science, 2020, 3(2): 36-44.
[34]	ABDEL-MAKSOUD H, AZIZ T A, ELSHARKAWY A S, et al. Advanced techniques for precision assessment in UAV LiDAR systems[J]. Journal of Geodesy and Geoinformation Science, 2025, 8(2): 90-107.

试验区	获取时间	入射角/（°）	有效基线/m	模糊高/m	轨道	数量
广州	2022-10-10	32.18	1551.29	61.05	升轨	5
	2022-11-03	37.32	1482.61	70.68	升轨	5
	2022-11-11	40.05	1423.67	80.13	升轨	5
	2022-11-18	20.79	1853.98	30.01	升轨	5
根河	2022-09-19	29.82	1361.79	58.87	升轨	2
	2022-10-05	39.93	609.26	162.39	升轨	3
	2022-10-11	36.18	2052.88	48.28	降轨	3
	2022-11-11	41.92	2040.65	58.22	降轨	5
	2022-11-20	22.39	1994.55	30.93	降轨	4
	2022-11-22	32.76	727.58	122.49	升轨	3
	2022-11-28	32.93	2091.18	42.67	降轨	5

地形产品	广州试验区			根河试验区
地形产品	MAE	STD	RMSE	MAE	STD	RMSE
LT-1 DEM	3.41	4.47	5.62	4.06	2.63	4.83
林下地形	0.31	3.17	3.19	0.04	1.37	1.38

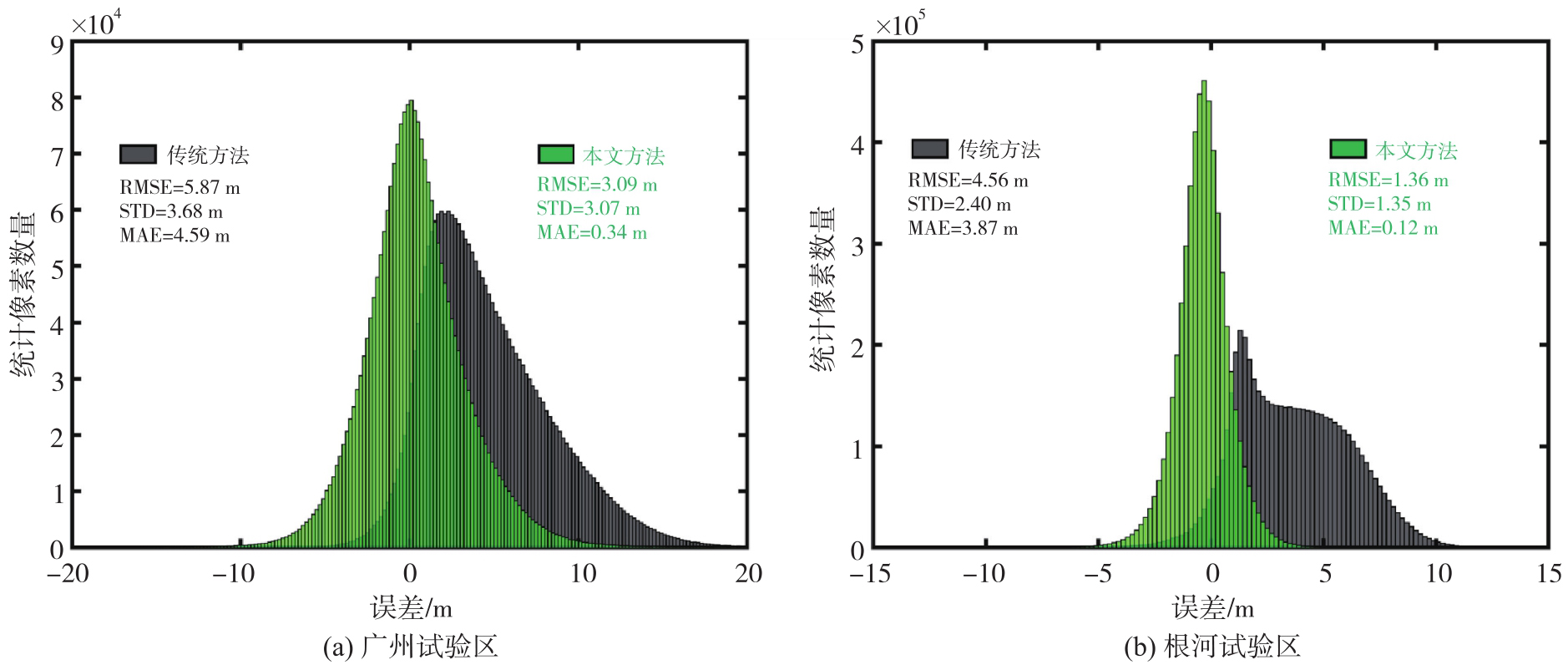

方法	广州试验区			根河试验区
方法	MAE	STD	RMSE	MAE	STD	RMSE
传统方法	4.59	3.67	5.87	3.87	2.40	4.56
本文方法（单一尺度协方差）	0.46	3.58	3.61	0.25	1.52	1.54
本文方法（多尺度协方差）	0.34	3.07	3.09	0.12	1.35	1.36

地形产品	广州试验区						根河试验区
	ICESat-2全局验证			LiDAR DTM局部验证			ICESat-2全局验证			LiDAR DTM局部验证
	MAE	STD	RMSE	MAE	STD	RMSE	MAE	STD	RMSE	MAE	STD	RMSE
SRTM DEM	3.72	6.26	7.28	1.19	6.30	6.41	2.47	3.09	3.96	3.32	2.43	4.12
COP DEM	3.94	4.62	6.07	4.91	4.25	6.49	5.56	3.56	6.60	5.48	3.59	6.55
LT-1 DEM（传统方法）	3.35	4.28	5.44	4.52	3.58	5.76	4.01	2.58	4.76	3.82	2.37	4.50
FAB DEM	0.54	3.97	4.01	0.08	3.88	3.89	0.39	2.15	2.19	0.06	2.57	2.58
林下地形（本文方法）	0.29	3.15	3.16	0.31	3.02	3.04	0.04	1.35	1.35	0.11	1.34	1.35
