LT-1 InSAR block adjustment considering the impact of penetration depth in forest areas

doi:10.11947/j.AGCS.2025.20240426

Abstract

Abstract:

Due to its intense penetration, the first L-band interferometric SAR constellation, LuTan-1 (LT-1), has unique advantages in sub-canopy topography mapping. The block adjustment utilizes height control points (spaceborne LiDAR) and tie-points to calibrate the systematic error, which is the basis for LT-1 to carry out large-scale sub-canopy topography mapping. However, to avoid the problem of InSAR altimetry deviation from LiDAR caused by forest scattering, the existing block adjustment methods only select bare-earth points, which are prone to pathological observations with systematic error. Given this, this paper uses the SINC model that describes the forest scattering process to compensate for the InSAR altimetry deviation and establishes a block adjustment model considering the influence of penetration depth. We used two test sites with forest coverage of about 85% and 50% to verify the algorithm's effectiveness. The results show that the LT-1 DEM estimated in this paper improves the height accuracy by 22.1% and 12.5% compared with the traditional method, and the height accuracy and forest penetration rate are at the highest level compared with COP-DEM, SRTM, and AW3D. Furthermore, the LT-1 sub-canopy topography estimated based on the SINC model improved the height measurement accuracy by 40.6% and 25.5% compared with the LT-1 DEM, with RMSE of 3.15 m and 2.80 m, respectively.

Key words: block adjustment, InSAR, LT-1, DEM, sub-canopy topography, SINC model

CLC Number:

P207

Kefu WU, Haiqiang FU, Jianjun ZHU, Qijin HAN, Aichun WANG, Mingxia ZHANG, Zhiwei LI. LT-1 InSAR block adjustment considering the impact of penetration depth in forest areas[J]. Acta Geodaetica et Cartographica Sinica, 2025, 54(6): 1009-1020.

Figures/Tables 14

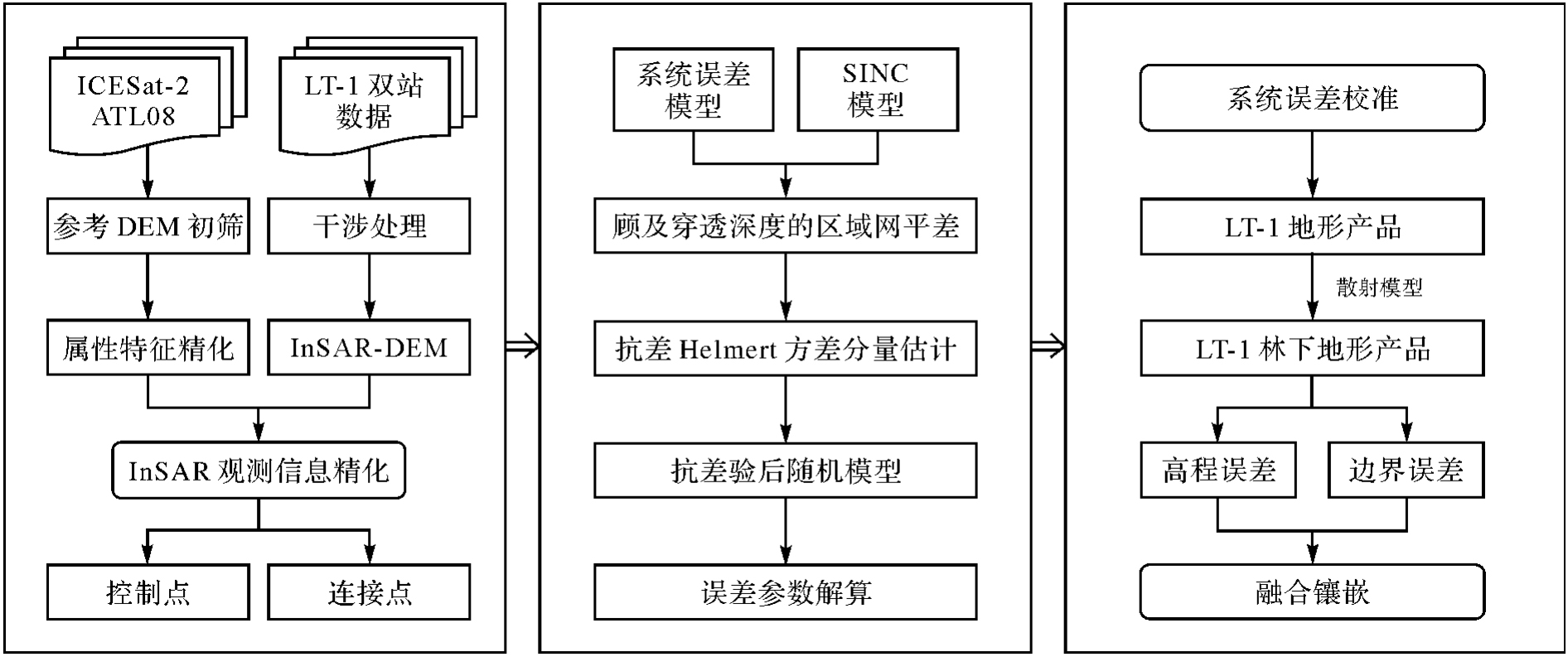

Fig. 1

Fig. 2

Tab. 1

Tab. 2

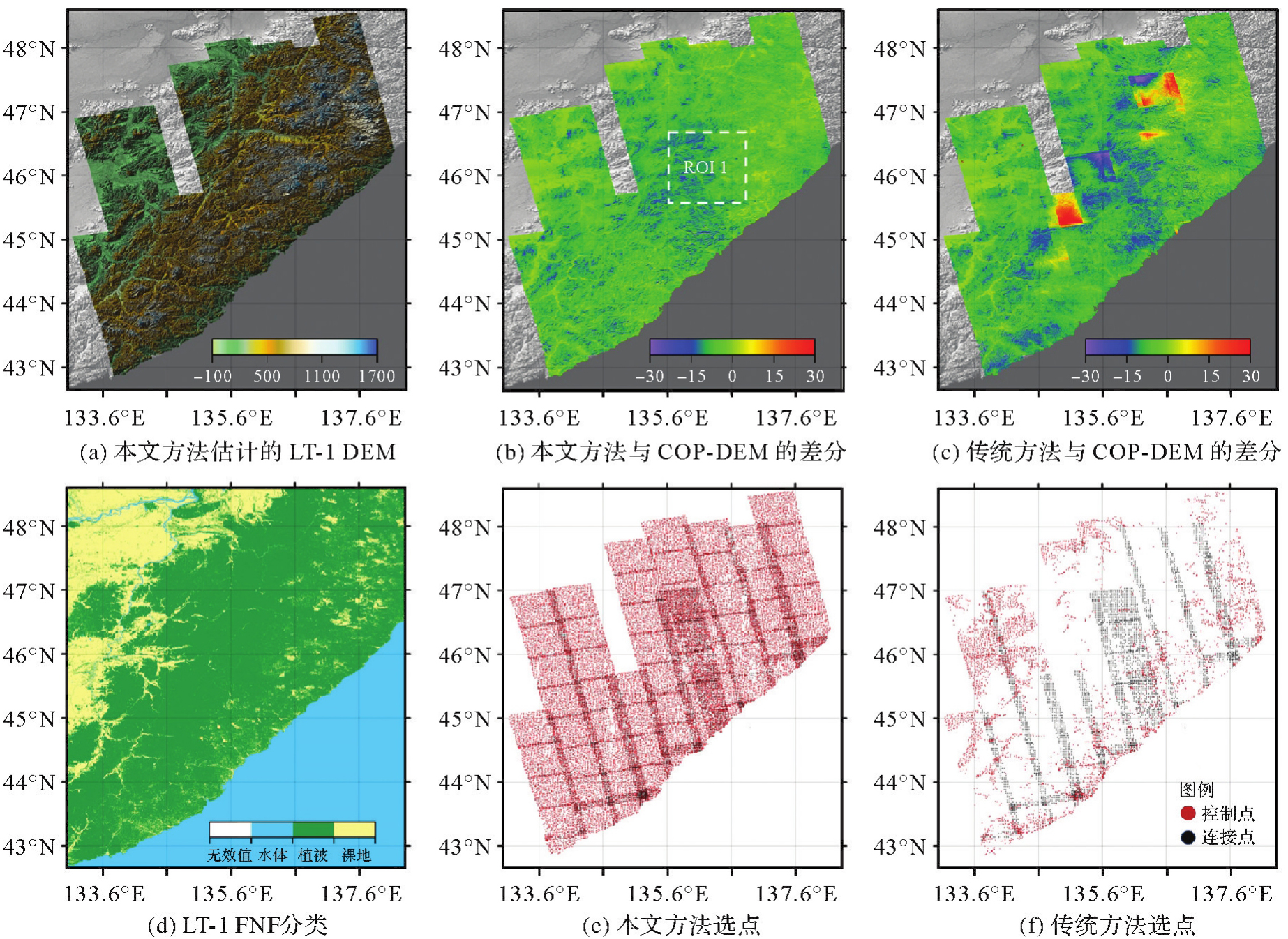

Fig. 3

Fig. 4

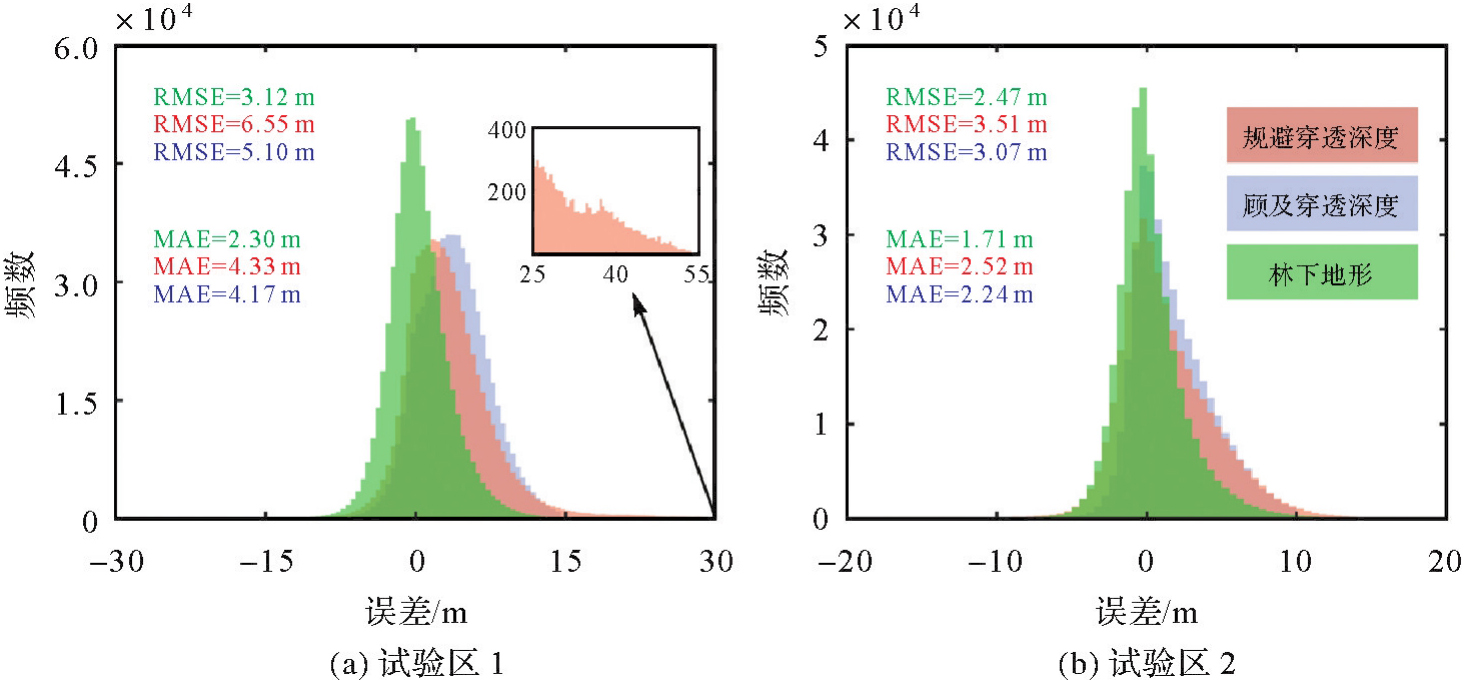

Fig. 5

Tab. 3

Tab. 4

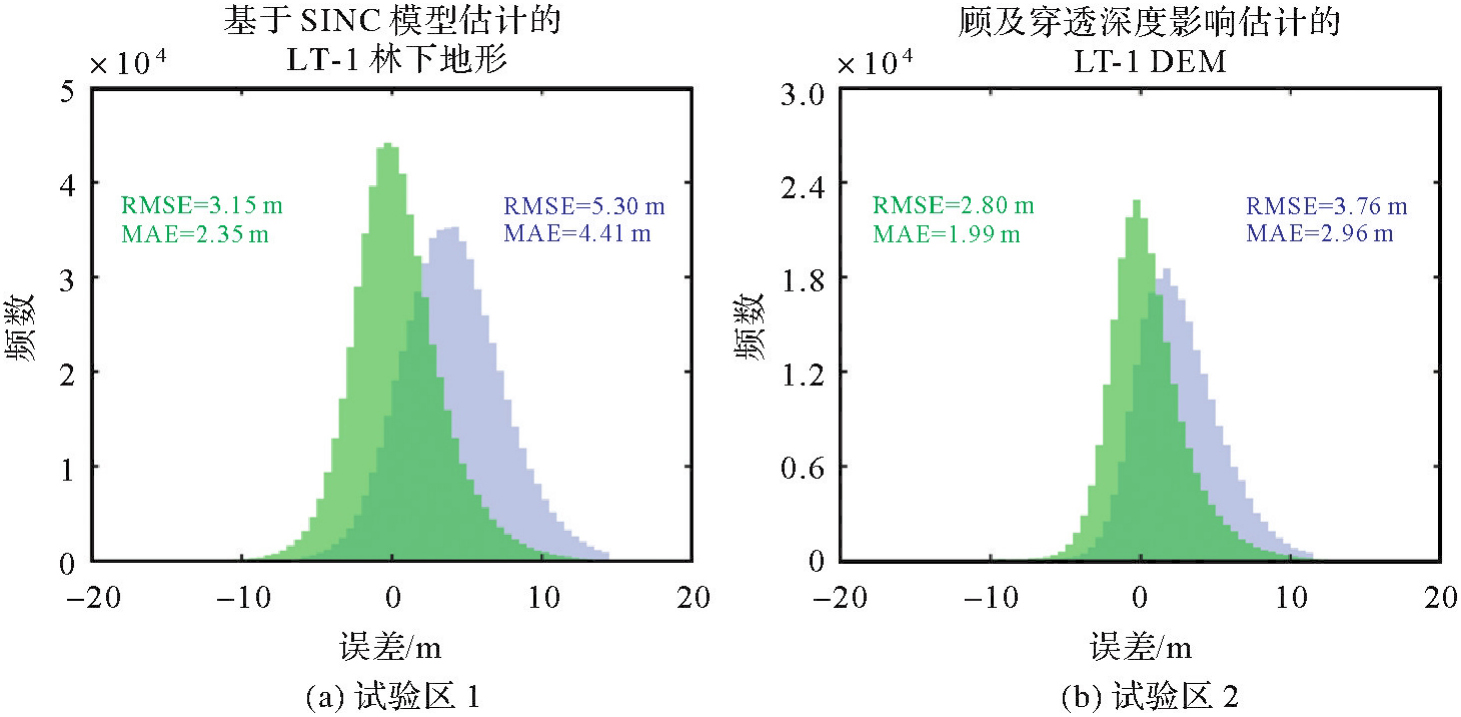

Fig. 6

Fig. 7

Tab. 5

Tab. 6

Fig. 8

References 34

[1]	朱建军, 付海强, 汪长城. InSAR林下地形测绘方法与研究进展[J]. 武汉大学学报(信息科学版), 2018, 43(12): 2030-2038.
	ZHU Jianjun, FU Haiqiang, WANG Changcheng. Methods and research progress of underlying topography estimation over forest areas by InSAR[J]. Geomatics and Information Science of Wuhan University, 2018, 43(12): 2030-2038.
[2]	朱建军, 付海强, 汪长城. 极化干涉SAR地表覆盖层“穿透测绘”技术进展[J]. 测绘学报, 2022, 51(6): 983-995. DOI: . doi: 10.11947/j.AGCS.2022.20220154
	ZHU Jianjun, FU Haiqiang, WANG Changcheng. Research progress of "penetration mapping" of earth surface by PolInSAR[J]. Acta Geodaetica et Cartographica Sinica, 2022, 51(6): 983-995. DOI: . doi: 10.11947/j.AGCS.2022.20220154
[3]	胡华参, 朱建军, 付海强, 等. 基于机器学习联合TanDEM-X InSAR和ICESat-2数据估计大范围林下地形[J]. 遥感学报, 2025, 29(1): 191-202.
	HU Huacan, ZHU Jianjun, FU Haiqiang, et al. Large-scale sub-canopy topography estimation from TanDEM-X InSAR and ICESat-2 data using machine learning method[J]. National Remote Sensing Bulletin, 2025, 29(1): 191-202.
[4]	蔡士雪, 岳林蔚, 尹超, 等. 顾及林区植被穿透率的多源DEM数据精度评价[J]. 遥感学报, 2022, 26(11): 2268-2281.
	CAI Shixue, YUE Linwei, YIN Chao, et al. Accuracy evaluation of multi-source DEM data based on the analysis of vegetation-induced penetration rate in the forest area[J]. National Remote Sensing Bulletin, 2022, 26(11): 2268-2281.
[5]	LI Tao, TANG Xinming, ZHOU Xiaoqing, et al. LuTan-1 SAR main applications and products[C]//Proceedings of the 14th European Conference on Synthetic Aperture Radar. Leipzig: VDE, 2022: 1-4.
[6]	MU Minzheng, LI Zhiwei, XU Bing, et al. LT-1A/B satellite SAR geometric calibration and absolute location error analysis[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2024, 17: 16497-16510.
[7]	WESSEL B, GRUBER A, GONZALEZ J H, et al. TanDEM-X: DEM calibration concept[C]//Proceedings of 2008 IEEE International Geoscience and Remote Sensing Symposium. Boston: IEEE, 2008: 111-114.
[8]	WESSEL B, GRUBER A, HUBER M, et al. TanDEM-X: block adjustment of interferometric height models[C]//Proceedings of 2009 ISPRS Hannover Workshop. Berlin: DLR, 2009: 1-6.
[9]	LI Yi, FU Haiqiang, ZHU Jianjun, et al. A method for SRTM DEM elevation error correction in forested areas using ICESat-2 data and vegetation classification data[J]. Remote Sensing, 2022, 14(14): 3380.
[10]	FU Haiqiang, ZHU Jianjun, WANG Changcheng, et al. Underlying topography estimation over forest areas using single-baseline InSAR data[J]. IEEE Transactions on Geoscience and Remote Sensing, 2019, 57(5): 2876-2888.
[11]	GRUBER A, WESSEL B, HUBER M, et al. Operational TanDEM-X DEM calibration and first validation results[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2012, 73: 39-49.
[12]	HUBER M, WESSEL B, KOSMANN D, et al. Ensuring globally the TanDEM-X height accuracy: analysis of the reference data sets ICESat, SRTM and KGPS-tracks[C]//Proceedings of 2009 IEEE International Geoscience and Remote Sensing Symposium. Cape Town: IEEE, 2009: 769-772.
[13]	HUESO GONZALEZ J, BACHMANN M, SCHEIBER R, et al. Definition of ICESat selection criteria for their use as height references for TanDEM-X[J]. IEEE Transactions on Geoscience and Remote Sensing, 2010, 48(6): 2750-2757.
[14]	张涛, 朱建军, 付海强, 等. 单基线TanDEM-X InSAR相干性反演森林高度[J]. 测绘学报, 2022, 51(9): 1931-1941. DOI: . doi: 10.11947/j.AGCS.2022.20210298
	ZHANG Tao, ZHU Jianjun, FU Haiqiang, et al. Forest height inversion with single-baseline TanDEM-X InSAR coherence[J]. Acta Geodaetica et Cartographica Sinica, 2022, 51(9): 1931-1941. DOI: . doi: 10.11947/j.AGCS.2022.20210298
[15]	LIU Liqun, LI Zhiwei, CAO Chenglong, et al. Robust helmert variance component estimation for InSAR DSM block adjustment[J]. IEEE Geoscience and Remote Sensing Letters, 2024, 21: 4011605.
[16]	GRUBER A, WESSEL B, MARTONE M, et al. The TanDEM-X DEM mosaicking: fusion of multiple acquisitions using InSAR quality parameters[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2016, 9(3): 1047-1057.
[17]	李涛, 周晓青, 张祥, 等. 民用InSAR地形测绘卫星工程关键技术[J]. 测绘, 2023, 46(5): 199-205.
	LI Tao, ZHOU Xiaoqing, ZHANG Xiang, et al. Key technologies of surveying and mapping InSAR satellites projects[J]. Surveying and Mapping, 2023, 46(5): 199-205.
[18]	LIU Zhiwei, ZHU Jianjun, LOPEZ-SANCHEZ J M, et al. Simultaneous estimation of subcanopy topography and forest height with single-baseline single-polarization TanDEM-X interferometric data combined with ICESat-2 data[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2024, 17: 11598-11617.
[19]	RIZZOLI P, DELL'AMORE L, BUESO-BELLO J L, et al. On the derivation of volume decorrelation from TanDEM-X bistatic coherence[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2022, 15: 3504-3518.
[20]	WANG Huiqiang, FU Haiqiang, ZHU Jianjun, et al. Estimation of subcanopy topography based on single-baseline TanDEM-X InSAR data[J]. Journal of Geodesy, 2021, 95(7): 84.
[21]	GÓMEZ C, LOPEZ-SANCHEZ J M, ROMERO-PUIG N, et al. Canopy height estimation in Mediterranean forests of Spain with TanDEM-X data[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2021, 14: 2956-2970.
[22]	KRIEGER G, FIEDLER H, ZINK M, et al. The TanDEM-X mission: a satellite formation for high-resolution SAR interferometry[C]//Proceedings of 2007 European Radar Conference. Munich: IEEE, 2007: 83-86.
[23]	XU Bing, LIU Liqun, LI Zhiwei, et al. Design bistatic interferometric DEM generation algorithm and its theoretical accuracy analysis for LuTan-1 satellites[J]. Journal of Geodesy and Geoinformation Science, 2022, 5(1): 25-38.
[24]	NEUENSCHWANDER A, GUENTHER E, WHITE J C, et al. Validation of ICESat-2 terrain and canopy heights in boreal forests[J]. Remote Sensing of Environment, 2020, 251: 112110.
[25]	WU Kefu, FU Haiqiang, ZHU Jianjun, et al. InSAR-DEM block adjustment model for upcoming BIOMASS mission: considering atmospheric effects[J]. Remote Sensing, 2024, 16(10): 1764.
[26]	王密, 韦钰, 杨博, 等. ICESat-2/ATLAS全球高程控制点提取与分析[J]. 武汉大学学报(信息科学版), 2021, 46(2): 184-192.
	WANG Mi, WEI Yu, YANG Bo, et al. Extraction and analysis of global elevation control points from ICESat-2/ATLAS data[J]. Geomatics and Information Science of Wuhan University, 2021, 46(2): 184-192.
[27]	WECKLICH C, MARTONE M, RIZZOLI P, et al. Production of a global forest/non-forest map utilizing TanDEM-X interferometric SAR data[C]//Proceedings of 2017 IEEE International Geoscience and Remote Sensing Symposium. Fort Worth: IEEE, 2017: 751-754.
[28]	CENCI L, GALLI M, PALUMBO G, et al. Describing the quality assessment workflow designed for DEM products distributed via the Copernicus programme. case study: the absolute vertical accuracy of the Copernicus DEM dataset in Spain[C]//Proceedings of 2021 IEEE International Geoscience and Remote Sensing Symposium. Brussels: IEEE, 2021: 6143-6146.
[29]	唐新明, 李世金, 李涛, 等. 全球数字高程产品概述[J]. 遥感学报, 2021, 25(1): 167-181.
	TANG Xinming, LI Shijin, LI Tao, et al. Review on global digital elevation products[J]. National Remote Sensing Bulletin, 2021, 25(1): 167-181.
[30]	ZHANG Xiao, LIU Liangyun, CHEN Xidong, et al. GLC\_FCS30: global land-cover product with fine classification system at 30 m using time-series Landsat imagery[J]. Earth System Science Data, 2021, 13(6): 2753-2776.
[31]	OLESK A, VOORMANSIK K, VAIN A, et al. Seasonal differences in forest height estimation from interferometric TanDEM-X coherence data[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2015, 8(12): 5565-5572.
[32]	ZHANG Tao, FU Haiqiang, ZHU Jianjun, et al. Estimation of canopy height from a multi-SINC model in Mediterranean forest with single-baseline TanDEM-X InSAR data[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2024, 17: 5484-5499.
[33]	LU Hongliang, ZHANG Heng, FAN Huaitao, et al. Forest height retrieval using P-band airborne multi-baseline SAR data: a novel phase compensation method[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2021, 175: 99-118.
[34]	REIGBER A, MOREIRA A, PAPATHANASSIOU K P. First demonstration of airborne SAR tomography using multibaseline L-band data[C]//Proceedings of 1999 International Geoscience and Remote Sensing Symposium. Hamburg: IEEE, 1999: 44-46.

数据集	数据来源	筛选法则
控制点	ICESat-2 ATL08	1. 利用COP-DEM剔除粗差
		2. 强波束
		3. 云量小于20%
		4. 非InSAR几何畸变区
		5. InSAR相干性大于第60百分位数
		6. 与LT-1 DEM差分相互剔除粗差
连接点	InSAR DEM	1. 坡度小于30°
		2. 非InSAR几何畸变区
		3. InSAR相干性大于第60百分位数
		4. 连接点对差分相互剔除粗差

数据集	发布年份	水平基准	垂直基准	分辨率/m
COP-DEM	2020	WGS-84	EGM2008	30
SRTM V3	2013	WGS-84	EGM96	30
AW3D V2.2	2019	GRS80	EGM96	30
FNF	2019	WGS-84	—	50

地形产品	（0°，5°]		（5°，10°]		（10°，15°]		（15°，20°]		（20°，90°]
地形产品	RMSE	MAE	RMSE	MAE	RMSE	MAE	RMSE	MAE	RMSE	MAE
LT-1 DEM	4.39	3.47	4.96	4.11	5.50	4.56	6.24	5.19	7.25	5.99
林下地形	2.26	1.70	2.79	2.13	3.41	2.63	4.20	3.24	5.45	4.20
COP-DEM	9.01	7.53	10.46	9.41	11.26	10.21	12.16	11.00	13.06	11.51
SRTM	5.40	4.39	6.48	5.51	7.54	6.44	8.84	7.49	10.43	8.68
AW3D	6.20	5.15	7.27	6.28	8.00	6.78	8.40	6.93	9.70	7.72

地形产品	（0°，5°]		（5°，10°]		（10°，15°]		（15°，20°]		（20°，90°]
地形产品	RMSE	MAE	RMSE	MAE	RMSE	MAE	RMSE	MAE	RMSE	MAE
LT-1 DEM	2.31	1.56	3.13	2.32	4.00	3.07	5.15	4.05	6.67	5.30
林下地形	1.84	1.28	2.40	1.77	3.09	2.30	4.06	3.05	5.54	4.17
COP-DEM	4.91	3.28	6.68	5.21	7.83	6.42	9.10	7.59	10.53	8.84
SRTM	3.12	2.39	3.99	3.11	4.82	3.78	5.96	4.71	7.59	6.17
AW3D	3.83	2.88	5.14	4.06	6.23	4.97	7.08	5.56	9.32	7.22

试验区	地形产品	（0°，5°]	（5°，10°]	（10°，15°]	（15°，20°]	（20°，90°]
1	LT-1 DEM	75.6	75.6	76.5	76.5	76.0
	LT-1林下地形	99.2	99.1	99.4	100.5	100.6
	COP DEM	51.7	52.0	48.9	50.9	51.6
	SRTM	68.4	68.2	67.5	61.5	58.9
	AW3D	67.8	67.6	66.7	64.7	63.2
2	LT-1 DEM	77.4	77.8	76.3	74.2	76.7
	LT-1林下地形	99.5	99.0	98.9	99.7	100.2
	COP DEM	54.9	57.0	54.3	48.2	47.6
	SRTM	70.8	71.9	72.8	72.9	70.3
	AW3D	63.9	65.5	65.5	66.0	64.4
