综合利用GNSS PWV/垂向形变与GRACE/GRACE-FO数据反演综合干旱指数

doi:10.11947/j.AGCS.2025.20250129

测绘学报 ›› 2025, Vol. 54 ›› Issue (10): 1757-1768.doi: 10.11947/j.AGCS.2025.20250129

综合利用GNSS PWV/垂向形变与GRACE/GRACE-FO数据反演综合干旱指数

姚朝龙¹^,²^,³(), 游泓锐¹, 何玄晖¹, 陆钧雅¹, 谢依倩¹, 李琼²^,⁴(), 朱双⁵, 罗志才²^,⁶

^1.华南农业大学资源环境学院，广东　广州　510642
^2.华中科技大学精密重力测量研究设施，湖北　武汉　430074
^3.广东省土地信息工程技术研究中心，广东　广州　510642
^4.西南石油大学土木工程与测绘学院，四川　成都　610500
^5.华中科技大学土木与水利工程学院，湖北　武汉　430074
^6.国家精密重力测量科学中心，华中科技大学物理学院，湖北　武汉　430074

收稿日期:2025-03-24 修回日期:2025-10-18 出版日期:2025-11-14 发布日期:2025-11-14
通讯作者: 李琼 E-mail:clyao@scau.edu.cn;qiongli@swpu.edu.cn
作者简介:姚朝龙（1986—），男，博士，副教授，研究方向为水文、气象与干旱大地测量。E-mail：clyao@scau.edu.cn
基金资助:
国家自然科学基金(42474045);国家精密重力测量科学中心年度开放课题(PGMF-2024-Q003)

A composite drought index derived from a combination of GNSS PWV/vertical deformation and GRACE/GRACE-FO data

Chaolong YAO¹^,²^,³(), Hongrui YOU¹, Xuanhui HE¹, Junya LU¹, Yiqian XIE¹, Qiong LI²^,⁴(), Shuang ZHU⁵, Zhicai LUO²^,⁶

^1.College of Natural Resources and Environment, South China Agricultural University, Guangzhou 510642, China
^2.National Precise Gravity Measurement Facility, Huazhong University of Science and Technology, Wuhan 430074, China
^3.Guangdong Province Land Information Engineering Technology Research Center, South China Agricultural University, Guangzhou 510642, China
^4.School of Civil Engineering and Geomatics, Southwest Petroleum University, Chengdu 610500, China
^5.School of Civil and Hydraulic Engineering, Huazhong University of Science and Technology, Wuhan 430074, China
^6.National Gravitation Laboratory, Huazhong University of Science and Technology, Wuhan 430074, China

Received:2025-03-24 Revised:2025-10-18 Online:2025-11-14 Published:2025-11-14
Contact: Qiong LI E-mail:clyao@scau.edu.cn;qiongli@swpu.edu.cn
About author:YAO Chaolong (1986—), male, PhD, associate professor, majors in hydrological, meteorological and drought geodesy. E-mail: clyao@scau.edu.cn
Supported by:
The National Natural Science Foundation of China(42474045);The National Center for Precision Gravity Measurement Science Open Subject(PGMF-2024-Q003)

摘要/Abstract

摘要：

联合多种干旱相关因子构建综合干旱指数（CDI），对全面、准确评估干旱状况至关重要。本文基于我国西南地区GNSS测站2011—2022年大气可降水量PWV/垂向形变和GRACE/GRACE Follow-On（GRACE-FO）卫星重力数据，针对异常值的影响及气象干旱与水文干旱存在的复杂响应关系，提出抗差估计与联合分布函数（Copula函数）相结合的数据融合方法，构建了一种气象-水文综合干旱指数。结果表明：①GNSS PWV和降水数据构建的气象干旱指数与降水异常、标准化降水蒸散指数（SPEI）具有很好的一致性，相关系数分别为0.88和0.73；②基于IGGⅢ的抗差Helmert方差估计和抗差主成分分析均能有效克服异常值对数据融合的影响，提高了多源数据融合的精度，但抗差Helmert方差估计结果整体精度更优；③利用Copula函数构建的CDI指数包含了大气水汽、降水、陆地水储量的信息，能同时有效反映气象干旱和水文干旱的演变过程。研究结果为拓展和深化GNSS气象学与水文大地测量学的交叉研究及其综合干旱监测应用提供了途径。

关键词: GNSS PWV/垂向形变, 卫星重力, 抗差估计, Copula函数, 综合干旱指数

Abstract:

Developing a composite drought index (CDI) by combining multiple drought related variables is crucial for comprehensively and accurately assessing drought conditions. In this study, based on the global navigation satellite system (GNSS) precipitable water vapor (PWV)/vertical deformation and Gravity Recovery and Climate Experiment (GRACE)/GRACE Follow-On (GRACE-FO) satellite gravimetric data spanning from 2011 to 2022, we developed a novel hydro-meteorological CDI in southwestern China through a data fusion model combining robust estimation and joint distribution function (Copula function). The data fusion model was built to reduce the impacts of the possible outliers and considering the complex response relationship between meteorological and hydrological droughts. The results showed that ① The meteorological drought index constructed from GNSS PWV and precipitation data had good consistency with precipitation anomalies and the standardized precipitation evapotranspiration index (SPEI), with correlation coefficients of 0.88 and 0.73, respectively; ② The methods of Helmert robust variance estimation based on the IGGⅢ and robust principle component analysis (RPCA) can effectively overcome the impact of outliers and improve the accuracy of data fusion, but the overall precision of Helmert robust variance estimation was better than that of RPCA; ③ The Copula-based CDI constructed in our study contains information on atmospheric water vapor, precipitation, and terrestrial water storage, which can effectively reflect the evolution process of meteorological and hydrological droughts simultaneously. The research results provide a new way for expanding and deepening the interdisciplinary research and applications of GNSS meteorology and hydro-geodesy in comprehensive drought monitoring.

Key words: GNSS PWV/vertical deformation, satellite gravimetry, robust estimation, Copula function, composite drought index

中图分类号:

P227

姚朝龙, 游泓锐, 何玄晖, 陆钧雅, 谢依倩, 李琼, 朱双, 罗志才. 综合利用GNSS PWV/垂向形变与GRACE/GRACE-FO数据反演综合干旱指数[J]. 测绘学报, 2025, 54(10): 1757-1768.

Chaolong YAO, Hongrui YOU, Xuanhui HE, Junya LU, Yiqian XIE, Qiong LI, Shuang ZHU, Zhicai LUO. A composite drought index derived from a combination of GNSS PWV/vertical deformation and GRACE/GRACE-FO data[J]. Acta Geodaetica et Cartographica Sinica, 2025, 54(10): 1757-1768.

图/表 10

图1

表1

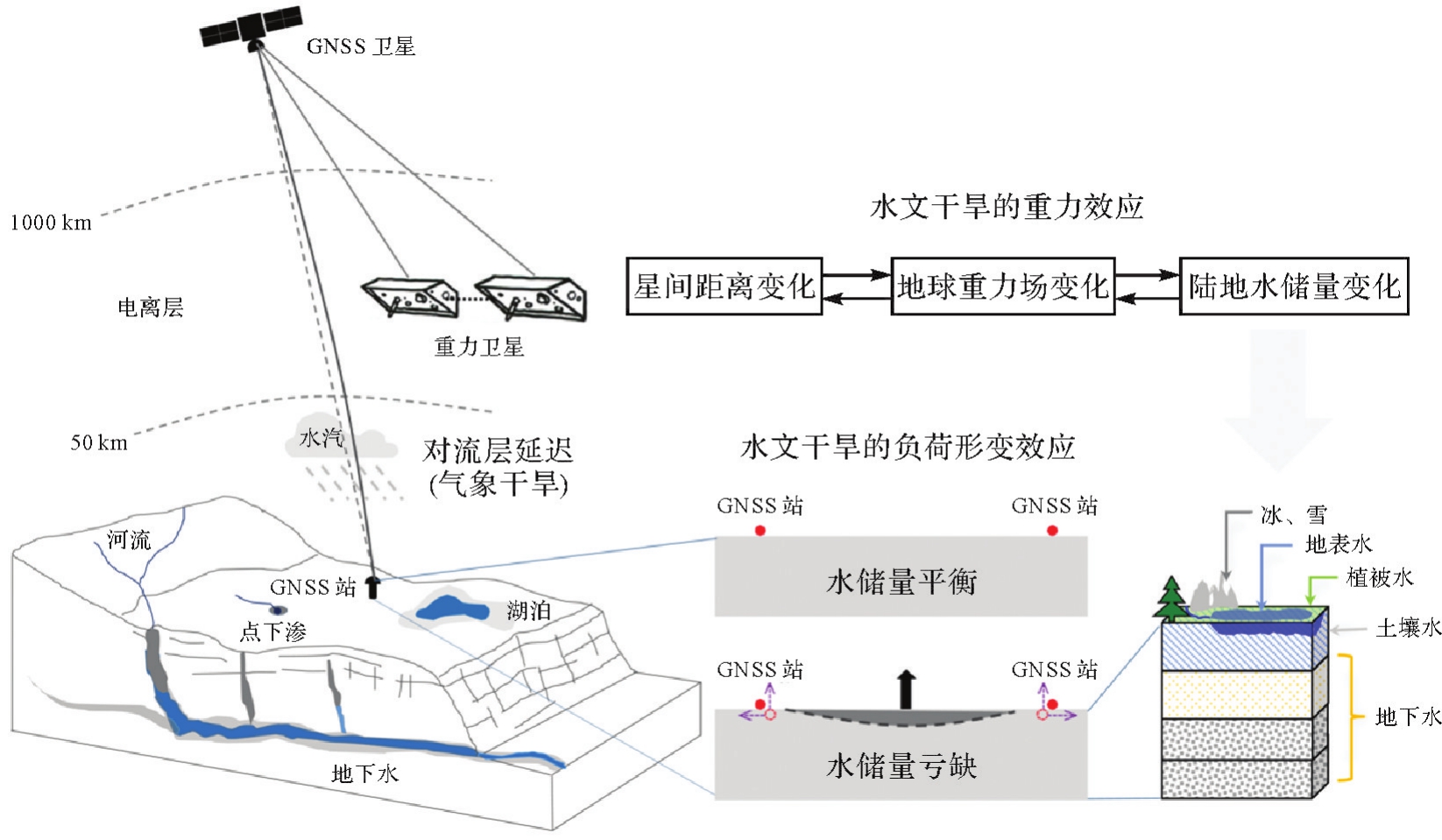

图2

图3

图4

表2

图5

图6

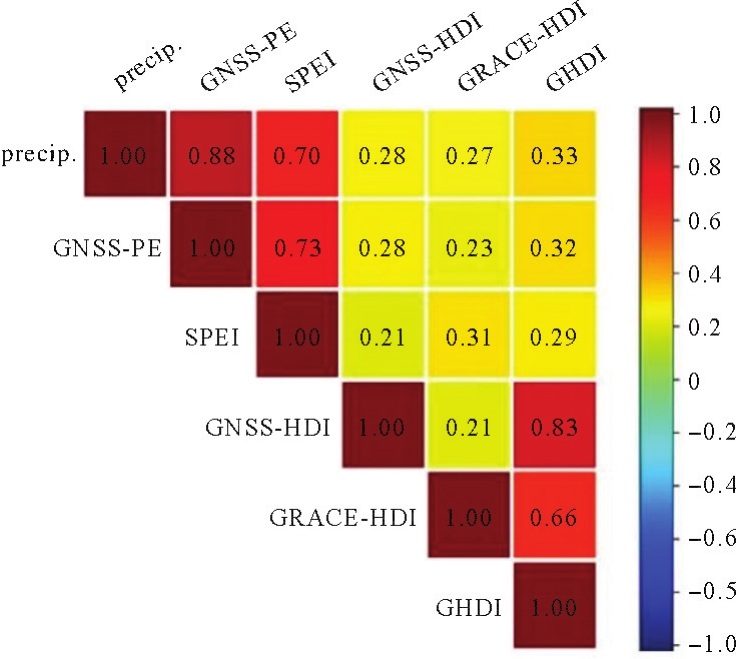

图7

图8

参考文献 36

[1]	AGHAKOUCHAK A, FARAHMAND A, MELTON F S, et al. Remote sensing of drought: progress, challenges and opportunities[J]. Reviews of Geophysics, 2015, 53(2): 452-480.
[2]	江笑薇, 白建军, 刘宪峰. 基于多源信息的综合干旱监测研究进展与展望[J]. 地球科学进展, 2019, 34(3): 275-287.
	JIANG Xiaowei, BAI Jianjun, LIU Xianfeng. Research progress and prospect of integrated drought monitoring based on multi-source information[J]. Advances in Earth Science, 2019, 34(3): 275-287.
[3]	FENG Wei, XIONG Yuhao, YI Shuang, et al. Recent progress on hydrogeodesy in China[J]. Journal of Geodesy and Geoinformation Science, 2023, 6(3): 124-134.
[4]	XIAO Yun, YANG Yuanxi, PAN Zongpeng, et al. Chinese gravimetry augment and mass change exploring mission status and future[J]. Journal of Geodesy and Geoinformation Science, 2023, 6(3): 67-75.
[5]	BORDI I, RAZIEI T, SANTOS PEREIRA L, et al. Ground-based GPS measurements of precipitable water vapor and their usefulness for hydrological applications[J]. Water Resources Management, 2015, 29(2): 471-486.
[6]	ZHAO Qingzhi, MA Xiongwei, YAO Wanqiang, et al. A drought monitoring method based on precipitable water vapor and precipitation[J]. Journal of Climate, 2020, 33(24): 10727-10741.
[7]	ZHU Hai, CHEN Kejie, HU Shunqiang, et al. Using the global navigation satellite system and precipitation data to establish the propagation characteristics of meteorological and hydrological drought in Yunnan, China[J]. Water Resources Research, 2023, 59(4): e2022WR033126.
[8]	刘火胜, 姚朝龙, 王瑞丽, 等. 联合GNSS大气可降水量与实测降水的气象干旱监测：以湖北省GNSS站为例[J]. 暴雨灾害, 2025, 44(2): 236-245.
	LIU Huosheng, YAO Chaolong, WANG Ruili, et al. Meteorological drought monitoring combined with GNSS precipitable water vapor and measured precipitation: a case study of GNSS stations in Hubei province[J]. Torrential Rain and Disasters, 2025, 44(2): 236-245.
[9]	董前进, 谢平. 水文干旱研究进展[J]. 水文, 2014, 34(4): 1-7.
	DONG Qianjin, XIE Ping. Advances in hydrological drought research[J]. Journal of China Hydrology, 2014, 34(4): 1-7.
[10]	CHEW C C, SMALL E E. Terrestrial water storage response to the 2012 drought estimated from GPS vertical position anomalies[J]. Geophysical Research Letters, 2014, 41(17): 6145-6151.
[11]	FERREIRA V G, MONTECINO H C, NDEHEDEHE C E, et al. Space-based observations of crustal deflections for drought characterization in Brazil[J]. Science of The Total Environment, 2018, 644: 256-273.
[12]	JIANG Zhongshan, HSU Y J, YUAN Linguo, et al. Hydrological drought characterization based on GNSS imaging of vertical crustal deformation across the contiguous United States[J]. Science of the Total Environment, 2022, 823: 153663.
[13]	杨兴海, 袁林果, 姜中山, 等. 应用GPS垂向位移定量分析2011—2020年云南省极端干旱时空特征[J]. 地球物理学报, 2022, 65(8): 2828-2843.
	YANG Xinghai, YUAN Linguo, JIANG Zhongshan, et al. Quantitative analysis of abnormal drought in Yunnan province from 2011 to 2020 using GPS vertical displacement observations[J]. Chinese Journal of Geophysics, 2022, 65(8): 2828-2843.
[14]	CHEN Chao, ZOU Rong, FANG Zhiwei, et al. Using geodetic measurements derived terrestrial water storage to investigate the characteristics of drought in Yunnan, China[J]. GPS Solutions, 2023, 28(1): 51.
[15]	PENG Yujie, CHEN Gang, CHAO Nengfang, et al. Detection of extreme hydrological droughts in the Poyang lake basin during 2021—2022 using GNSS-derived daily terrestrial water storage anomalies[J]. Science of the Total Environment, 2024, 919: 170875.
[16]	THOMAS B F, FAMIGLIETTI J S, LANDERER F W, et al. GRACE groundwater drought index: evaluation of California Central Valley groundwater drought[J]. Remote Sensing of Environment, 2017, 198: 384-392.
[17]	ZHAO Meng, GERUO A, VELICOGNA I, et al. A global gridded dataset of GRACE drought severity index for 2002-14: comparison with PDSI and SPEI and a case study of the Australia millennium drought[J]. Journal of Hydrometeorology, 2017, 18(8): 2117-2129.
[18]	冉艳红, 钟敏, 陈威, 等. 利用GRACE-FO重力卫星探测2019年长江中下游极端干旱[J]. 科学通报, 2021, 66(1): 107-117.
	RAN Yanhong, ZHONG Min, CHEN Wei, et al. Monitoring the extreme drought in the middle and lower reaches of the Yangtze river in 2019 from GRACE-FO satellites[J]. Chinese Science Bulletin, 2021, 66(1): 107-117.
[19]	瞿伟, 晋泽辉, 张勤, 等. GRACE与GRACE Follow-On重力卫星数据揭示出的黄河流域2002—2020年干旱特征[J]. 测绘学报, 2023, 52(5): 714-724. DOI: . doi: 10.11947/j.AGCS.2023.20210458
	QU Wei, JIN Zehui, ZHANG Qin, et al. Drought characteristics of the Yellow river basin from 2002 to 2020 revealed by GRACE and GRACE Follow-On data[J]. Acta Geodaetica et Cartographica Sinica, 2023, 52(5): 714-724. DOI: . doi: 10.11947/j.AGCS.2023.20210458
[20]	杨大文, 杨汉波, 雷慧闽. 流域水文学[M]. 北京: 清华大学出版社, 2014: 13.
	YANG Dawen, YANG Hanbo, LEI Huimin. Watershed hydrology[M]. Beijing: Tsinghua University Press, 2014: 13.
[21]	姚朝龙, 陈涌鑫, 罗志才, 等. GNSS/GRACE/GRACE-FO/气象数据结合反演干旱指数[J]. 测绘学报, 2023, 52(11): 1883-1891. DOI: . doi: 10.11947/j.AGCS.2023.20220484
	YAO Chaolong, CHEN Yongxin, LUO Zhicai, et al. A drought index derived from a combination of GNSS/GRACE/GRACE-FO and meteorological data[J]. Acta Geodaetica et Cartographica Sinica, 2023, 52(11): 1883-1891. DOI: . doi: 10.11947/j.AGCS.2023.20220484
[22]	ZHU Hai, CHEN Kejie, HU Shunqiang, et al. A novel GNSS and precipitation-based integrated drought characterization framework incorporating both meteorological and hydrological indicators[J]. Remote Sensing of Environment, 2024, 311: 114261.
[23]	YAO Chaolong, SHUM C K, LUO Zhicai, et al. An optimized hydrological drought index integrating GNSS displacement and satellite gravimetry data[J]. Journal of Hydrology, 2022, 614: 128647.
[24]	杨元喜. 抗差估计理论及其应用[M]. 北京: 八一出版社, 1993.
	YANG Yuanxi. Robust estimation theory and its applications[M]. Beijing: Bayi Publishing House, 1993.
[25]	王志伟, 陈时军, 曲国庆. 基于抗差方差分量估计多源观测数据融合权比的确定[J]. 工程勘察, 2014, 42(7): 69-72.
	WANG Zhiwei, CHEN Shijun, QU Guoqing. Weight determination of multi-source data fusion based on robust variance component estimation[J]. Geotechnical Investigation & Surveying, 2014, 42(7): 69-72.
[26]	WRIGHT J, GANESH A, RAO S, et al. Robust principal component analysis: exact recovery of corrupted low-rank matrices via convex optimization[C]//Proceedings of the 22nd International Conference on Neural Information Processing Systems. [S.l.]: Curvan Associates, Inc, 2009: 2080-2088.
[27]	胡乘其, 王书朋, 王瑜婧. 基于鲁棒性主成分分析的低照度图像增强算法[J]. 计算机应用与软件, 2024, 41(2): 244-249.
	HU Chengqi, WANG Shupeng, WANG Yujing. Low-light image enhancement algorithm based on robust principal component analysis[J]. Computer Applications and Software, 2024, 41(2): 244-249.
[28]	张迎, 黄生志, 黄强, 等. 基于Copula函数的新型综合干旱指数构建与应用[J]. 水利学报, 2018, 49(6): 703-714.
	ZHANG Ying, HUANG Shengzhi, HUANG Qiang, et al. Construction and application of a new comprehensive drought index based on Copula function[J]. Journal of Hydraulic Engineering, 2018, 49(6): 703-714.
[29]	杨辰飞, 吴田军, 王长鹏, 等. 基于Copula函数的千米尺度综合干旱指数构建与应用：以重庆市为例[J]. 自然资源遥感, 2024, 36(3): 117-127.
	YANG Chenfei, WU Tianjun, WANG Changpeng, et al. Construction and application of a comprehensive drought index based on Copula function on a kilometer scale: a case study of Chongqing, China[J]. Remote Sensing for Natural Resources, 2024, 36(3): 117-127.
[30]	SUO Nanji, XU Changchun, CAO Linlin, et al. A copula-based parametric composite drought index for drought monitoring and applicability in arid Central Asia[J]. Catena, 2024, 235: 107624.
[31]	赵勇, 翟家齐, 蒋桂芹, 等. 干旱驱动机制与模拟评估[M]. 北京: 科学出版社, 2017: 7.
	ZHAO Yong, ZHAI Jiaqi, JIANG Guiqin, et al. Drought driving mechanism and simulation evaluation[M]. Beijing: Science Press, 2017: 7.
[32]	李博峰, 沈云中, 楼立志. 基于等效残差的方差-协方差分量估计[J]. 测绘学报, 2010, 39(4): 349-354.
	LI Bofeng, SHEN Yunzhong, LOU Lizhi. Variance-covariance component estimation based on the equivalent residuals[J]. Acta Geodaetica et Cartographica Sinica, 2010, 39(4): 349-354.
[33]	简海方, 石雨燕, 雷新强, 等. 用于地壳运动速度场拟合分析的隶属度函数改进IGGⅢ抗差方法[J]. 大地测量与地球动力学, 2025, 45(5): 545-550.
	JIAN Haifang, SHI Yuyan, LEI Xinqiang, et al. Improved IGGⅢ robust method with membership function for crustal movement velocity field fitting and analysis[J]. Journal of Geodesy and Geodynamics, 2025, 45(5): 545-550.
[34]	刘长建, 吴洪举, 明锋. Helmert方差分量估计严密公式与简化公式等价性的证明[J]. 测绘科学, 2006, 31(2): 66-67.
	LIU Changjian, WU Hongju, MING Feng. Equivalence of rigorous formula to simplified formula of helmert variance components estimation[J]. Science of Surveying and Mapping, 2006, 31(2): 66-67.
[35]	YANG Yuanxi, XU Tianhe, SONG Lijie. Robust estimation of variance components with application in global positioning system network adjustment[J]. Journal of Surveying Engineering, 2005, 131(4): 107-112.
[36]	LIN Xiaohong, WANG Han, GAO Jingyang. ScIALM: a method for sparse scRNA-seq expression matrix imputation using the inexact augmented Lagrange multiplier with low error[J]. Computational and Structural Biotechnology Journal, 2004(23): 549-558.

数据类型	时间分辨率	空间表达形式	数据来源
GNSS PWV	1小时	站点	ftp://ftp.cgps.ac.cn/
GNSS垂向形变	1天	站点	ftp://ftp.cgps.ac.cn/
大气、非潮汐海洋负荷垂向形变	3小时	0.5°×0.5°	http://rz-vm115.gfz-potsdam.de：8080/repository
GRACE/GRACE-FO	1个月	0.5°×0.5°	https://grace.jpl.nasa.gov/data/get-data/jpl_global_mascons/
降水	1天	0.1°×0.1°	https://data.tpdc.ac.cn/zh-hans/data/e5c335d9-cbb9-48a6-ba35-d67dd614bb8c
GLDAS	1个月	0.5°×0.5°	https://disc.gsfc.nasa.gov/datasets/GLDAS_NOAH10_M_2.1/summary?keywords=GLDAS
SPEI	1个月	0.5°×0.5°	https://spei.csic.es/database.html

方案	方法	最小值	最大值	平均值	绝对平均值	标准差
方案1	抗差Helmert方差估计	-2.69	3.06	0.00	0.05	0.34
方案1	RPCA	-1.87	2.89	-0.07	0.51	0.65
方案2	抗差Helmert方差估计	-2.69	4.22	0.08	0.13	0.60
方案2	RPCA	-2.06	4.13	-0.07	0.60	0.83
