GNSS多基线联合解算的高精度变形监测方法

doi:10.11947/j.AGCS.2025.20250245

摘要/Abstract

摘要：

GNSS变形监测应用面临监测场景复杂和监测设备低成本两大趋势。GNSS高精度监测技术依赖高效可靠的模糊度固定，但受部分遮挡、干扰频繁、监测基线长等复杂条件影响，其模糊度解算能力和变形监测服务性能显著下降。本文充分挖掘区域多监测站的时空关联特性，提出一种GNSS多基线联合简便解算的变形监测方法；推导了多基线联合解算模型的解析解，分析了浮点解精度随监测站数量增加的改善效果；设计了复杂遮挡环境的区域监测试验，通过理论和实际指标验证了本文方法的有效性。杭州湾跨海大桥监测试验结果表明，本文方法可有效提升复杂场景下的监测效果，其收敛速度更快、监测距离更长且模型参数轻量化，具有较好的拓展性和应用前景。

关键词: GNSS, 变形监测, 模糊度固定, 多基线解算

Abstract:

The GNSS deformation monitoring field faces dual challenges from increasingly complex monitoring scenarios and the shift toward low-cost equipment, where performance degradation occurs under signal obstruction, interference, or long baselines. To overcome these limitations, this study leverages spatiotemporal correlations in regional station networks to develop a high-precision method with GNSS multi-baseline solutions. We derive the analytical solution for this model, theoretically analyze the improvement in float solution precision with increasing numbers of monitoring stations, and validate its efficacy through simulated obstructed-environment tests and real-world application on Hangzhou Bay bridge. Results confirm that the approach significantly improves performance in complex conditions, delivering faster convergence, extended monitoring range, and streamlined parameters—highlighting its scalability and practical potential for engineering applications.

Key words: GNSS, deformation monitoring, ambiguity resolution, multi-baseline solutions

中图分类号:

P228

李博峰, 陈龙, 袁雷童. GNSS多基线联合解算的高精度变形监测方法[J]. 测绘学报, 2025, 54(12): 2116-2128.

Bofeng LI, Long CHEN, Leitong YUAN. A high-precision deformation monitoring method with GNSS multi-baseline solutions[J]. Acta Geodaetica et Cartographica Sinica, 2025, 54(12): 2116-2128.

图/表 20

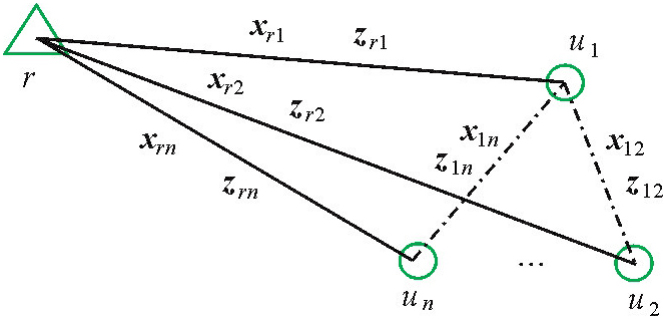

图1

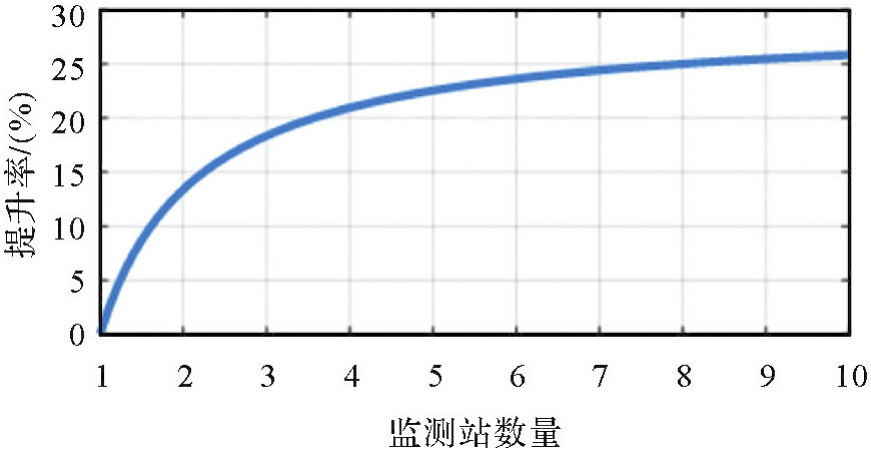

图2

图3

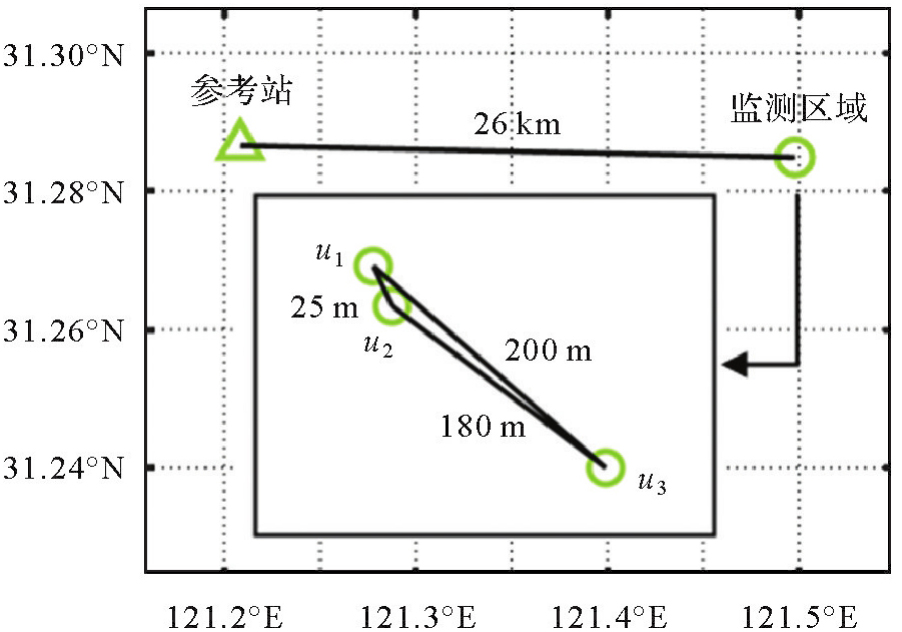

图4

图5

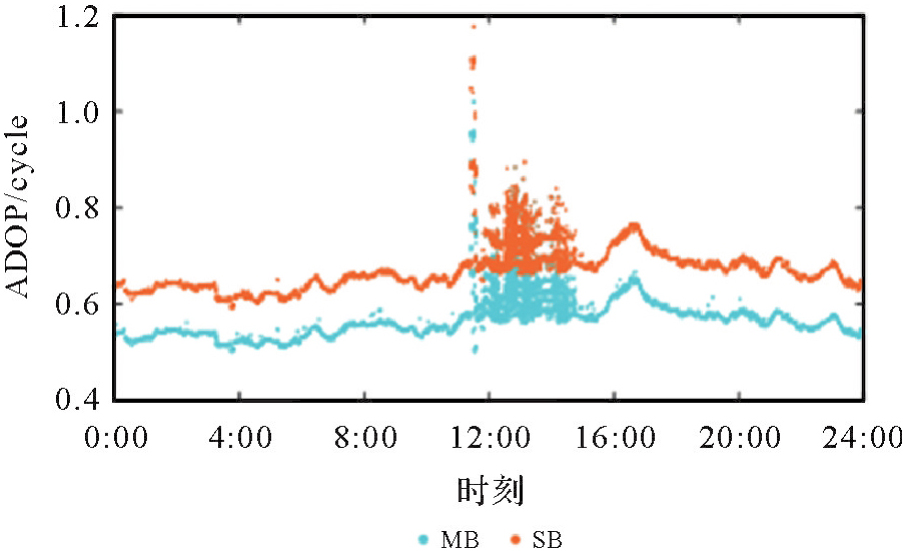

图6

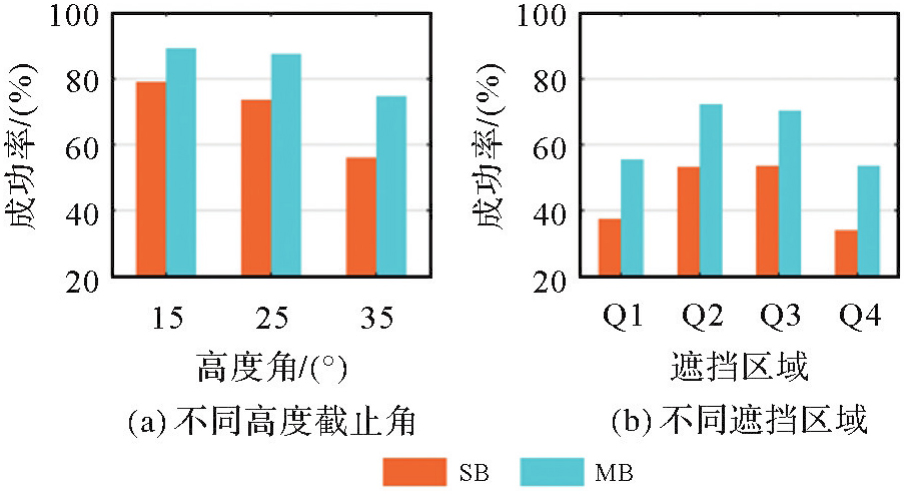

图7

表1

图8

表2

表3

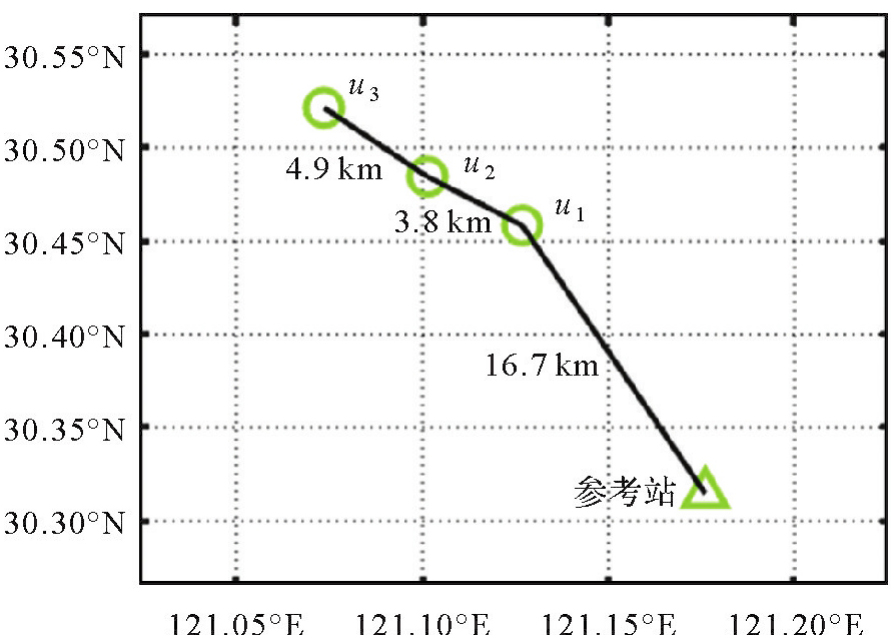

图9

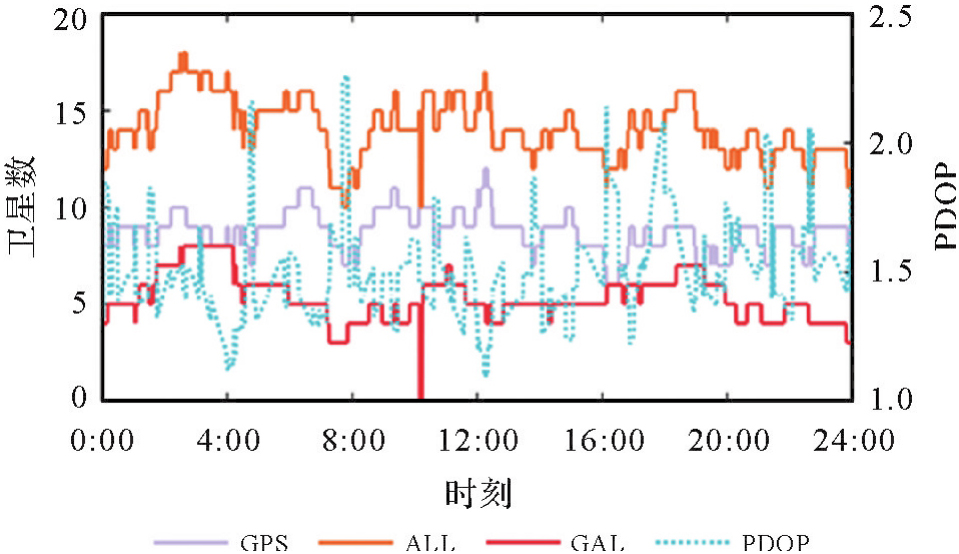

图10

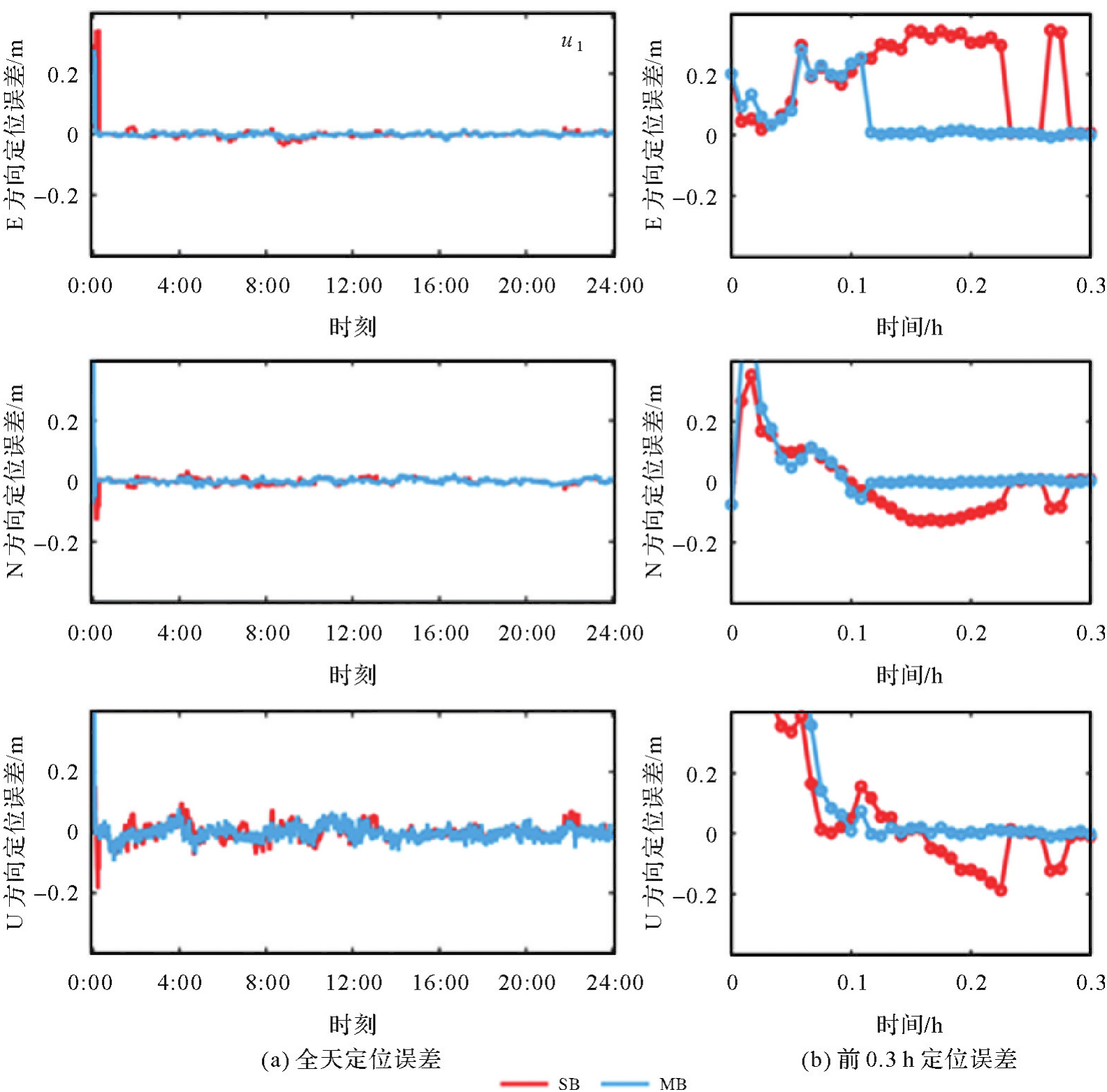

图11

图12

图13

表4

表5

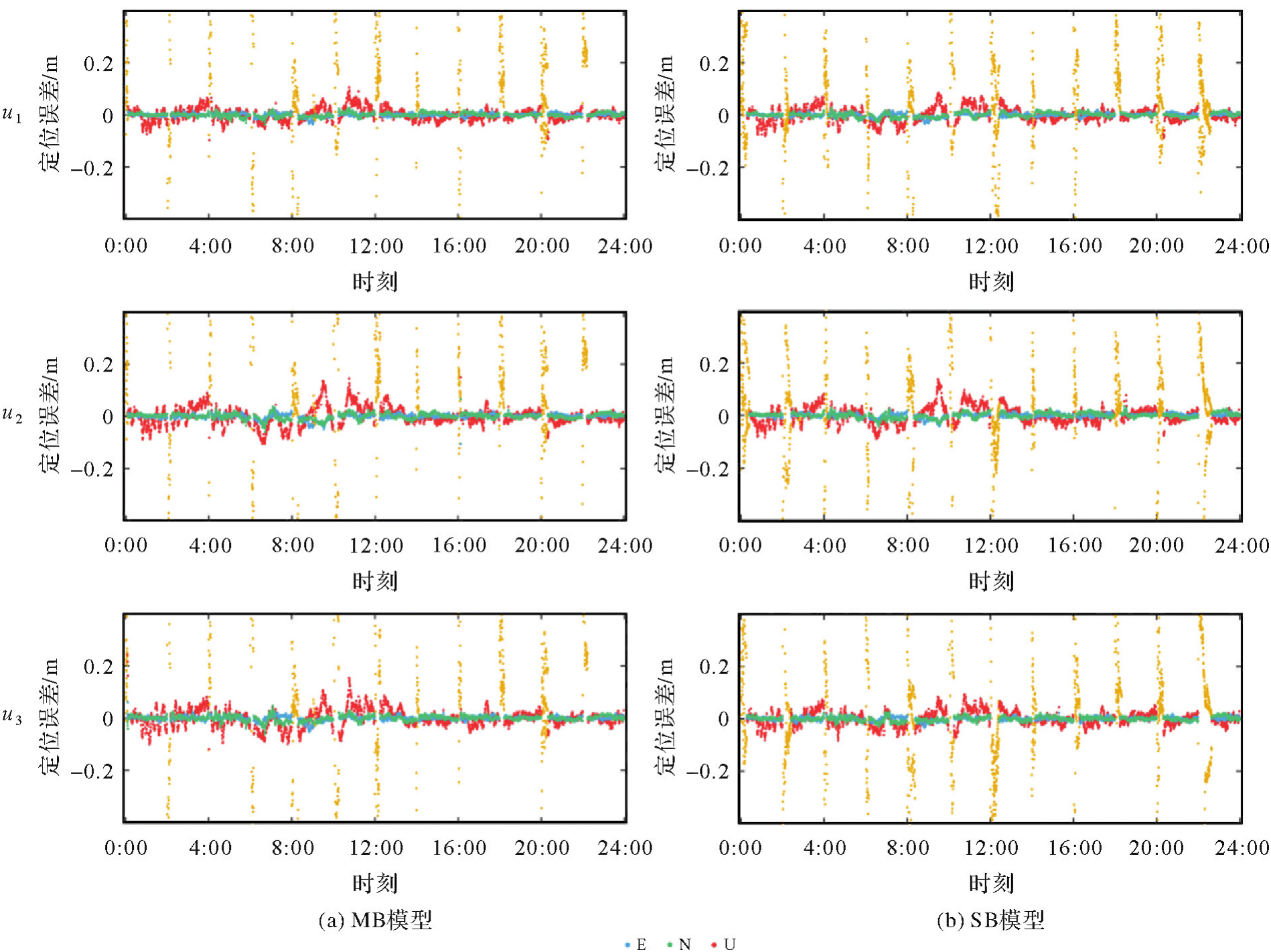

图14

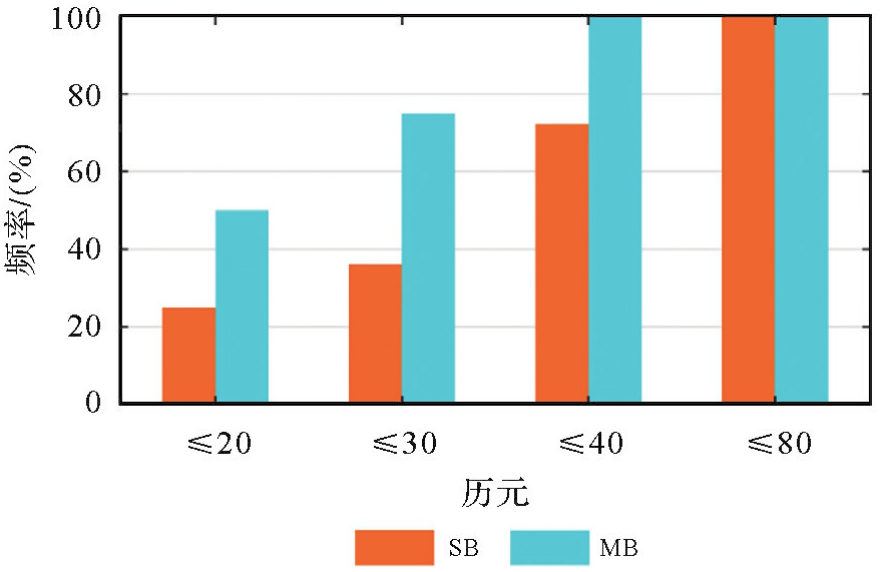

图15

参考文献 31

[1]	HAN Junqiang, HUANG Guanwen, ZHANG Qin, et al. A new azimuth-dependent elevation weight (ADEW) model for real-time deformation monitoring in complex environment by multi-GNSS[J]. Sensors, 2018, 18(8): 2473-2488.
[2]	JIANG Weiping, CHEN Yan, CHEN Qusen, et al. High precision deformation monitoring with integrated GNSS and ground range observations in harsh environment[J]. Measurement, 2022, 204: 112179-112188.
[3]	GAO Rui, LIU Zhizhao, ODOLINSKI R, et al. Hong Kong-Zhuhai-Macao bridge deformation monitoring using PPP-RTK with multipath correction method[J]. GPS Solutions, 2023, 27(4): 195-209.
[4]	WANG Duo, HUANG Guanwen, DU Yuan, et al. Stability analysis of reference station and compensation for monitoring stations in GNSS landslide monitoring[J]. Satellite Navigation, 2023, 4(1): 29-43.
[5]	黄观文, 陈孜, 徐永福. 膨胀土边坡GNSS实时监测技术[J]. 测绘学报, 2023, 52(11): 1873-1882. DOI: . doi: 10.11947/j.AGCS.2023.20220562
	HUANG Guanwen, CHEN Zi, XU Yongfu. GNSS real-time monitoring technology of expansive soil slope[J]. Acta Geodaetica et Cartographica Sinica, 2023, 52(11): 1873-1882. DOI: . doi: 10.11947/j.AGCS.2023.20220562
[6]	白正伟, 张勤, 黄观文, 等. “轻终端+行业云”的实时北斗滑坡监测技术[J]. 测绘学报, 2019, 48(11): 1424-1429. DOI: . doi: 10.11947/j.AGCS.2019.20190167
	BAI Zhengwei, ZHANG Qin, HUANG Guanwen, et al. Real-time BeiDou landslide monitoring technology of “light terminal plus industry cloud”[J]. Acta Geodaetica et Cartographica Sinica, 2019, 48(11): 1424-1429. DOI: . doi: 10.11947/j.AGCS.2019.20190167
[7]	SHI Junbo, HUANG Yongshuai, OUYANG Chenhao. A GPS relative positioning quality control algorithm considering both code and phase observation errors[J]. Journal of Geodesy, 2019, 93(9): 1419-1433.
[8]	李海洋. 复杂环境下BDS/GNSS桥梁变形监测算法的研究与应用分析[D]. 武汉: 武汉大学, 2022.
	LI Haiyang. Research and application analysis of BDS/GNSS bridge deformation monitoring algorithm in complex environment[D]. Wuhan: Wuhan University, 2022.
[9]	XUE Chenyu, PSIMOULIS P A, MENG Xiaolin. Feasibility analysis of the performance of low-cost GNSS receivers in monitoring dynamic motion[J]. Measurement, 2022, 202: 111819-111834.
[10]	栗广才. 大众智能手机GNSS模糊度固定理论与方法[D]. 武汉: 武汉大学, 2021.
	LI Guangcai. Theory and method of GNSS ambiguity resolution for smartphones[D]. Wuhan: Wuhan University, 2021.
[11]	LI Haiyang, NIE Guigen, CHEN Dezhong, et al. Constrained MLAMBDA method for multi-GNSS structural health monitoring[J]. Sensors, 2019, 19(20): 4462-4472.
[12]	戴吾蛟. GPS精密动态变形监测的数据处理理论与方法研究[D]. 长沙: 中南大学, 2007.
	DAI Wujiao. A study of data processing for precise dynamic deformation monitoring using GPS[D]. Changsha: Central South University, 2007.
[13]	HOU Cheng, SHI Junbo, OUYANG Chenhao, et al. A dual-base station constraint method to improve deformation monitoring precision consistency in strip regions[J]. Satellite Navigation, 2024, 5(1): 26-40.
[14]	JING Ce, HUANG Guanwen, ZHANG Qin, et al. GNSS/accelerometer adaptive coupled landslide deformation monitoring technology[J]. Remote Sensing, 2022, 14(15): 3537-3557.
[15]	SUN Ao, ZHANG Qiuzhao, YU Zhangjun, et al. A novel slow-growing gross error detection method for GNSS/accelerometer integrated deformation monitoring based on state domain consistency theory[J]. Remote Sensing, 2022, 14(19): 4758-4775.
[16]	JIANG Chen, ZHANG Shubi, CAO Yizhi, et al. A robust fault detection algorithm for the GNSS/INS integrated navigation systems[J]. Journal of Geodesy and Geoinformation Science, 2020, 3(1): 12-24.
[17]	HUANG Guanwen, DU Shi, WANG Duo. GNSS techniques for real-time monitoring of landslides: a review[J]. Satellite Navigation, 2023, 4(1): 5-14.
[18]	BIAN Hefang, ZHANG Shubi, ZHANG Qiuzhao, et al. Monitoring large-area mining subsidence by GNSS based on IGS stations[J]. Transactions of Nonferrous Metals Society of China, 2014, 24(2): 514-519.
[19]	WANG Haonan, DAI Wujiao, YU Wenkun. BDS/GPS multi-baseline relative positioning for deformation monitoring[J]. Remote Sensing, 2022, 14(16): 3884-3898.
[20]	LU L, LIU W, ZHANG X. An effective QR-based reduction algorithm for the fast estimation of GNSS high-dimensional ambiguity resolution[J]. Survey Review, 2018, 50(358): 57-68.
[21]	LI Bofeng, SHEN Yunzhong, FENG Yanming, et al. GNSS ambiguity resolution with controllable failure rate for long baseline network RTK[J]. Journal of Geodesy, 2014, 88(2): 99-112.
[22]	LI Bofeng, QIN Yanan, LIU Tianxia. Geometry-based cycle slip and data gap repair for multi-GNSS and multi-frequency observations[J]. Journal of Geodesy, 2019, 93(3): 399-417.
[23]	崔阳, 吕志平, 李林阳, 等. GNSS大网双差模型并行快速解算方法[J]. 测绘学报, 2017, 46(7): 848-856. DOI: . doi: 10.11947/j.AGCS.2017.20160585
	CUI Yang, LÜ Zhiping, LI Linyang, et al. A fast parallel processing strategy of double difference model for GNSS huge networks[J]. Acta Geodaetica et Cartographica Sinica, 2017, 46(7): 848-856. DOI: . doi: 10.11947/j.AGCS.2017.20160585
[24]	TEUNISSEN P J G. A canonical theory for short GPS baselines. Part I: the baseline precision[J]. Journal of Geodesy, 1997, 71(6): 320-336.
[25]	VERHAGEN S, LI Bofeng, TEUNISSEN P J G. Ps-LAMBDA: ambiguity success rate evaluation software for interferometric applications[J]. Computers & Geosciences, 2013, 54: 361-376.
[26]	TEUNISSEN P J G. Success probability of integer GPS ambiguity rounding and bootstrapping[J]. Journal of Geodesy, 1998, 72(10): 606-612.
[27]	姜卫平, 刘鸿飞, 刘万科, 等. 西龙池上水库GPS变形监测系统研究及实现[J]. 武汉大学学报(信息科学版), 2012, 37(8): 949-952, 1009.
	JIANG Weiping, LIU Hongfei, LIU Wanke, et al. CORS development for xilongchi dam deformation monitoring[J]. Geomatics and Information Science of Wuhan University, 2012, 37(8): 949-952, 1009.
[28]	LI Bofeng, TEUNISSEN P J G. GNSS antenna array-aided CORS ambiguity resolution[J]. Journal of Geodesy, 2014, 88(4): 363-376.
[29]	TEUNISSEN P J G, MONTENBRUCK O. Springer handbook of global navigation satellite systems[M]. Berlin: Springer, 2017.
[30]	WANG Xinpeng, ZHAO Qingzhi, XI Ruijie, et al. Review of bridge structural health monitoring based on GNSS: from displacement monitoring to dynamic characteristic identification[J]. IEEE Access, 2021, 9: 80043-80065.
[31]	XI Ruijie, JIANG Weiping, XUAN Wei, et al. Performance assessment of structural monitoring of a dedicated high-speed railway bridge using a moving-base RTK-GNSS method[J]. Remote Sensing, 2023, 15(12): 3132-3149.

监测站	单/多基线解算	无遮挡			Q₁			Q₂			Q₃			Q₄
监测站	单/多基线解算	E	N	U	E	N	U	E	N	U	E	N	U	E	N	U
u₁	SB	0.8	0.6	2.7	1.0	0.7	2.6	0.8	0.7	2.7	0.8	0.9	2.6	1.0	0.7	3.3
u₁	MB	0.7	0.5	2.7	1.0	0.7	2.0	0.7	0.7	2.7	0.7	0.7	2.7	0.5	0.6	2.9
u₂	SB	0.5	0.7	3.0	0.9	0.6	2.9	0.5	0.7	3.2	0.5	1.0	3.3	0.9	1.2	4.4
u₂	MB	0.5	0.7	3.1	1.2	0.7	3.1	0.5	0.8	2.9	0.5	1.0	3.1	0.7	1.5	3.8
u₃	SB	1.0	0.8	3.9	3.3	1.1	4.1	1.2	1.3	4.1	1.3	1.4	4.0	1.4	0.7	6.7
u₃	MB	1.0	0.7	3.5	3.3	1.5	2.7	0.9	1.1	3.5	1.2	1.3	3.2	1.5	0.9	5.0

单/多基线解算	高度角			遮挡区域
单/多基线解算	15°	25°	35°	Q1	Q2	Q3	Q4
SB	55.85	68.27	91.14	55.85	47.85	49.26	62.41
MB	22.75	23.67	37.68	46.07	37.98	38.71	50.14

单/多基线解算	ratio			高度角			遮挡区域
单/多基线解算	2	3	4	15°	25°	35°	Q₁	Q₂	Q₃	Q₄
SB	196.58	209.67	210.87	165.89	193.06	273.10	323.04	249.04	284.13	341.34
MB	143.31	156.65	158.97	117.26	147.88	208.39	242.16	193.04	217.48	244.58

单/多基线解算	u₁	u₂	u₃
SB	94.6	96.8	93.9
MB	98.6	98.6	98.5

监测站	单/多基线解算	STD
监测站	单/多基线解算	E	N	U
u₁	SB	0.81	0.88	2.47
u₁	MB	0.65	0.78	2.09
u₂	SB	0.76	0.93	2.77
u₂	MB	0.63	0.75	2.32
u₃	SB	0.77	0.83	2.47
u₃	MB	0.64	0.75	2.08
