稳定静态点云簇支持的LiDAR SLAM回环检测方法

doi:10.11947/j.AGCS.2025.20250252

测绘学报 ›› 2025, Vol. 54 ›› Issue (12): 2194-2205.doi: 10.11947/j.AGCS.2025.20250252

稳定静态点云簇支持的LiDAR SLAM回环检测方法

高佳鑫¹(), 隋心¹^,², 王长强¹, 徐爱功¹(), 史政旭¹

^1.辽宁工程技术大学测绘与地理科学学院，辽宁　阜新　123000
^2.辽宁工程技术大学鄂尔多斯研究院，内蒙古　鄂尔多斯　017000

收稿日期:2025-06-20 修回日期:2025-11-04 出版日期:2026-01-15 发布日期:2026-01-15
通讯作者: 徐爱功 E-mail:gao_jx9903@163.com;xu_ag@126.com
作者简介:高佳鑫（1999—），男，博士，研究方向为卫星定位与导航。　E-mail：gao_jx9903@163.com
基金资助:
国家自然科学基金(42404045);辽宁省自然科学基金计划博士科研启动项目(2024-BS-256);辽宁省教育厅基本科研项目(LJ212410147093);辽宁工程技术大学鄂尔多斯研究院校地科技合作培育项目(YJY-XD-2024-B-007)

Loop closure detection method for LiDAR SLAM supported by stable static point cloud clusters

Jiaxin GAO¹(), Xin SUI¹^,², Changqiang WANG¹, Aigong XU¹(), Zhengxu SHI¹

^1.School of Geomatics, Liaoning Technical University, Fuxin 123000, China
^2.Ordos Institute, Liaoning Technical University, Ordos 017000, China

Received:2025-06-20 Revised:2025-11-04 Online:2026-01-15 Published:2026-01-15
Contact: Aigong XU E-mail:gao_jx9903@163.com;xu_ag@126.com
About author:GAO Jiaxin (1999—), male, PhD, majors in satellite positioning and navigation. E-mail: gao_jx9903@163.com
Supported by:
The National Natural Science Foundation of China(42404045);The Liaoning Provincial Natural Science Foundation for the Doctoral Research Initiation Project(2024-BS-256);The Basic Research Projects of Liaoning Provincial Department of Education(LJ212410147093);The University-local Government Scientific and Technical Cooperation Cultivation Project of Ordos Institute-LNTU(YJY-XD-2024-B-007)

摘要/Abstract

摘要：

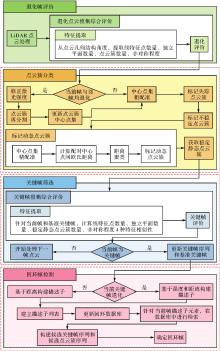

针对动态、退化、大规模杂乱场景中仅基于点云处理的回环检测方法稳健性差，且现有方法普遍存在平移敏感性弱和计算效率低的问题，本文提出了一种基于稳定静态点云簇词袋的回环检测方法。首先，针对预处理后的点云从环境结构角度评价其退化情况，并设计稳健的点云簇筛选方案获取稳定静态点云簇，以削弱动态目标干扰。然后，为减少回环信息冗余，采用模糊综合评价算法适应性地进行关键帧筛选。最后，基于稳定静态点云簇和关键帧筛选结果，提出一种基于点云簇局部描述子词袋的回环检测算法，利用稳定点云簇间相对空间关系以及属性联系提高词袋信息的平移及旋转敏感性，进而保证回环检测在退化及杂乱场景中的实际性能。试验结果表明，在实测场景中，本文方法能够稳健检测正确回环关系，且非回环帧误检率仅为5.56%，处理单帧关键帧耗时为0.052 8 s；相较于BoW3D、ISC、SGLC 3个同类对比方法，回环帧正确检测率平均提高了75.73%，非回环帧误检率平均降低了81.93%，且处理过程具备较强实时性，并展现出更强的稳健性和适用性。

关键词: 点云退化评价, 点云簇分类, 关键帧筛选, 词袋模型, 回环检测

Abstract:

In dynamic, degenerate, and large-scale cluttered environments, loop closure detection methods based solely on point cloud processing exhibit poor robustness. Moreover, existing methods generally suffer from weak translation sensitivity and low computational efficiency. To address these challenges, this paper proposes a bag-of-words with stable static point cloud clusters-based loop closure detection method. Firstly, the degradation of the preprocessed point cloud is evaluated from the environmental structure perspective, and a robust point cloud cluster classification scheme is designed to obtain the stable static point cloud clusters to weaken the interference of dynamic targets. Subsequently, to reduce the redundancy in loop closure information, the fuzzy comprehensive evaluation algorithm is used to adaptively filter the key frames. Finally, based on the stable static point cloud cluster and keyframe selection results, a bag-of-words with point cloud cluster local descriptors-based loop closure detection algorithm is proposed. The relative spatial relationship and attribute relationship between stable point cloud clusters are used to improve the translation and rotation sensitivity of bag information, so as to ensure the actual performance of loop closure detection in degenerate and cluttered scenes. Experimental results demonstrate that the proposed method can robustly detect the correct loop closure relationship in the measured scene, and the non-loop closure frame error detection rate is only 5.56%, with a single-keyframe processing time of 0.052 8 s. Compared with three similar methods BoW3D, ISC, and SGLC, the average improvement in the loop closure frame correct detection rate reaches 75.73%, the average reduction in the non-loop closure frame error detection rate is 81.93%, the processing has strong real-time performance, and it exhibits stronger robustness and applicability.

Key words: point cloud degradation evaluation, point cloud cluster classification, keyframe selection, bag-of-words model, loop closure detection

中图分类号:

P228

高佳鑫, 隋心, 王长强, 徐爱功, 史政旭. 稳定静态点云簇支持的LiDAR SLAM回环检测方法[J]. 测绘学报, 2025, 54(12): 2194-2205.

Jiaxin GAO, Xin SUI, Changqiang WANG, Aigong XU, Zhengxu SHI. Loop closure detection method for LiDAR SLAM supported by stable static point cloud clusters[J]. Acta Geodaetica et Cartographica Sinica, 2025, 54(12): 2194-2205.

图/表 9

图1

图2

图3

图4

表1

表2

图5

图6

表3

参考文献 30

[1]	YAROVOI A, CHO Y K. Review of simultaneous localization and mapping (SLAM) for construction robotics applications[J]. Automation in Construction, 2024, 162: 105344-105371.
[2]	蔺小虎, 杨鑫, 姚顽强, 等. 面向复杂地下空间的多源传感器数据动态加权融合SLAM方法[J]. 测绘学报, 2025, 54(3): 523-535. DOI: . doi: 10.11947/j.AGCS.2025.20230586
	LIN Xiaohu, YANG Xin, YAO Wanqang, et al. A dynamic weighted fusion SLAM method using multi-source sensor data in complex underground spaces[J]. Acta Geodaetica et Cartographica Sinica, 2025, 54(3): 523-535. DOI: . doi: 10.11947/j.AGCS.2025.20230586
[3]	AL-TAWIL B, HEMPEL T, ABDELRAHMAN A, et al. A review of visual SLAM for robotics: evolution, properties, and future applications[J]. Frontiers in Robotics and AI, 2024, 11: 1347985-1348002.
[4]	李帅鑫, 李九人, 田滨, 等. 面向点云退化的隧道环境的无人车激光SLAM方法[J]. 测绘学报, 2021, 50(11): 1487-1499. DOI: . doi: 10.11947/j.AGCS.2021.20210248
	LI Shuaixin, LI Jiuren, TIAN Bin, et al. A laser SLAM method for unmanned vehicles in point cloud degenerated tunnel environments[J]. Acta Geodaetica et Cartographica Sinica, 2021, 50(11): 1487-1499. DOI: . doi: 10.11947.AGCS.2021.20210248
[5]	YUE Xiangdi, ZHANG Yihuan, CHEN Jiawei, et al. LiDAR-based SLAM for robotic mapping: state of the art and new frontiers[J]. Industrial Robot: the International Journal of Robotics Research and Application, 2024, 51(2): 196-205.
[6]	WU Haoyu, CHEN Yinglong, YANG Qiming, et al. A review of underwater robot localization in confined spaces[J]. Journal of Marine Science and Engineering, 2024, 12(3): 428.
[7]	SHAN Tixiao, ENGLOT B. LeGO-LOAM: lightweight and ground-optimized LiDAR odometry and mapping on variable terrain[C]//Proceedings of 2018 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). Madrid: IEEE, 2018: 4758-4765.
[8]	SHAN Tixiao, ENGLOT B, MEYERS D, et al. LIO-SAM: tightly-coupled LiDAR inertial odometry via smoothing and mapping[C]//Proceedings of 2020 IEEE/RSJ International Conference on Intelligent Robots and Systems. Las Vegas: IEEE, 2020: 5135-5142.
[9]	KIM G, KIM A. Scan context: egocentric spatial descriptor for place recognition within 3D point cloud map[C]//Proceedings of 2018 IEEE/RSJ International Conference on Intelligent Robots and Systems. Madrid: IEEE, 2018: 4802-4809.
[10]	KIM G, CHOI S, KIM A. Scan Context++: structural place recognition robust to rotation and lateral variations in urban environments[J]. IEEE Transactions on Robotics, 2022, 38(3): 1856-1874.
[11]	WANG Ying, SUN Zezhou, XU Chengzhong, et al. LiDAR Iris for loop-closure detection[C]//Proceedings of 2020 IEEE/RSJ International Conference on Intelligent Robots and Systems. Las Vegas: IEEE, 2020: 5769-5775.
[12]	CUI Yunge, CHEN X, ZHANG Yinlong, et al. BoW3D: bag of words for real-time loop closing in 3D LiDAR SLAM[J]. IEEE Robotics and Automation Letters, 2023, 8(5): 2828-2835.
[13]	JI Xingliang, ZUO Lin, ZHANG Changhua, et al. LLOAM: LiDAR odometry and mapping with loop-closure detection based correction[C]//Proceedings of 2019 IEEE International Conference on Mechatronics and Automation. Tianjin: IEEE, 2019: 2475-2480.
[14]	WANG Han, WANG Chen, XIE Lihua. Intensity scan context: coding intensity and geometry relations for loop closure detection[C]//Proceedings of 2020 IEEE International Conference on Robotics and Automation. Paris: IEEE, 2020: 2095-2101.
[15]	潘锋, 蒋林, 胡雨欣, 等. 基于点云强度与高度信息的回环检测算法[J]. 武汉科技大学学报, 2022, 45(6): 464-471.
	PAN Feng, JIANG Lin, HU Yuxin, et al. Loop closure detection algorithm based on point cloud intensity and height information[J]. Journal of Wuhan University of Science and Technology, 2022, 45(6): 464-471.
[16]	WANG Neng, CHEN Xieyuanli, SHI Chenghao, et al. SGLC: semantic graph-guided coarse-fine-refine full loop closing for LiDAR SLAM[J]. IEEE Robotics and Automation Letters, 2024, 9(12): 11545-11552.
[17]	NGUYEN T M, YUAN Shenghai, CAO Muqing, et al. Viral SLAM: tightly coupled camera-IMU-UWB-LiDAR SLAM[EB/OL]. [2025-04-01]. https://arxiv.org/pdf/2105.03296.
[18]	LIN Jiarong, ZHENG Chunran, XU Wei, et al. R2LIVE: a robust, real-time, LiDAR-inertial-visual tightly-coupled state estimator and mapping[J]. IEEE Robotics and Automation Letters, 2021, 6(4): 7469-7476.
[19]	LEVINSON J, THRUN S. Unsupervised calibration for multi-beam lasers[M]//Experimental robotics. Berlin: Springer, 2014: 179-193.
[20]	HONG S, KO H, KIM J. VICP: velocity updating iterative closest point algorithm[C]//Proceedings of 2010 IEEE International Conference on Robotics and Automation. Anchorage: IEEE, 2010: 1893-1898.
[21]	FAN Weiwei, LIU Xinyi, ZHANG Yongjun, et al. Airborne LiDAR point cloud filtering algorithm based on supervoxel ground saliency[J]. ISPRS Annals of the Photogrammetry, Remote Sensing and Spatial Information Sciences, 2024, X-2-2024: 73-79.
[22]	HIMMELSBACH M, HUNDELSHAUSEN F V, WUENSCHE H J. Fast segmentation of 3D point clouds for ground vehicles[C]//Proceedings of 2010 IEEE Intelligent Vehicles Symposium. La Jolla: IEEE, 2010: 560-565.
[23]	徐爱功, 高佳鑫, 隋心, 等. 退化环境下LiDAR里程计定位方法[J]. 地球信息科学学报, 2024, 26(10): 2316-2334.
	XU Aigong, GAO Jiaxin, SUI Xin, et al. LiDAR odometry positioning method for degenerate environment[J]. Journal of Geo-information Science, 2024, 26(10): 2316-2334.
[24]	XU Aigong, GAO Jiaxin, SUI Xin, et al. LiDAR dynamic target detection based on multidimensional features[J]. Sensors, 2024, 24(5): 1369.
[25]	刘康, 仇培元, 刘希亮, 等. 利用词向量模型分析城市道路交通空间相关性[J]. 测绘学报, 2017, 46(12): 2032-2040. DOI: . doi: 10.11947/j.AGCS.2017.20170166
	LIU Kang, QIU Peiyuan, LlU Xiliang, et al. Measuring traffic correlations in urban road system using word embedding model[J]. Acta Geodaetica et Cartographica Sinica, 2017, 46(12): 2032-2040. DOI: . doi: 10.11947/j.AGCS.2017.20170166
[26]	OZENDI M, AKCA D, TOPAN H. A point cloud filtering method based on anisotropic error model[J]. The Photogrammetric Record, 2023, 38(184): 460-497.
[27]	王俊森, 金绍华, 边刚, 等. 结合不确定度与密度聚类算法的多波束异常值自动滤波算法[J]. 测绘学报, 2023, 52(10): 1669-1678. DOI: . doi: 10.11947/j.AGCS.2023.20220579
	WANG Junsen, JIN Shaohua, BIAN Gang, et al. A multi-beam outlier automatic filtering algorithm combining uncertainty and density clustering method[J]. Acta Geodaetica et Cartographica Sinica, 2023, 52(10): 1669-1678. DOI: . doi: 10.11947/j.AGCS.2023.20220579
[28]	SONG Dong, WANG Bukang, PANG Jifang, et al. Feasibility evaluation of highwall mining in open-pit coal mine based on method of integrated analytic hierarchy process-fuzzy comprehensive evaluation-variable weight theory[J]. Electronics, 2023, 12(21): 4460.
[29]	GUO Lei, XU Jihui, HE Weihui. Health assessment of mission-oriented TT&C antenna[J]. Journal of Physics: Conference Series, 2023, 2489(1): 012019.
[30]	杨文娟, 王文明, 王全玉, 等. 基于感知哈希和视觉词袋模型的图像检索方法[J]. 图学学报, 2019, 40(3): 519-524.
	YANG Wenjuan, WANG Wenming, WANG Quanyu, et al. Image retrieval method based on perceptual hash algorithm and bag of visual words[J]. Journal of Graphics, 2019, 40(3): 519-524.

方法	场景	ηr	η_e	t
BoW3D	1	1.000 0	0.166 7	0.053 8
	2	0.733 3	1.000 0	0.056 7
	3	1.000 0	0.250 0	0.073 4
	均值	0.911 1	0.472 2	0.061 3
ISC	1	0.000 0	0.000 0	0.071 0
	2	0.266 7	0.500 0	0.072 6
	3	0.692 3	0.000 0	0.096 2
	均值	0.319 7	0.166 7	0.079 9
SGLC	1	1.000 0	0.333 3	0.045 6
	2	0.866 7	1.000 0	0.046 1
	3	1.000 0	0.500 0	0.050 2
	均值	0.955 6	0.611 1	0.047 3
本文方法	1	1.000 0	0.166 7	0.046 7
	2	1.000 0	0.000 0	0.048 9
	3	1.000 0	0.000 0	0.062 8
	均值	1.000 0	0.055 6	0.052 8

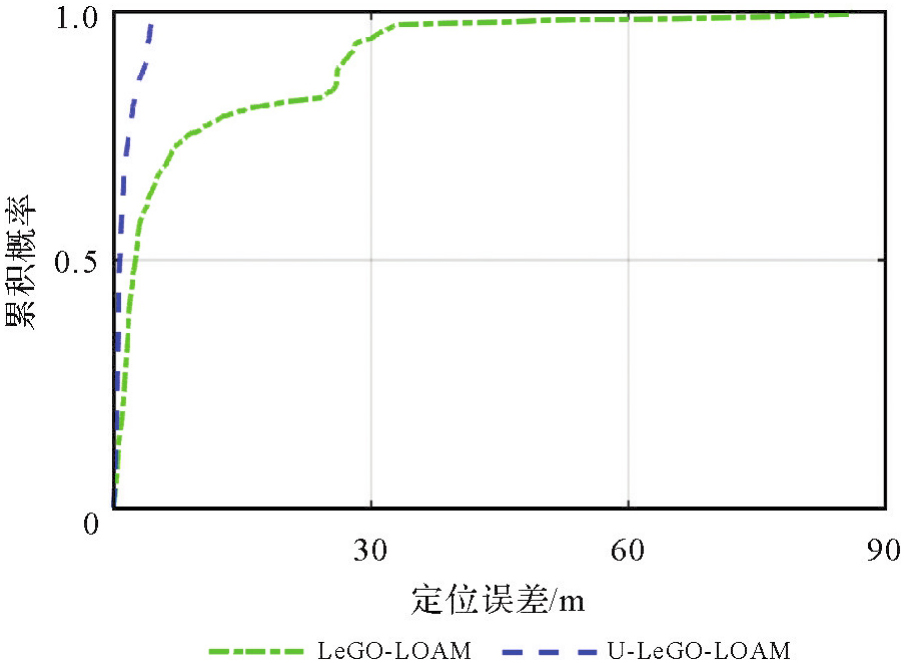

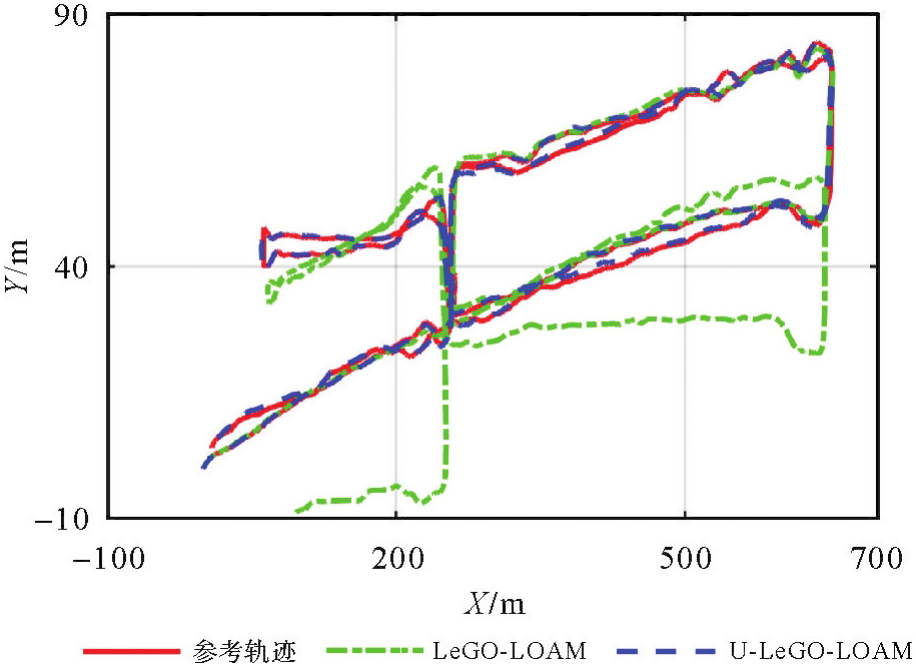

算法	RMSE/m	ME/m	单帧耗时/s
LeGO-LOAM	13.456 9	86.224 1	0.037 2
U-LeGO-LOAM	1.249 9	4.528 8	0.047 6

稳定静态点云簇支持的LiDAR SLAM回环检测方法

Loop closure detection method for LiDAR SLAM supported by stable static point cloud clusters

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 9

参考文献 30

相关文章 15

编辑推荐

Metrics

本文评价

[1]	李博峰, 陈龙, 袁雷童. GNSS多基线联合解算的高精度变形监测方法[J]. 测绘学报, 2025, 54(12): 2116-2128.
[2]	耿涛, 李强, 程凌岳, 刘经南. GNSS与低轨卫星相对论效应改正方法[J]. 测绘学报, 2025, 54(12): 2129-2141.
[3]	张守建, 曹新运, 葛玉龙, 沈飞. GLONASS-K与GLONASS-M+卫星姿态建模对卫星钟差估计和精密单点定位的影响[J]. 测绘学报, 2025, 54(12): 2142-2152.
[4]	陈健, 王佳辉, 赵兴旺, 刘超, 刘春阳, 余学祥. BDS-3/Galileo星座多频弱电离层组合单历元RTK定位优化方法[J]. 测绘学报, 2025, 54(12): 2153-2167.
[5]	李新瑞, 曲轩宇, 张勤, 舒宝, 孟岭恩, 许豪, 张双成, 黄观文, 武翰文, 王利. 数据驱动的PPP-RTK多径误差缓解方法及其在变形监测中的应用[J]. 测绘学报, 2025, 54(12): 2168-2181.
[6]	谷宇鹏, 刘万科, 张小红, 胡捷, 胡树杰, 雷维豪, 郑凯. 鱼眼图像支持的GNSS随机模型神经网络生成方法[J]. 测绘学报, 2025, 54(12): 2206-2218.
[7]	陈志键. LiDAR SLAM/INS/UWB多源信息融合定位理论方法研究[J]. 测绘学报, 2025, 54(12): 2290-2290.
[8]	饶维龙. 基于GRACE时变重力的青藏高原质量迁移与地壳变形研究[J]. 测绘学报, 2025, 54(12): 2291-2291.
[9]	杨柳. 精密单点定位反演大气水汽关键模型研究[J]. 测绘学报, 2025, 54(12): 2294-2294.
[10]	齐霁. 广义监督信号引导的可见光遥感影像解译基础模型[J]. 测绘学报, 2025, 54(12): 2296-2296.
[11]	郭树人, 蔡洪亮, 高为广, 周巍, 耿长江, 李罡, 董明, 宿晨庚, 姜坤, 孟轶男, 陈雷, 潘军洋, 李凯, 李奇奋, 唐小妹, 张爽娜, 胡小工. 面向精确可信PNT服务的新型全球卫星导航系统架构[J]. 测绘学报, 2025, 54(11): 1934-1953.
[12]	顾元元, 姚旭, 安璐, 乔刚, 郝彤. 基于高精度动态GNSS测线的中国南极内陆科考路线平整度分析与评估[J]. 测绘学报, 2025, 54(11): 1968-1979.
[13]	宋瀚昀, 李昕, 黄观文, 李航. 无人机气压计测高模型精化及GNSS/SINS组合定位增强[J]. 测绘学报, 2025, 54(11): 1980-1991.
[14]	李博. BDS-3/GNSS PPP-RTK增强产品估计和可信定位方法[J]. 测绘学报, 2025, 54(11): 2097-2097.
[15]	叶飞. BDS/GNSS卫星精密轨道确定关键技术研究[J]. 测绘学报, 2025, 54(11): 2101-2101.

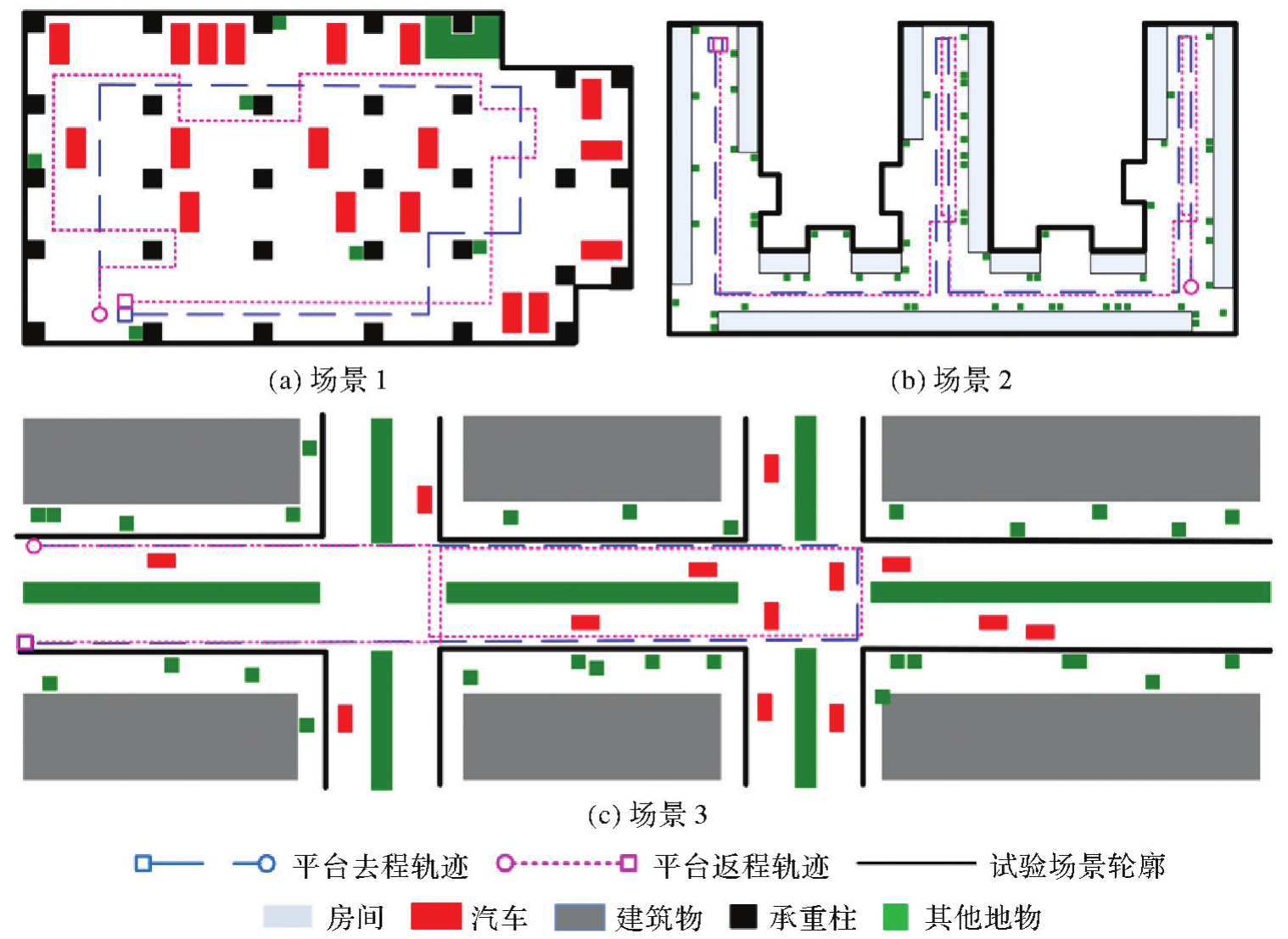

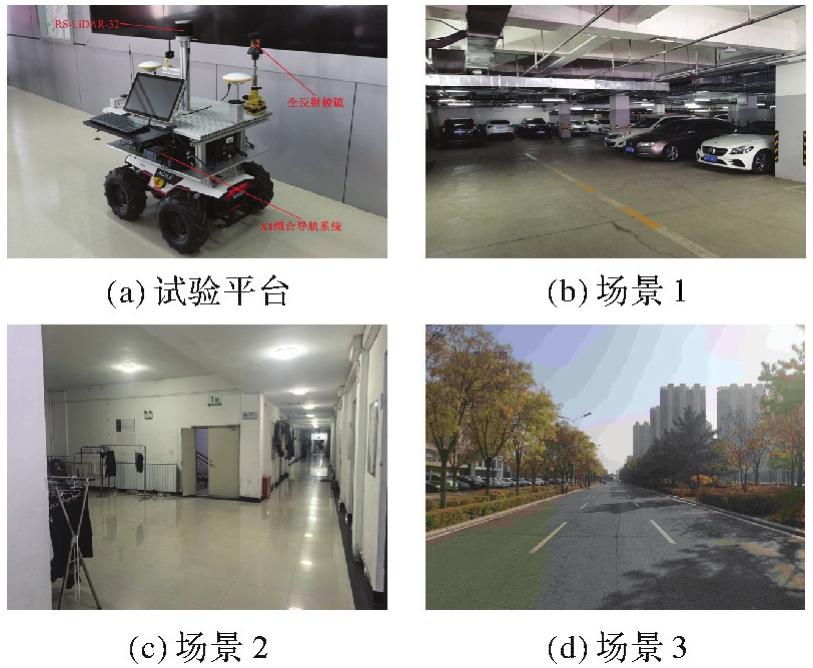

场景	去程关键帧	返程关键帧	返程回环帧	返程非回环帧
