Buoys-aided integrated navigation method for UUV under ice with sea ice drift compensation

doi:10.11947/j.AGCS.2026.20260028

Abstract

Abstract:

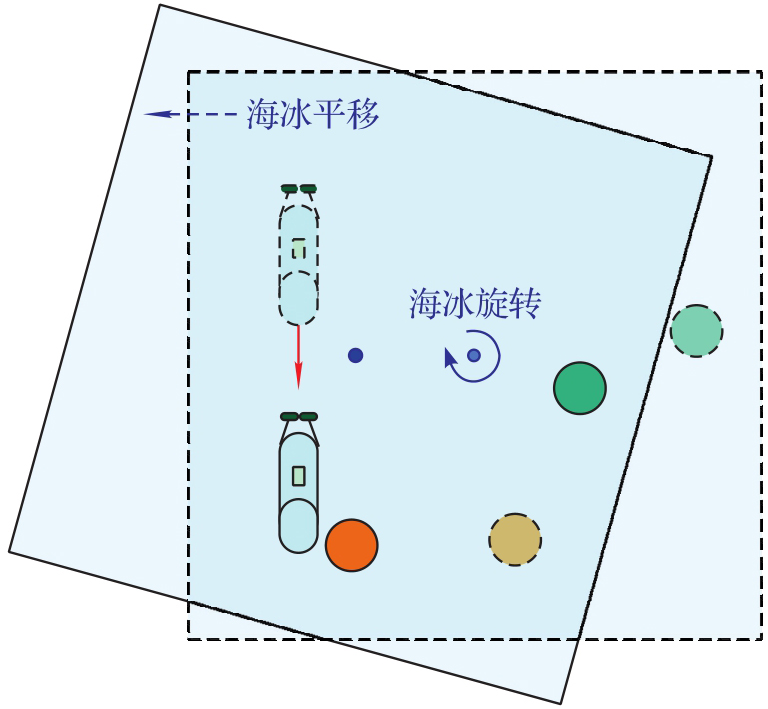

To address the problem that the measurement values of the upward-looking Doppler velocity log (DVL) are significantly affected by sea ice drift when unmanned underwater vehicle (UUV) navigate under ice, a buoy-aided integrated navigation method for UUV under ice is proposed. Firstly, a sea ice drift motion model is established to clarify the coupling mechanism of sea ice drift on UUV velocity measurements. Secondly, the measurement error equations of each sensor considering sea ice drift are derived in detail, and the Kalman filter models for the UUV inertial navigation/upward-looking DVL integrated navigation assisted by single-buoysanddouble-buoysareconstructedrespectively. Finally, simulation experiments are designed. The results show that, in the single-buoy-aided mode, the proposed algorithm effectively suppresses the systematic errors induced by sea ice drift, achieving a positioning error reduction of 81.96% over the traditional SINS/upward-looking DVL integrated navigation method ignoring sea ice drift errors. In the dual-buoy-aided mode, by leveraging baseline motion information, the algorithm enables accurate estimation of sea ice drift errors, further reducing positioning error by 93.29% compared to traditional method. This provides an effective solution for long-endurance, high-precision UUV navigation under ice.

Key words: sea ice drift, unmanned underwater vehicle, under-ice navigation and positioning, ice-based buoy, upward-looking DVL, Kalman filter

CLC Number:

P229

Siyuan BAI, Hongzhou CHAI, Qing WU, Gen LI, Yuhao YE, Honglei MA. Buoys-aided integrated navigation method for UUV under ice with sea ice drift compensation[J]. Acta Geodaetica et Cartographica Sinica, 2026, 55(4): 698-707.

Figures/Tables 12

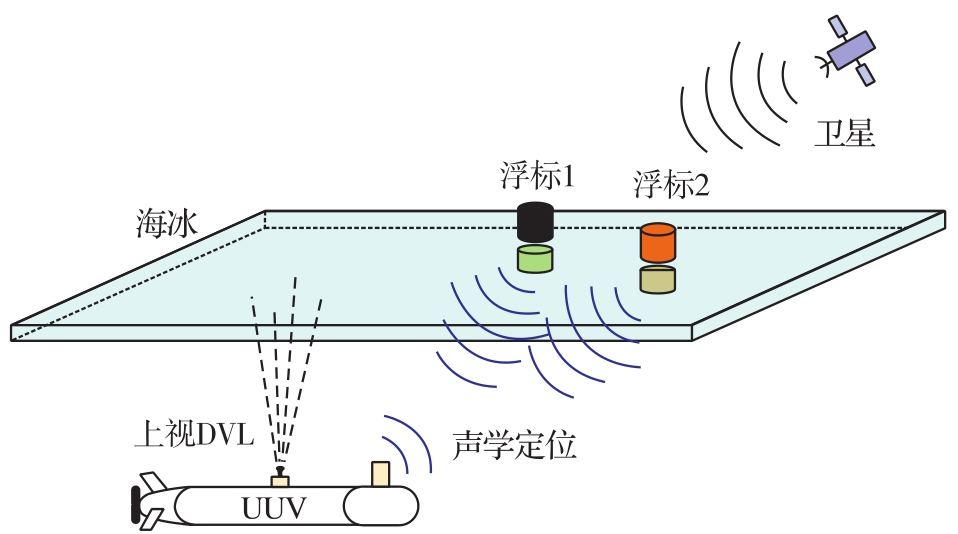

Fig. 1

Fig. 2

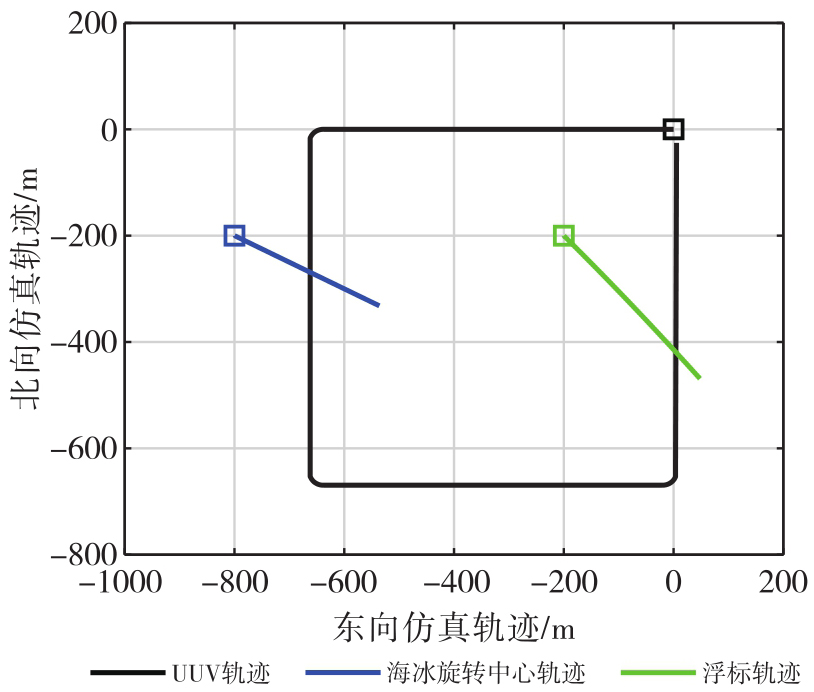

Fig. 3

Tab. 1

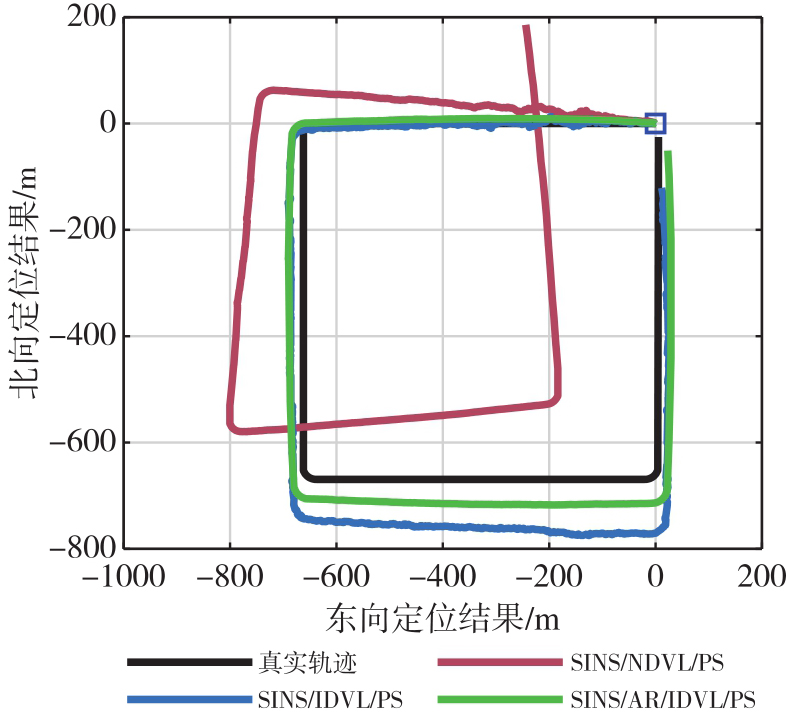

Fig. 4

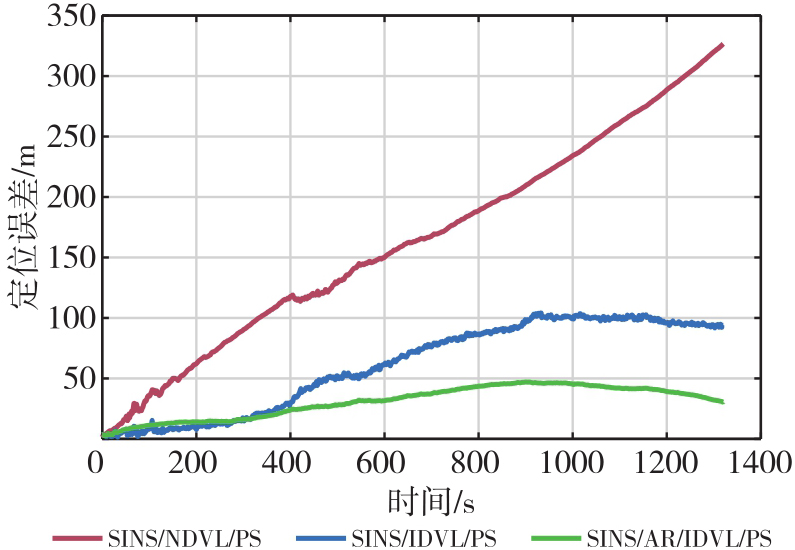

Fig. 5

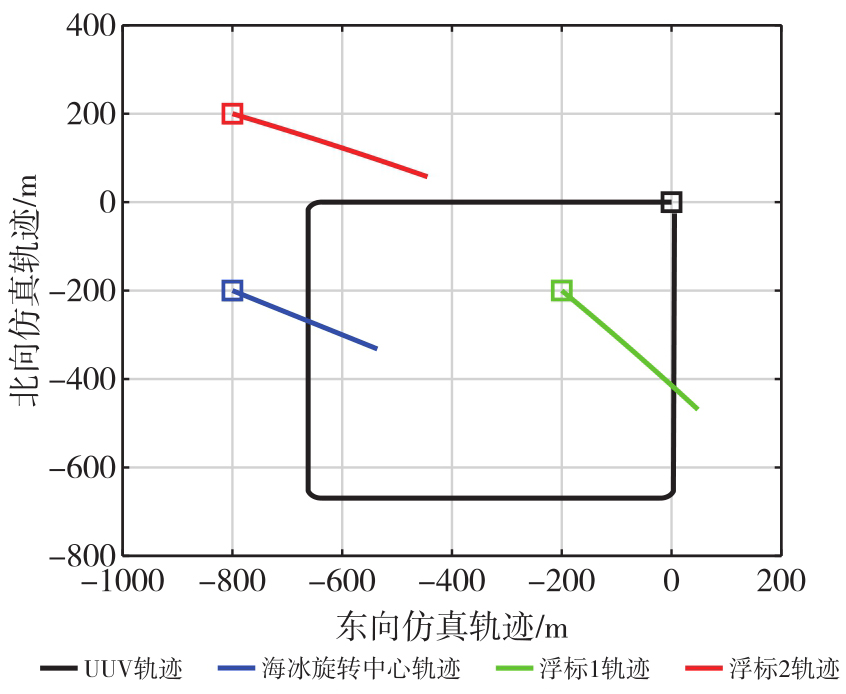

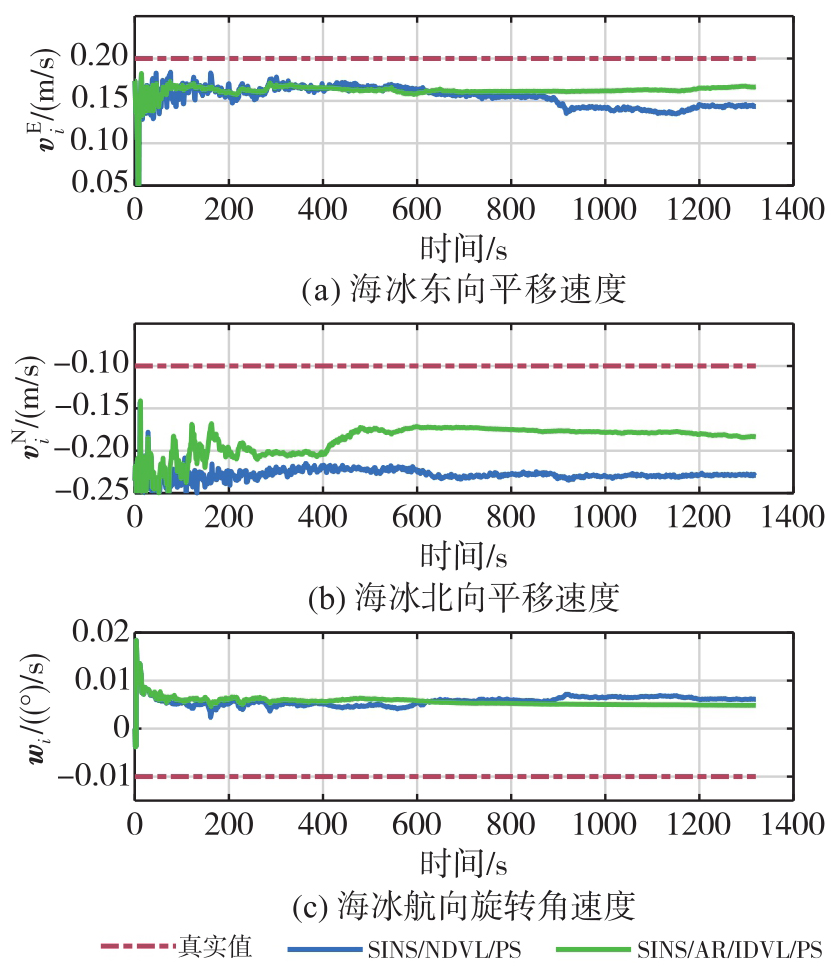

Fig. 6

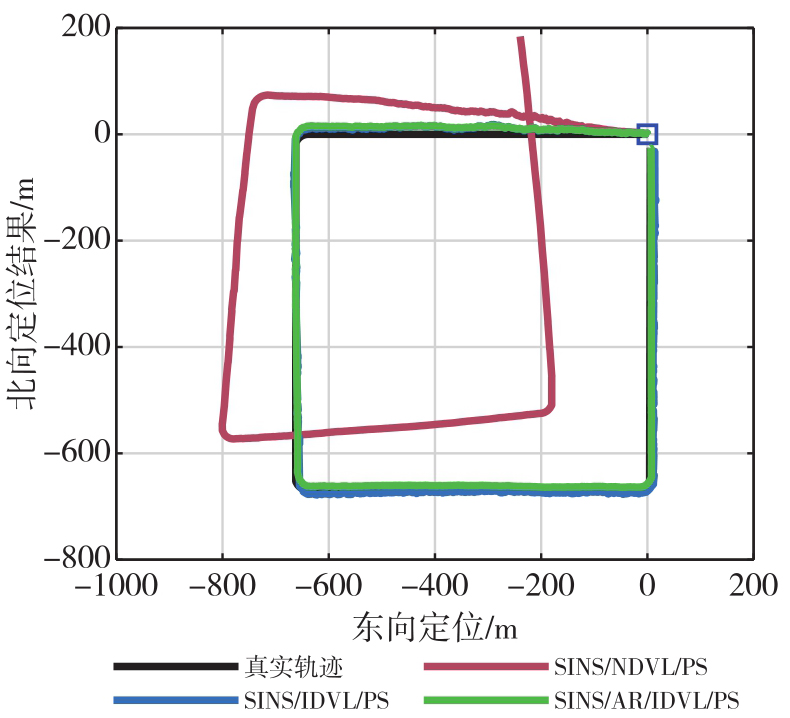

Fig. 7

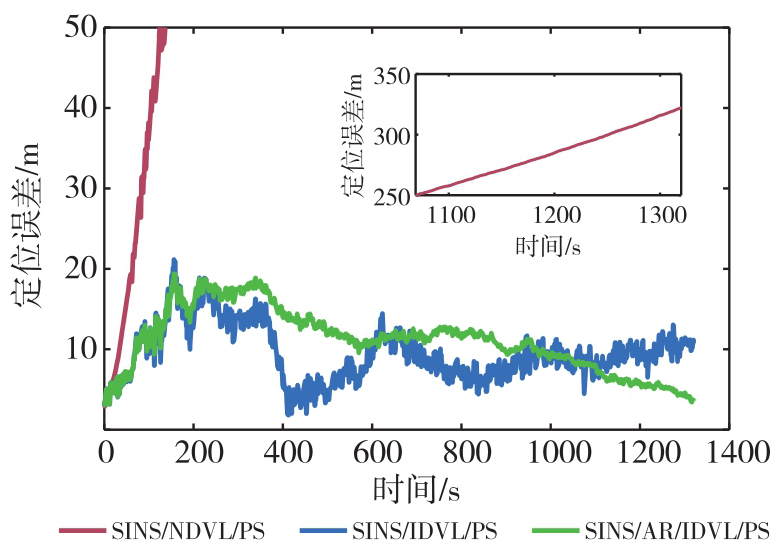

Fig. 8

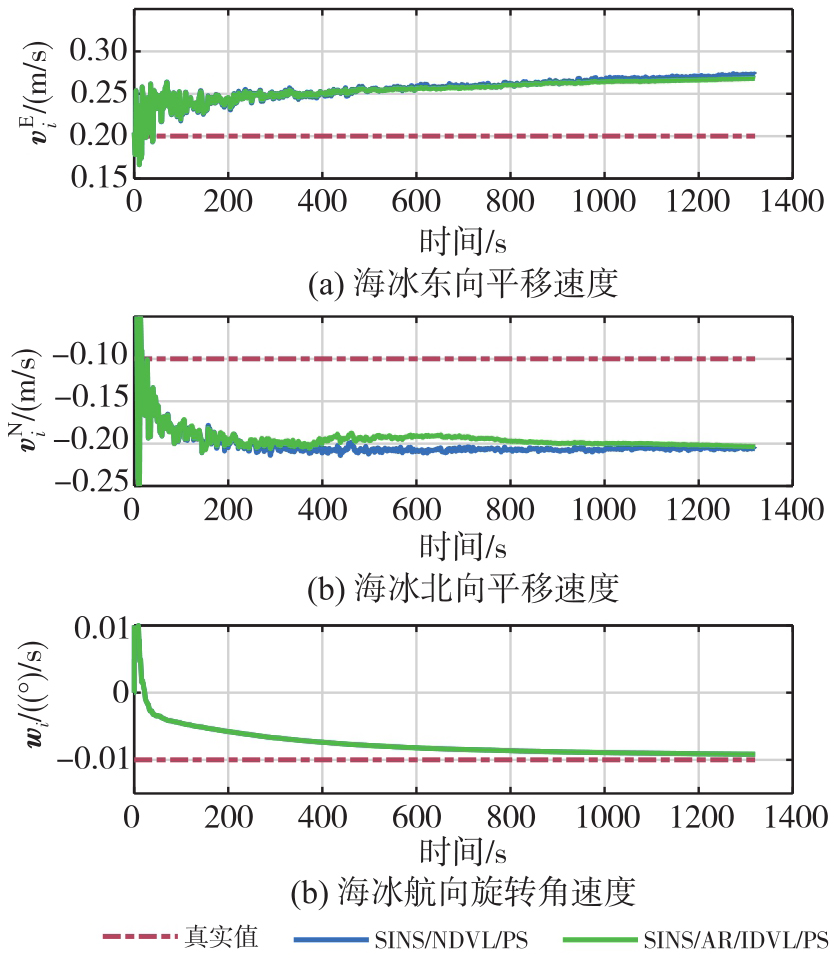

Fig. 9

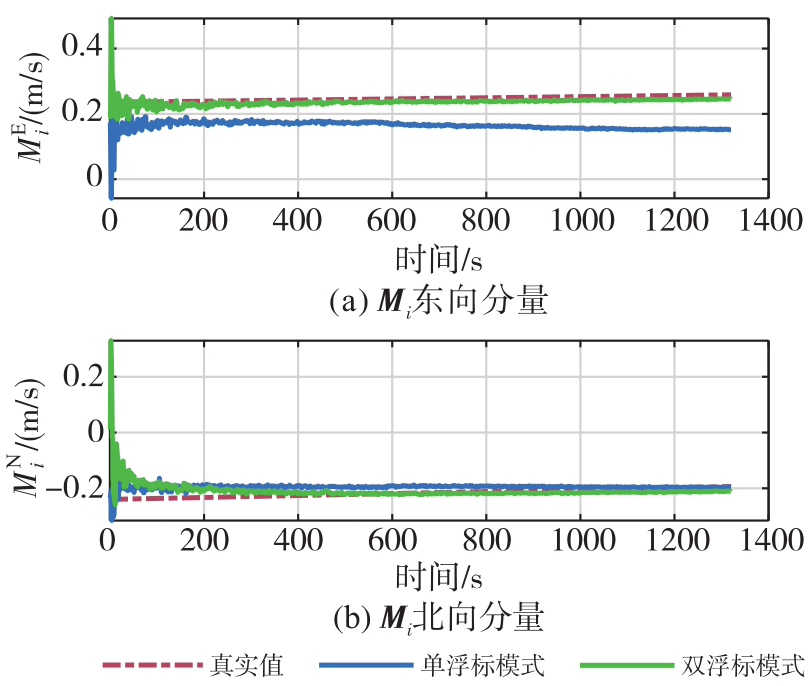

Fig. 10

Fig. 11

References 32

[1]	SCAMBOS T, BELL R, ALLEY R, et al. How much, how fast? A science review and outlook for research on the instability of Antarctica's Thwaites Glacier in the 21st century[J]. Global and Planetary Change, 2017, 153: 16-34.
[2]	BERKMAN P, VYLEGZHANIN A. Environmental security in the Arctic Ocean[M]. Dordrecht: Springer Netherlands, 2013.
[3]	何在民, 程昊威, 肖恭伟, 等. 基于改进的Sage-Husa自适应滤波GNSS/INS组合导航算法[J]. 西安邮电大学学报, 2025, 30(05): 22-30.
	HE Zaimin, CHENG Haowei, XIAO Gongwei, et al. GNSS/INS integrated navigation algorithm based on improved Sage-Husa adaptive filtering[J]. Journal of Xi'an University of Posts and Telecommunications, 2025, 30(5): 22-30.
[4]	陈驰, 吴刚, 贾洞洞, 等. 科考型自主无人潜航器在极地的应用以及未来发展趋势[J]. 船舶, 2024, 35(1): 59-69.
	CHEN Chi, WU Gang, JIA Dongdong, et al. Application and future development of scientific research autonomous underwater vehicles in polar regions[J]. Ship & Boat, 2024, 35(1): 59-69.
[5]	DUTRIEUX P, JENKINS A, NICHOLLS K. Ice-shelf basal morphology from an upward-looking multibeam system deployed from an autonomous underwater vehicle[J]. Geological Society, London, Memoirs, 2016, 46(1): 219-220.
[6]	WADHAMS P, WILKINSON J, MCPHAIL S. A new view of the underside of Arctic sea ice[J]. Geophysical Research Letters, 2006, 33(4): 2005GL025131.
[7]	NICHOLLS K, ABRAHAMSEN E, BUCK J, et al. Measurements beneath an Antarctic ice shelf using an autonomous underwater vehicle[J]. Geophysical Research Letters, 2006, 33(8): 2006GL025998.
[8]	JENKINS A, DUTRIEUX P, JACOBS S, et al. Observations beneath Pine Island Glacier in West Antarctica and implications for its retreat[J]. Nature Geoscience, 2010, 3(7): 468-472.
[9]	BANDARA D, LEONG Z, NGUYEN H, et al. Technologies for under-ice AUV navigation[C]//Proceedings of 2016 IEEE/OES Autonomous Underwater Vehicles. Tokyo: IEEE, 2016: 108-114.
[10]	TAL A, KLEIN I, KATZ R. Inertial navigation system/doppler velocity log (INS/DVL) fusion with partial DVL measurements[J]. Sensors, 2017, 17(2): 415.
[11]	THORLEIFSON J, DAVIES T, BLACK M, et al. The theseus autonomous underwater vehicle. A canadian success story[C]//Proceedings of 1997 MTS/IEEE Oceans. Halifax: IEEE, 1997: 1001-1006.
[12]	FERGUSON J, POPE A, BUTLER B, et al. Theseus AUV-two record breaking missions[J]. Sea Technology Magazine, 1999, 40(2): 65-70.
[13]	KAMINSKI C, CREES T, FERGUSON J, et al. 12 days under ice—an historic AUV deployment in the Canadian High Arctic[C]//Proceedings of 2010 IEEE/OES Autonomous Underwater Vehicles. Monterey: IEEE, 2010: 1-11.
[14]	CREES T, KAMINSKI C, FERGUSON J, et al. UNCLOS under ice survey-an historic AUV deployment in the Canadian high arctic[C]//Proceedings of 2010 MTS/IEEE Oceans. Seattle: IEEE, 2010: 1-8.
[15]	BOWEN A, YOERGER D, GERMAN C, et al. Design of Nereid-UI: a remotely operated underwater vehicle for oceanographic access under ice[C]//Proceedings of 2014 IEEE Oceans. St. John's: IEEE, 2014: 1-6.
[16]	YEO R. Surveying the underside of an Arctic ice ridge using a man-portable GAVIA AUV deployed through the ice[C]//Proceedings of 2007 IEEE Oceans. Vancouver: IEEE, 2007: 1-8.
[17]	KIMURA N, TATEYAMA K, SATO K, et al. Unusual drift behaviour of multi-year sea ice in the beaufort sea during summer 2018[J]. Polar Research, 2020, 39(0): 3617.
[18]	WANG X, CHEN Z, FANG Y, et al. An improvement in accuracy and spatial resolution of the pattern-matching sea ice drift from SAR imagery[J]. International Journal of Digital Earth, 2023, 16(2): 4073-4094.
[19]	BARKER L, WHITCOMB L. A preliminary study of ice-relative underwater vehicle navigation beneath moving sea ice[C]//Proceedings of 2018 IEEE International Conference on Robotics and Automation. Brisbane: IEEE, 2018: 7484-7491.
[20]	BARKER L, JAKUBA M, BOWEN A, et al. Scientific challenges and present capabilities in underwater robotic vehicle design and navigation for oceanographic exploration under-ice[J]. Remote Sensing, 2020, 12(16): 2588.
[21]	BARKER L, WHITCOMB L. Preliminary simulation of a deployable GPS navigation system for ice-relative dead reckoning of underwater vehicles under moving sea ice[C]//Proceedings of 2016 MTS/IEEE Oceans. Monterey: IEEE, 2016: 1-4.
[22]	MCFARLAND C, JAKUBA M, SUMAN S, et al. Toward ice-relative navigation of underwater robotic vehicles under moving sea ice: experimental evaluation in the Arctic sea[C]//Proceedings of 2015 IEEE International Conference on Robotics and Automation. Seattle: IEEE, 2015: 1527-1534.
[23]	HWANG J, FAN S, KING P, et al. Development of error reduction model using Bayesian filter for AUV navigating under moving ice[C]//Proceedings of 2018 IEEE/OES Autonomous Underwater Vehicle Workshop. Porto: IEEE, 2018: 1-6.
[24]	郭井学, 孙波, 李群, 等. 极地海冰浮标的现状与应用综述[J]. 极地研究, 2011, 23(2): 149-157.
	GUO Jingxue, SUN Bo, LI Qun, et al. Application and development of the buoys based on polar sea ice[J]. Chinese Journal of Polar Research, 2011, 23(2): 149-157.
[25]	WEBSTER S, FREITAG L, LEE C, et al. Towards real-time under-ice acoustic navigation at mesoscale ranges[C]//Proceedings of 2015 IEEE International Conference on Robotics and Automation. Seattle: IEEE, 2015: 537-544.
[26]	HEGRENÆS Ø, WALLACE C, BØRHAUG E. Autonomous under-ice surveying using the MUNIN AUV and single-transponder navigation[C]//Proceedings of 2017 IEEE Oceans. Anchorage: IEEE, 2017: 1-10.
[27]	田瑞菊. 基于单信标测距的极地AUV冰下导航方法研究[D]. 哈尔滨: 哈尔滨工程大学, 2022.
	TIAN Ruiju. Research on polar AUV under ice navigation method based on range measurements from a single beacon[D]. Harbin: Harbin Engineering University, 2022.
[28]	王文平. 水声测距辅助的极地AUV导航方法研究[D]. 哈尔滨: 哈尔滨工程大学, 2024.
	WANG Wenping. Research on polar AUV navigation aided by underwater acoustic ranging[D]. Harbin: Harbin Engineering University, 2024.
[29]	程驰宇, 郑翠娥, 张居成, 等. 极地冰下声学定位导航技术现状及发展趋势[J]. 导航与控制, 2024, 23(Z1): 15-24.
	CHENG Chiyu, ZHENG Cui'e, ZHANG Jucheng, et al. Research status and development trend of polar under-ice acoustic positioning and navigation technology[J]. Navigation and Control, 2024, 23(Z1): 15-24.
[30]	BIAN Y, LI R, WANG G, et al. Tightly coupled information fusion for SINS/DVL/USBL integrated navigation of UUV[J]. IEEE Transactions on Instrumentation and Measurement, 2023, 72: 1-13.
[31]	BARKER L, WHITCOMB L. Performance analysis of ice-relative upward-looking Doppler navigation of underwater vehicles beneath moving sea ice[J]. Journal of Marine Science and Engineering, 2021, 9(2): 174-196.
[32]	JIN K, CHAI H, SU C, et al. A compensation algorithm with motion constraint in DVL/SINS tightly coupled positioning[J]. Marine Geodesy, 2022, 45(4): 380-406.

传感器	参数	取值
陀螺仪	零偏/（（°）/h）	0.2
陀螺仪	随机游走/	0.01
加速度计	零偏/μg	100
加速度计	随机游走/	50
DVL	随机误差（1σ）/（m/s）	[0.1，0.1，0.1]
声学测距	随机误差（1σ）/m	3
GNSS	随机误差（1σ）/m	[1，1，1]
PS	随机误差（1σ）/m	0.1
